LCD Glass Panels - Custom Display Solution Provider

Sourcing Monochrome LCD Glass Panels Just in One Place

- The Ultimate Solutions

You need more than just a display, you need a veteran supplier who has been in the field for 20 years to build your brand and grow your profits. Let DISPLAYMAN help you achieve business success.

Tutorial: Dr Pan Teaches How Monochrome LCD Screen Works

Script

Dr Pan: Welcome to DISPLAY Museum. I am Dr Pan, the curator of Museum.

Greg: Hello, Dr Pan. I am Greg. I came here to learn about Monochrome LCD Screen.

Dr Pan: Hello, Greg. Monochrome LCD Panel can be made with TN, HTN, STN, FSTN and VA technology. It can be divided into dot matrix and segment LCD on the basis of the display mode. Depending on the types of polarizers, it can be divided into transmissive LCD, reflective LCD and transflective LCD.

Let us look at the typical structure of monochrome LCD. From top to bottom, top polarizer, top ITO glass, ITO film,liquid crystal, ITO film,bottom ITO glass and bottom polarizer.

Liquid crystal is an organic compound. It is liquid in a certain temperature range and crystal in a lower temperature. Under the influence of electric field, the liquid crystal molecules will be arranged in regular rotation of 90°, resulting in the “on/off”of light transmittance. According to this principle, we can control the image we need.

Greg: Dr Pan, we can see colorful LCD screen all the time. Do we still need Monochrome LCD screen?

Dr Pan: Absolutely. First, it is cheaper. And usually, the colorful screens we can see are standard products, which do not need to be designed. Monochrome LCD screen is highly customized product. You can select the outer dimension, the view area, the connection type, the display mode, the view degree, the type of the polarizer and the driving mode according to your requirements.

Greg: Thank you, Dr Pan. Now I got it.

Dr Pan: Welcome to contact us if you have any question.

Feature Products

There are more than 100 new prototypes being developed every month and only a few selected typical feature products are displayed.

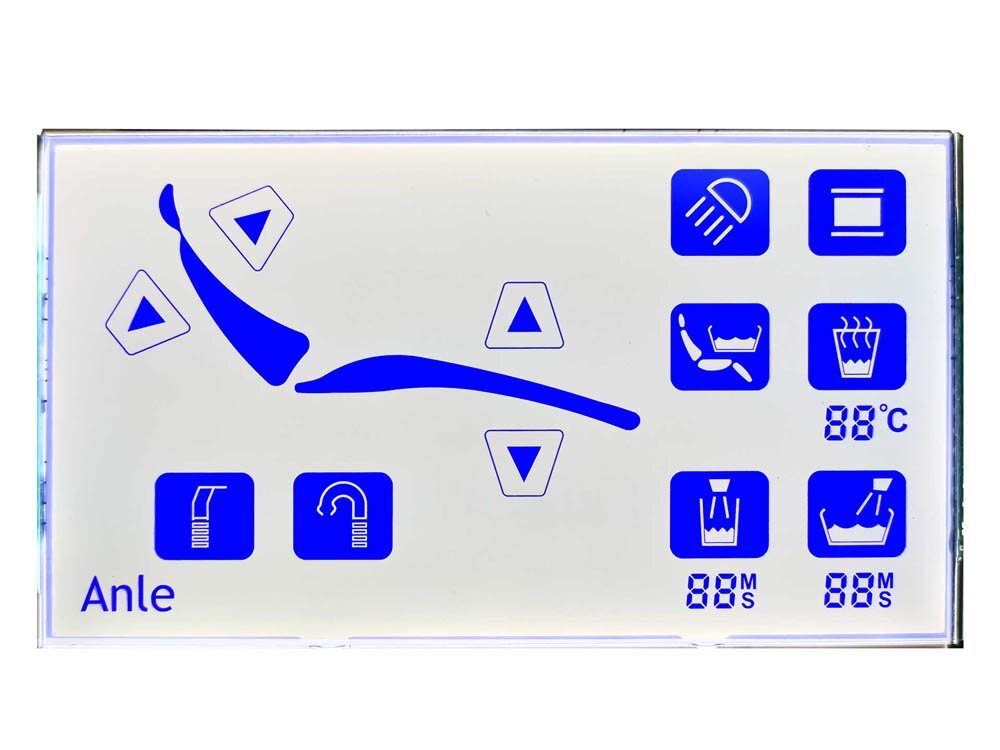

Display Type: STN / Segment with Touch Button

Display Size: Customized

Display Mode: Positive/ Transmissive

Display effect: Grey Background and Blue Letters

Application: Water Equipment

Backlight: White

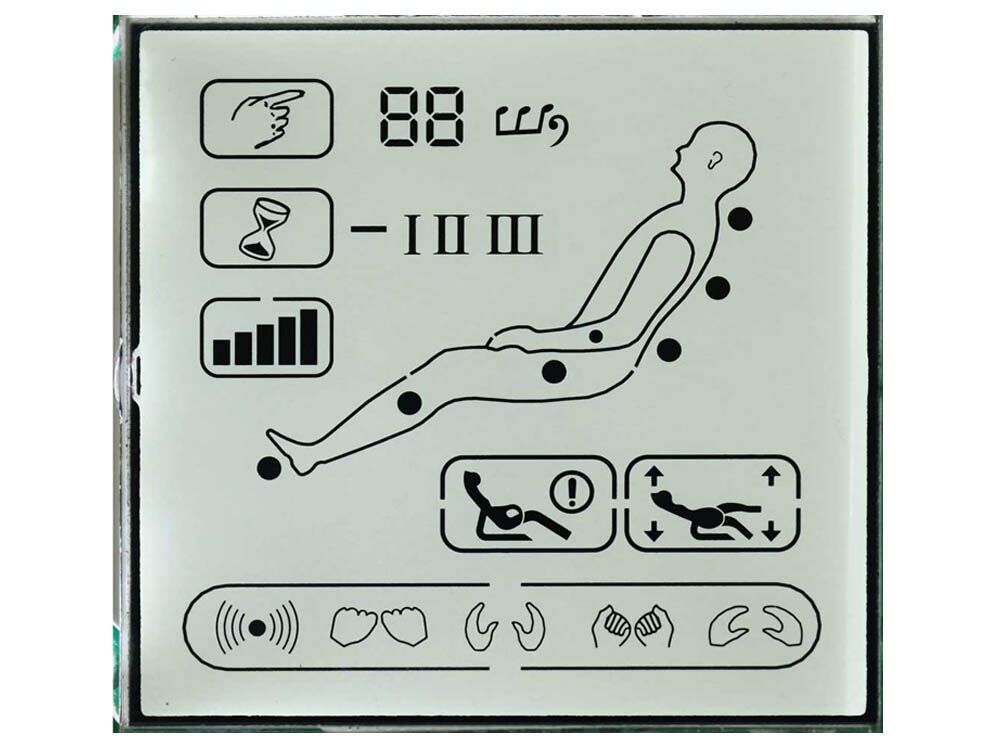

Display Type: TN / Segment

Display Size: Customized

Display Mode: Positive/Transflective

Display effect: Grey Background and Black Letters

Application: Massage Chair

Backlight: White

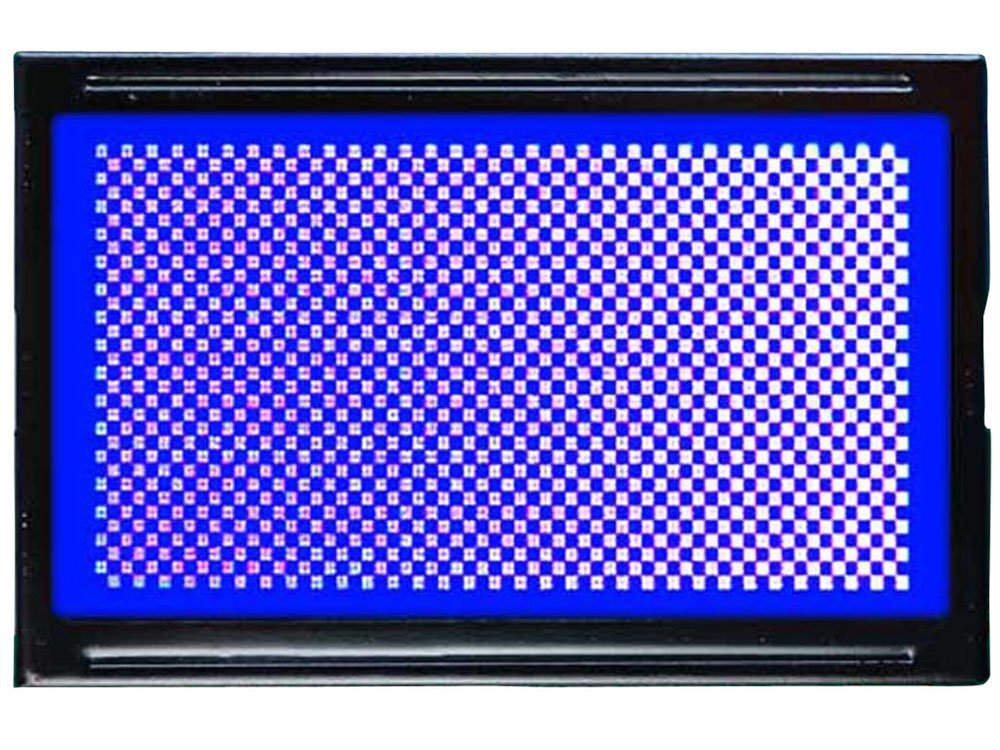

Display Type: STN / Dot Matrix

Display Size: Customized

Display Mode: Negative/ Transmissive

Display effect: Blue Background and White Letters

Backlight:White

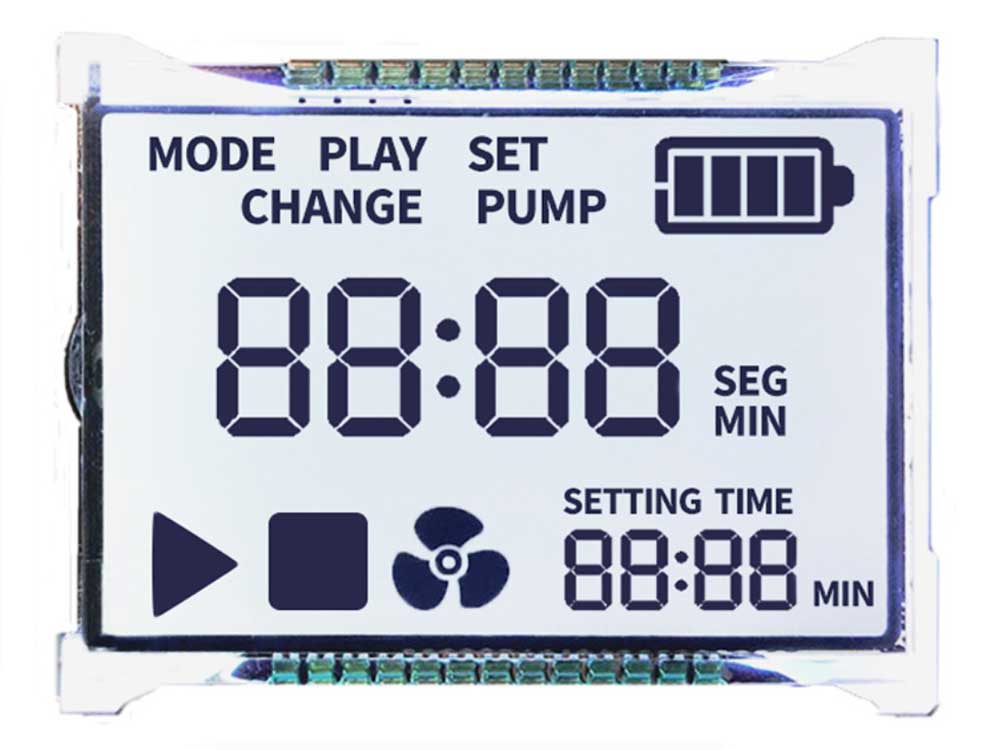

Display Type: HTN / Segment

Display Size: Customized

Display Mode: Positive/Transmissive

Display effect: Grey Background and White Letters

Application: Water Pump Machine

Backlight: White

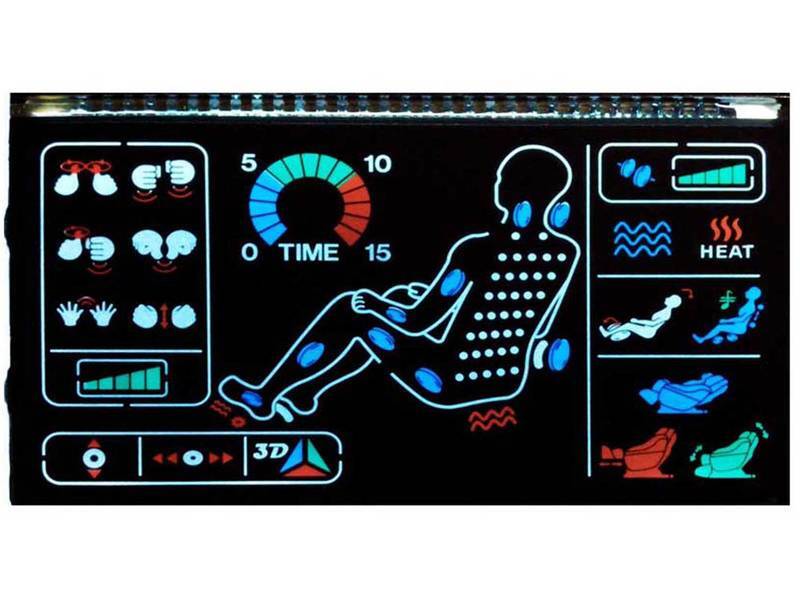

Display Type: VA / Segment

Display Size: Customized

Display Mode: Negative/ Transmissive

Display effect: Black Background and White Letters with Silk printing

Application: Massage Chair

Backlight: White

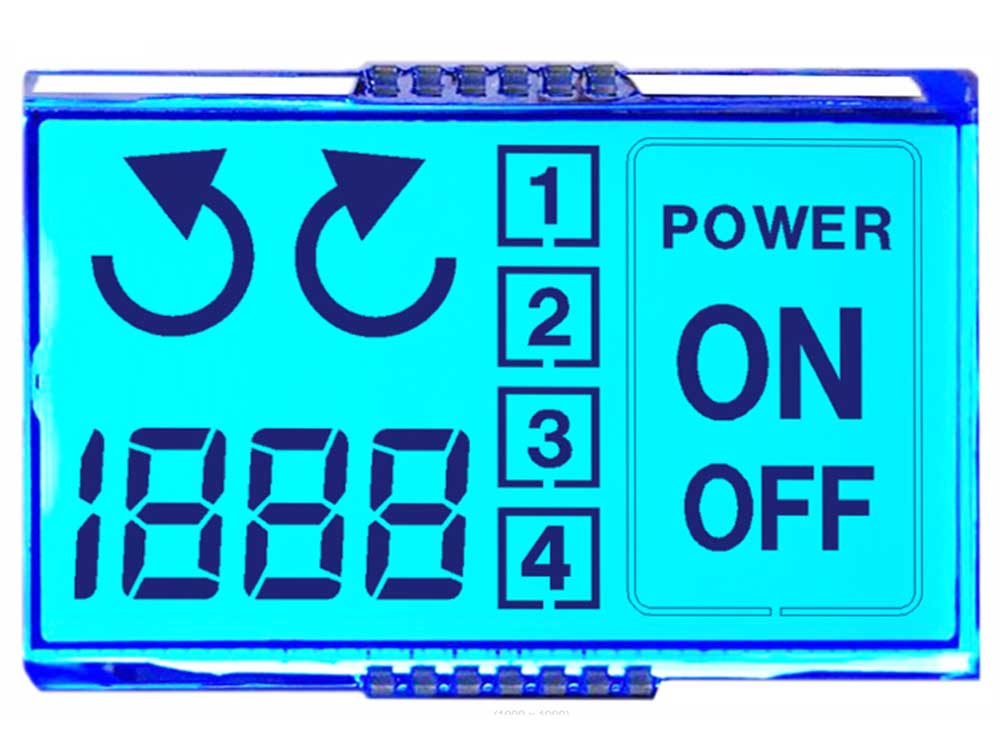

Display Type: TN / Segment with Touch Button

Display Size: Customized

Display Mode: Positive/ Transmissive

Display effect: Grey Background and Black Letters

Application: Touch Button

Backlight: Sky Blue

Display Type		TN LCD	HTN LCD	STN LCD	FSTN LCD
Advantage		cheapest	cheaper	a wide view angle	have all the advantages of STN
		widely used	a wider view angle than TN	diversity of display mode	a better background color
		easy to produce	easy to produce	It can realize multi-channel drive and large amount of display information
		best effect in displaying Black and white
Disadvantage		a narrow view angle	a narrow view angle	a few more manufacturing process	have all the disadvantages of STN
		simple display mode	ordinary display effect	a high requirement for raw material	a higher cost than STN
		low contrast ratio	low contrast ratio	a high requirement for manufacturing process and equipment
The liquid crystal molecules twist angle		90 degrees	110 degrees	210-255 degrees	210-255 degrees
Contrast ratio		acceptable	good	better	best
Bios		statics-1/4	1/8-1/16	1/16 above	1/64 above
Display	positive	grey background and black letter	grey background and black letter	yellow and green background and black letter (yellow and green film)	grey background and black letter
Display	negative	grey background and white letter	grey background and white letter	blue background and white letter (blue film)	grey background and white letter
Price		cheapest	cheaper	cheap	high

Customize Your Monochrome LCD Screen From a Chinese Manufacturer

DISPLAYMAN is among the top monochrome LCD Glass Panel manufacturers in China. We have been supplying both small and large companies with eco-friendly and ISO-certified monochrome LCD screens in different display types, including TN, HTN, STN, FSTN, and VA, and different display contents, including segment and dot matrix, at wholesale for 2 decades.

Monochrome LCD Glass Panel Solutions For ODMs and OEMs

Monochrome LCD Screens are highly popular due to their low-cost and high customization. Our experienced team can develop the right solution with an integrated assembly of different technologies to your hands.

Display Technologies

Display type: TN, HTN, STN, FSTN and VA
Transmissive, transflective and reflective polarizers
Positive and negative modes
ITO glass thickness：0.3mm, 0.4mm, 0.55mm, 0.7 mm and 1.1mm
Static driving mode and dynamic driving mode
Shapes: round, rectangle， octangle and through-holes
View angle: 12 O’clock, 3 O’clock, 6 O’clock, 9 O’clock, and full view angle
background-color customization： grey, blue, yellow-green, black and so on
Silkscreen: Black mask, red, green, blue, multi-color printing
Touch solutions: one-sided ITO film touch technology and double-sided ITO film touch technology
Connection: PIN, zebra, FPC

Why chooses Monochrome LCD Glass Panels

Much lower cost if we compare it with TFT LCD displays.
Customized dimension. You can’t customize the size of TFT LCD displays because they are standard products and monochrome LCD screens are a possible solution for you.
Stylish and high class if we can compare it with LED segment displays.

Ask For A Quick Quote

We will contact you within 1 working day, please pay attention to the email with the suffix “@displayman.com”.
