Explore custom HTN LCD glass panels for meters, timers, appliances and equipment controls. Select the segment layout, optical mode, connection and backlight configuration to suit your product.
DisplayMan supplies custom HTN LCD Glass Panels for OEM products that need fixed digits, icons, symbols, units and status information with better contrast than standard TN LCD glass.
HTN LCD glass is used in time meters, illumination equipment, cash counting machines, energy and utility meters, timers, appliances, controllers, chargers, medical devices and industrial products.
HTN provides a practical middle direction between basic TN cost and the higher readability, content complexity or premium visual effects associated with STN, FSTN and VA.
Choose HTN LCD Glass Panels when the product needs fixed segment content with better contrast and viewing performance than standard TN while retaining a practical cost structure.
Explore three reference designs with custom segment layouts, display modes and backlight configurations.

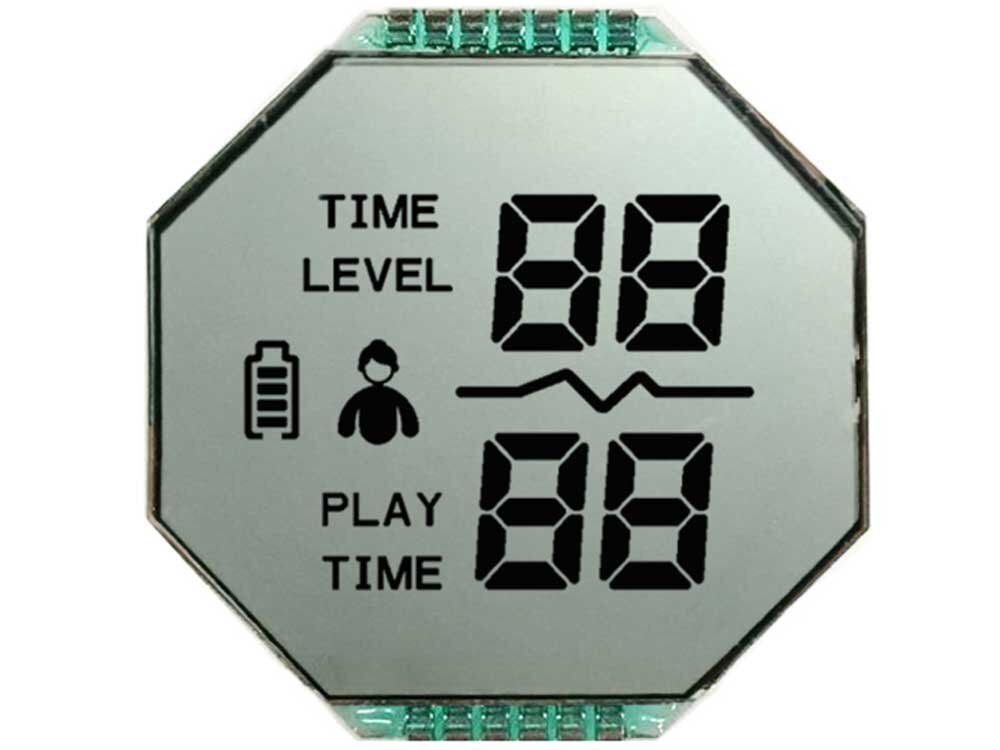

| Display Type | HTN / Segment |
| Display Size | Customized |
| Display Mode | Positive / Reflective |
| Display Effect | Grey Background and Black Letters |
| Application | Time-meter |
| Backlight | None — requires ambient or external light |

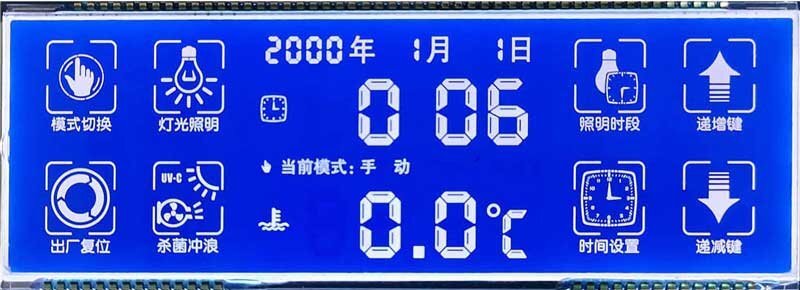

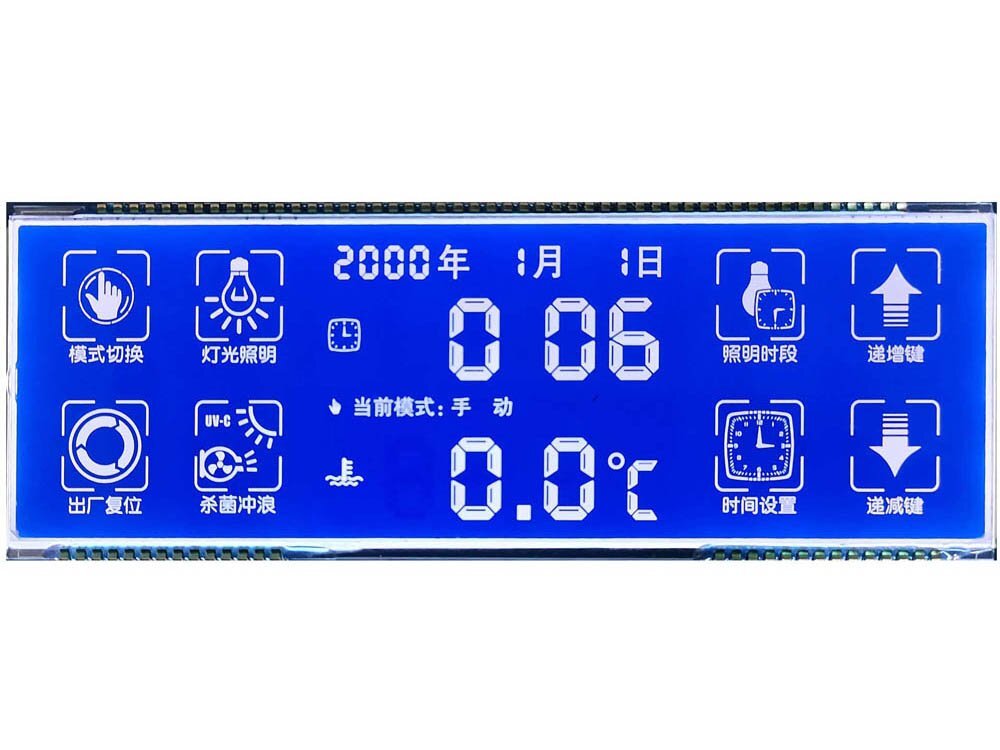

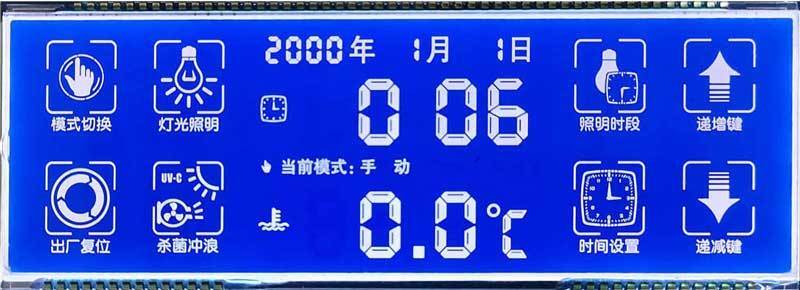

| Display Type | HTN / Segment |
| Display Size | Customized |
| Display Mode | Negative / Transmissive |
| Display Effect | Blue Background and White Letters |
| Application | Illumination Equipment |
| Backlight | Sky Blue |

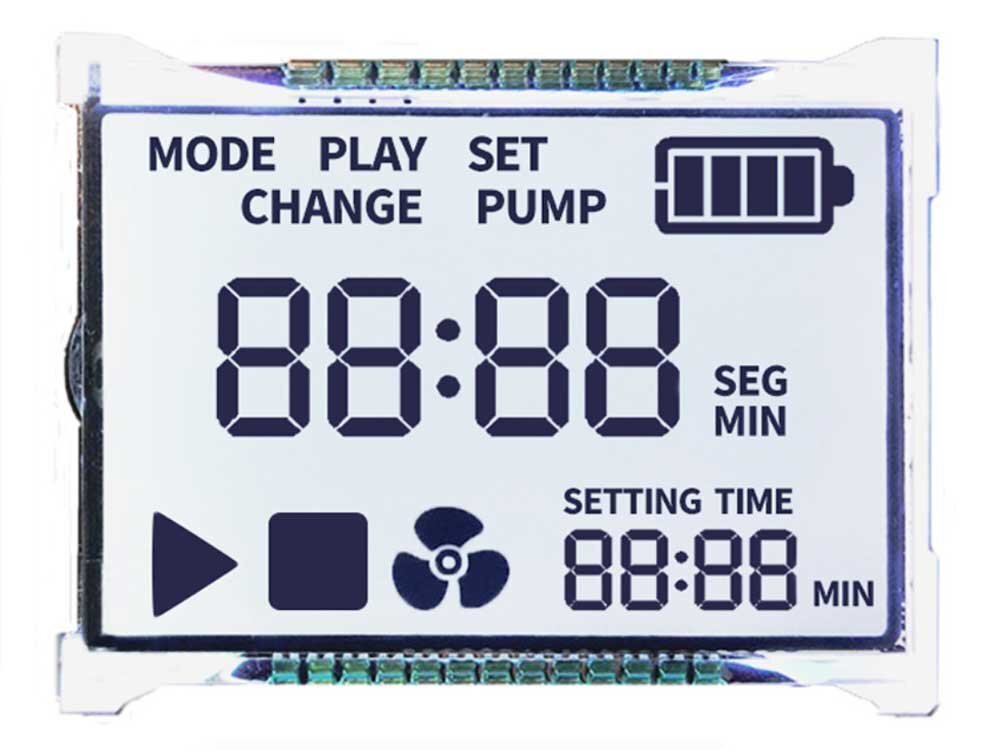

| Display Type | HTN / Segment |
| Display Size | Customized |
| Display Mode | Positive / Transmissive |
| Display Effect | Grey Background and Black Letters |
| Application | Cash Counting Machine |
| Backlight | White |
HTN LCD glass is mainly used for custom segment projects requiring better readability than standard TN. The correct direction depends on background effect, ambient light, backlight, power and product appearance.
| HTN LCD Direction | Display Effect | Backlight Option | Typical Use |
|---|---|---|---|
| Positive Reflective HTN LCD | Grey or light background with dark content | No backlight | Meters, timers and battery-powered devices |
| Positive Transmissive HTN LCD | Grey or light background with dark content | Required | Indoor control panels and equipment interfaces |
| Positive Transflective HTN LCD | Grey background with ambient-light and backlight support | Optional | Products used in mixed-lighting environments |
| Negative Transmissive HTN LCD | Blue or dark background with illuminated content | Required | Illumination equipment, control panels and product interfaces |
| Negative Transflective HTN LCD | Dark background with mixed-light support | Usually required | Selected custom display-effect projects |
| HTN Segment LCD Glass | Custom fixed digits, icons and symbols | Optional | Meters, appliances, controllers and electronic devices |
If the product only needs the lowest-cost simple segment display, TN may be enough. For graphic or dot-matrix content, review STN or FSTN. For a premium black-background effect, review VA.
HTN builds on the basic TN direction to provide improved contrast and viewing performance.
The required segments are built directly into the LCD glass and remain fixed after tooling.
Polarizer, backlight, driver, PCB, connector and housing may still be required.
HTN is selected when standard TN readability is not enough.
It remains a practical direction when STN, FSTN or VA performance is unnecessary.
Numbers, units, warnings, battery icons and product-specific indicators can be customized.
Reflective and simple-driving directions can suit meters and battery devices.
Reflective, transmissive and transflective structures can be reviewed.
PIN, zebra and FPC options can match different product assemblies.
| Display Type | Display Mode | Polarizer | Background | Letters | Backlight |
|---|---|---|---|---|---|
| HTN | Positive | Reflective | Grey | Black | No |
| HTN | Positive | Transmissive | Grey | Black | Yes |
| HTN | Positive | Transflective | Grey | Black | Yes or No |

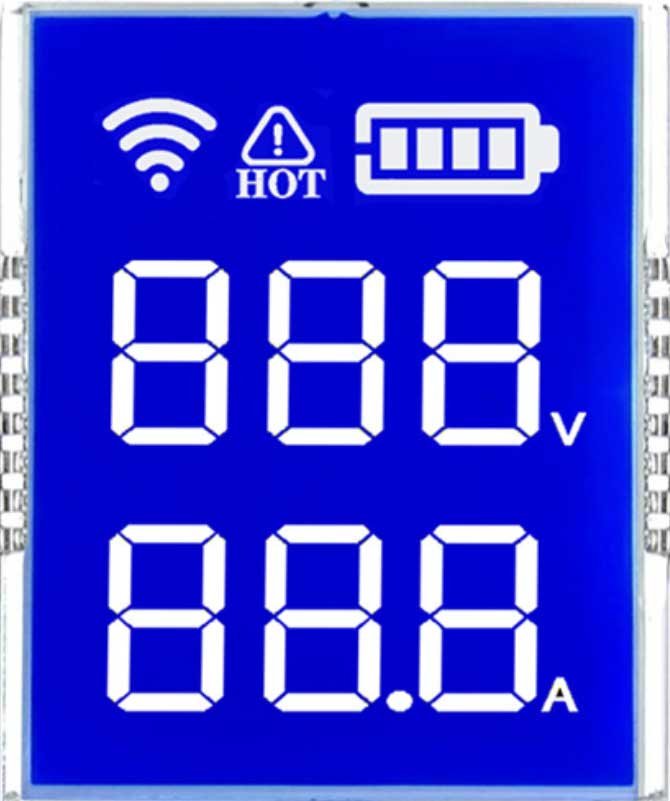

| HTN | Negative | Transmissive | Blue | White | Yes |
| HTN | Negative | Transflective (rarely used) | Blue | White | Yes |
| Selection Factor | Display Effect | Selection Logic |
|---|---|---|
| Positive Mode | Dark segments on a lighter grey or project-based background | Choose for traditional, clear and practical appearance |
| Negative Mode | Light content on a dark or blue background | Choose for selected modern effects; backlight is normally required |
| Reflective | Uses ambient light | Choose for low-power products without continuous backlight |
| Transmissive | Relies on backlight | Choose for indoor or low-light products |
| Transflective | Uses ambient light and optional backlight | Choose for mixed-lighting environments |
| Backlight | White, blue, green, yellow-green, orange or project-based | Select together with display mode, polarizer and product appearance |
A reflective positive HTN LCD may operate without backlight, while a negative transmissive HTN LCD depends on backlight for visibility.
| Factor | Available Direction | Practical Use |
|---|---|---|
| Static Driving | Direct segment control | Simple design, stronger contrast and higher pin count |
| Multiplex Driving | Shared COM and SEG electrodes | Reduces pin count and supports more segments |
| Duty and Bias | Project-based electrical review | Affects contrast, voltage, ghosting and driver selection |
| PIN Connection | Metal pins from the glass | Direct PCB or through-hole assembly |
| Zebra Connection | Elastomer between glass and PCB | Compact pressure-mounted assemblies |
| FPC Connection | Flexible printed circuit | Space-limited layouts and flexible cable direction |
| Touch Integration | Selected custom module projects | Use when glass, PCB, backlight and front panel are integrated |
Segment count, COM count, duty, bias, voltage, driver IC and pin definition must be reviewed before tooling and sample production.
HTN LCD glass is mainly suitable for fixed segment content. It is not the best direction for complex graphic UI, high-resolution dot-matrix content or premium VA-style black-background effects.
| Factor | TN LCD Glass | HTN LCD Glass |
|---|---|---|
| Contrast | Basic | Better than TN |
| Viewing Performance | Basic | Improved compared with TN |
| Cost | Lower | Higher than TN but still practical |
| Main Use | Simple segment display | Segment display requiring better readability |
| Display Content | Fixed digits and icons | Fixed digits and icons |
| Selection Logic | Choose TN when cost is the priority | Choose HTN when TN readability is not enough |
| Factor | HTN LCD Glass | STN / FSTN LCD Glass |
|---|---|---|
| Main Use | Segment LCD display | Segment, character, graphic and dot-matrix display |
| Contrast | Better than TN | Better than HTN, especially FSTN |
| Display Complexity | Simple fixed content | More complex monochrome content |
| Viewing Performance | Improved over TN | Better for graphic and dot-matrix applications |
| Cost | Lower than many STN / FSTN projects | Higher |
| Selection Logic | Choose HTN for improved segment display | Choose STN / FSTN for more complex monochrome display |
| Factor | HTN LCD Glass | VA LCD Glass |
|---|---|---|
| Display Effect | Grey or blue-background segment display | High-contrast black-background effect |
| Contrast | Better than TN | Higher than HTN |
| Appearance | Practical segment display | More premium visual effect |
| Cost | Lower than VA | Higher |
| Backlight | Optional depending on mode | Usually required |
| Selection Logic | Choose HTN for practical improved contrast | Choose VA for strong black-background effect |
Time, intervals, units and fixed status indicators.
Operating mode, level, timer and control information.
Counts, currency indicators, warnings and status marks.
Values, units, communication icons and alarms.
Modes, time, temperature, settings and program status.
Parameters, units, modes, warnings and operating states.
Charging state, level, voltage and fixed indicators.
Measurements, timer, status symbols and product information.
Exact glass, segment, pin, voltage and structure matching.
Digits, units, icons, symbols and status indicators without flexible graphics.
HTN should be chosen for improved contrast and viewing, not only because of the name.
Glass size, viewing area, digit height, symbols, icon positions and key dimensions.
Positive or negative, reflective, transmissive or transflective, static or multiplex.
PIN, zebra or FPC, viewing direction, glass thickness, backlight, touch and housing.
Tooling, sample, temperature, quantity forecast, acceptance criteria and schedule.
HTN is the practical middle direction for improved segment readability. Use another technology when the priority is lower cost, more complex content or a premium visual effect.
| Product Page | Choose This When |
|---|---|
| LCD Glass Panels | You need the main LCD glass technology-selection page |
| TN LCD Glass Panels | You need the lowest-cost simple segment LCD direction |
| STN LCD Glass Panels | You need more flexible monochrome content and improved viewing |
| FSTN LCD Glass Panels | You need stronger readability for graphic or dot-matrix applications |
| VA LCD Glass Panels | You need a premium high-contrast black-background effect |
| Segment LCD Displays | You need the complete custom segment LCD product direction |
Even a simple sketch showing glass size, viewing area, digits, icons and approximate positions can start the feasibility review.
Visit a category page for product images, specifications and integration options.
An HTN LCD Glass Panel is a custom monochrome LCD glass using High Twisted Nematic technology. It is mainly used for fixed segment content such as digits, icons, symbols and status indicators.
No. HTN LCD glass is the glass display element. A complete module may also include polarizers, backlight, driver circuit, PCB, connector, frame and front-panel structure.
HTN LCD glass is best for custom segment displays that need better contrast and viewing performance than standard TN while retaining a practical cost structure.
HTN normally provides better contrast and viewing performance than TN. TN may still be more economical for very simple and highly cost-sensitive displays.
Choose STN or FSTN when the product needs higher multiplex capability, more complex character or graphic content, dot-matrix display or stronger readability.
Choose VA when the product requires a premium high-contrast black-background effect rather than a practical grey or blue-background segment display.
Yes. Positive HTN LCD normally shows dark segments on a lighter grey or project-based background.
Yes. Negative HTN LCD normally shows light content on a dark or blue background and usually requires a suitable backlight.
Reflective HTN LCD uses ambient light and can operate without continuous backlight, making it suitable for meters, timers and battery-powered products.
Transmissive HTN LCD relies on backlight for visibility and is used in indoor or low-light products.
Transflective HTN LCD can use ambient light and optional backlight, making it suitable for mixed-lighting conditions.
Yes. Backlight color, brightness, current, light guide and mechanical structure can be reviewed according to the selected display mode and product design.
HTN LCD glass can use PIN, zebra, FPC or a project-based module structure depending on the glass size, customer PCB and assembly method.
Static driving controls each segment directly. Multiplex driving shares COM and SEG electrodes to reduce pin count. Duty, bias, voltage and contrast must be reviewed together.
Touch-button integration can be reviewed for selected custom module projects, especially when the LCD glass is combined with PCB, backlight and front-panel structure.
Yes. Please provide the old LCD sample, glass outline, viewing area, segment layout, pin details, driving information, backlight, photos and product information.
HTN is mainly intended for segment content. It is not the best choice for complex graphic UI, high-resolution dot-matrix content or premium VA-style black-background effects.
Please provide glass size, viewing area, segment layout, display mode, optical mode, backlight, driving method, voltage, connection type, viewing direction, temperature, touch requirement, quantity, schedule and available drawings or samples.
Send us the glass size, viewing area, segment layout, display mode, optical mode, backlight, driving method, connection, viewing direction, temperature, touch requirement, quantity and schedule.
DisplayMan will review whether HTN LCD glass is suitable or whether TN, STN, FSTN or VA better matches the display effect, content and application.
HTN LCD glass is intended for fixed segment content requiring better contrast than TN. A clear layout drawing and realistic production quantity are required before tooling and quotation.
