Reduced Optical Depth
The folded light path can shorten the front-to-back optical package compared with a conventional direct-path eyepiece.
A compact folded optical architecture for high-resolution Micro OLED VR headsets, video glasses and immersive near-eye systems.
A Pancake optical engine combines a high-resolution Micro OLED display with lenses, polarizers and partially reflective optical elements that fold, magnify and direct the image toward the user's eye.
The folded path is commonly reviewed for compact VR headsets and video glasses because it can reduce the front-to-back optical distance while maintaining a large, immersive virtual image.
The Micro OLED creates the image, the driver board handles the host signal and timing, and the Pancake optics form the compact magnified viewing path. Final performance depends on all three elements working together.
The exact lens, polarizer, retarder and reflective-film arrangement varies by platform, but the functional sequence remains consistent.

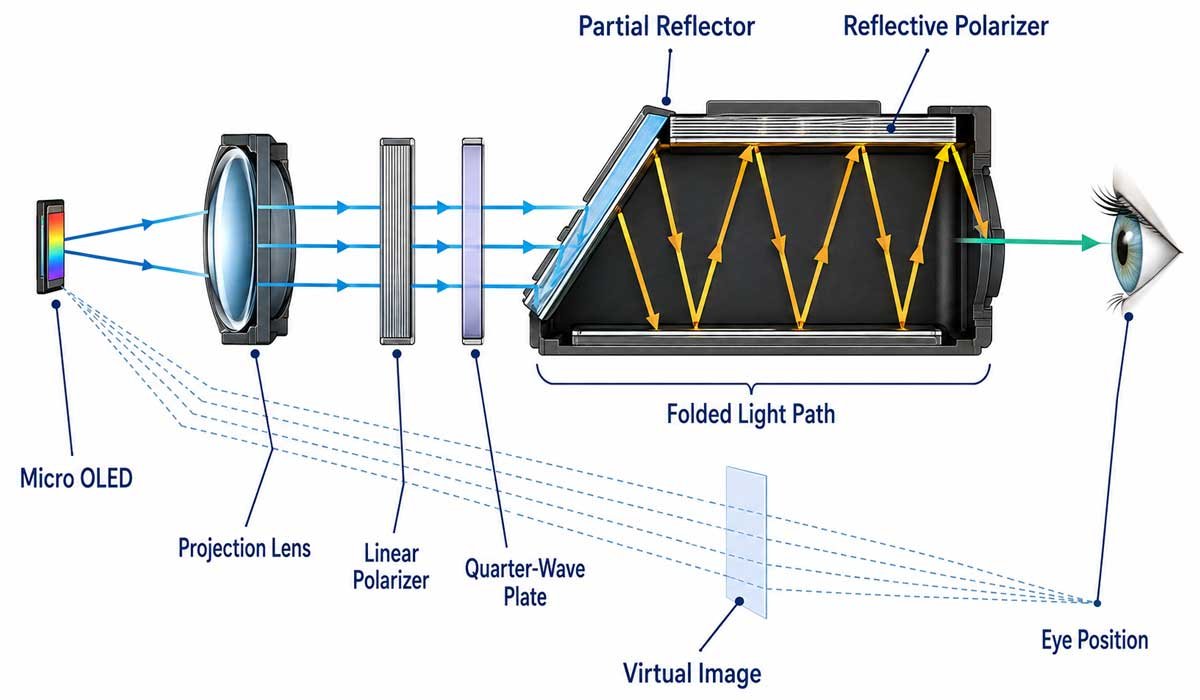

Polarization control and multiple internal reflections allow the optical path to be folded into a shorter physical package.
The diagram explains the Pancake system logic rather than defining the dimensions or performance of a specific platform.
The folded light path can shorten the front-to-back optical package compared with a conventional direct-path eyepiece.
Micro OLED provides fine detail and true-black contrast for compact, high-FOV near-eye viewing.
Available Pancake platforms can support thinner VR and video-glasses prototypes when display, optics and mechanics are matched together.
Pancake optics trade compactness for optical complexity and efficiency. Polarization matching, source luminance, coatings, alignment, thermal behavior and binocular consistency should be evaluated early.
All three directions shown below use the 1.03″ 2.5K Micro OLED hardware platform. Final driver-board, optical and mechanical compatibility must be confirmed for the selected configuration.

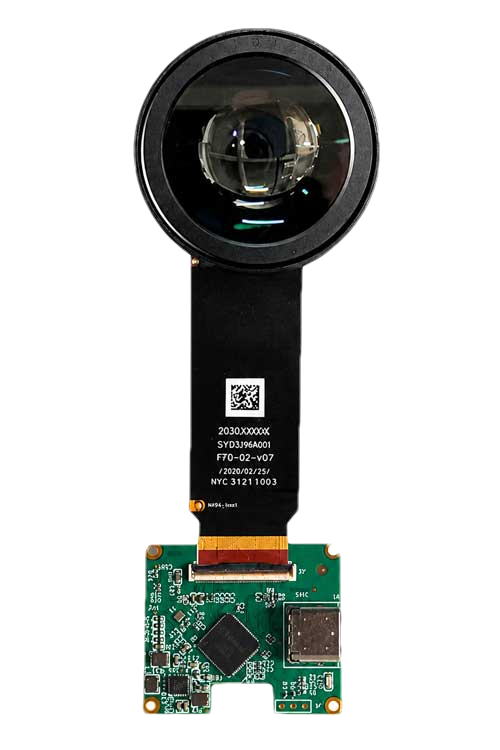

A compact single-eye Pancake direction combining a 1.03″ 2.5K Micro OLED optical engine with Type-C driver electronics.
Review Type-C Driver Boards
A single-eye 1.03″ 2.5K Pancake platform for projects requiring compact HDMI Mini input and display control.
Review HDMI Driver Boards

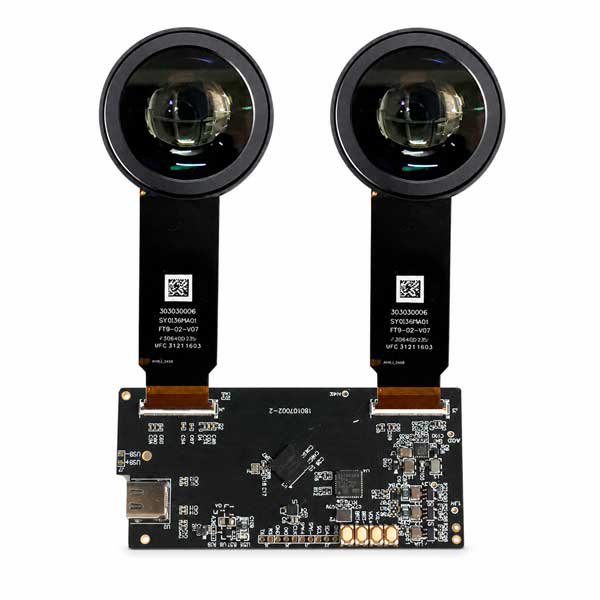

A paired left-and-right 1.03″ 2.5K Pancake optical configuration connected to shared binocular driver electronics.
Review Binocular Driver BoardsFOV affects image size, lens geometry, perceived immersion and the overall optical envelope.
The visible image must remain usable at the intended eye position and wearing distance.
Polarizers and multiple reflection stages introduce substantial optical loss, so panel luminance must be reviewed against the required eye brightness and thermal limit.
The selected Micro OLED must fit the optical platform and provide enough detail after magnification.
Lens group, polarizers, display, board, cables and housing must fit the target headset depth and weight target.
Display-to-optics alignment, distortion correction and left/right consistency can directly affect clarity and user comfort.
| Optical Direction | Typical Use | Main Strength | Main Review Point |
|---|---|---|---|
| Pancake | Compact VR headsets, video glasses and high-FOV binocular systems | Folded optical path can reduce headset depth | Polarization, optical efficiency, source brightness and alignment |
| Birdbath | AR prototypes, smart eyewear and semi-transparent near-eye viewing | Practical reflective AR architecture | Thickness, combiner size, brightness loss and packaging |
| EVF Optical Module | Cameras, drones and professional viewfinders | Compact enclosed monocular viewing | Focus, eye relief, color and low latency |
| Other Near-Eye Modules | Project-specific eyewear and optical instruments | Application-driven integration | Feasibility, development scope and mechanical constraints |
For most OEM projects, the practical route is to begin with an available Pancake optical platform and customize the surrounding display, driver electronics, mechanics and image correction. Full optical development from zero can require substantial optical design, coating, tooling and validation work.
FOV, eye brightness, eye box, eye relief, distortion, display compatibility and mechanical dimensions vary by optical platform. Final values should be confirmed against the selected configuration.
It is a folded near-eye optical architecture that combines a Micro OLED with lenses, polarizers and partially reflective elements to create a magnified virtual image inside a compact optical volume.
The folded optical path can reduce headset depth while supporting high-resolution immersive viewing. Suitability still depends on FOV, eye box, eye relief, optical efficiency, weight and mechanical packaging.
High-resolution square-format Micro OLED directions such as 1.03-inch 2560 × 2560 may be relevant, but the exact display must be matched to the optical platform, luminance requirement, refresh rate and mechanical envelope.
Not always. The display, driver board and optical engine are separate system elements unless the quoted configuration explicitly includes them together.
Pancake systems use polarization and multiple reflection stages that reduce the light reaching the eye. Source luminance, thermal limits and the final eye-brightness target must be evaluated together.
Display matching, driver electronics, mechanical housing, cable routing, image correction and selected optical parameters can be reviewed. The practical scope depends on the available platform and project volume.
Provide the application, preferred display if known, FOV, eye relief, eye box, mechanical space, monocular or binocular requirement, input interface, refresh target, quantity and project stage.
Send your application, FOV, brightness environment, mechanical space, input signal, quantity and prototype schedule.
Please share your application, display size, quantity and project background. We will review the most practical display direction.
