DisplayMan integrates the transparent OLED panel, motorized lift, enclosure, touch system and playback hardware as one project-built display. Create a reveal moment, protect the screen when it is not needed and keep premium interiors visually clean.
A lift-up transparent OLED display is not simply a screen placed on a motor. The visible height, travel, cabinet opening, cable movement, touch method, control logic and maintenance access must work together.
Choose 30″ for a compact reveal and close-range presentation. Choose 55″ when the screen must command a larger showroom, boardroom, museum or brand environment.
Raise the transparent OLED for content and interaction, then retract it into the cabinet when the presentation ends.
Cabinet dimensions, lift travel, opening clearance, control method, safety protection and service access are confirmed by project.
Hover over each 500 × 500 image area to inspect the structure. The two sizes use different mechanical configurations and are presented separately.

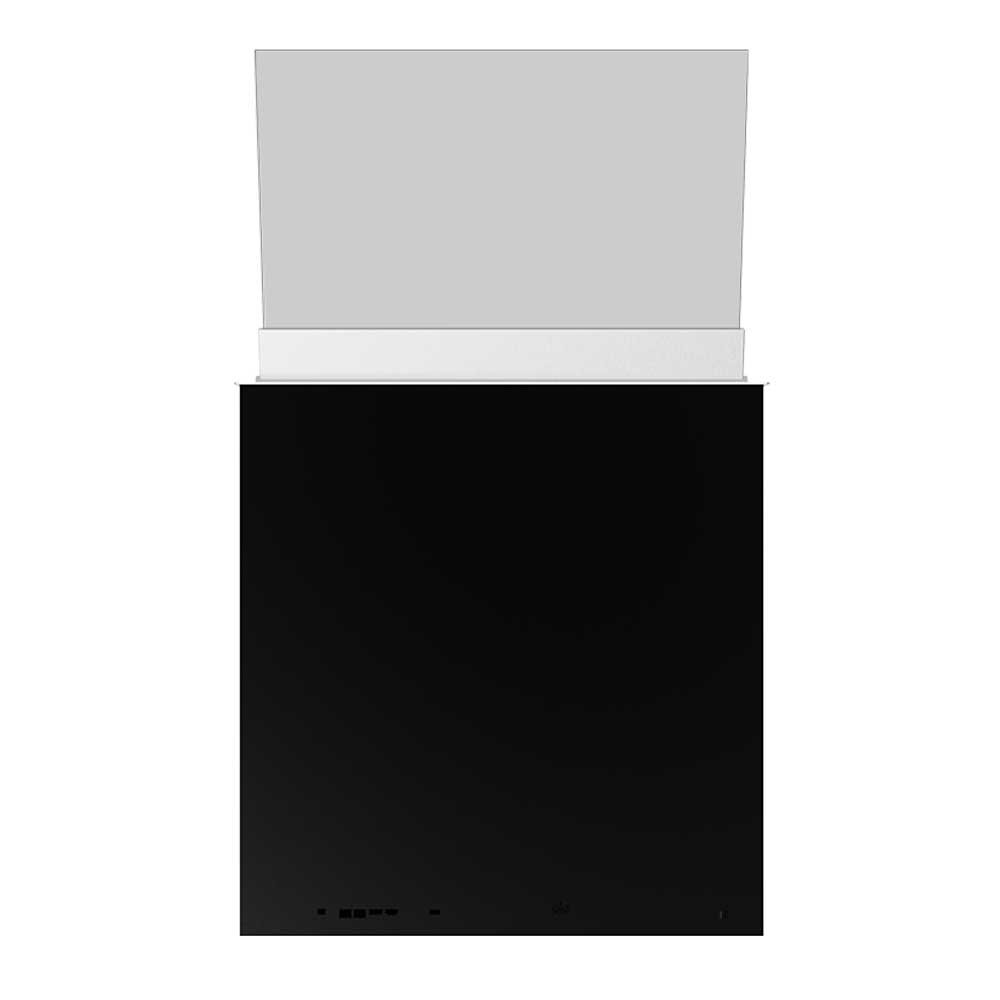

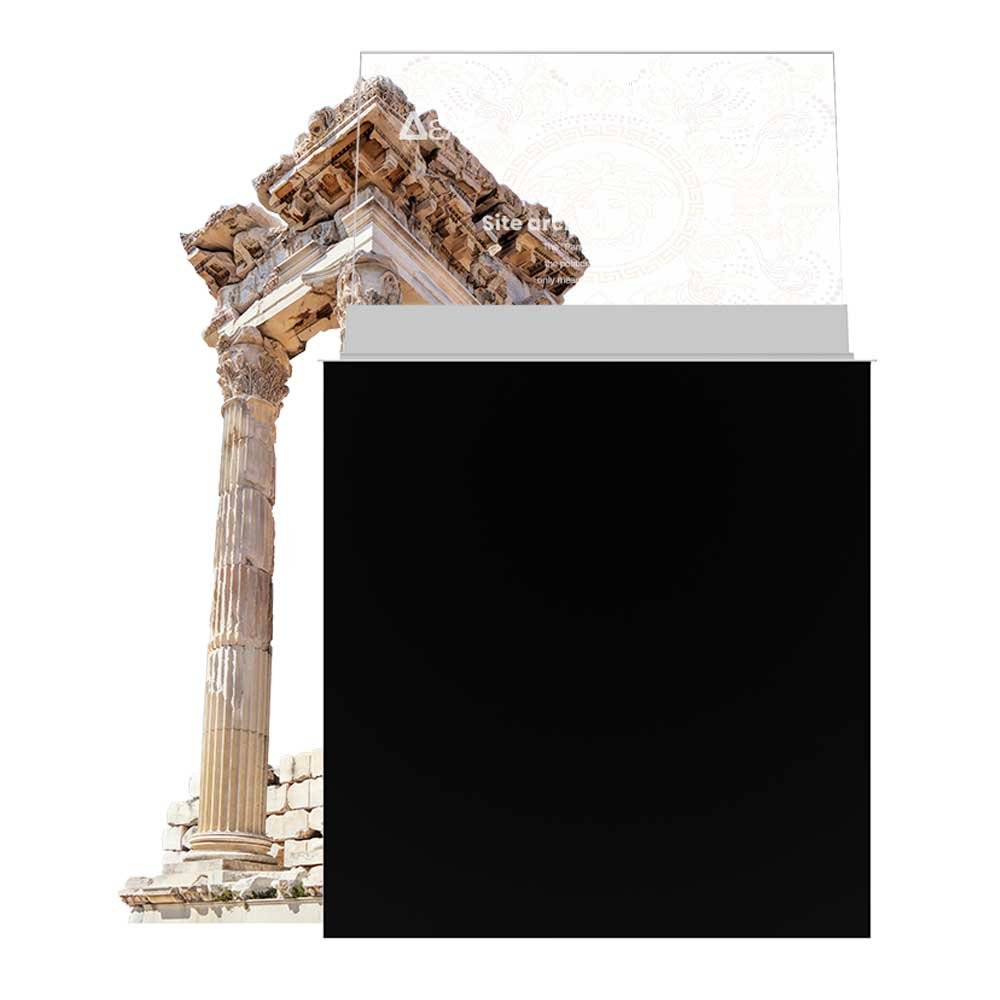

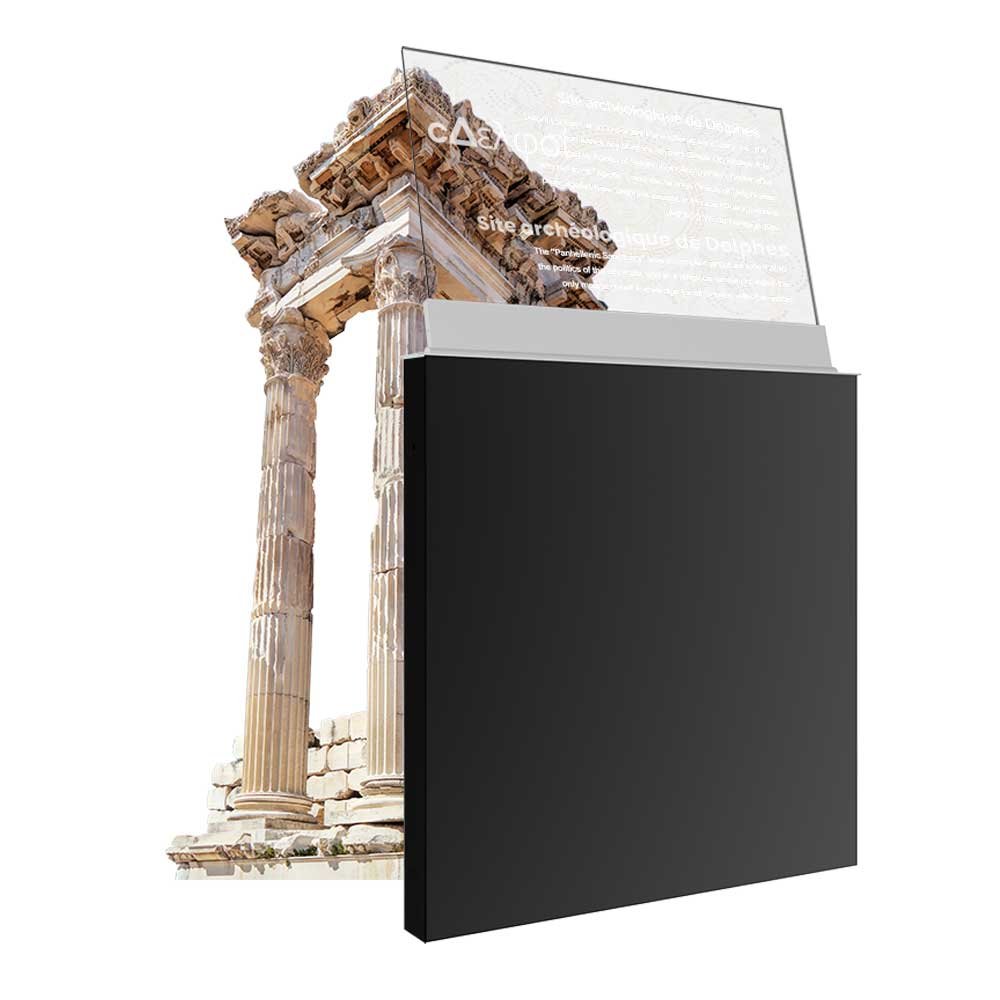

A compact transparent OLED reveal system for counters, premium product displays, meeting spaces and close-range interactive presentations.

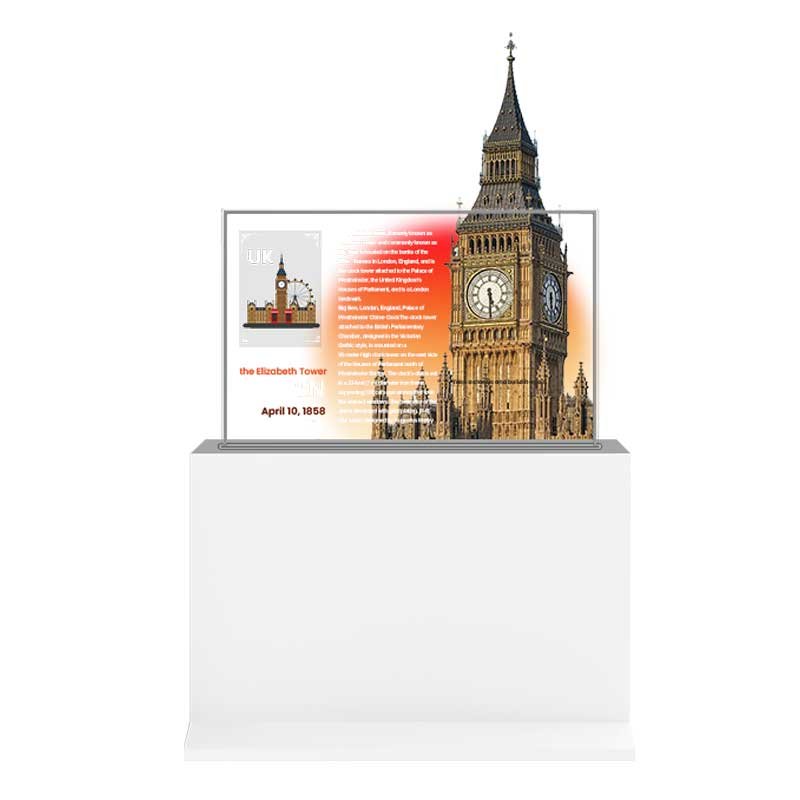

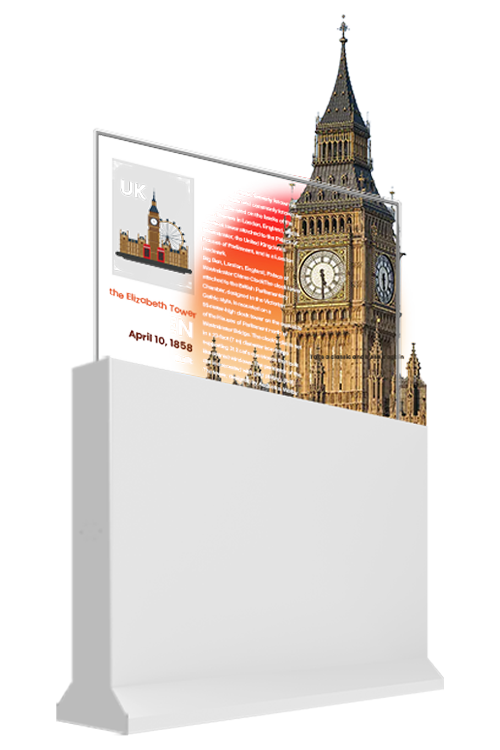

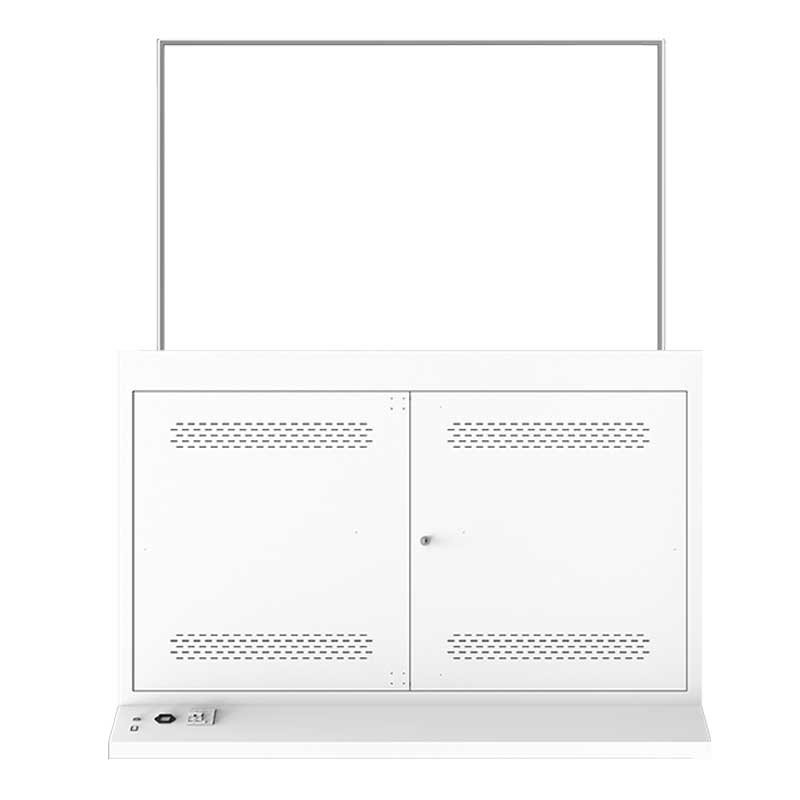

A larger motorized transparent OLED system for high-impact presentations, exhibition environments, executive spaces and architectural concealment.
Use this table for early selection. Final specifications are confirmed against the approved configuration and drawing.
| Item | 30″ Reference Configuration | 55″ Reference Configuration |
|---|---|---|
| Display size | 30″ transparent OLED | 55″ transparent OLED |
| Resolution | 1366 × 768 | 1920 × 1080 FHD |
| Brightness | 200–600 cd/m², automatic adjustment | 200–600 cd/m², automatic adjustment |
| Transparency | 43% typical, subject to confirmation | 45% typical, subject to confirmation |
| Refresh rate | 120 Hz | 120 Hz |
| Touch | Capacitive touch reference configuration | Capacitive touch reference configuration |
| Viewing angle | 178° horizontal / 178° vertical | 178° horizontal / 178° vertical |
| Power input | 100–240 V AC, 50/60 Hz | 100–240 V AC, 50/60 Hz |
| Operating environment | 0–40°C; 20–80% RH | 0–40°C; 20–80% RH |
| Reference PC | Intel Core i5, 8 GB + 128 GB, Windows 10 | Intel Core i5, 8 GB + 128 GB, Windows 10 |
| Reference connections | USB × 4, microphone, DC input, Ethernet and COM | USB × 4, microphone, DC input, Ethernet and COM |
| Network | Ethernet, Wi-Fi and Bluetooth | Ethernet, Wi-Fi and Bluetooth |
Define how the display looks, rises, connects and interacts with the space. Available combinations are reviewed against the selected screen, cabinet and quantity.
Adapt the enclosure footprint, opening, counter integration, service panels and mounting arrangement.
Choose sheet-metal paint, exterior color, surface finish, trim details and customer branding.
Confirm lift travel, final viewing height, concealed position and required clearances.
Review local buttons, remote control or integration with a project control system.
Configure capacitive touch and confirm rigidity, access height and application software.
Select an integrated PC, Windows configuration, external source or project-specific player.
Configure USB, HDMI/VGA where applicable, Ethernet, COM, Wi-Fi and Bluetooth around the system.
Review travel limits, obstruction protection, cable management, ventilation and maintenance access.
Best when automatic reveal, concealed storage or a presentation moment is central to the experience.
Choose this for a permanently visible, movable or simpler freestanding installation.
Choose this for compact product presentation at desk, counter or showcase height.
Review all five structures when the installation method is still open.
| Comparison | Motorized Transparent OLED | Motorized Transparent LCD |
|---|---|---|
| Image principle | Self-emissive transparent pixels | Requires controlled rear illumination |
| Mechanical depth | Supports a cleaner, slimmer premium display direction | Lighting structure can require more enclosure depth |
| Dark content | Individual pixels can switch off for strong black presentation | Black appearance depends on the LCD and backlighting structure |
| Size flexibility | Limited to available transparent OLED panel sizes | Broader custom panel and lighting structures may be possible |
| Best fit | Premium reveals, museums, luxury retail and executive spaces | Cost-controlled illuminated displays and custom light-box structures |
| Project priority | Premium appearance and self-emissive transparency | Mechanical flexibility and budget direction |
Raise transparent content around a physical product to create a timed reveal moment.
Reveal digital interpretation only when needed while preserving the exhibit view.
Conceal the display inside custom furniture when the room returns to normal use.
Combine architecture, motion and transparent content in a premium visitor experience.
Tell us what appears behind the screen, when it should rise and how visitors interact.
Choose 30″ or 55″ and confirm the available footprint, concealed depth and raised height.
Confirm travel, control method, touch, player, interfaces, cable path and safety requirements.
Approve the configuration and mechanical drawing before prototype or production.
It is a transparent OLED display integrated with a powered lifting system so the screen can rise for presentation and retract into an enclosure when not required.
The current product directions are 30-inch and 55-inch. Final panel and complete system availability should be confirmed for each project.
The current 30-inch reference specification lists approximately 40 seconds per lift cycle. Speed and travel depend on the final mechanical system; the 55-inch timing is confirmed by configuration.
Yes. Cabinet footprint, height, opening, sheet-metal finish, color, trim, branding and service access can be reviewed for OEM and project orders.
Capacitive touch is included in the reference specifications. The final touch structure, raised height and rigidity must be confirmed for the application.
Local controls, remote operation and project control integration can be reviewed. Please provide the required control logic and interface during engineering review.
The reference systems are intended for indoor or controlled environments. Outdoor use requires separate evaluation of protection, brightness, temperature, moisture and mechanism safety.
Please send the application, selected size, cabinet space, raised and concealed dimensions, finish, control method, touch and PC requirements, quantity, destination country and schedule.
Send the cabinet space, screen size, required movement, control method and content system. DisplayMan will review the suitable transparent OLED and lift-up configuration.
Please share your application, display size, quantity and project background. We will review the most practical display direction.
