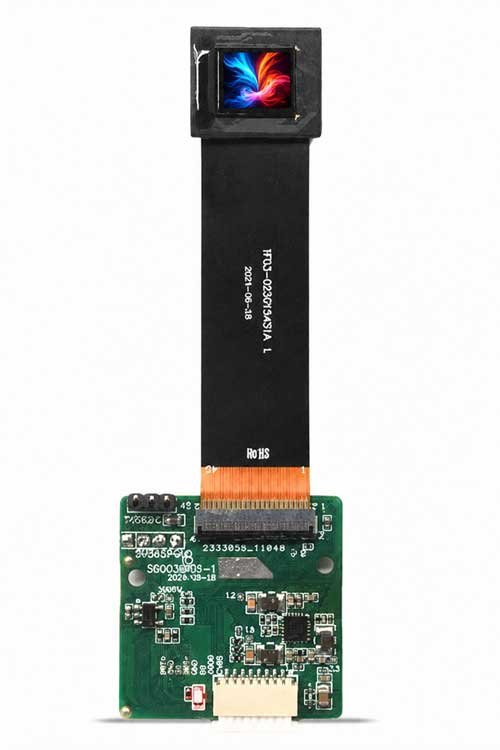

CVBS Input
0.39″ Micro OLED + CVBS
A compact analog-video direction for selected cameras, legacy video sources, FPV viewers and optical instruments. Final compatibility is model-specific.
Single-channel driver electronics matched to one Micro OLED display for EVF, FPV, thermal imaging, HUD, medical optics and compact professional viewing systems.
A Monocular Driver Board receives video from a host device, converts it into the timing and electrical format required by one Micro OLED display, and manages initialization, power and essential display-control functions.
It is used in single-eye systems such as EVF modules, FPV viewers, thermal imagers, medical or optical instruments, monocular HUDs and prototype near-eye devices.
A driver board is not universally compatible with every Micro OLED. Resolution, interface, initialization, voltage, timing, connector, cable and firmware must be matched to the selected display.
The external input and display-side output vary by board, but the system logic remains consistent.
Host source → Monocular driver board → Micro OLED → Optical module → User
Connector names alone do not determine compatibility. The external host input and the Micro OLED panel interface are two different layers of the system.
The following configurations show three real single-display directions. They are examples of matched platforms rather than universal boards: the exact Micro OLED model, resolution, timing, firmware, FPC and connector definition must be confirmed for every project.
A compact analog-video direction for selected cameras, legacy video sources, FPV viewers and optical instruments. Final compatibility is model-specific.
A Full HD single-channel direction for development platforms, cameras, EVF, inspection and professional near-eye prototypes.

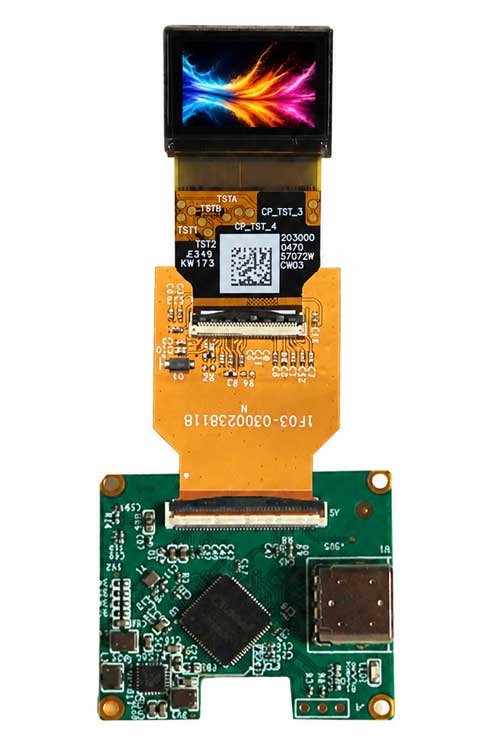

A compact high-resolution direction for portable viewers, optical instruments and prototype systems where the host video mode and power architecture are confirmed.
| Interface Direction | Typical Position | Monocular Project Note |
|---|---|---|
| HDMI / Micro HDMI | External video input | Useful for PCs, cameras, development platforms and prototypes; the signal still requires conversion to the selected display interface. |
| Type-C | External video and project-based power path | A compact connection for portable products; video mode, power architecture and host compatibility must be confirmed. |
| CVBS | External analog video input | A possible direction for selected FPV, camera and legacy video systems where analog compatibility is required. |
| MIPI | Panel side or embedded host architecture | Timing, lane configuration, initialization and the exact Micro OLED model must match. |
| RGB | Panel side or embedded architecture | Pin definition, timing, voltage and connector arrangement are display-specific. |
| Custom Interface | OEM host or panel connection | Reviewed when the standard board, connector or signal path does not fit the final product. |
A system may accept HDMI or Type-C while the Micro OLED itself uses MIPI or RGB. The driver board bridges these two interface layers.
The board provides the correct signal format, initialization sequence, voltage and timing for the selected Micro OLED platform.
A monocular architecture can reduce board area, cable count and system complexity compared with a dual-display design.
Available boards can bridge common external sources to display-side MIPI, RGB or another panel-specific interface.
HDMI, Type-C or CVBS may be the host input, while MIPI or RGB may be the Micro OLED output. The driver board performs the required conversion between the two sides.
Display size, resolution, interface, connector, pinout, voltage and initialization code must be confirmed first.
Confirm whether the source is HDMI, Type-C, CVBS, USB projection, MIPI, RGB or an embedded processor.
The complete board path must support the required input format, display resolution, frame rate and image orientation.
PCB outline, connector direction, cable length and button or control-board placement must fit the enclosure.
Brightness, power, menu, image flip, color, gamma and other functions depend on the selected board and project scope.
Input voltage, current demand, heat dissipation, standby behavior and operating environment require system review.
FPC length, bend direction, connector height and the relationship between the board, display and optics affect enclosure design.
Temperature, continuous operating time, shock, vibration and reliability expectations should be defined for professional products.
Project stage, prototype quantity, expected volume and customization scope help determine whether an existing or custom board is appropriate.
| Driver Direction | Typical Use | Main Strength | Main Review Point |
|---|---|---|---|
| Monocular Driver Board | EVF, FPV, thermal viewers, medical optics and single-eye systems | Compact control for one Micro OLED | Exact display compatibility, input interface and board size |
| Binocular Driver Board | VR and dual-eye near-eye systems | Synchronized control of two displays | Left/right timing, resolution, 2D/3D behavior and cable matching |
| HDMI / Type-C Driver Board | Prototype and plug-in video-source systems | Convenient external source connectivity | Input standard, power delivery, conversion path and display support |
| Custom Interface Board | Embedded and product-specific systems | Project-based electrical and mechanical integration | Development scope, firmware, connectors, volume and schedule |
For most OEM projects, the practical route is to begin with an available driver platform already compatible with the selected Micro OLED, then customize the connectors, cables, board outline, firmware and control functions where feasible.
Supported input, resolution, refresh rate, output interface, power, board dimensions and firmware features vary by board and Micro OLED. Final values should be confirmed for the selected configuration.
It is a board designed to receive and process a host video signal, then generate the electrical interface, timing, initialization and controls required by one Micro OLED display.
No. The board must match the display resolution, interface, voltage, initialization, connector, pinout, refresh and timing requirements.
Usually not. A suitable driver board or signal-conversion path is required between the external host input and the panel-side interface.
Possible project directions include HDMI, Type-C, CVBS, USB projection, MIPI, RGB or an embedded processor. Availability depends on the selected board and display.
Brightness, menu, image flip, color, gamma and other functions may be supported, but the available controls depend on the board hardware, firmware and project scope.
PCB outline, connectors, FPC, cables and controls can be reviewed. Feasibility depends on the base platform, electrical requirements, tooling, volume and development schedule.
Provide the Micro OLED model or specification, host input, resolution, refresh rate, board-size limit, connectors, cable requirements, control functions, input power, quantity and project stage.
Send the Micro OLED model, host input, resolution, refresh target, PCB size limit, connectors, cable requirements, power, quantity and prototype schedule.
