Review binocular driver boardsProject-based Micro OLED driver electronics for OEM systems that need a non-standard host signal, connector layout, PCB outline, cable architecture, firmware behavior or mechanical integration.
A Custom Interface Board is developed or adapted around a specific Micro OLED display, host architecture and product enclosure when a standard driver board cannot meet the electrical or mechanical requirements.
Customization may cover the signal path, connector position, board outline, FPC, rigid-flex structure, power input, controls and firmware—but only after the exact display and system requirements are defined.
A custom board is not designed in isolation. Development must start from an available Micro OLED platform, confirmed host signal, mechanical limits, quantity, compliance needs and a realistic engineering scope.
These configurations illustrate how board architecture changes with the display format, host input, output count, connector layout and available mechanical space. Final specifications remain project-dependent.

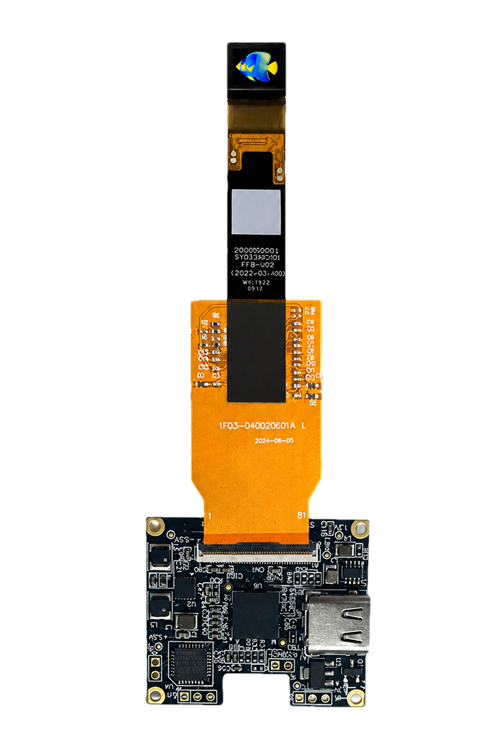

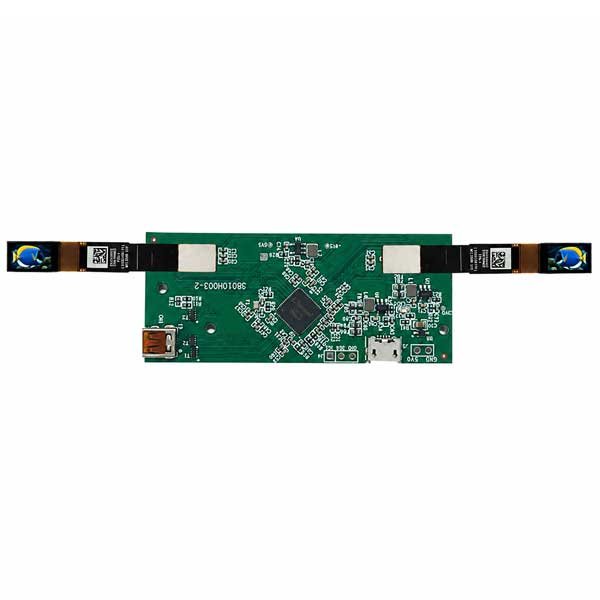

A dual-display board direction for projects that require two matched 0.49-inch FHD Micro OLED modules from one external digital-video architecture.
Review binocular driver boards

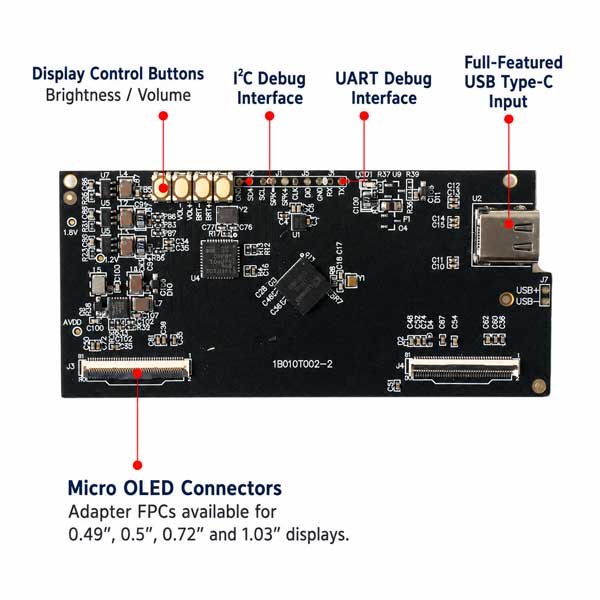

A bridge-board direction for defined Type-C video input and dual Micro OLED outputs, with model-specific FPC, connector and control requirements.
Check customization requirementsThe Micro OLED model, resolution, refresh rate, source mode, output interface, FPC, power and firmware must be confirmed for every configuration.
A custom project aligns the host electronics, conversion path, display interface and mechanical structure as one architecture.
Host architecture → Interface definition → Custom board → Matched Micro OLED → System validation
The interface path is defined project by project. Listing an interface does not guarantee that every conversion combination is feasible.
| Interface Direction | Typical Position | Selection Note |
|---|---|---|
| HDMI / Micro HDMI | External video input | Can be reviewed for external video sources, prototypes and OEM products when resolution, timing and conversion requirements are defined. |
| Type-C | External video and project-based power path | Can be reviewed where the host video mode, cable behavior, connector orientation and power architecture are fully specified. |
| CVBS | External analog video input | Can be considered for selected legacy camera or FPV projects when analog compatibility is an actual requirement. |
| MIPI | Panel side or embedded host architecture | Can be used on the panel side or embedded-host side when lanes, timing, bandwidth and initialization are confirmed. |
| RGB | Panel side or embedded architecture | Can be reviewed for selected embedded hosts and panels; pin definition, timing, voltage and connector arrangement remain display-specific. |
| Custom Interface | OEM host or panel connection | Other project interfaces require the complete signal definition and engineering feasibility review. |
A request such as “MIPI to Micro OLED” is incomplete without lane count, timing, resolution, refresh rate, initialization, voltage, connector, source definition and display model.
The required host signal, connector location, board outline or control functions cannot be achieved with an available matched board.
The final product uses a processor, camera or system-on-module that needs a defined direct or converted interface to the Micro OLED.
The project requires a compact PCB, rigid-flex design, special FPC, connector direction, power architecture or model-specific firmware behavior.
HDMI, Type-C or CVBS may be the host input, while MIPI or RGB may be the Micro OLED output. The driver board performs the required conversion between the two sides.
Provide the exact Micro OLED model, datasheet, resolution, panel interface, connector, pinout, voltage and initialization requirements.
Provide the host processor or video source, output interface, signal definition, timing and available software support.
Define resolution, refresh rate, color format, scaling, orientation, latency and monocular/binocular behavior.
Provide the maximum PCB outline, keep-out zones, mounting holes, connector positions, FPC direction and enclosure constraints.
Define brightness control, buttons, menu, image flip, color, gamma, startup behavior and firmware ownership requirements.
Define input voltage, available current, power sequencing, standby behavior, thermal limits and environmental conditions.
Provide cable length, bend direction, connector height and the exact relationship between the board, display, optics and enclosure.
Temperature, continuous operating time, shock, vibration and reliability expectations should be defined for professional products.
Provide prototype quantity, forecast volume, target schedule, budget expectations and the intended level of customization.
| Driver Direction | Typical Use | Main Strength | Main Review Point |
|---|---|---|---|
| Custom Interface Board | OEM systems with non-standard electrical, mechanical or firmware requirements | Project-specific electrical and mechanical integration | Engineering feasibility, development scope, cost, volume and schedule |

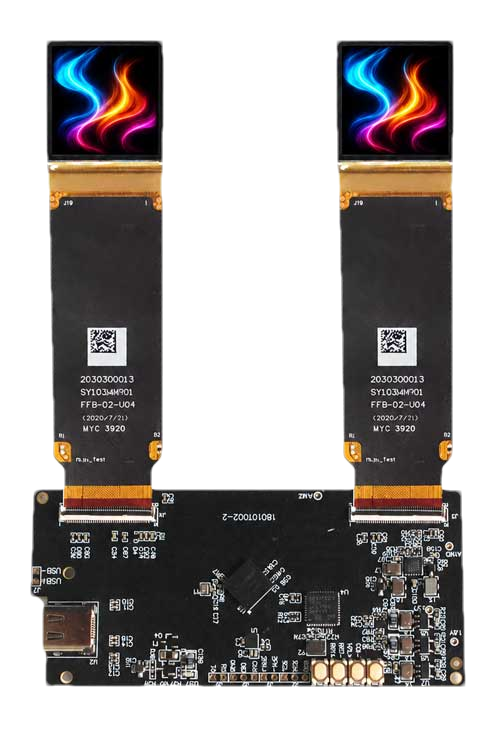

| Binocular Driver Board | VR and dual-eye near-eye systems | Synchronized control of two displays | Left/right timing, resolution, 2D/3D behavior and cable matching |

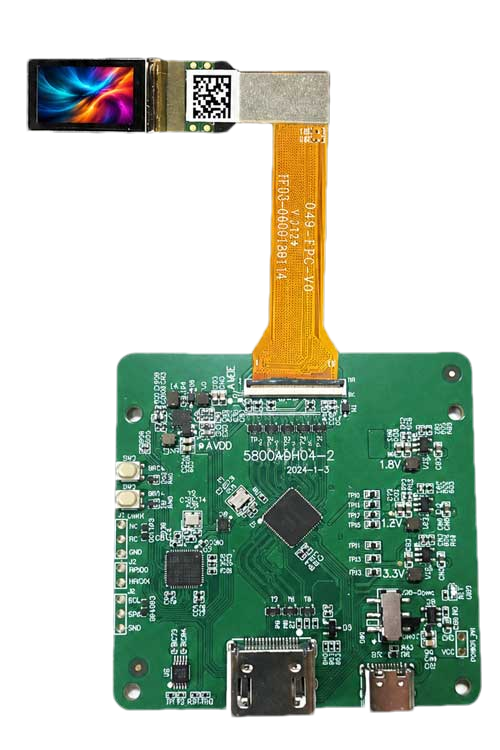

| Monocular Driver Board | EVF, thermal viewers and other single-eye systems | Compact control for one Micro OLED | Exact display compatibility, input interface and board size |

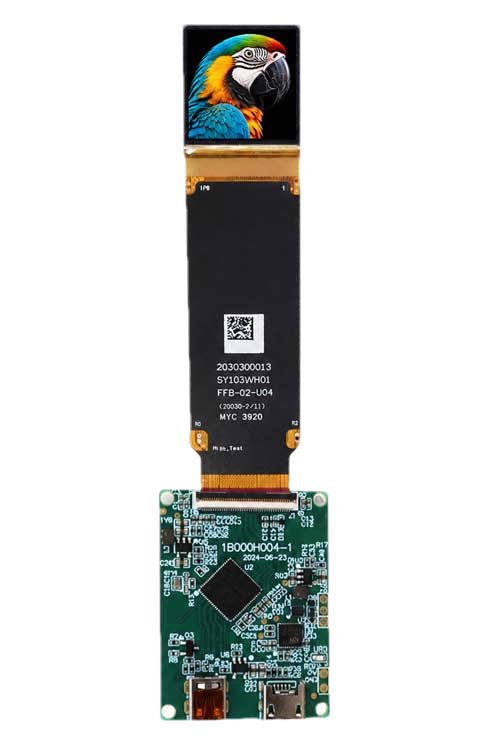

| HDMI / Type-C Driver Board | Prototype and OEM systems using an external digital video source | Convenient HDMI, Micro HDMI or compatible Type-C video input | Input mode, conversion path, power and display compatibility |
The lowest-risk route is usually to start from an available driver platform already matched to the selected Micro OLED, then customize only the interfaces, connectors, cables, board shape, firmware and controls justified by the product requirements.
Supported input, resolution, refresh rate, output interface, power, board dimensions and firmware features vary by board and Micro OLED. Final values should be confirmed for the selected configuration.
It is a project-based board developed or adapted around a specific Micro OLED, host signal, mechanical structure, power architecture and required control behavior.
No. Feasibility depends on the complete source specification, bandwidth, timing, conversion devices, software support, Micro OLED platform and commercial development scope.
Sometimes, but only when the processor output, lanes, timing, voltage, initialization and software support match the exact Micro OLED. Otherwise additional electronics are required.
Possible directions include HDMI, Type-C, MIPI, RGB, LVDS and other defined interfaces. Availability and conversion feasibility are project-dependent.
Brightness, image flip, color, gamma, startup behavior and other controls may be reviewed, subject to hardware, firmware and project scope.
PCB outline, connectors, rigid-flex structure, FPC, cables, buttons and controls can be reviewed. Feasibility depends on electrical requirements, tooling, volume and schedule.
Provide the Micro OLED model, complete host signal definition, resolution, refresh rate, board-size limit, connector and cable layout, power, functions, quantity, schedule and project stage.
Send the Micro OLED model, host processor or signal definition, resolution, refresh target, PCB limit, connector and FPC layout, power, firmware functions, quantity and schedule.
