An Outdoor Touch Display is a high-brightness interactive display system engineered for public operation in outdoor or semi-outdoor environments.
Unlike a normal outdoor signage screen, it must do more than show content. Users need to touch, search, select, pay, register, navigate or control equipment reliably under daylight, rain, temperature changes and frequent public use.
The correct product may be an embedded Touch Display Module, an Open Frame Outdoor Touch Monitor, a finished Outdoor Touch Display or an Outdoor Touch Panel PC.
Outdoor High Brightness Displays are mainly for viewing. Outdoor Touch Displays are engineered for reliable public operation.
| Product Route | Main Structure | Best For | Protection Responsibility |
|---|---|---|---|
| Outdoor Touch Display Module | LCD, high-brightness backlight, touch sensor, controller and cover glass | OEM equipment with a customer-designed enclosure | Provided mainly by the customer's final equipment |
| Open Frame Outdoor Touch Monitor | High-brightness touch monitor with open metal frame and display controller | EV chargers, kiosks, vending machines and industrial terminals | Provided by the customer's outer enclosure and front sealing |
| Finished Outdoor Touch Display | Touch display, protected front assembly, outdoor enclosure, cooling and mounting | Public kiosks, wayfinding, ticketing and outdoor self-service | Integrated into the complete finished product |
| Outdoor Touch Panel PC | Outdoor touch display with integrated Android or Windows computer | Self-service software, payment, public information and equipment control | Integrated into the complete Panel PC or terminal structure |
Before selecting brightness or touch technology, confirm whether DisplayMan supplies only the embedded display assembly or the complete outdoor interactive product.
Provides readable content under daylight, high ambient light and public-facing conditions.
Detects finger, glove or project-specific input through the selected cover glass.
Controls sensitivity, multi-touch, water rejection, glove operation and false-touch behavior.
Provides the public-facing surface, protection, branding and optical interface.
Reduces the air gap and can improve readability, touch response and structural strength.
Protects electronics from rain, dust, heat, condensation, impact and unauthorized access.
Android, Windows, external computer or customer embedded controller runs the application.
Manages heat from the backlight, computer, sun and sealed outdoor structure.
Screen height, reach, accessibility, payment devices, cameras and service access must work together.
Touch firmware can distinguish certain water patterns from intended finger input.
The system may be tuned to accept a wet finger while rejecting surrounding droplets.
Heavy flowing water is more difficult than light rain or isolated droplets.
Glass thickness, coating, air gap and bonding change the touch signal and water behavior.
Poor grounding, power noise and metal structure can reduce touch stability outdoors.
Final water behavior should be tested with the actual glass, controller, enclosure and installation.
The required behavior must be defined: reject droplets, accept wet-finger input, continue multi-touch, disable touch during heavy water or another project-specific mode.
Fabric, rubber, leather, insulated and work gloves produce different capacitive signals.
Thicker gloves require more sensitivity and may reduce accuracy or water rejection.
Thicker protection glass weakens the touch signal and must be included in controller tuning.
Outdoor user interfaces should use larger buttons and spacing than normal desktop software.
Required point count and accuracy should be balanced against glove and water performance.
Representative gloves and the final glass stack should be tested before production approval.
Selected from impact, safety, vandal resistance and local project requirements.
Black border, logo, instructions, icons and hidden sensor areas can be printed.
Anti-glare treatment can reduce sharp reflections but may affect image clarity.
Anti-reflective treatment can improve light transmission and outdoor contrast.
Anti-fingerprint treatment improves cleaning and public-use surface maintenance.
A simpler assembly with an air gap between LCD and touch or cover glass.
Reduces internal reflection and strengthens the front display assembly.
The final enclosure must seal the glass edge and protect the complete front assembly.
Bonded assemblies improve integration but may change repair and replacement methods.
Review the Custom Touch Glass Solution and Optical Bonding Display Solution for detailed front-assembly planning.
Open sky, reflected sunlight and public lighting determine the required visible contrast.
Glass treatment, bonding and viewing angle can be as important as panel luminance.
Direct sun raises the LCD, glass and internal enclosure temperature.
A high-brightness backlight creates continuous thermal load during operation.
An integrated Android or Windows system adds processor and power-supply heat.
Ambient-light control can reduce heat, power and user discomfort after dark.
The correct product balances outdoor readability, reflection, heat, dimming, power, touch response and user comfort.
| Interface Type | Typical Use | Important Difference |
|---|---|---|
| HDMI / DisplayPort / DVI / VGA | External video input from a PC, media player or industrial computer | A display controller converts the source signal to the selected LCD panel |
| LVDS | Direct embedded connection between motherboard and compatible LCD assembly | Voltage, pinout, timing, bit mapping and connector must match |
| eDP | Embedded display connection from a modern motherboard or computing board | Lane configuration, timing, EDID and voltage must be compatible |
| MIPI DSI | Compact embedded systems and selected displays | Requires matching lanes, timing, command mode and software support |
| USB Touch | Common touch interface for Windows, Android and external computers | Touch communication is separate from the LCD video signal |
| I²C / Serial Touch | Embedded controller integration | Requires compatible voltage, protocol, firmware and software driver |
Outdoor Touch Displays are project-configured products. The following table defines the engineering scope rather than one universal model.
| Item | Project Direction |
|---|---|
| Display Size | Selected from available commercial or industrial LCD platforms |
| Brightness | Project-specific according to sunlight, reflection, viewing distance and heat |
| Touch Technology | Normally projected capacitive touch; other technologies can be reviewed for special applications |
| Touch Behavior | Finger, glove, wet-finger, multi-touch, water rejection and project-specific tuning |
| Cover Glass | Custom size, thickness, border printing, logo, holes, notches and optional AG / AR / AF |
| Bonding | Air bonding or optical bonding according to optical, touch and structural requirements |
| Video Interface | HDMI, DisplayPort, DVI, VGA, LVDS, eDP or MIPI depending on system architecture |
| Touch Interface | USB, I²C, serial or project-specific interface |
| Computing System | Display only, Android, Windows Panel PC, external PC or customer embedded controller |
| Enclosure | Embedded module, Open Frame, finished outdoor display or complete terminal structure |
| Thermal Control | Passive heat path, fan ventilation, heat exchanger, air conditioning or project-specific combination |
| Weather Protection | Project-specific sealing, drainage, cable entry, ventilation and maintenance structure |
| Operating Schedule | Confirmed from duty cycle, backlight, computer, cooling and maintenance requirements |
| Mounting | Embedded, wall-mounted, floor-standing, panel-mounted or project-specific installation |

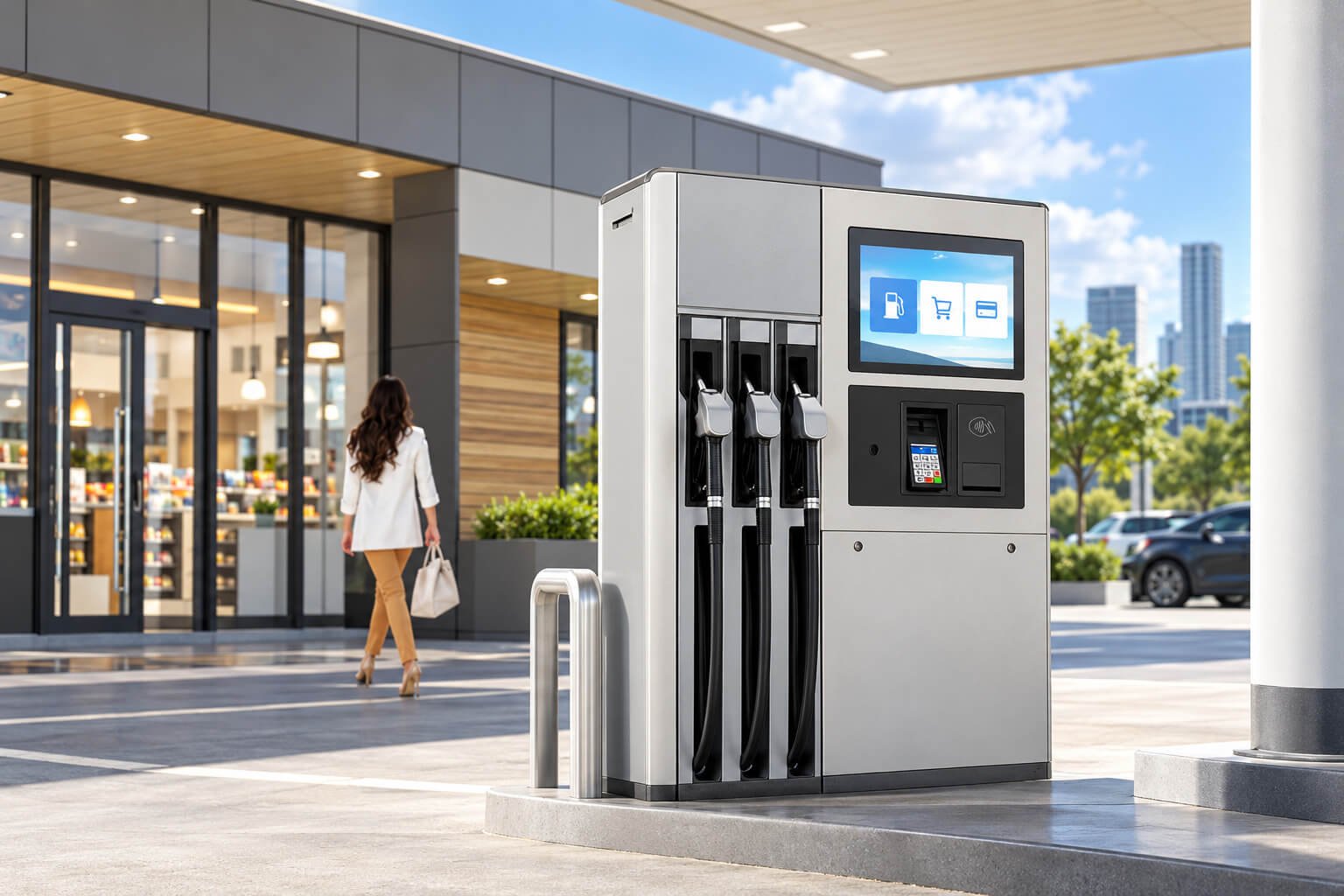

Charging status, payment guidance, account login, user operation and advertising.
Information search, registration, ticketing, payment, check-in and public self-service.
Parking fee payment, vehicle information, QR guidance and customer operation.
Transportation, events, parking, amusement parks and access systems.
Government service, community registration, inquiry and document guidance.
Campuses, parks, stations, malls, city areas and commercial complexes.
Product selection, payment, promotion and unattended customer interaction.
Payment guidance, loyalty programs, service information and promotion.
Machine control, system monitoring, energy equipment and field-operation interfaces.
| Factor | Outdoor Touch Display | Outdoor High Brightness Display | Open Frame High Brightness Monitor |
|---|---|---|---|
| Main Purpose | Outdoor user interaction | Outdoor content viewing | OEM embedded display integration |
| Touch Function | Core requirement | Optional | Optional |
| User Behavior | Search, select, pay, register, navigate and control | View advertising or public information | Depends on the customer's equipment |
| Product Form | Embedded module, Open Frame, finished outdoor product or Panel PC | Finished outdoor signage product | Open Frame or embedded monitor assembly |
| Front Glass | Critical to touch, protection and optical performance | Important for protection and visibility | Project-specific |
| Weather Protection | Depends on supplied product boundary | Integrated into the finished display | Provided mainly by customer equipment |
| Key Engineering Concern | Touch reliability, visibility, glass, software, weather and user behavior | Visibility, weather, thermal control and uptime | Mechanical and electrical integration |
Touch targets should be reachable by the intended user population.
Standing, seated and wheelchair users may view the screen from different heights.
Outdoor software should use larger buttons, spacing and clear visual feedback.
Card readers, QR scanners, printers, cameras and speakers must be positioned consistently.
Glass, locks, fasteners and enclosure strength should match the site risk.
Accessibility, electrical, payment, privacy and public-installation requirements vary by market.
Embedded module, Open Frame Monitor, finished outdoor display or complete Panel PC.
Finger, glove, wet finger, multi-touch, payment, search, ticketing or equipment control.
Sunlight, rain, dust, temperature, humidity, vandal risk and operating hours.
Glass size, thickness, printing, coating, air bonding or optical bonding.
HDMI monitor, embedded interface, Android, Windows or customer controller.
Test brightness, touch, water, glove, heat, software, mounting and service access.
Foundation, wall strength, lifting, anchoring, electrical work, grounding, permits, payment compliance, accessibility and final installation safety must be handled or approved by qualified local professionals.
| Related Page | When to Visit |
|---|---|
| High Brightness LCD Displays | Overview of the complete High Brightness LCD product family |
| Open Frame High Brightness Monitors | OEM embedded high-brightness monitor assemblies |
| Window Facing Displays | Indoor signage facing storefront glass and street viewers |
| Outdoor High Brightness Displays | Outdoor signage and public information without core touch interaction |
| Rugged Outdoor Terminal Solution | Complete kiosks, public terminals and protected equipment |
| Custom Touch Glass Solution | Touch sensor, cover glass and controller engineering |
| Optical Bonding Display Solution | Improve optical performance, touch response and front-assembly strength |
| All-in-One Touch Display PC Solution | Integrated Android or Windows touch computing systems |
| Industrial All-in-One PC Solution | Industrial computing, I/O and touch Panel PC requirements |
| Smart Vending & Unattended Retail | Vending, lockers and self-service retail applications |
| Industrial Equipment & HMI | Industrial control and equipment interaction |
| Touch vs Non-Touch Display | Confirm whether interactive operation is necessary |
| Outdoor vs Indoor Display | Confirm environmental and enclosure requirements |
| High Brightness vs Normal Display | Evaluate sunlight, reflection and thermal requirements |
It is a touch-enabled high-brightness display system designed for outdoor or semi-outdoor interaction. Depending on the project, it may be supplied as an embedded module, an Open Frame Touch Monitor, a finished outdoor display or an Outdoor Touch Panel PC.
No. Outdoor signage is mainly designed for viewing content. An Outdoor Touch Display is designed for user operation such as search, selection, payment, ticketing, wayfinding, registration or equipment control.
It can be configured for strong daylight and sunlight-readable applications, but brightness, front-glass reflection, LCD temperature, solar loading, viewing direction and thermal control must be reviewed together.
Rain can interfere with capacitive touch. The final performance depends on the touch sensor, controller tuning, water-rejection algorithm, cover glass, grounding, enclosure design and the real amount of water on the surface.
Yes, selected touch controllers can be tuned for wet-finger use, but the required behavior must be defined and validated with the final glass and enclosure.
In many cases, yes. Glove performance depends on glove material and thickness, cover-glass thickness, touch sensitivity, controller tuning and environmental conditions.
Yes, but thicker glass reduces touch sensitivity. Glass thickness, touch sensor, controller and bonding method must be selected and tested as one assembly.
Optical bonding fills the air gap between the LCD and touch or cover glass. It can reduce internal reflection, improve readability, strengthen the front assembly and improve touch response.
A finished outdoor product can be designed with weather-resistant protection, but the final IP level depends on the complete enclosure, glass sealing, doors, cable entries, ventilation, drainage and installation.
Yes. An LCD, touch panel, cover glass, controller, frame and optional optical bonding can be supplied as an embedded assembly for integration into the customer's own outdoor equipment.
Yes, subject to project review. A complete outdoor housing, cooling system, power, controller, touch front assembly, mounting structure and optional computing system can be configured.
It combines the high-brightness touch display with an integrated Android or Windows computer, making it suitable for self-service, wayfinding, ticketing and public operation systems.
External monitor configurations may support HDMI, DisplayPort, DVI or VGA, while embedded systems may use LVDS, eDP or MIPI. Touch communication may use USB, I²C, serial or another project-specific interface.
No. They are embedded panel interfaces and require matching voltage, timing, pinout, lane configuration and software support. They are different from external HDMI or DisplayPort inputs.
Yes. Android media systems, Windows Panel PCs, external computers or customer-provided embedded controllers can be reviewed.
Depending on brightness, enclosure, climate and computing system, thermal control may use passive heat paths, fans, filtered ventilation, heat exchangers or air conditioning.
DisplayMan can support product and structure review. Foundations, wall strength, lifting, anchoring, electrical work, grounding, permits, accessibility and final installation safety should be handled by qualified local professionals.
Please provide screen size, environment, sunlight condition, temperature range, touch behavior, glove or wet-finger requirement, cover-glass thickness, computing system, enclosure type, mounting, quantity, certifications, destination and schedule.
Send us the screen size, environment, sunlight condition, temperature range, touch behavior, glove or wet-finger requirement, cover-glass thickness, computing system, enclosure type, mounting, quantity, certifications, destination and schedule.
We will review the suitable LCD platform, touch sensor, controller, glass, bonding, enclosure, thermal control, computing system and mounting for the real application.
Outdoor Touch Display projects require display, touch, glass, weather protection, thermal control, software and user behavior to work as one system.
Please share your application, display size, quantity and project background. We will review the most practical display direction.
