Transform Columns and Pillars into Immersive 360° Digital Display Experiences
Turn architectural columns, pillars, and freestanding round structures into dynamic digital media. Cylindrical LED Displays use flexible LED modules and a precision supporting frame to create smooth curved surfaces for retail, airports, exhibitions, hotels, museums, corporate spaces, and public installations.
DisplayMan — Your Partner in Flexible & Custom LED Display Engineering.

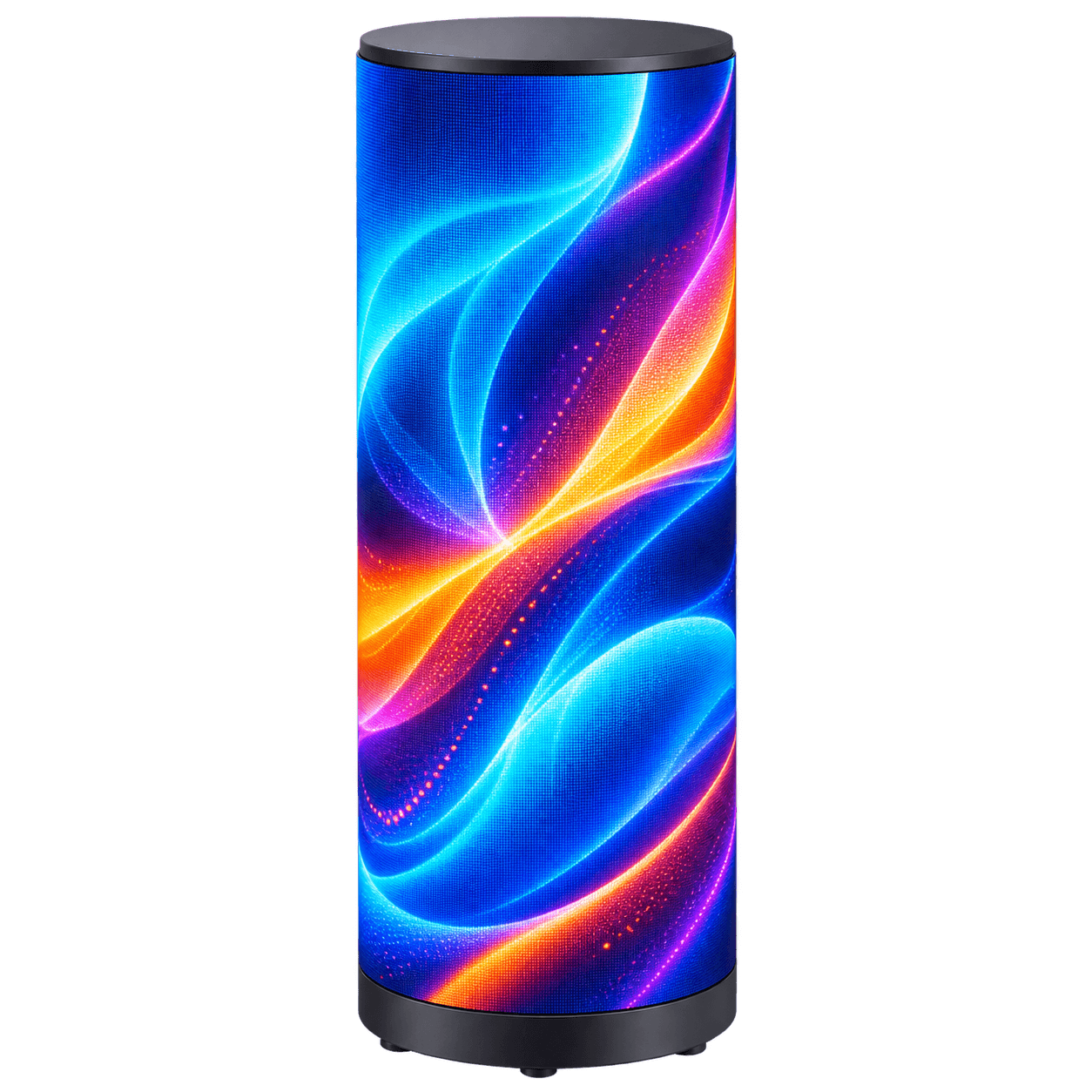

A Cylindrical LED Display is a curved LED system built around a round supporting structure or an existing architectural column. Flexible LED modules wrap around the frame to create a continuous display surface that can be viewed from multiple directions — up to a full 360°.
Unlike Sphere, Vase or other compound-curved Creative LED products, a simple cylinder normally uses standard flexible LED modules + a project-specific cylindrical frame. This makes it one of the most practical and cost-efficient ways to turn architectural columns into digital media.
For a normal constant-radius cylinder, DisplayMan first selects a flexible LED module whose safe bending radius matches the required diameter, then engineers the supporting frame, module layout, control system and installation. A completely new custom LED PCB or module mold is usually unnecessary.
Cylinder projects should be selected from the real installation geometry first: diameter, height, full or partial wrap, viewing distance and indoor/outdoor environment.
| Product Direction | Physical Direction | Best For | Selection Logic |
|---|---|---|---|
| Compact Indoor Cylinder | Small / close-view indoor direction | Retail counters, showrooms, exhibitions, decorative columns | Use fine-pitch flexible LED; minimum diameter depends on the bending capability of the selected module |

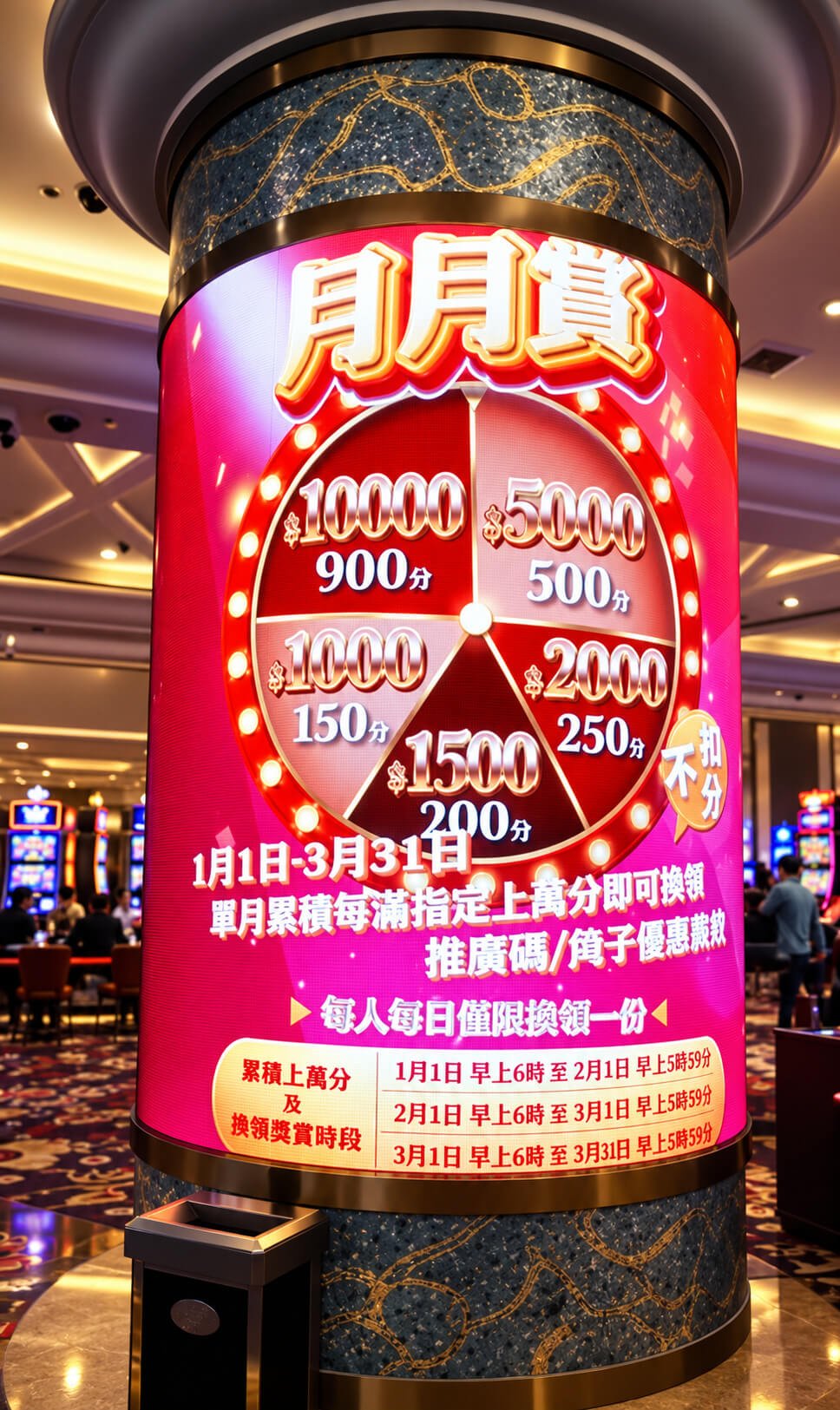

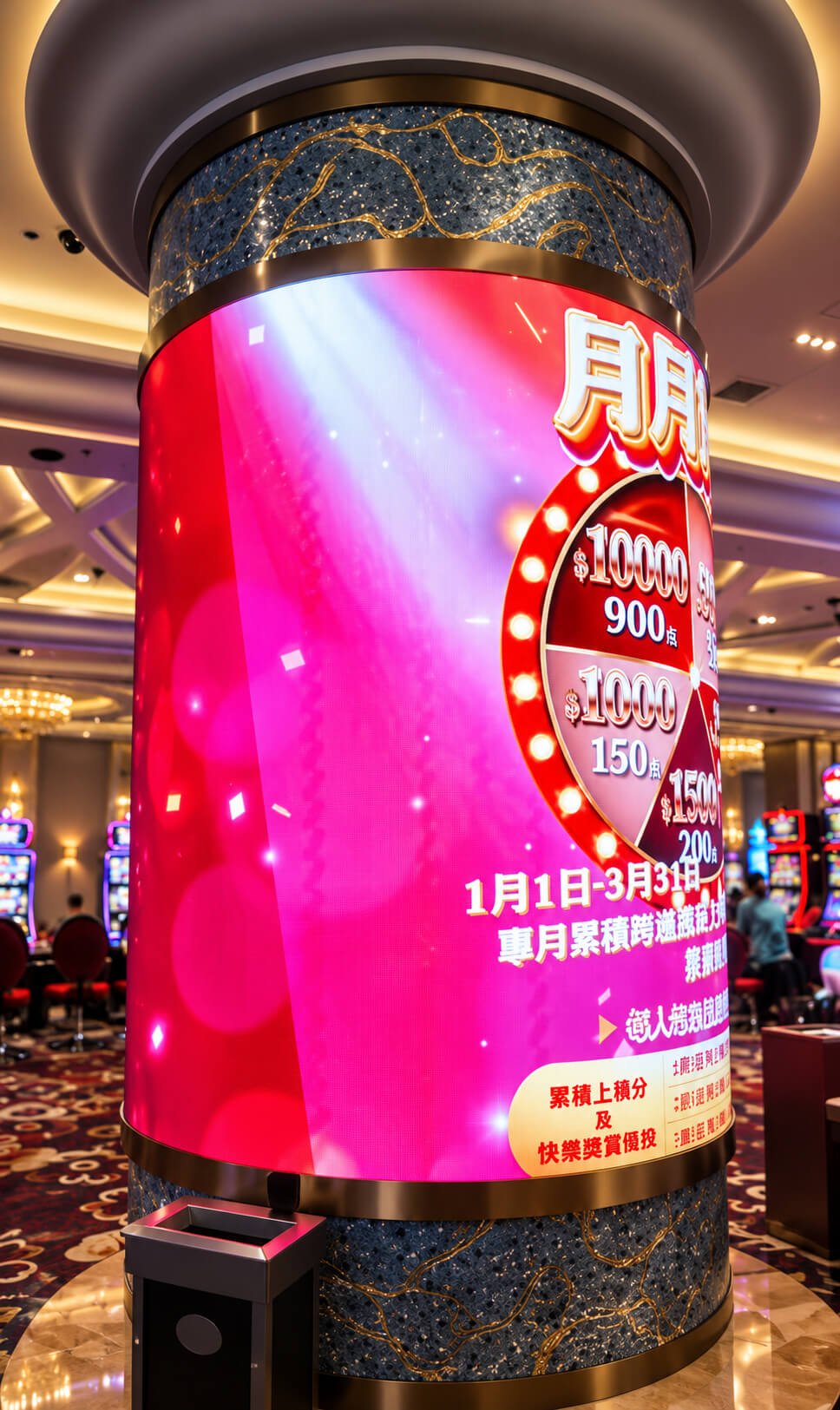

| Column Wrap | Existing architectural column | Shopping malls, airports, hotels, museums, corporate spaces | Measure real column diameter and height first; design a supporting frame around the existing structure |
| Freestanding 360° Cylinder | Medium commercial format | Retail, events, exhibitions, brand activations | Independent internal frame; prioritize stability, service access, cable entry and 360° content mapping |
| Large Architectural Cylinder | Large project-based format | Atriums, entertainment venues, public interiors, large commercial spaces | Structure, segmented transport, power distribution and installation dominate |
| Semi-Cylinder / Partial Wrap | Project-based | Wall corners, architectural features, directional viewing | Useful when a full 360° display is not required |
| Outdoor Cylinder | Project-based outdoor | Plazas, exterior columns, public advertising | Outdoor brightness, weatherproofing, wind load, drainage, anchoring and thermal design govern selection |
| Pitch Direction | Viewing Direction | Typical Use |
|---|---|---|
| P1.25–P1.8 class | Premium close indoor viewing | High-detail retail, museums, fine text and close-view column installations |
| P1.86–P2.5 class | Close-to-medium indoor viewing | Common indoor cylindrical signage, exhibitions, malls, corporate and commercial spaces |
| P3–P4 class | Medium-to-long viewing distance | Larger indoor cylinders, events and architectural columns |
| P4+ class | Outdoor / long-distance viewing | Large outdoor cylinder or public advertising projects |
The practical minimum cylinder diameter is determined by the safe bending radius of the selected flexible LED module. A smaller pixel pitch does not automatically mean the module can bend to a smaller radius.
This distinction is important because the engineering cost, minimum size and development cycle are very different.
A Cylinder is one of the best examples of what standard Flexible LED can do without turning the project into a high-cost fully custom Creative LED development.
For a cylinder, the structural frame defines the display shape. The flexible LED module follows that frame. This is the opposite of a Sphere LED project, where several special module geometries may define the final surface.
| Engineering Factor | Why It Matters |
|---|---|
| Diameter | The diameter determines the required module curvature. It must stay within the safe bending range of the selected flexible LED module. |
| Height | Height determines the vertical module count, total display area, structure segmentation and service layout. |
| Full vs Partial Wrap | A full cylinder provides 360° viewing; semi-cylinder or partial wrap can reduce LED area when only selected audience directions matter. |
| Flexible LED Module | Standard flexible LED modules bend around the frame and normally avoid the need for a completely new custom LED PCB or module mold. |
| Supporting Frame | The frame defines the actual cylinder geometry. Roundness and frame tolerance directly affect seam quality and visual smoothness. |
| Vertical Closure Seam | A full cylinder needs one wrap-around closure line. Its position should be planned away from the primary audience direction where possible. |
| Module Alignment | Flexible modules must sit evenly against the frame to avoid visible steps, gaps, dark lines or inconsistent curvature. |
| Magnetic / Mechanical Fixing | Many flexible module systems use magnetic attachment or project-specific fixing for front service and fine surface adjustment. |
| Power & Data | Power supplies, receiving cards, cables and grounding must be distributed without blocking maintenance. |
| Thermal Design | Closed or semi-enclosed cylinders can trap heat; ventilation and electronics layout should be reviewed before the frame is finalized. |
| Service Access | Front-service modules are useful for column wraps where rear access may be limited, but final service method depends on the selected module and structure. |
| Existing Column Survey | For a retrofit column wrap, real site dimensions, roundness, access, wall/floor conditions and power/data routes should be measured before production. |
The cylinder should be designed from the module bending capability + supporting frame together. A perfectly round frame cannot compensate for a module bent beyond its safe radius, and a flexible module cannot hide a poorly aligned structural surface.
A finished Cylinder LED should be planned as a complete curved display system rather than only as a quantity of flexible LED modules.
| System Layer | Typical Scope |
|---|---|
| Flexible LED Surface | Flexible LED modules forming the curved display surface |
| Cylindrical Supporting Frame | Round steel / aluminum structure or custom frame around an existing column |
| Control Electronics | Receiving cards, power supplies, processor/sending system and optional media player |
| Content Mapping | Panoramic canvas, wrap-around pixel map and seam-aware content layout |
| Installation Package | Frame sections, fasteners, cable routing, mounting accessories and project-specific transport protection |
| Maintenance Strategy | Front-service, removable structural panel or other project-specific access method |
Cylindrical LED content is different from a standard 16:9 video wall. The pixel canvas follows the full circumference of the display, so logos, text, movement and the vertical closure seam should be planned together.
| Content Direction | Mapping Strategy |
|---|---|
| 360° Panoramic Content | Create a wide canvas equal to the full cylinder circumference so content wraps continuously around the display. |
| Primary Viewing Zone | Reserve a hero zone for logos, headlines or key product information where the main audience approaches the display. |
| Seam-Aware Layout | Avoid placing critical text or a hero logo directly on the vertical closure seam. |
| Looping Motion | Use horizontal motion, rotating graphics, particles, waves and continuous abstract media that naturally wrap around the cylinder. |
| Directional Content | If the audience mainly approaches from one side, use repeated content zones rather than forcing one message to wrap 360°. |
| Multi-Cylinder Synchronization | Several cylindrical displays can be synchronized for architectural rhythm, events or coordinated brand content. |
Use one continuous wide canvas when content is intended to travel around the entire circumference.
Repeat logos or messages around the cylinder when audiences approach from several directions and every side needs an immediately readable message.
Keep critical text and hero logos away from the final vertical seam whenever possible.
| Installation Method | Engineering Considerations |
|---|---|
| Existing Column Wrap | Build a supporting frame around the existing column; verify column diameter, height, roundness, floor/ceiling interfaces and available service clearance. |
| Freestanding Floor Base | Suitable for temporary or permanent commercial installations; base manages stability, cable entry and service access. |
| Suspended / Hanging Cylinder | Useful in atriums and exhibitions; requires total-weight review, rigging points, power/data routing and safe maintenance access. |
| Embedded / Architectural Integration | Cylinder becomes part of a wall, pillar or interior element; finish interfaces and maintenance clearance must be planned early. |
| Semi-Cylinder Wall Mount | Useful for wall corners, shallow architectural features and installations where full 360° visibility is unnecessary. |
| Outdoor Structural Mount | Requires wind-load, anchoring, weather sealing, drainage, UV/temperature review and safe cable protection. |
Existing columns often provide little or no rear maintenance space. When a compatible magnetic/front-service flexible module system is selected, defective modules can be removed from the display side without dismantling the entire cylindrical structure.
Cylinder LED is strongest where a physical column, pillar or freestanding round form already fits the architecture and multi-directional visibility provides a real advantage.
Wrap structural columns with dynamic advertising, wayfinding, campaigns or decorative media visible from multiple directions.
Use cylindrical surfaces for advertising, information and architectural media in high-traffic circulation areas.
Create a 360° promotional surface around columns or as a freestanding branded digital object.

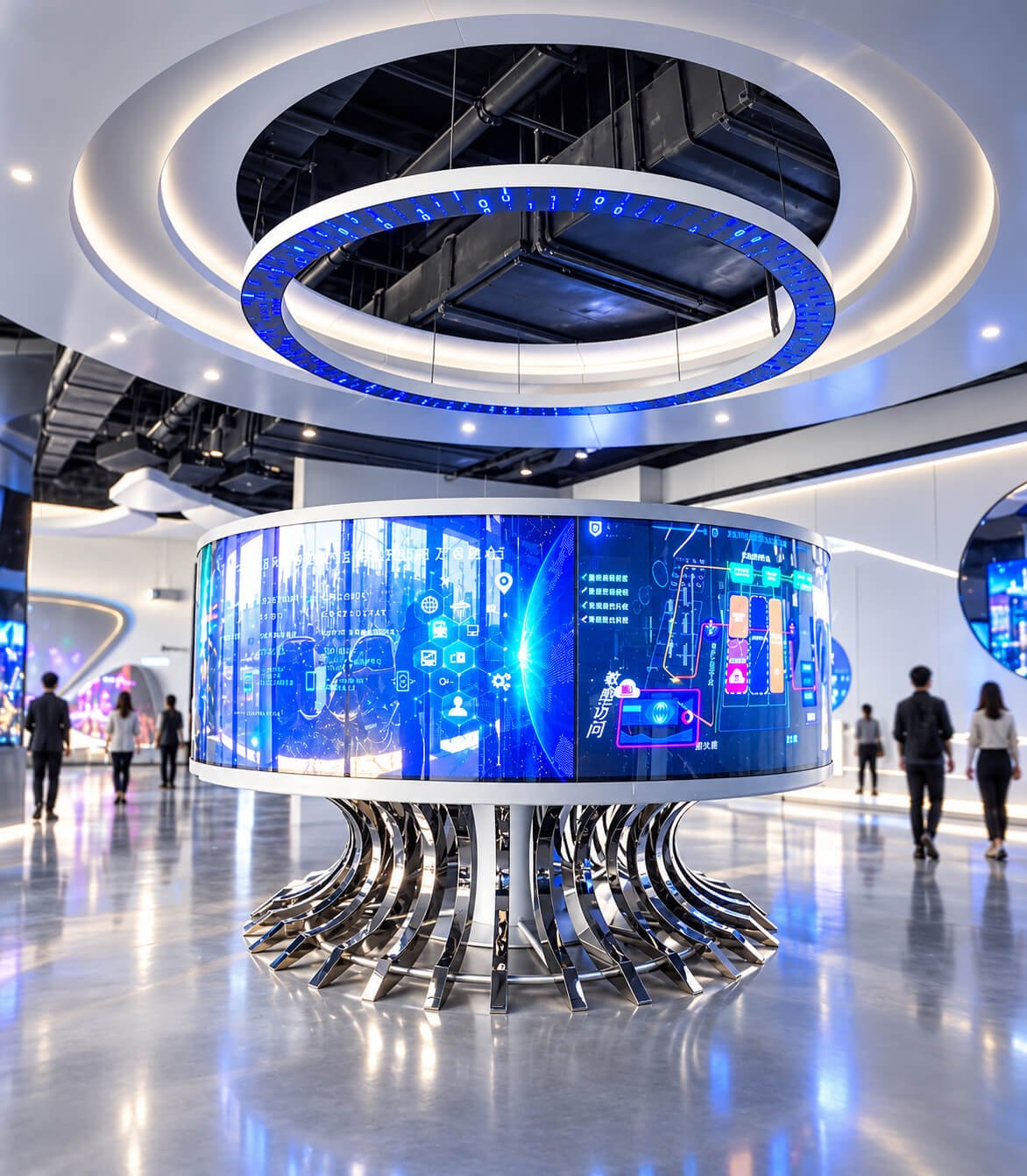

Freestanding or suspended cylinders can act as event landmarks, stage elements and multi-directional brand media.
Integrate cylindrical LED as an architectural feature for welcome content, branding, event information and ambient motion graphics.
Use columns as immersive storytelling surfaces, data visualization or decorative digital architecture.
Cylindrical screens can integrate with lighting, music and stage systems for high-energy visual environments.
Large outdoor cylinders can be developed as advertising or digital landmarks where 360° visibility provides value.
| Factor | Cylindrical LED Display | Standard Flat LED Wall |
|---|---|---|
| Geometry | Constant-radius curved surface | Flat rectangular plane |
| Viewing Direction | Multiple directions / up to 360° | Primarily front-facing |
| Module Type | Flexible LED modules | Standard rigid LED modules or cabinets |
| Structure | Cylindrical frame or existing column wrap | Flat cabinet / wall frame |
| Content | Panoramic or repeated wrap-around content | Standard flat video canvas |
| Best Fit | Columns, pillars, circular landmarks and 360° advertising | General video walls, presentations and front-facing signage |
| Factor | Cylindrical LED Display | Can-Shaped LED Display |
|---|---|---|
| Primary Goal | Create a continuous cylindrical media surface | Replicate a recognizable beverage can or branded package |
| Geometry | Constant radius; top and bottom usually structural only | Can proportions, rim, lid/base and packaging silhouette may be part of the product |
| Module / Tooling | Usually standard flexible LED modules with a custom frame; dedicated LED module tooling is often unnecessary | Straight cans may also use flexible modules, but high-fidelity branded replicas may require additional structure or custom development |
| Content | Panoramic advertising, architectural media, abstract motion | Packaging artwork, logos, product animation and launch content |
| Typical Installation | Architectural column, freestanding cylinder, hanging cylinder | Retail launch, event activation, product replica |
| Best Selection Logic | Choose when the circular display surface is the concept | Choose when the physical product package is the concept |
| Factor | Cylindrical LED Display | Sphere LED Display |
|---|---|---|
| Curvature | Single-axis / constant-radius curvature | Compound curvature in every direction |
| Module Strategy | Standard flexible LED modules can normally wrap around a compatible cylinder radius | Requires sphere-specific segmentation, multiple module geometries or an existing sphere tooling system |
| Minimum Size Logic | Controlled mainly by flexible-module bending radius and internal structure | Fully custom spheres are normally larger because more segmentation is needed to create smooth curvature |
| Tooling Cost | Usually much lower for a normal cylinder | Can be substantial for new diameter/pitch sphere development |
| Content Mapping | Panoramic cylindrical canvas | Spherical coordinate / pole-aware mapping |
| Best Fit | Columns, pillars and 360° commercial media | Digital Earth, globe, science visualization and spherical landmarks |
If the project needs a constant-radius 360° surface, Cylindrical LED is normally the more efficient engineering direction. Choose Can-Shaped LED when the display must replicate a branded package, and Sphere LED when true compound spherical curvature is essential.
Cylindrical LED is closely related to Flexible LED technology and is also one featured form within DisplayMan’s broader Custom / Creative LED product architecture. These eight pages are common entry points, not the limit of shapes that can be developed.
Use Flexible LED Displays when the project is based on a standard bendable module and a simple curved structure. Use Custom LED Displays when the physical object requires complex geometry, dedicated modules, tooling or free-form engineering.
Cylindrical LED projects often begin from the physical column, the curvature / integration problem, or simply the final venue. Continue from the route that best matches what is already known about the project.
Choose a product page when the display form or technology direction is already clear.
Flexible LED DisplaysParent flexible-LED direction for columns, cylinders, concave/convex walls, arcs and compatible wave-shaped surfaces.Custom LED DisplaysUse when the object goes beyond a simple constant-radius curve and requires deeper Creative LED engineering.Can-Shaped LED DisplayChoose when the object must reproduce a recognizable beverage can, bottle or branded package.Sphere LED DisplayTrue compound-curved 360° surface for globes, digital Earth and spherical landmarks.Rental LED DisplaysModular event walls for repeated setup and changing screen sizes.Portable Foldable LED Poster DisplaysFoldable vertical LED posters for exhibitions, roadshows and product launches.Indoor Fine Pitch LED DisplaysPermanent flat indoor LED walls when front-facing video is more appropriate.Outdoor Fine Pitch LED DisplaysFixed outdoor LED walls when daylight, weather resistance and a flat geometry are primary.Choose a solution page when the column wrap, outdoor environment or structural integration problem is clearer than the final product configuration.
Bespoke & Custom Display SolutionsFor project-specific column wrapping, architectural integration and unusual structures.OEM / ODM Display Engineering & PrototypingFeasibility, module-radius matching, prototype structure and integration support.Outdoor High Brightness Display SolutionsFor outdoor daylight visibility and environmental-protection challenges.All Display SolutionsBrowse DisplayMan display-engineering and integration routes.Choose an application page when the venue is known but the final display form is still being selected.
Exhibition, Events & ShowroomsFreestanding cylinders, suspended display objects and curved event media.Corporate & Office EnvironmentsCorporate lobbies, architectural columns and branded interiors.Outdoor & Public Display SystemsOutdoor columns where wind, drainage, anchoring and maintenance need deeper review.All Display ApplicationsBrowse applications by use case before fixing the final display geometry.For a cylinder project, the first engineering step is to match the required diameter to a suitable flexible LED module system. From there, DisplayMan can determine module quantity, supporting frame, pixel map, power/control architecture, service method and installation.
A Cylindrical LED Display is a curved LED screen built around a constant-radius round structure or existing column. Flexible LED modules are typically mounted to a cylindrical supporting frame to create a continuous curved display surface.
Not exactly. Flexible LED refers to the bendable LED module technology. Cylindrical LED is one common finished-product application of that technology.
Usually not for a simple cylinder. If the target diameter is compatible with an existing flexible LED module, the main customization is normally the supporting frame, total module layout and installation system rather than a completely new LED PCB or module mold.
There is no single universal minimum. It depends on the safe bending radius of the selected flexible LED module, module dimensions, pixel pitch and the mechanical structure. DisplayMan confirms the practical minimum after the module system is selected.
Yes. Existing-column wraps are a common cylindrical LED application. Accurate site measurements are required for diameter, height, roundness, structural interfaces, power/data routing and service clearance.
Yes. A full cylinder provides 360-degree visibility. Semi-cylinder and partial-wrap configurations can also be developed when only selected audience directions need display coverage.
Indoor cylindrical LED projects can be reviewed from fine-pitch flexible LED directions such as approximately P1.25 through P4, while larger or outdoor projects may use wider pitches. Final availability depends on the selected flexible module family.
Yes. The 2-meter-plus guideline used for many fully customized Creative LED shapes does not apply to a simple cylinder. Cylinder size is mainly limited by the bending capability of the selected flexible LED module and the internal structure.
Front-service maintenance can be used when the selected flexible module and fixing system support external removal. This is particularly useful for column wraps with limited rear access.
Yes. Freestanding cylinders can use a dedicated floor base with internal power/data routing and service access.
Yes, subject to total weight, structural rigging, power/data routing and safe maintenance access.
Yes, when outdoor flexible LED modules, waterproof interfaces, drainage, thermal design, wind-load and anchoring requirements are engineered for the project.
Yes. Standard video can be played, but the content should be adapted to the panoramic pixel canvas so text, logos and focal elements appear correctly around the cylinder.
The wrap-around closure seam should normally be positioned away from the strongest audience direction and important logos or text whenever the site allows.
Yes. Multiple cylinders can be configured for synchronized playback or independent content zones depending on the selected controller and system architecture.
Yes. Local playback, Ethernet, Wi-Fi and other remote-control directions can be reviewed with a compatible LED controller and media system.
Normally yes, because a simple cylinder can often use standard flexible LED modules and only requires a compatible round frame. Fully custom compound-curved or free-form shapes may require new PCB/module geometries, tooling and more prototype engineering.
Large cylinders can be divided into frame sections for transport and assembled on site. The segmentation should be planned around shipping access, module layout, alignment and installation sequence.
Provide target diameter, height, full or partial wrap, indoor/outdoor environment, viewing distance, site photos or drawings, preferred pitch if known, installation method, quantity, content/control requirements and shipping destination.
Send the column diameter, height, site photos, viewing distance and installation requirement. DisplayMan can review the most practical flexible LED module, pixel pitch, supporting frame, content mapping and service direction.
A Cylindrical LED Display should be engineered from the module bending radius and supporting frame together. When the geometry is a simple constant-radius cylinder, standard Flexible LED technology can provide a much more practical solution than fully custom Creative LED tooling.
