Transparent Micro LED Display
42-Inch Transparent Micro LED Display
A Real 42-Inch Prototype with See-Through Micro LED Imagery for Premium Commercial Displays
DisplayMan’s 42-inch T005 reference platform places bright self-emissive digital content on a transparent portrait-format display while keeping products, people and the surrounding space visible.
42-Inch PortraitModel T005>60% TransmittanceReal Photos & Videos
Physical Prototype Evidence
A Transparent Micro LED Product You Can See Working
This page combines physical sample units, 20 product content views, seven exhibition playback demonstrations and a rear hardware inspection video.
The current T005 platform is a reference product direction for qualified commercial and OEM projects. Final mechanical integration, electronics, control architecture and deliverable scope are confirmed by project.
Real Display, Real Environment
The photographs and videos show the display operating under exhibition lighting with people and objects visible through the active area.
Engineering Details Remain Protected
Public specifications support early evaluation. Proprietary construction, internal drawings and implementation details are reviewed only when required for a qualified project.
Key Product Direction
What the 42-Inch Transparent Micro LED Platform Delivers
Transparency
See-Through Presentation
Digital content appears while products, exhibits and the surrounding environment remain visible behind the screen.
Brightness
Commercial Visual Impact
The current reference configuration is specified above 800 cd/m² for bright indoor commercial presentation.
Format
Portrait Display Area
The 42-inch portrait format supports digital humans, product overlays, HUD interfaces and full-height visual effects.
Proof
Seven Real Video Demos
Different content sequences demonstrate color, particles, interfaces, fire, smoke and transparent aquarium effects.
Product Gallery
42-Inch Transparent Micro LED Display Views

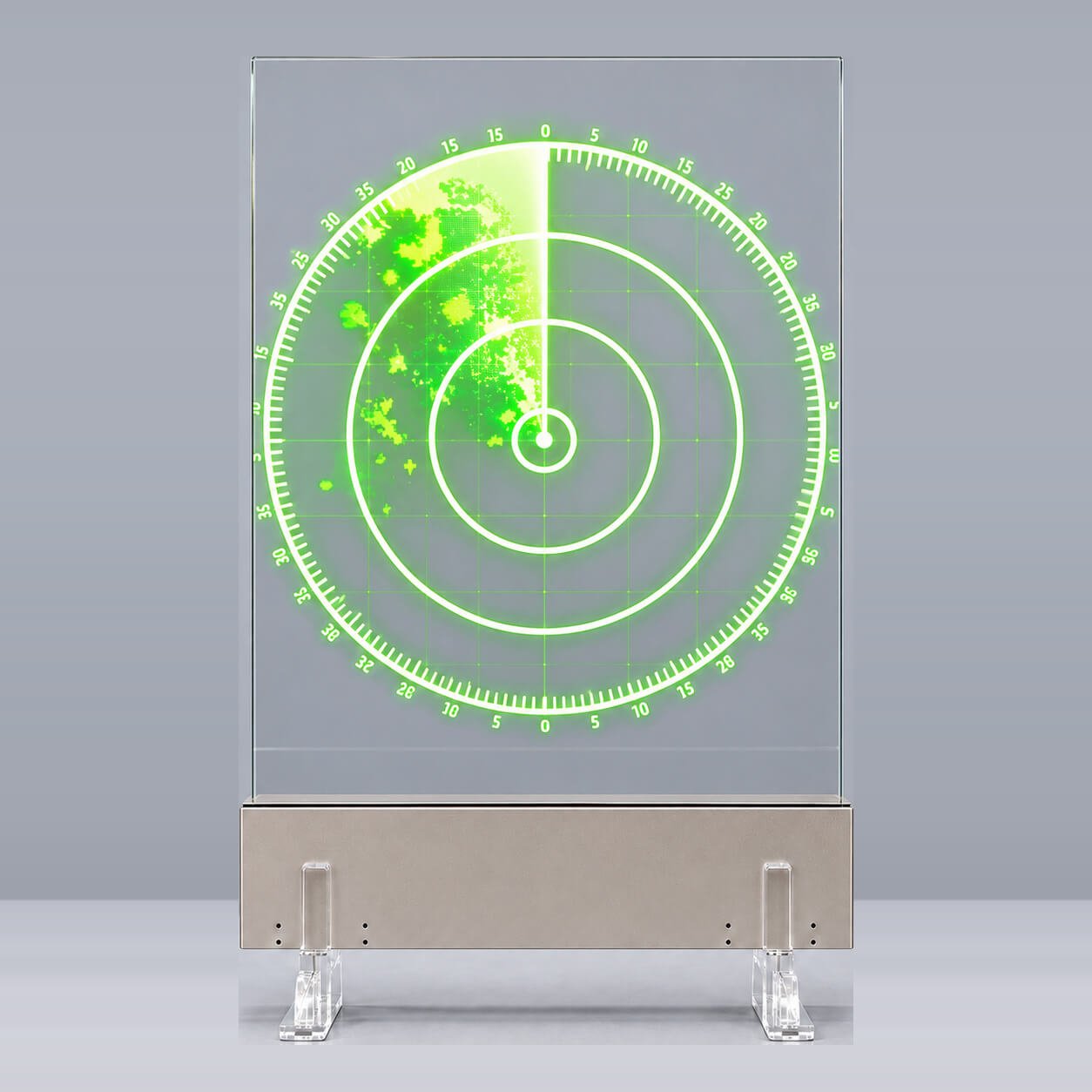

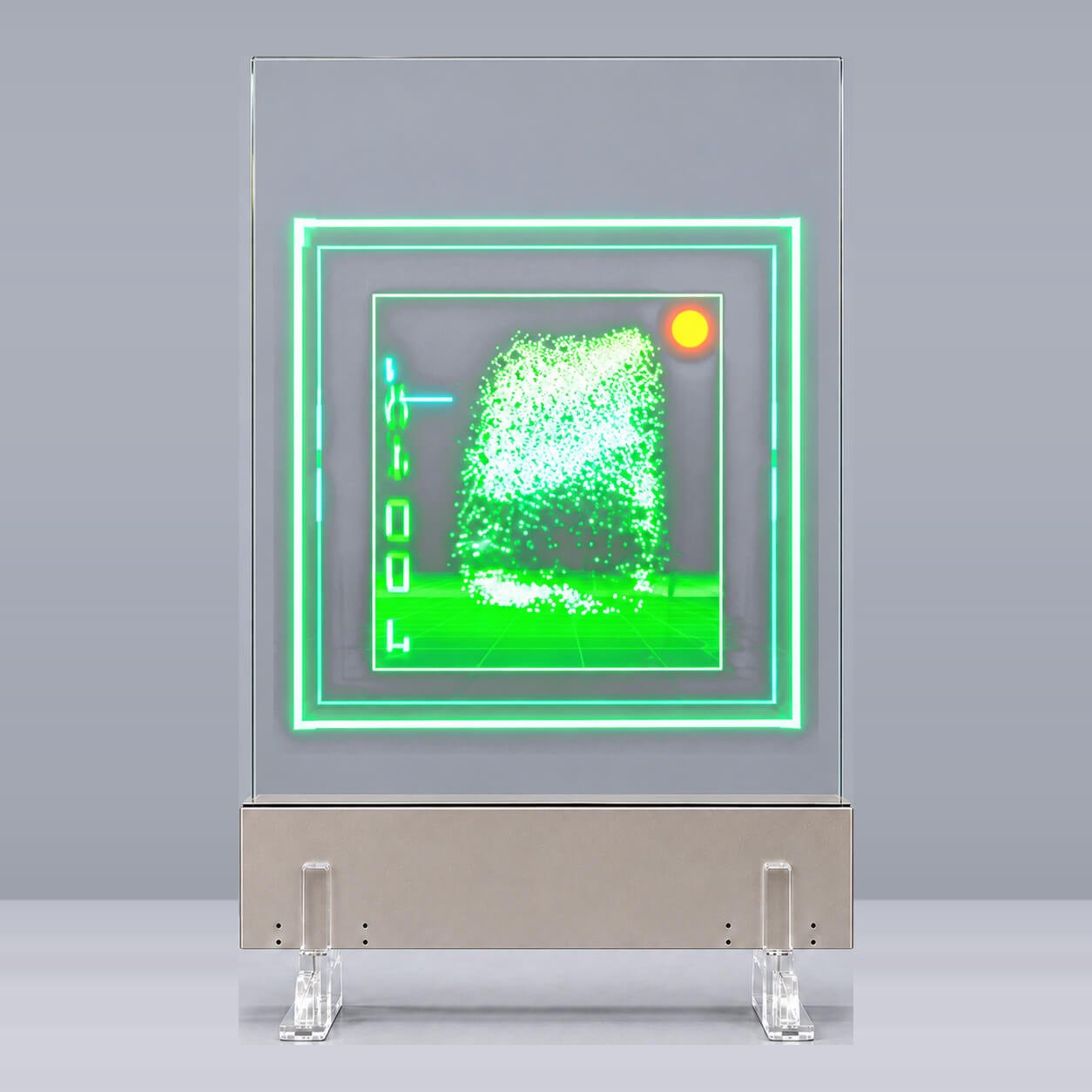

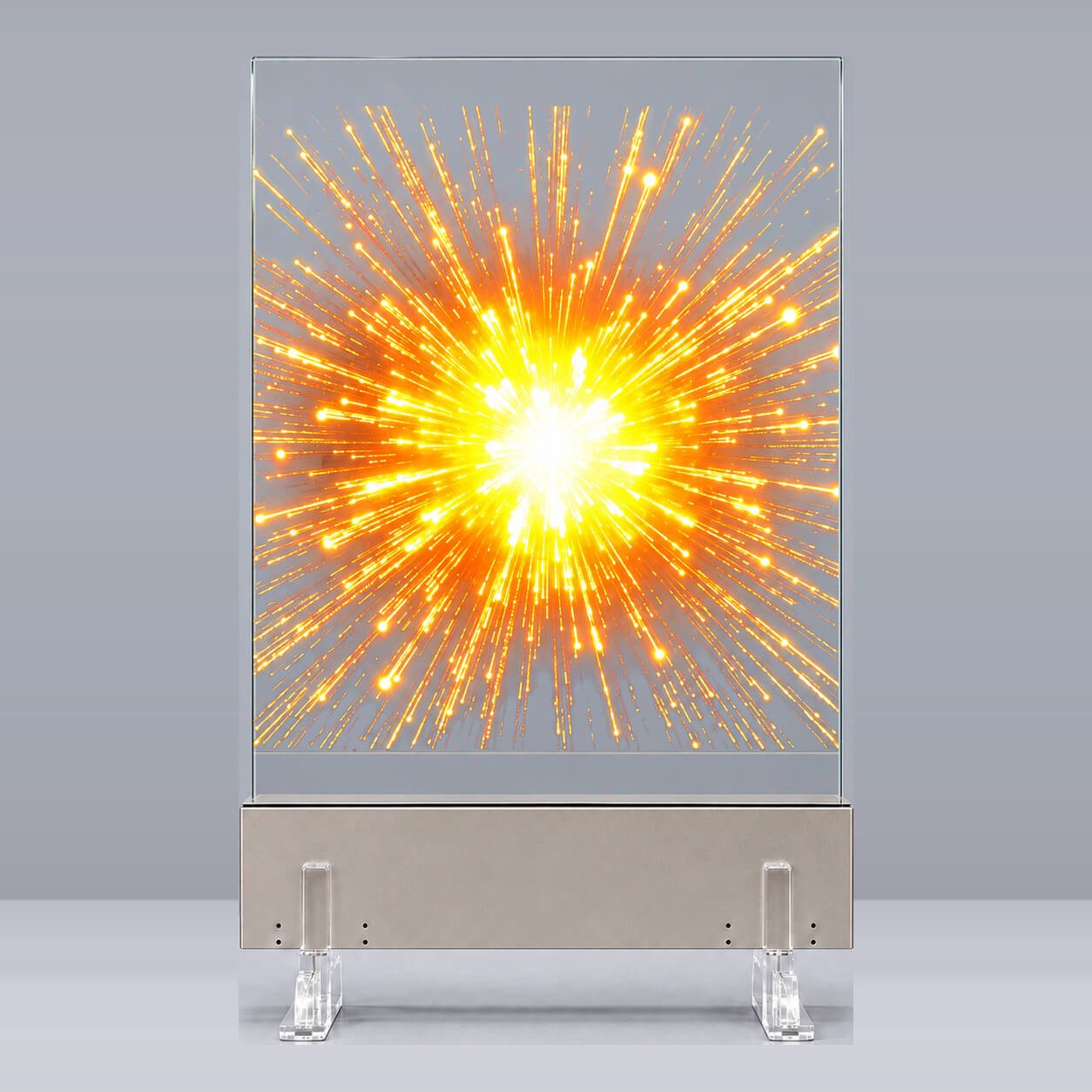

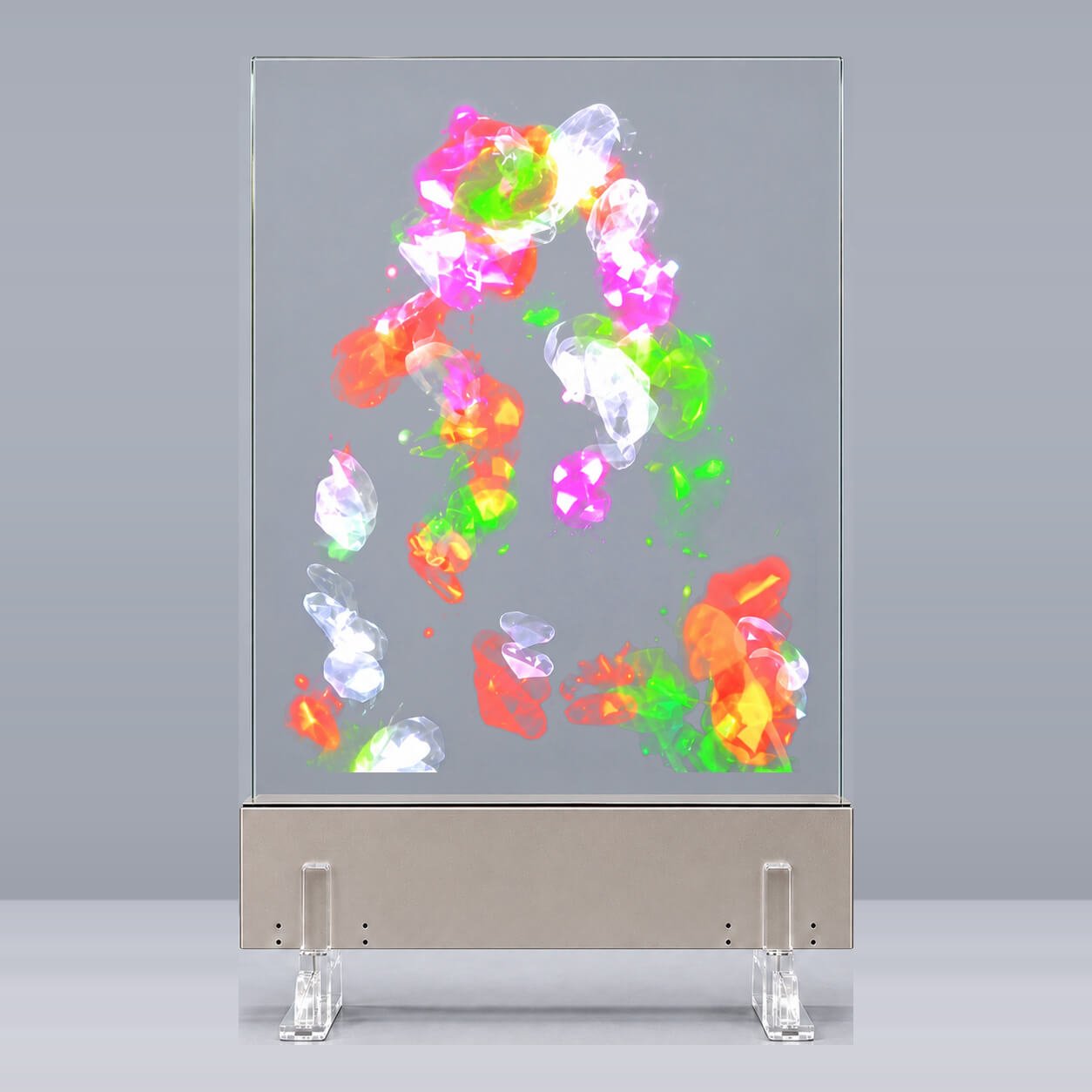

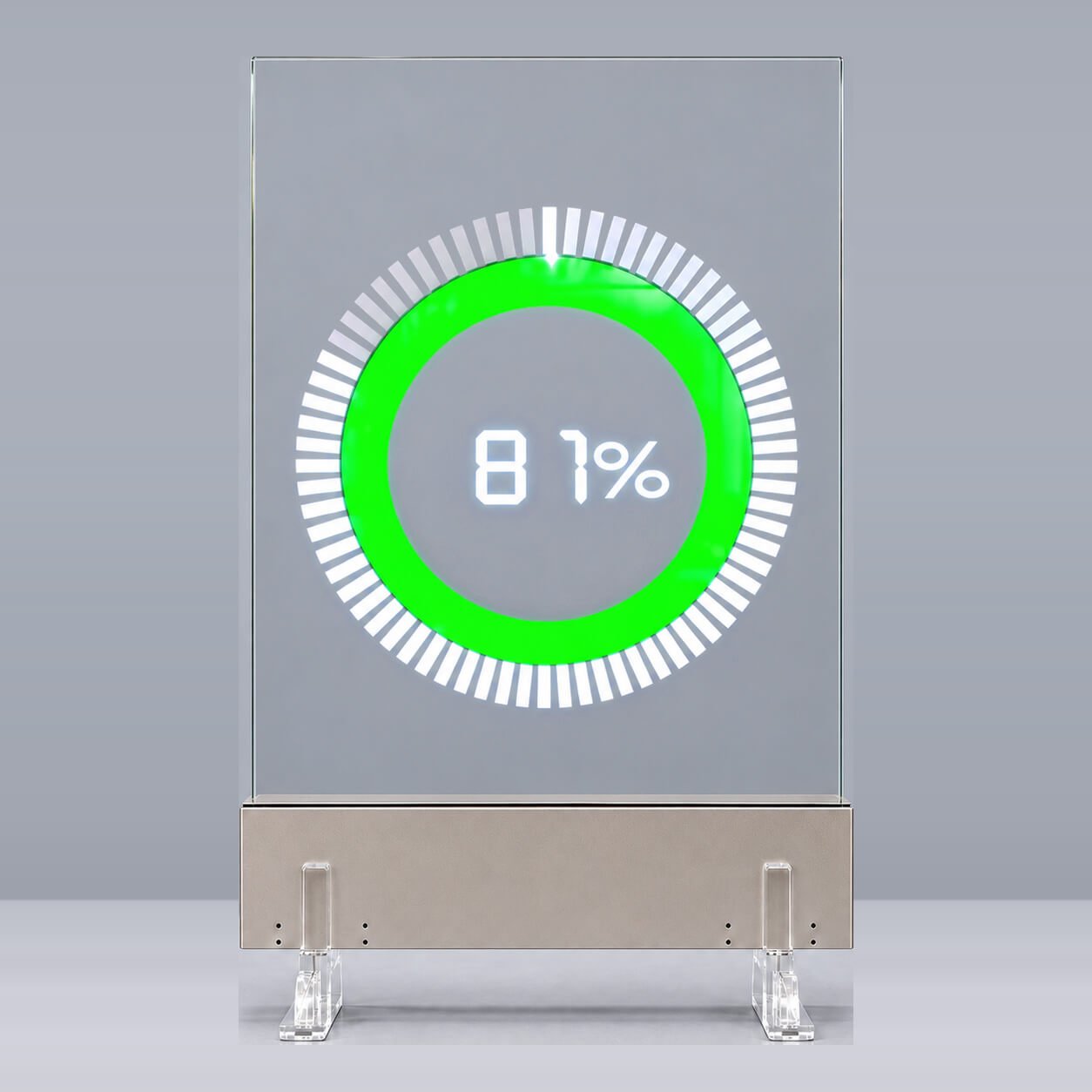

Explore 20 content views on the portrait display, from colorful fish and flowers to technical interfaces and abstract visuals. Select an image to view it in full.
Real Sample Hardware
Front, Rear Housing, Cable Connections & Side Profile
Real workshop photographs of the 42-inch sample. Inspect the display, integrated electronics housing, visible cable connections and acrylic supports. Click any photograph to view the original image.

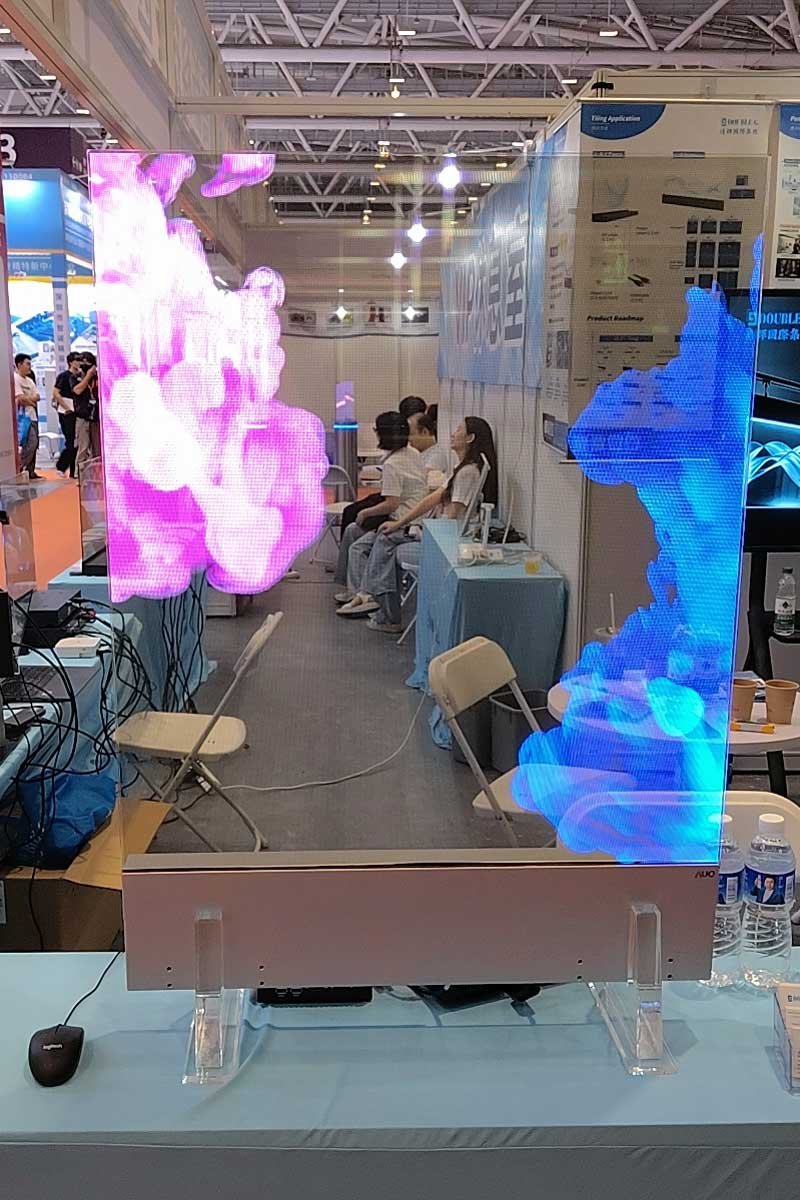

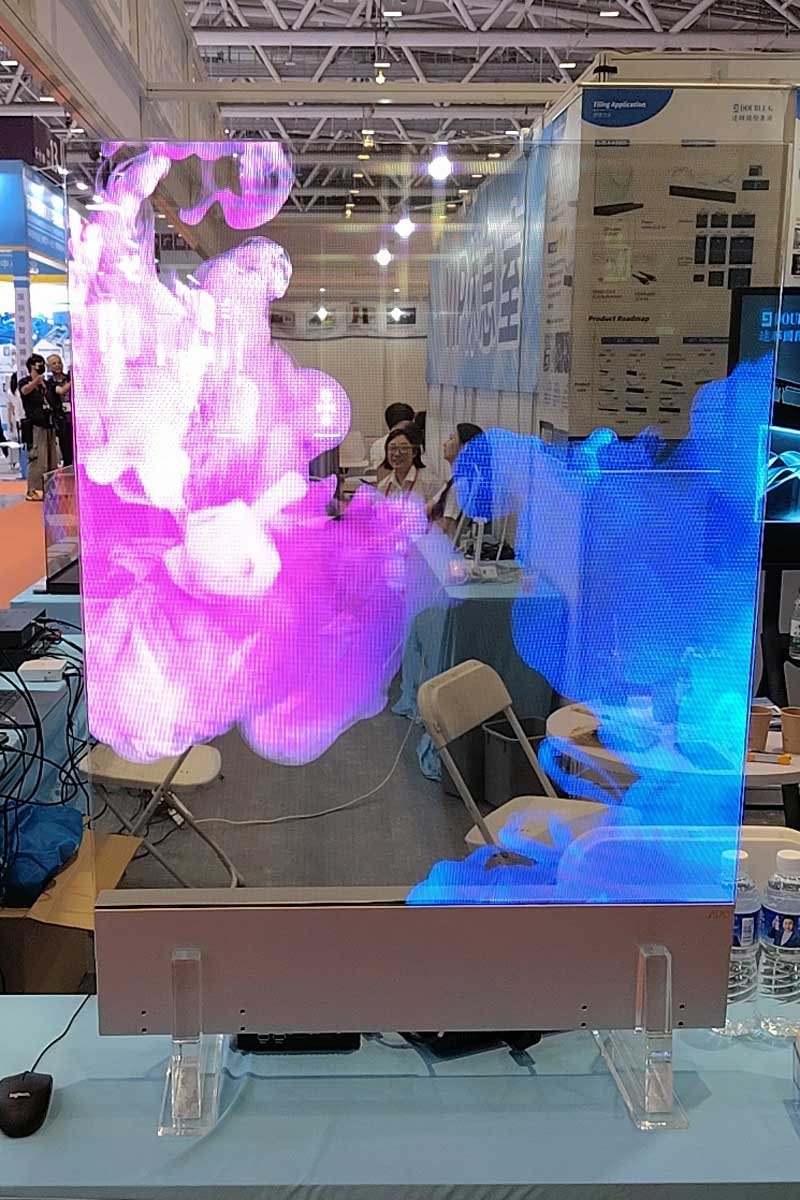

Front view of the 42-inch transparent Micro LED sample during video playback.

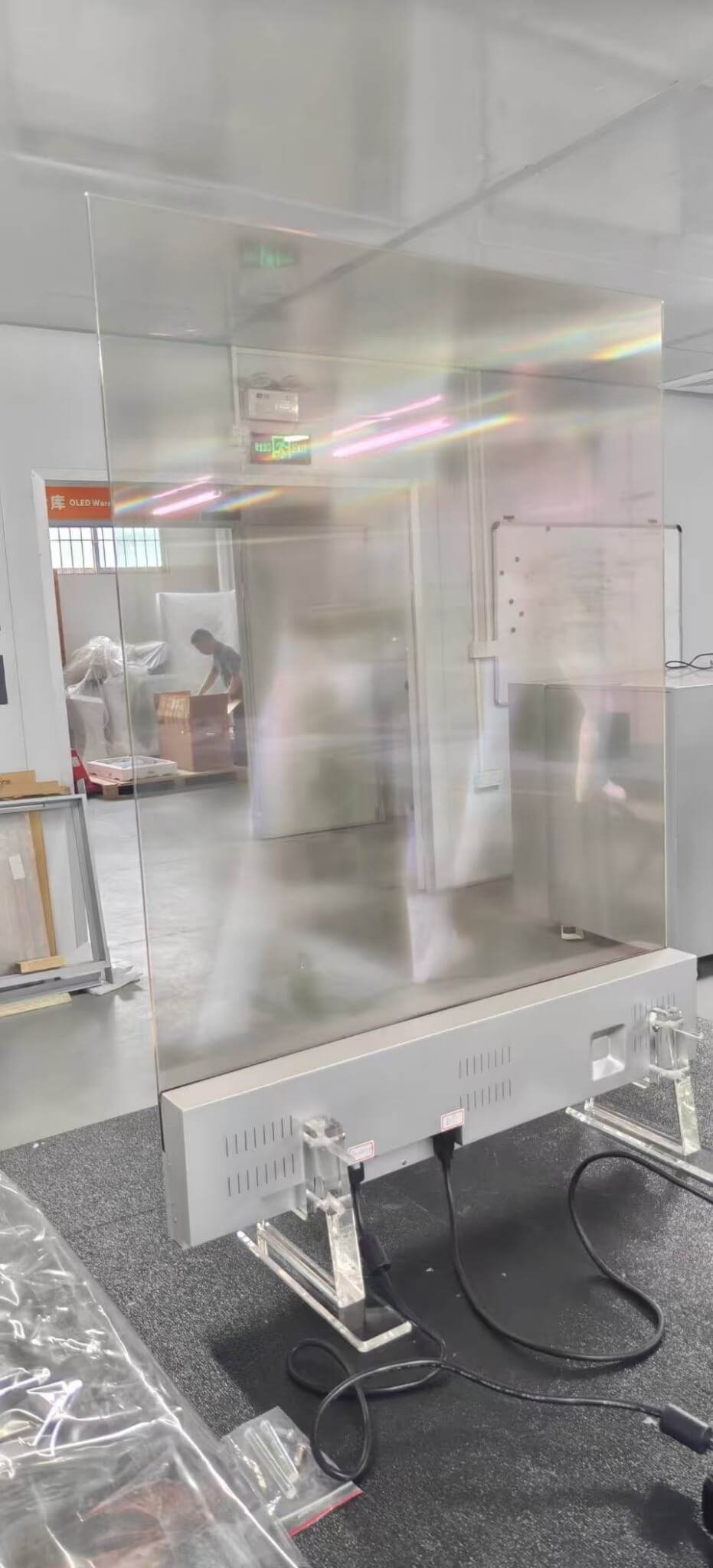

Rear view showing the electronics housing, external cable connections and acrylic supports.
Side view showing the thin display panel, lower electronics housing and acrylic supports.
The photographs show the external electronics housing and visible connections. Internal controller-board construction and detailed pin assignments are confirmed separately for the selected configuration.
Seven Real Demonstrations
Watch Different Content on the Same 42-Inch Display
Each video was recorded from a working sample at an exhibition. Click a preview to load the YouTube video only when requested.

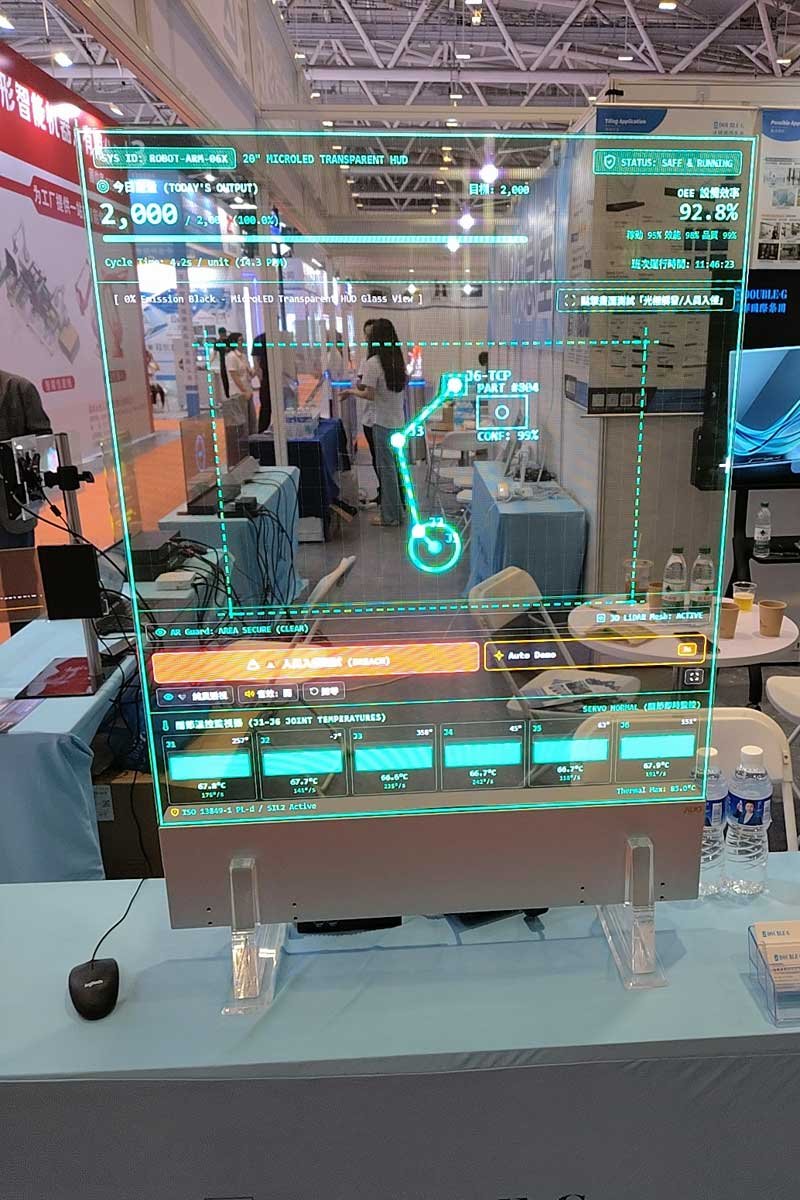

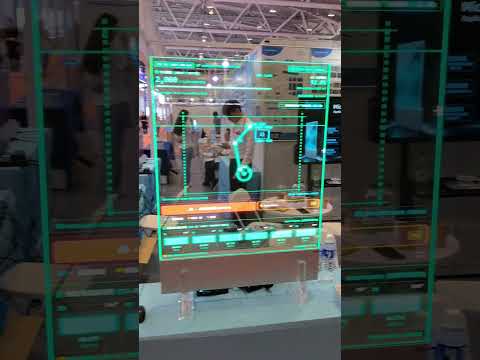

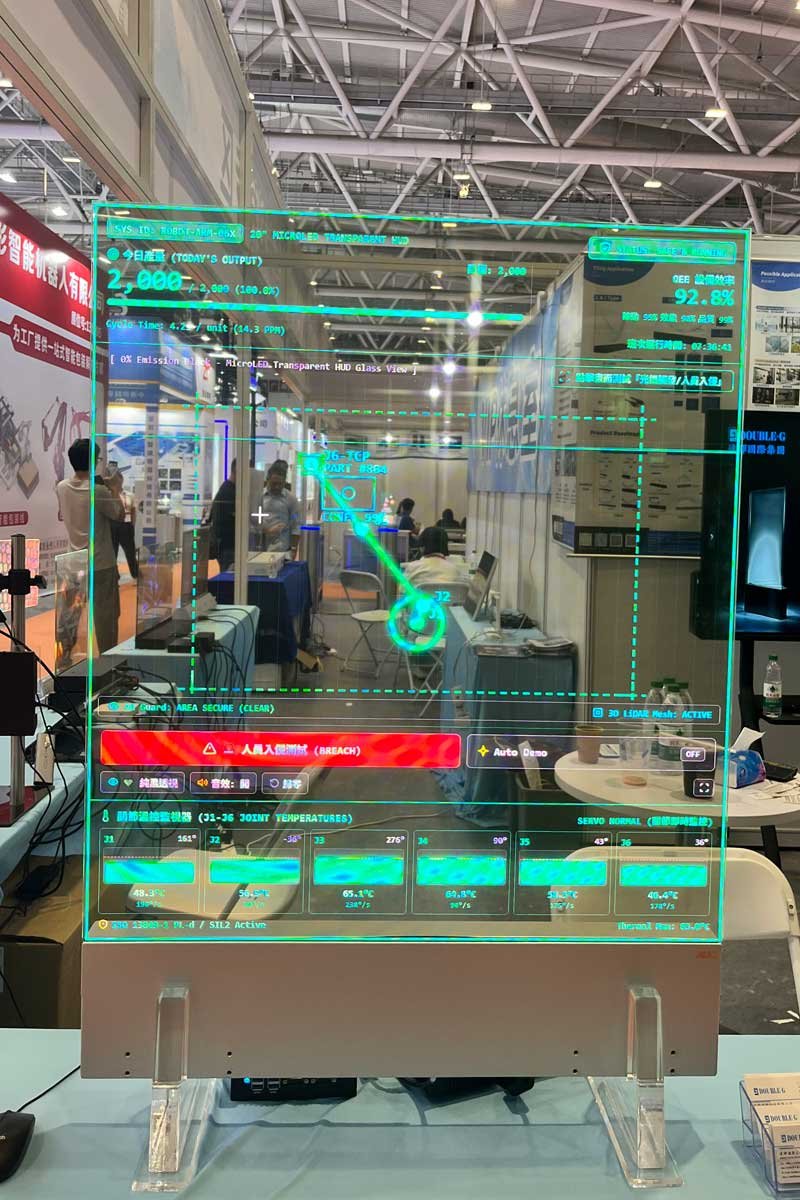

Industrial Safety HUD Demo

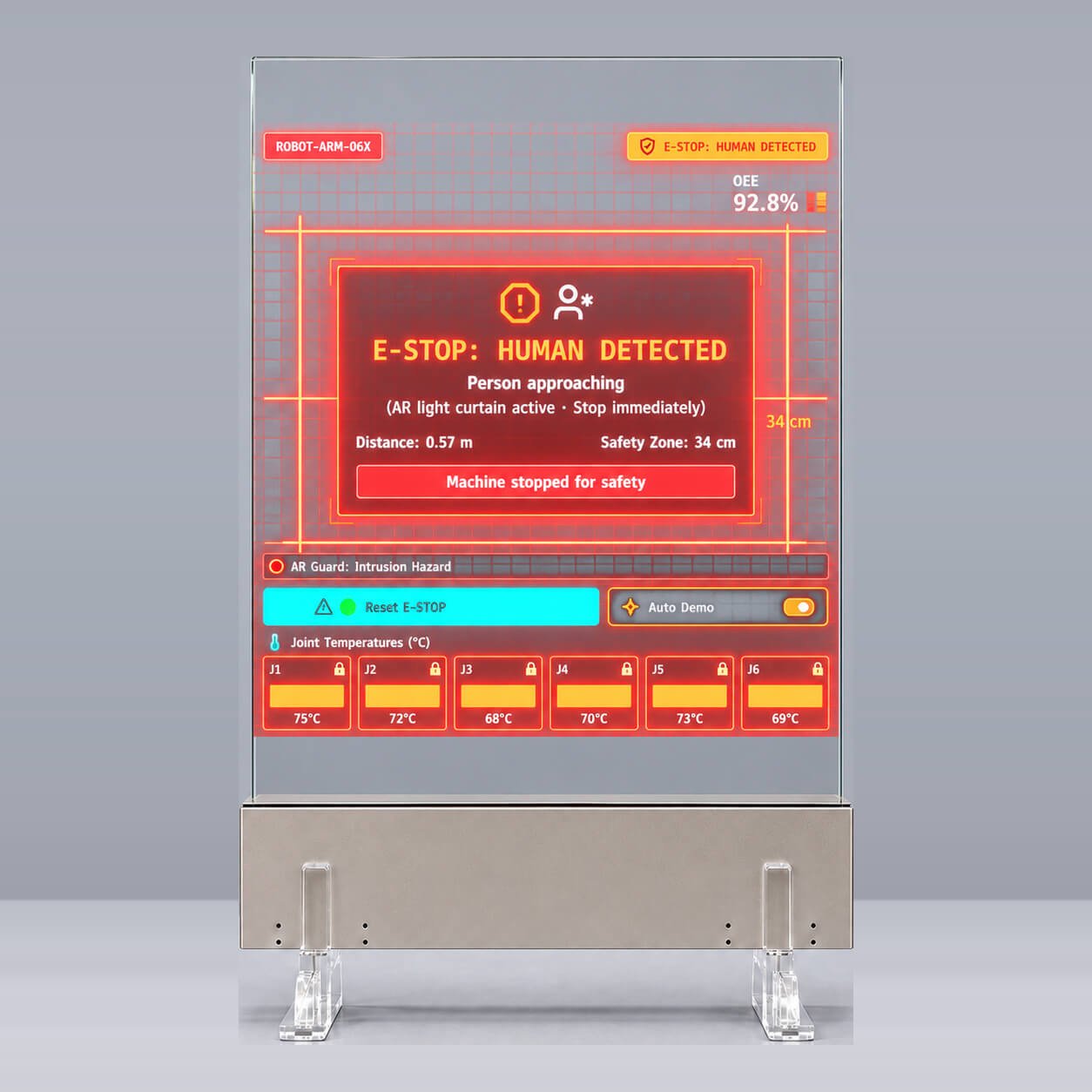

Transparent equipment data, warning graphics and industrial interface content over the real environment.

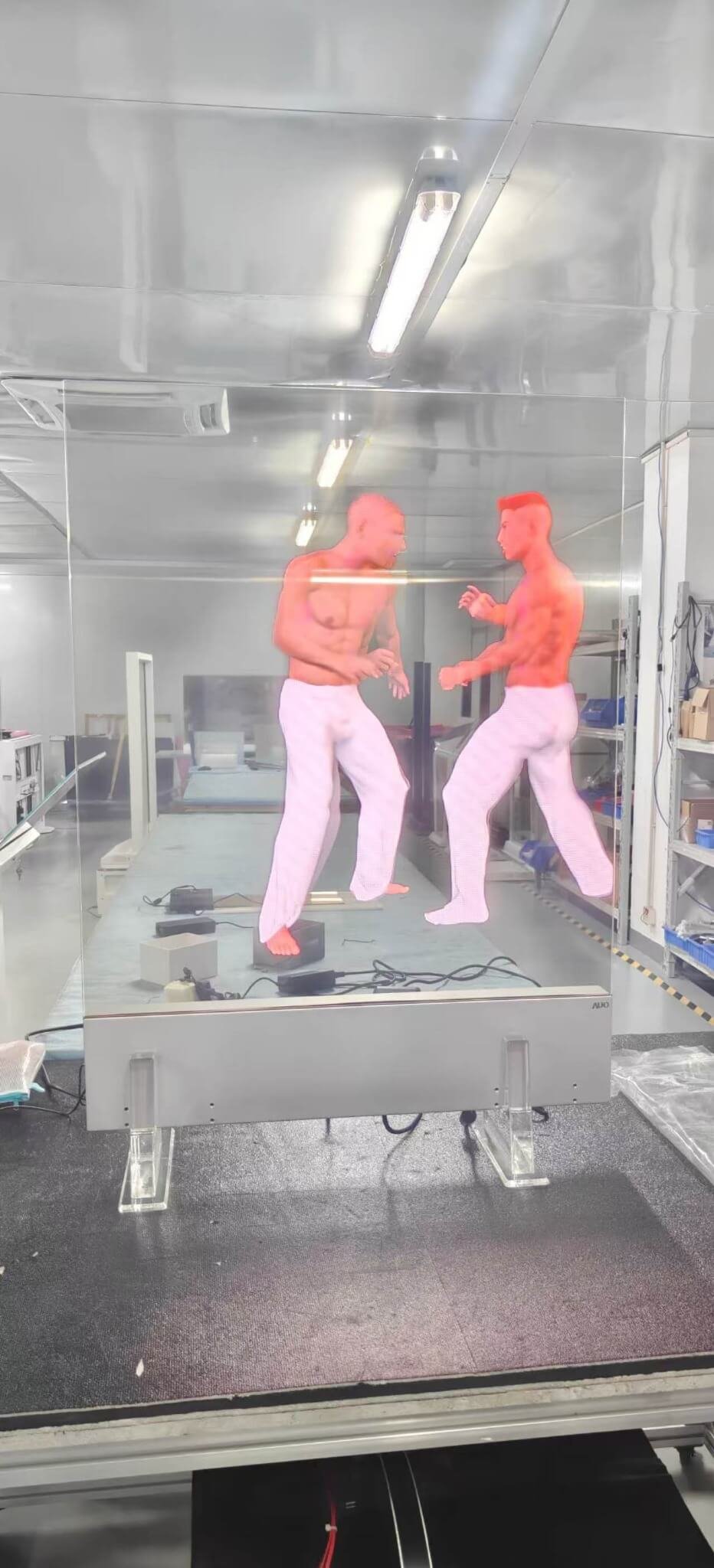

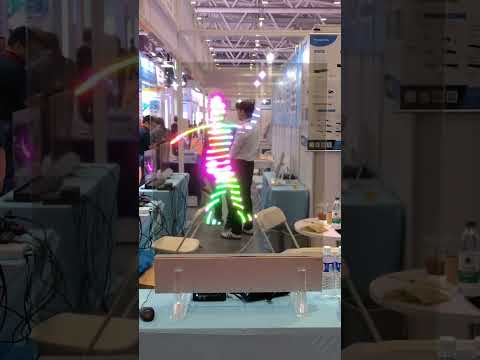

Neon Digital Human Demo
Bright human-shaped motion graphics appear to float in front of people and objects behind the screen.

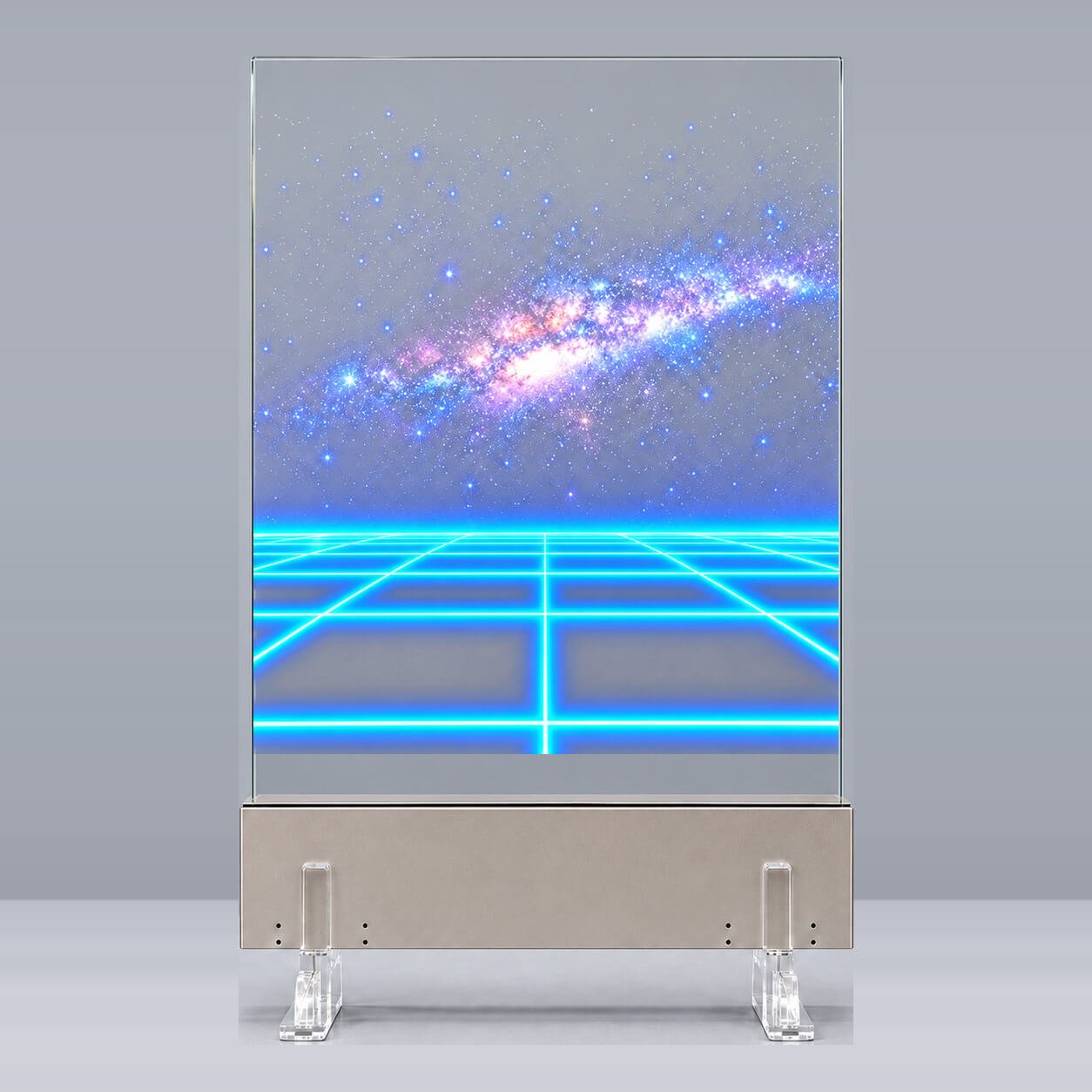

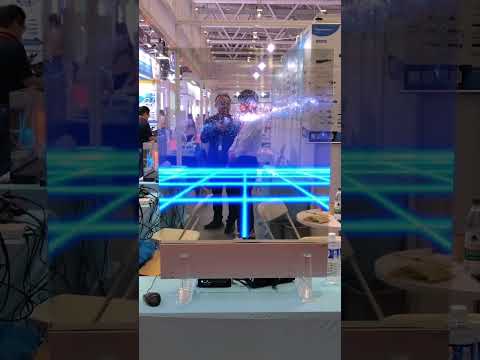

Sci-Fi Energy Portal Demo
Virtual grids, blue energy and spatial effects demonstrate transparent layered presentation.

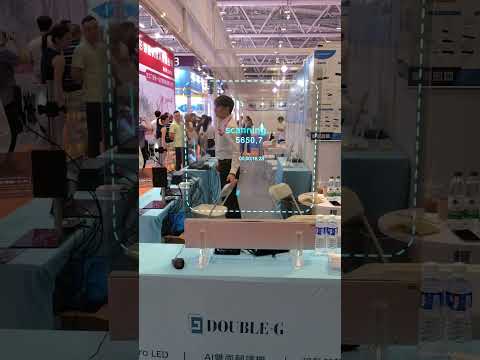

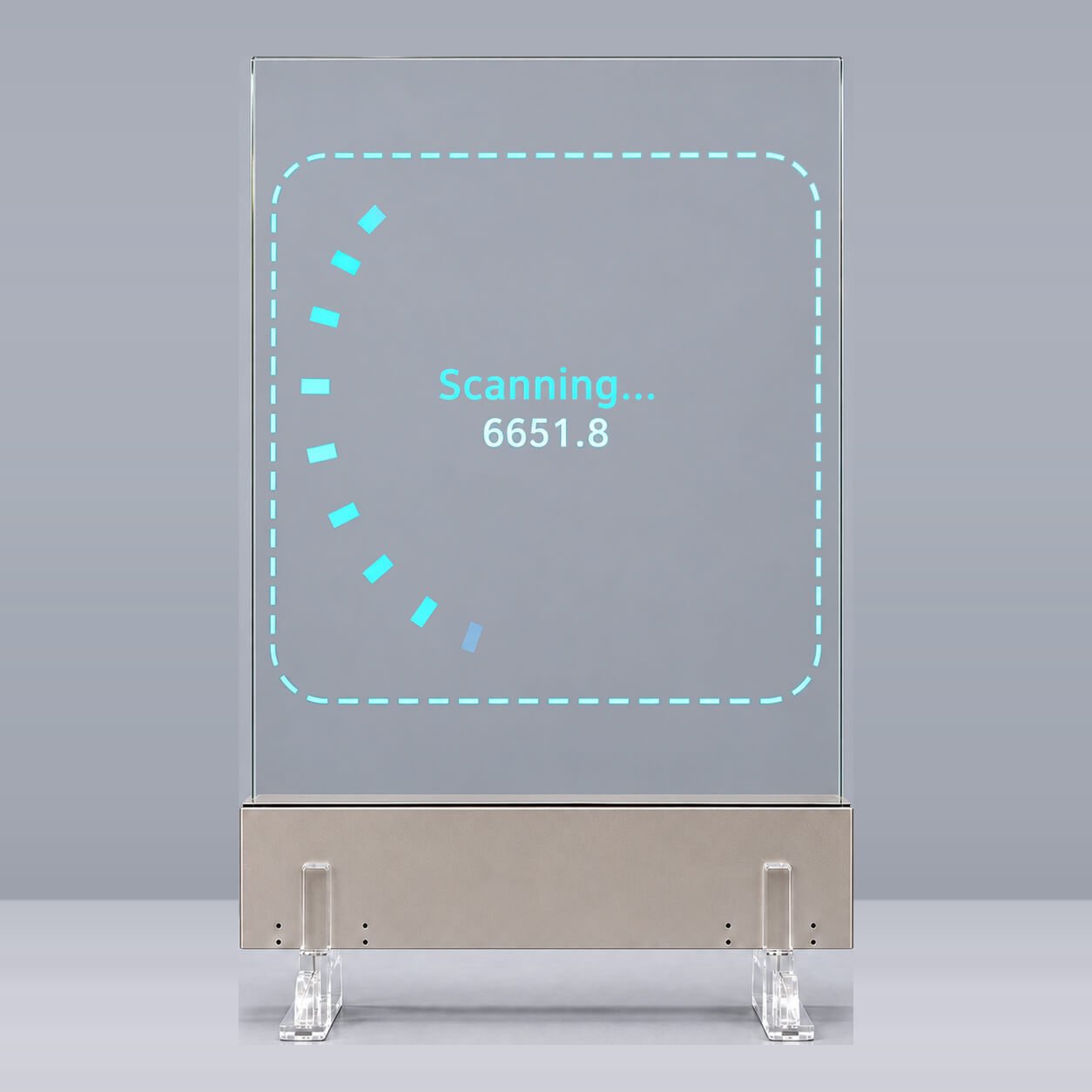

AI Human Scanning Demo
Particle human graphics transition into an AI-style scanning interface. Sensing functions require external integration.

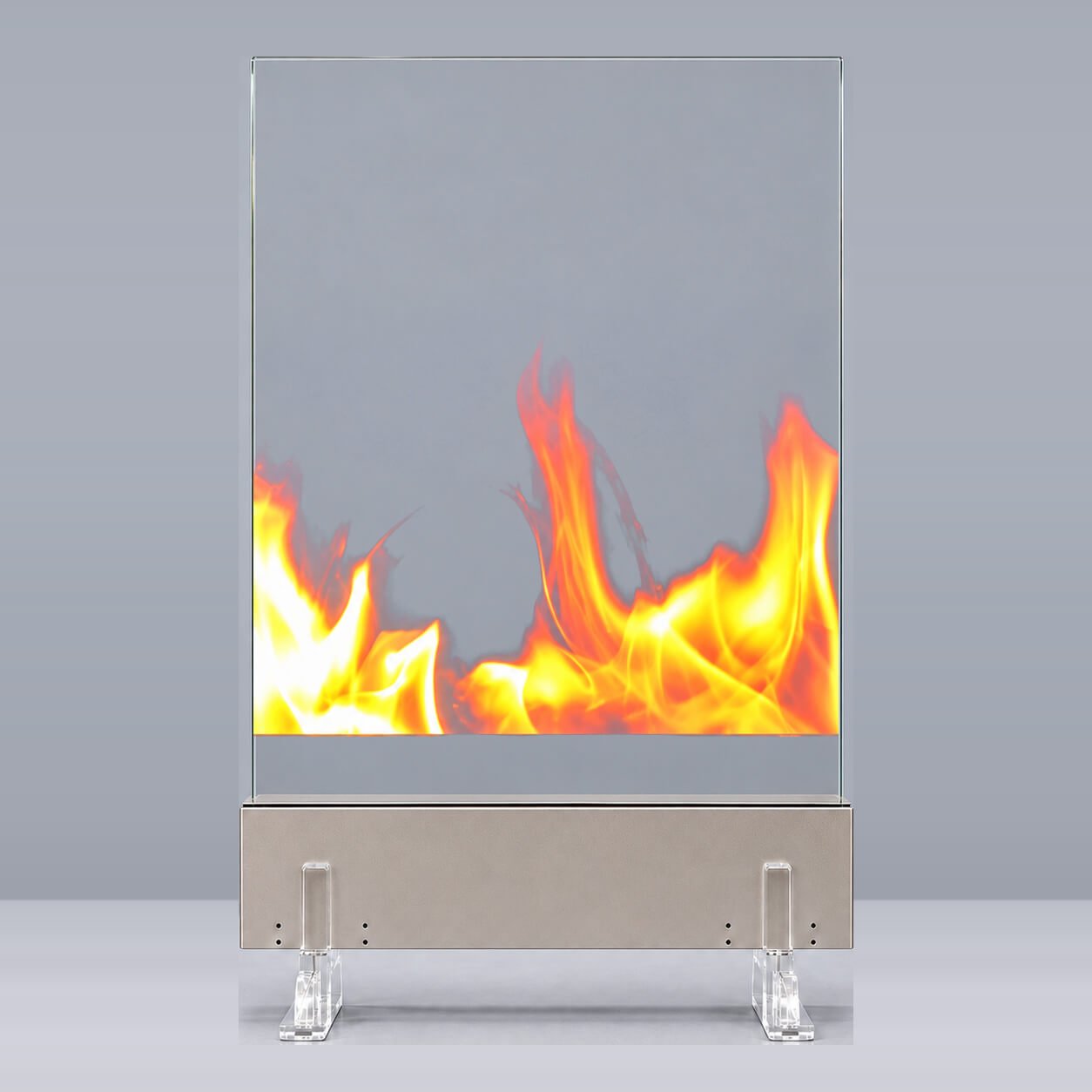

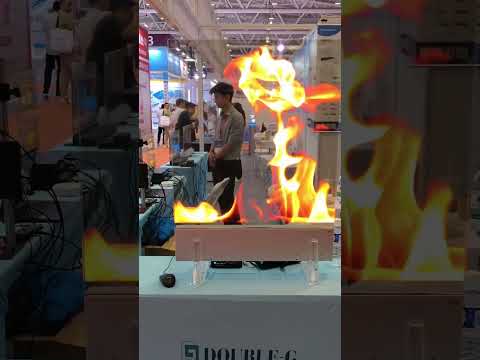

Realistic Fire Effect Demo
High-contrast animated flames create a vivid effect without hiding the exhibition space behind them.

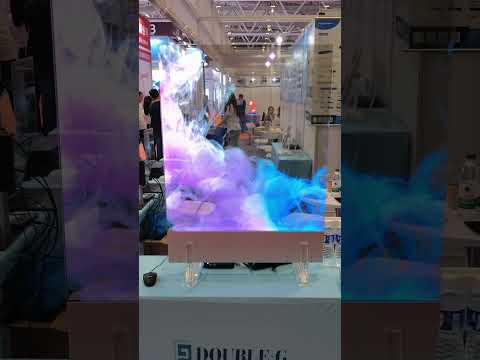

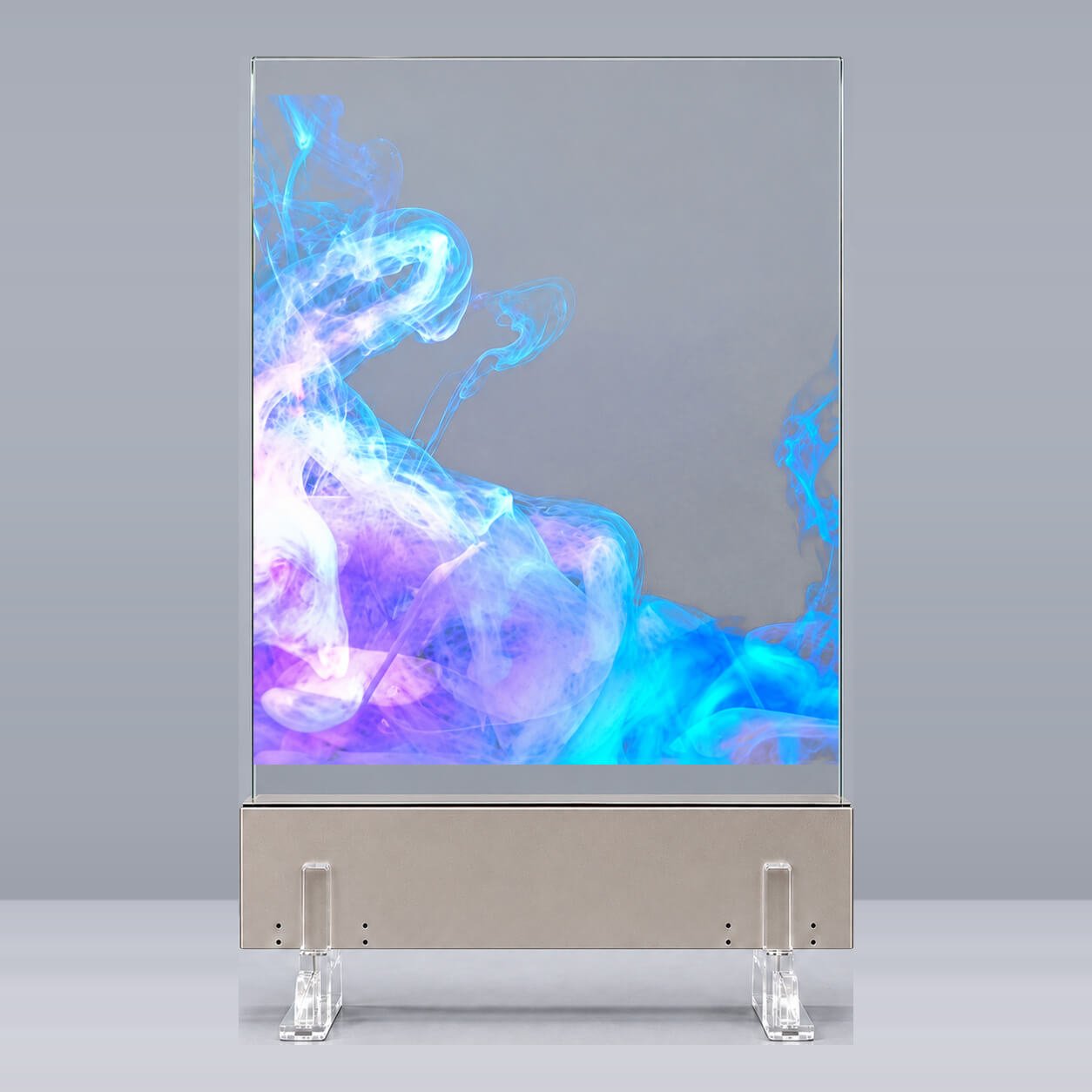

Colorful Ink Smoke Demo
Blue, purple and white smoke effects show saturated color and fluid transparent motion.

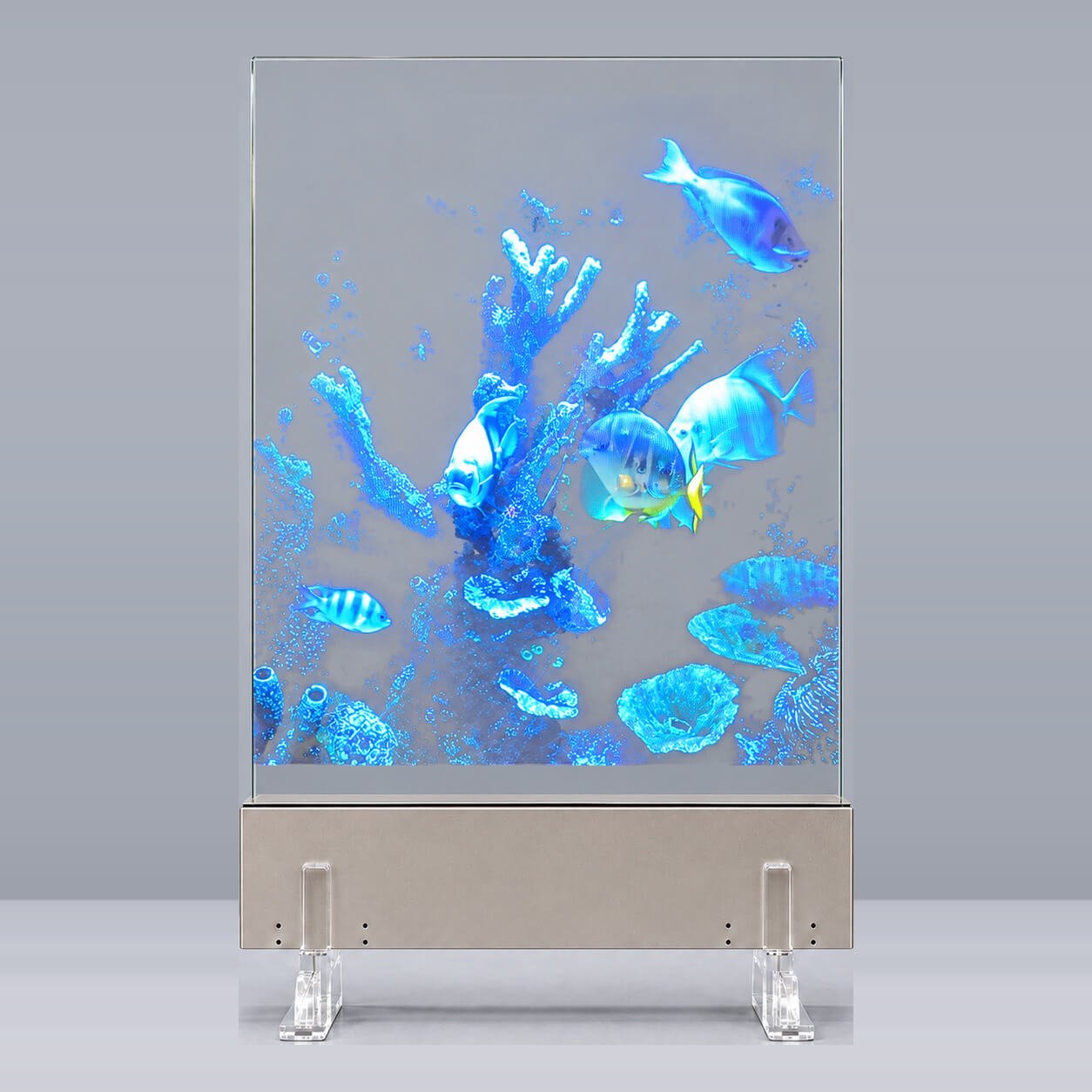

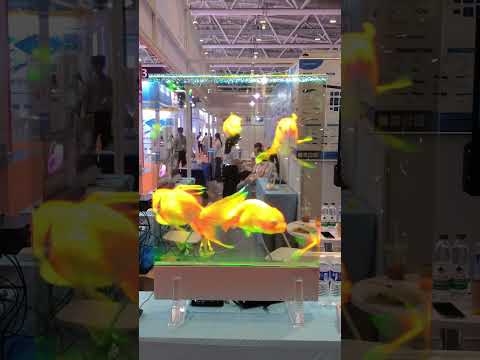

Aquarium and Floating Fish Demo
Coral, water and colorful fish appear to move through the real physical environment.
Reference Specifications
42-Inch T005 Transparent Micro LED Display
These values describe the current public T005 reference configuration. Final specifications and deliverable structure are confirmed against the approved project configuration.
| Item | Reference Specification | Project Note |
|---|---|---|
| Model | T005 | 42-inch portrait platform |
| Display body outline | 706 × 1025 mm | Glass and metal housing; clear feet extend below |
| Resolution / image format | 960 × 1080 / 8:9 | Native content format; distinct from overall outline |
| Transmittance | 70% | Panel reference; review complete optical assembly |
| Brightness | 600 nits full white / 1200 nits peak | Compare sustained and peak output separately |
| Viewing angle (H/V) | 178° / 178° | Specification reference |
| Contrast ratio | 1,000,000:1 | Perceived contrast also depends on background |
| Color gamut | NTSC 120% / DCI-P3 98% | Specification reference |
| Frame rate / response | 120 Hz / <1 ms | Confirm source and controller configuration |
| Panel power | 100 W typical / 300 W full white | Panel figures; confirm complete-system supply |
| Power input | 100–240 VAC, 50/60 Hz | Confirm supplied power configuration |
| Protective glass | Front 2 mm / rear 1.1 mm | Total glass thickness <5 mm; excludes housing depth |
| Surface | Anti-reflection / hard coat 7H | Specification reference |
| Operating environment | 0–40°C / 10–80% RH | Indoor operating reference |
| Signal / daisy chain | HDMI / DisplayPort | Confirm controller and system scope |
| Touch option | Available at additional cost | G+G capacitive touch and optical bonding reviewed by project |
| Reference LED lifetime | 100,000 hours | Actual life depends on use and drive conditions |
The table supports early product selection. Internal construction, proprietary implementation details and complete engineering drawings are not part of the public specification.
Luxury Retail Direction
Place Digital Motion in Front of Physical Products
The AI-created visualization illustrates one potential retail direction: transparent digital content appearing in front of jewelry, watches or other premium products while the merchandise remains visible.
Final display structure, base, fixture, lighting, content alignment and installation are engineered around the real store and product presentation.
Applications
Where the 42-Inch Transparent Format Creates Value
Six application concepts for project planning. Review the 706 × 1025 mm display body, attached housing and supports against the actual installation space.
Luxury Retail
Present luminous product details while keeping watches, jewelry or cosmetics visible behind the glass. Coordinate merchandise lighting and the screen content.
Explore Related Direction →
Museums & Exhibitions
Add visual interpretation in front of an artifact without fully blocking the exhibit. Review sightlines, lighting and the support arrangement.
Explore Related Direction →

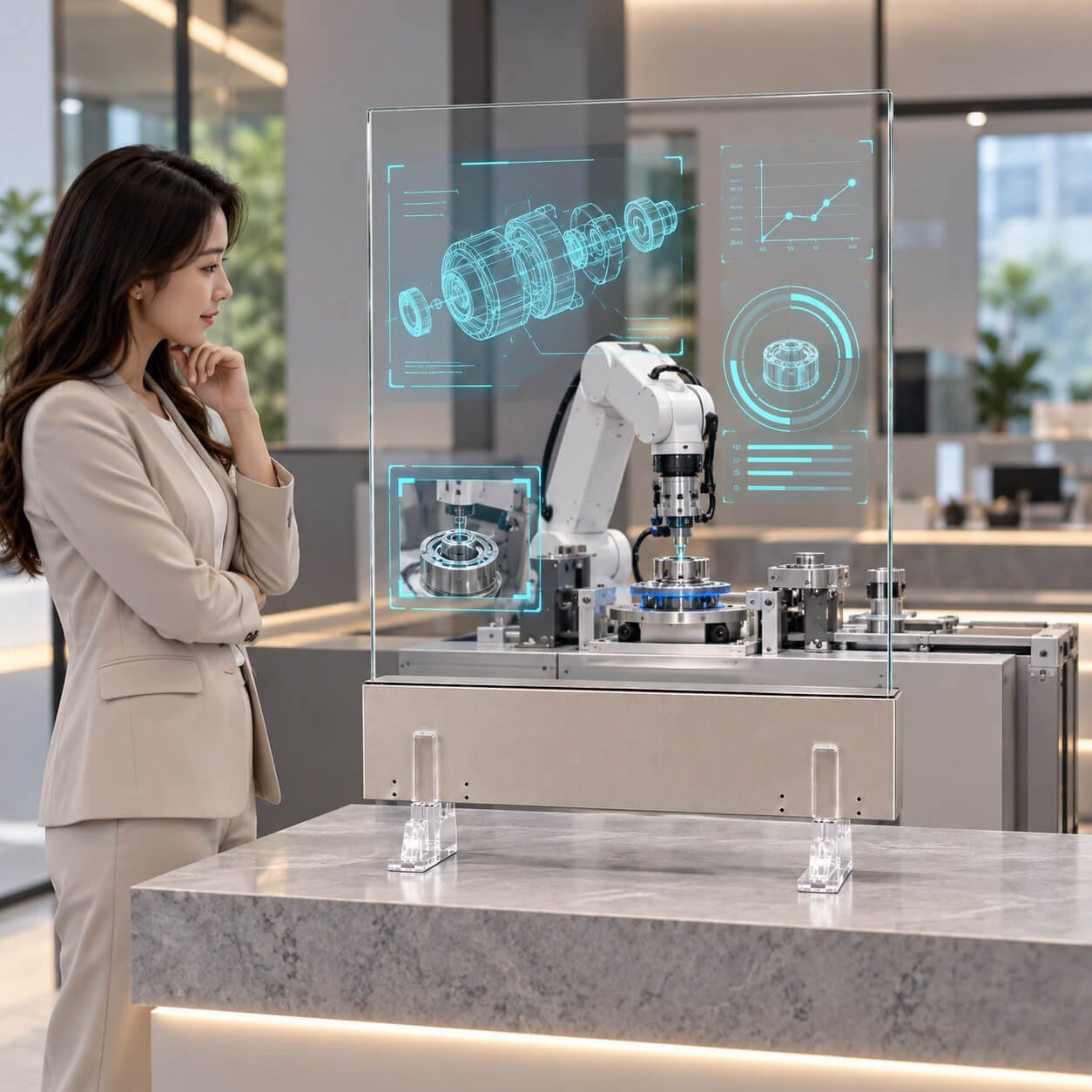

Technology Demonstrations
Play engineering animations, scanning graphics and HUD-style visuals in front of a physical model. These are content examples; sensing and control require separate integration.
Explore Related Direction →
Hospitality & Themed Spaces
Use floating fish, floral animations or abstract effects as part of a reception or themed interior. Review ambient light and daily operating hours.
Explore Related Direction →

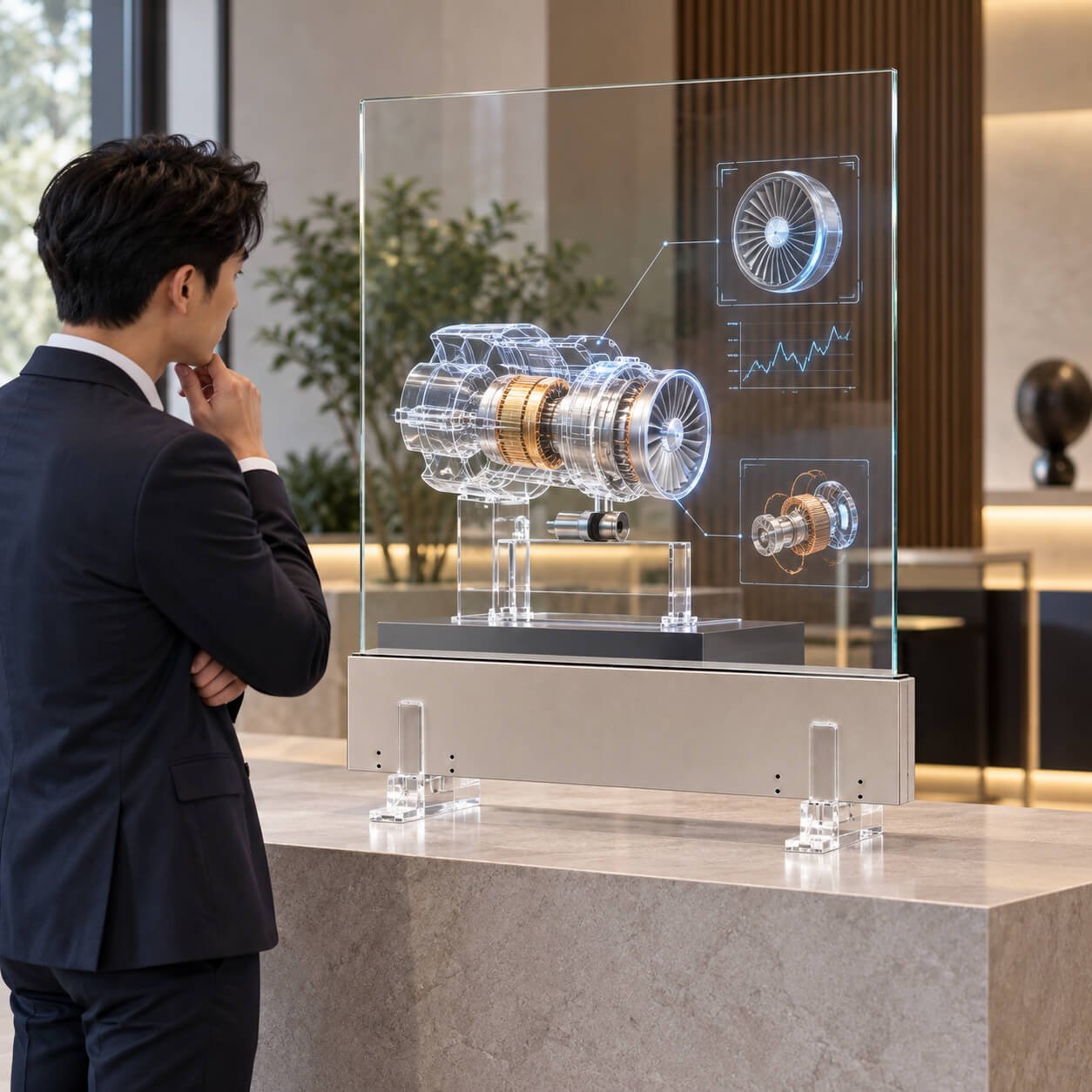

Corporate Showrooms
Combine a physical engineering model with digital explanations for customer visits and demonstrations. Confirm the viewing distance and native-resolution content.
Explore Related Direction →
Brand Events & Product Launches
Introduce products with see-through motion graphics on a counter-mounted display. Plan stable supports, cable management and an appropriate audience viewing area.
Explore Related Direction →Technology Direction
Transparent Micro LED vs Other Transparent Displays
| Comparison | 42-Inch Transparent Micro LED | Transparent OLED | Transparent LED Film / Mesh |
|---|---|---|---|
| Best viewing range | Close to medium commercial viewing | Premium close viewing | Medium to long-distance viewing |
| Image structure | Self-emissive Micro LED pixels on a transparent structure | Self-emissive transparent OLED pixels | Visible LED lines, mesh or film structure |
| Transparency direction | High-transmittance product presentation | Premium transparent panel appearance | Large-area architectural transparency |
| Format direction | Current 42-inch portrait T005 platform | Common 30-inch, 55-inch and 77-inch structures | Modular and large-area installations |
| Best fit | Advanced retail, exhibits and technology showcases | Premium signage and product presentation | Storefronts, stages, facades and large installations |
Project Qualification
What to Send for an Engineering Review
A useful quotation starts with the commercial application, not with unrestricted access to proprietary engineering details.
1
Application
Explain what will appear behind the display and what the digital content must accomplish.
2
Installation Space
Provide the available width, height, depth, viewing distance and ambient-light conditions.
3
System Scope
Confirm whether you need the display only, a base, enclosure, player, control or complete installation structure.
4
Commercial Plan
Send the prototype quantity, expected production quantity, destination and target schedule.
Detailed drawings and proprietary system information are reviewed only to the level necessary for a qualified project and approved cooperation stage.
TRANSPARENT MICRO LED FAMILY
Explore Transparent Micro LED Displays
Explore the complete family or open a dedicated product page.
All Types
All Transparent Micro LED Displays →
9.4-Inch Transparent Micro LED →
16.1-Inch Transparent Micro LED →
20-Inch Transparent Micro LED →
30-Inch Transparent Micro LED →Current Page42-Inch Transparent Micro LEDBack to Top ↑
54-Inch Transparent Micro LED →
60-Inch Transparent Micro LED →
64-Inch Transparent Micro LED →
83-Inch Transparent Micro LED →
All Transparent Micro LED Displays →9.4-Inch Transparent Micro LED →16.1-Inch Transparent Micro LED →20-Inch Transparent Micro LED →30-Inch Transparent Micro LED →Current Page42-Inch Transparent Micro LEDBack to Top ↑54-Inch Transparent Micro LED →60-Inch Transparent Micro LED →64-Inch Transparent Micro LED →83-Inch Transparent Micro LED →FAQ
42-Inch Transparent Micro LED Display Questions
Is this a real working product or only a rendering?
The page includes 20 product content views, seven real exhibition playback videos and a rear controller and wiring inspection video. The luxury retail image is separately identified as an AI-created concept visualization.
What is the current reference model?
The current 42-inch reference platform is Model T005 with a portrait-format transparent display area.
Why are complete engineering details not published?
Transparent Micro LED remains an advanced product direction. Public information supports product evaluation, while proprietary construction and implementation details are protected and reviewed only when required for qualified projects.
Does the display include AI scanning or sensors?
The AI-style scanning sequence is video content. Cameras, sensors, recognition software and control systems require separate integration.
Can the base or housing be customized?
Base structure, enclosure, finish, mounting, control hardware and player integration can be reviewed according to the project and quantity.
Can we supply our own content?
Yes. Content should be prepared around the native portrait resolution, transparency behavior and intended viewing environment.
Is the retail image a real customer installation?
No. It is clearly labeled as a concept visualization showing a potential luxury-retail application direction.
What is required for a quotation?
Please send the application, installation space, ambient light, required system scope, prototype quantity, expected production quantity, delivery country and schedule.
Qualified Transparent Micro LED Projects
Evaluate the 42-Inch Platform Around Your Real Application
Send the installation space, background product or scene, content goal, system scope, prototype quantity and project schedule. DisplayMan will review whether the current T005 direction is suitable.
The display, base, enclosure, control hardware, player, cable routing, ambient light and content design should be evaluated as one complete commercial system.
