Create large-format outdoor advertising with an open LED mesh structure. DisplayMan supports pixel-pitch selection, brightness, cabinet layout and control-system planning around your facade, viewing distance and maintenance requirements.
Explore outdoor transparent LED mesh displays across cultural venues, building facades and overhead canopies, together with a factory test example. These installations combine large-scale digital content with an open structure that allows partial visibility, light and airflow.
Modular layouts support different architectural forms. Brightness, mounting, weather protection and maintenance are planned around each site and its operating conditions.
Digital imagery illuminates traditional Chinese-style pavilions alongside red lanterns, bringing contemporary visual storytelling into a cultural setting. The installation illustrates an outdoor display approach for performances and evening events.

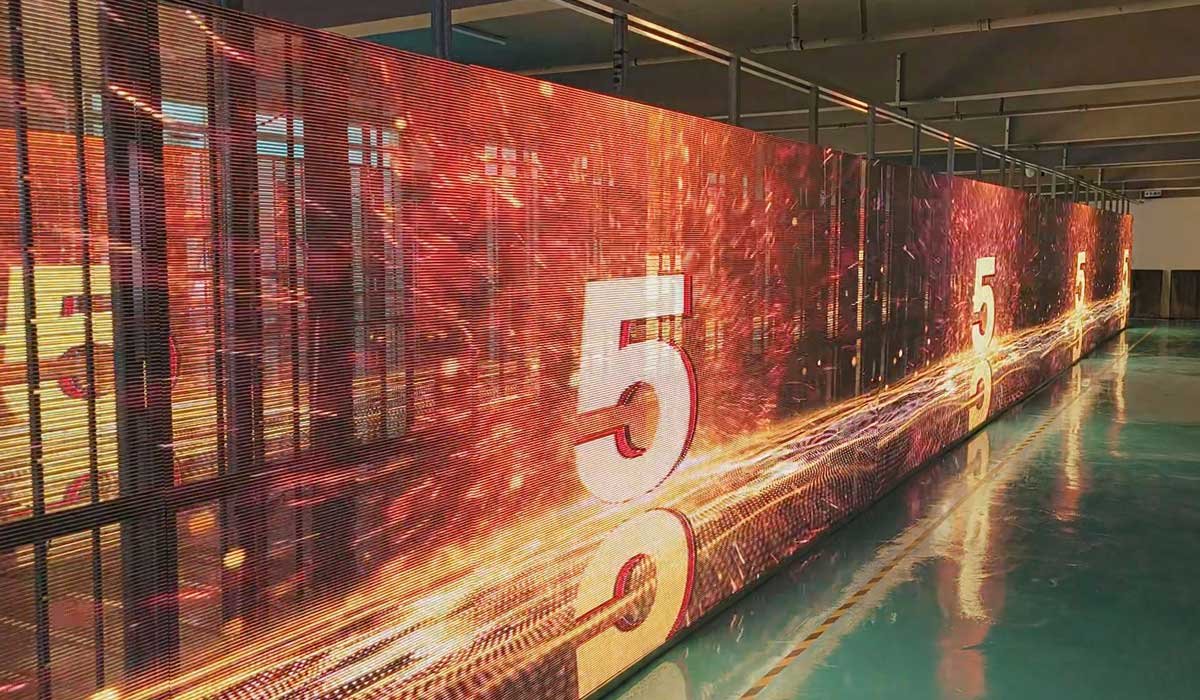

An operating display is shown during factory testing, providing a view of its colors, image presentation and open modular structure before installation. Final inspection and acceptance criteria are defined for the project.
A mountain scene turns a building facade into a large visual canvas for advertising and cultural content. Display brightness, pixel pitch and mounting are selected around the viewing distance and site conditions.

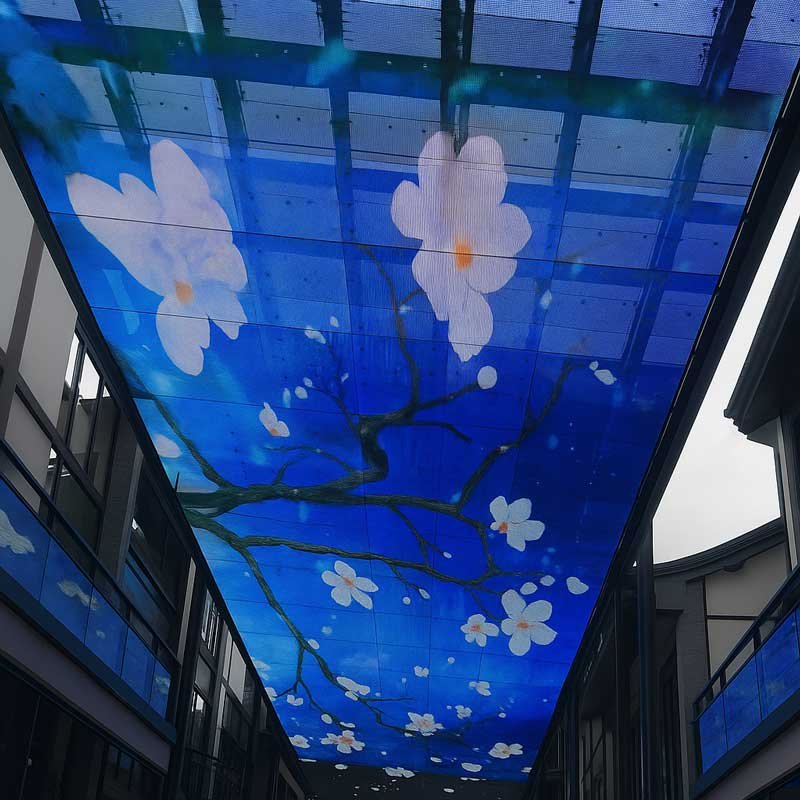

Blossoms against a blue background create an overhead digital experience along a pedestrian walkway. An open mesh layout can retain gaps for light and airflow, with overhead support and maintenance access reviewed as part of the installation.
The display follows the building’s glass facade to create an architectural media surface. Its open structure supports partial visibility through the installation; anchoring, wind loads and facade access are assessed for the specific building.
An Outdoor Transparent LED Mesh Display is an IP65 transparent LED display with its own open mesh, grille or cabinet structure, designed for fixed installation on building facades, exterior walls, steel frames and large public-facing media surfaces.
It displays high-brightness advertising, branding, event content and architectural animation while maintaining a more open structure than a conventional solid LED wall. Glass is not required as the supporting surface.
The screen should be treated as an outdoor engineering system. Product selection must be coordinated with facade condition, wind load, waterproofing, support structure, power, signal, grounding, installation height and long-term maintenance.
Outdoor Transparent LED Mesh Display is the weather-resistant structural branch of the Transparent LED family, created for large outdoor surfaces and medium-to-long-distance viewing.
| Product Route | Structure | Best Use |
|---|---|---|
| Outdoor Transparent LED Mesh Display | IP65 mesh, grille or cabinet structure | Exposed outdoor facades and large fixed media |
| Indoor Transparent LED Display | Framed cabinet structure for protected spaces | Malls, indoor curtain walls and retail windows |
| Transparent LED Film Display | Lightweight film-style screen supported by flat glass | Indoor storefront and glass advertising |
| Flexible Transparent LED Film Display | Flexible film-style screen supported by curved surfaces | Curved glass, columns and creative interiors |
| Holographic Transparent LED Display | Fine-pitch visually minimal indoor structure | Premium floating-style visual effects |
| Transparent LED Glass Display | Architectural glass-oriented display system | Permanent glass and curtain-wall integration |
| Rental Transparent LED Display | Rugged reusable rental frame | Stages and repeated temporary events |
A stronger outdoor system is required because the project must manage rain, wind, sunlight, temperature, cable protection, installation safety and difficult maintenance access.
The current range contains four outdoor configurations. Select the pitch according to viewing distance, facade area, content detail, transparency and budget.
10,000 cd/m² with 6,400 pixels/m² for closer outdoor viewing and premium facade projects.
Supplier-published 10,000 cd/m² with 4,096 pixels/m² for high-brightness exterior advertising; site visibility still requires project review.
6,000 cd/m² with different horizontal and vertical spacing for larger and longer-distance displays.
4,000 cd/m² for very large simple visuals and long-distance landmark viewing.
The smallest pitch is not automatically the best. A very large facade viewed from far away may achieve a better technical and commercial balance with P15.6 × 31.25 or P31.25.
The supplier table lists IP65 for the front and back of all four configurations; complete-system sealing depends on connections and installation.
P12.5 and P15.6 have high-brightness published configurations for sunlight-facing project review.
The supplier table lists 75% across the range; actual visual openness depends on structure, viewing angle and installation.
A consistent cabinet format supports modular large-area construction.
The supplier table lists cabinet weight only; structural calculations must use the complete installed system weight.
Allows partial visibility and airflow compared with a solid LED wall.
Supports smooth playback when matched with the confirmed driver and control system.
Modules and cabinets can be arranged for facades and landmark media surfaces.
Structure, waterproofing, power, signal and maintenance can be planned together.
For commercial buildings, malls, landmarks and architectural media projects.
For outdoor media frames, plazas, transportation hubs and stadium exteriors.
For commercial exterior walls and permanent brand media surfaces.
Hanging can be reviewed where the cabinet system, support points, wind loads and local safety requirements allow it.
Suitable for selected project structures after checking base support, anchoring and wind conditions.
Combines 500 × 1000 mm cabinets around facade dimensions and content resolution.
The screen, cabinets, frames, fixings and building interface must still be calculated and approved for the local wind zone, installation height and building condition.
The following supplier-published values apply to the four-model DIP outdoor mesh series. Final configuration and site suitability require project confirmation.
| Pixel Pitch (H × V) | 12.5 × 12.5 mm | 15.6 × 15.6 mm | 15.6 × 31.25 mm | 31.25 × 31.25 mm |
|---|---|---|---|---|
| LED Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Brightness | 10000 cd/m² | 10000 cd/m² | 6000 cd/m² | 4000 cd/m² |
| Published Pixel Density | 6,400 pixels/m² | 4,096 pixels/m² | 2,048 pixels/m² | 1,024 pixels/m² |
| Transparency | 75% | 75% | 75% | 75% |
| Cabinet Size | 500 × 1000 × 70 mm | 500 × 1000 × 70 mm | 500 × 1000 × 70 mm | 500 × 1000 × 70 mm |
| Cabinet Resolution | 40 × 80 pixels | 32 × 64 pixels | 32 × 64 pixels | 16 × 32 pixels |
| Module Size | 10 × 1000 mm | 10 × 1000 mm | 10 × 1000 mm | 10 × 1000 mm |
| Module Resolution | 1 × 80 pixels | 1 × 64 pixels | 1 × 64 pixels | 1 × 32 pixels |
| Published Cabinet Weight | ≤8 kg/m² | ≤8 kg/m² | ≤8 kg/m² | ≤8 kg/m² |
| IP Rating (Front/Back) | IP65 | IP65 | IP65 | IP65 |
| Environment | Outdoor | Outdoor | Outdoor | Outdoor |
| Viewing Angle (H/V) | 120° / 120° | 120° / 120° | 120° / 120° | 120° / 120° |
| Viewing Distance | Project dependent; evaluate pitch, screen scale, content and the critical viewing point | |||
| Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit |
| Max. Power Consumption | 800 W/m² | 800 W/m² | 800 W/m² | 800 W/m² |
| Average Power Consumption | 400 W/m² | 400 W/m² | 400 W/m² | 400 W/m² |
| Scanning Mode | 1 scan | 1 scan | 1 scan | 1 scan |
| Specification | Details |
|---|---|
| Refresh Rate | 3840 Hz reference configuration; confirm with the selected receiving-card and driver system |
| Input Power | AC 100–240 V, 50/60 Hz |
| Control Mode | Synchronous or asynchronous control, selected for the screen layout and playback workflow |
| Video Input | HDMI or DVI through a compatible processor/controller; other interfaces by project confirmation |
| Outdoor Operating Conditions | Temperature, humidity, solar load, wind, corrosion and altitude limits require project and model confirmation |
| Rated LED Lifetime | Up to 100,000 hours under specified operating conditions; not a warranty period |
| Cabinet Material | Aluminum Profiles |
| Installation | Facade-mounted, fixed steel support or engineered suspension, depending on project conditions |
| Packaging | Wooden box |
Values above are supplier-published references for the DIP outdoor series. Final pitch, calibrated brightness, structure, waterproof interfaces, electrical design, controller, cable protection, local compliance and installation system must be confirmed before quotation and production.
Create the image while maintaining an open structure.
Support modular alignment, protection and facade assembly.
Transfers screen loads to the building or dedicated outdoor structure.
Must be protected, ventilated and calculated from maximum system load.
Processes and distributes media across the screen layout.
Protect power, signal and cabinet interfaces from rain and contamination.
Should be integrated with the local electrical and lightning-protection design.
Prevents trapped water and supports long-term equipment operation.
Allows modules, power, control and connections to be reached after installation.
Large advertising and architectural animation with a more open appearance.
Campaigns, promotions, events and public-facing visual communication.
High-impact brand content for roads, plazas and public traffic.
Commercial messages, digital art and event information in pedestrian spaces.
Airport, railway and transit exterior media viewed from long distance.
Sponsor advertising, event information and landmark visuals.
Architectural night-view content and city-scale media facades.
Large exterior brand campaigns for automotive, retail and technology spaces.
Public digital storytelling and media architecture.
Use this product when the display is directly exposed to outdoor weather or mounted on an exterior structure.
Select P12.5–P31.25 using the nearest important viewer position and total facade dimensions.
Choose between 4,000 and 10,000 cd/m² according to orientation, daylight and operating hours.
Provide building drawings, mounting points, local wind data, height and support information.
Protect equipment, connectors, cable entries, drainage, grounding and control locations.
Define front or rear access, platforms, lifting, module replacement and spare parts.
| Project Condition | Possible Starting Direction | Main Review Points |
|---|---|---|
| Direct Sunlight or Strong Daylight | P12.5 or P15.6 at 10,000 cd/m² | Viewing direction, heat, power and automatic brightness control |
| General Daylight Facade | P15.6 × 31.25 at 6,000 cd/m² | Distance, screen area, transparency and image detail |
| Very Large Long-distance or Night-focused Facade | P31.25 at 4,000 cd/m² | Content scale, viewing distance and night brightness limits |
| Mixed Day and Night Operation | Model selected from the real daytime requirement | Use scheduled or automatic dimming to prevent excessive nighttime brightness |
Choose enough brightness for daytime visibility, then reduce it for night operation to lower power use, glare and environmental light impact.
| Viewing Condition | Pitch Direction | Content Approach |
|---|---|---|
| Closer Outdoor Commercial Viewing | P12.5 | Large products, logos and simple promotional messages |
| Medium-distance Facade or Plaza | P12.5 or P15.6 | Brand campaigns, event visuals and high-contrast animation |
| Large Building and Longer Distance | P15.6 × 31.25 | Large movement, short messages and simplified imagery |
| Landmark-scale Long-distance Viewing | P31.25 | Extremely large logos, digital art and minimal text |
Outdoor Mesh Screen is large-format visual media. Small documents, detailed menus, charts and thin technical graphics will not perform well.
| Alternative | Choose Outdoor Mesh When | Choose the Alternative When |
|---|---|---|
| Indoor Transparent LED Display | The display is exposed outdoors and needs IP65 protection. | The installation is indoors or protected behind glass. |
| Transparent LED Film Display | A self-structured outdoor facade system is required. | A lightweight flat-glass indoor screen is sufficient. |
| Flexible Transparent LED Film Display | Weather resistance and facade scale matter. | The surface is curved, cylindrical or creatively shaped indoors. |
| Holographic Transparent LED Display | Large outdoor visibility is the priority. | Fine-pitch minimal obstruction and premium indoor viewing matter. |
| Transparent LED Glass Display | No glass-integrated display structure is required. | The screen must be coordinated with permanent architectural glass. |
| Rental Transparent LED Display | The installation is fixed and long term. | The screen must be repeatedly assembled and transported. |
| Traditional Outdoor LED Display | Openness, airflow and partial visibility are important. | Transparency is unnecessary and maximum solid image density is preferred. |
DisplayMan can support the display-system design, but local qualified professionals must approve the building structure, wind load, steel frame, anchoring, lightning protection, electrical work, fire requirements and construction compliance.
| Related Page | When to Visit |
|---|---|
| Transparent LED Displays | For the complete Transparent LED product family |
| Transparent LED Solutions | For comparing mesh, glass, film, flexible, indoor and rental routes |
| Indoor Transparent LED Display | For protected indoor framed transparent LED displays |
| Transparent LED Film Display | For lightweight flat-glass advertising |
| Transparent LED Glass Display | For architectural glass-oriented outdoor integration |
| Rental Transparent LED Display | For repeated stage and event assembly |
| Transparent LED Facade Solution | For facade media strategy and technology selection |
| Architectural Transparent LED Wall Solution | For building-scale architectural integration |
| Outdoor & Public Display Systems | For environmental, operational and public-display requirements |
| OEM/ODM Display Engineering & Prototyping | For custom structures, drawings and system integration |
It is an IP65 structural transparent LED display designed for fixed outdoor installation on building facades, exterior walls, steel frames and large public-facing media structures.
Yes. Outdoor LED mesh screen, grille screen and curtain screen may overlap in market naming. The actual pitch, brightness, IP rating, structure, installation and maintenance design are more important than the name.
No. It uses its own mesh, grille or cabinet structure and can be installed on a facade, exterior wall or engineered steel support.
The current published range includes P12.5 × 12.5, P15.6 × 15.6, P15.6 × 31.25 and P31.25 × 31.25.
The supplier table lists 10,000 cd/m² for P12.5 and P15.6, 6,000 cd/m² for P15.6 × 31.25 and 4,000 cd/m² for P31.25. Final calibrated brightness may vary.
The supplier specifications list 75% transparency for all four configurations. Actual visual openness also depends on the facade, content, viewing angle and ambient conditions.
The current specification table lists 500 × 1000 × 70 mm for all four configurations.
The supplier table lists cabinet weight of no more than 8 kg/m². Structural design must use the confirmed complete installed weight, including frames, cables and accessories.
The supplier table lists IP65 for the front and back. Complete-system protection depends on sealed connectors, cable entries, drainage and correct installation.
Viewing distance is project dependent. Select the pitch using the nearest important viewing point, total screen size, content detail and site conditions.
Yes, subject to correct brightness selection, viewing direction, operating schedule and thermal design. Day and night brightness should be managed separately.
No. An open structure may reduce blocking compared with a solid wall, but the complete screen and support structure still require local wind-load and structural calculations.
It can be reviewed, but Indoor Transparent LED Display is normally more practical for protected indoor environments.
It is mainly intended for fixed outdoor projects. Rental Transparent LED Display should be used when repeated assembly, transport and dismantling are required.
Facade-mounted, fixed steel-frame and engineered suspension systems can be reviewed. Every route requires project-specific wind-load, structural and maintenance planning.
HDMI or DVI can be connected through a compatible video processor or controller. Synchronous or asynchronous playback and any additional interfaces are selected for the project.
Large logos, high-contrast advertising, product campaigns, architectural animation, event visuals and short messages designed for medium or long viewing work best.
Please provide screen dimensions, facade drawings or photos, viewing distance, installation height, local wind and weather conditions, pitch preference, brightness requirement, support structure, power and cable routes, maintenance access, quantity, budget, schedule and destination.
Send us the screen dimensions, facade drawings, viewing distance, installation height, local wind and weather conditions, pitch and brightness requirements, support structure, waterproof cable routes, maintenance access, quantity, budget and schedule.
We will review the suitable P12.5–P31.25 configuration, cabinet layout, control system and outdoor display integration requirements.
Outdoor Transparent LED Mesh Display is a structural facade system. Wind load, anchoring, electrical work, lightning protection and local construction approval must be completed by qualified local professionals.
