Custom LED Segment Display Supplier

- The Ultimate Solutions

Discover DisplayMan's commitment to superior LED display solutions, offering unparalleled customization, rigorous quality assurance, and comprehensive after-sales support. Dive into a wide range of LED segment displays tailored for diverse applications and industries, underpinned by technical excellence and customer-centric services. With DisplayMan, experience the future of display technology, today.

Custom LED Segment Display Products

Don’t just take our word for it—experience the DisplayMan difference for yourself! Reach out now for exceptional customer support, personalized consultations, and a seamless integration process tailored to your unique needs!

ITEM	DIMENSION	UNIT
Dimension Outline	85.0*40.0	mm

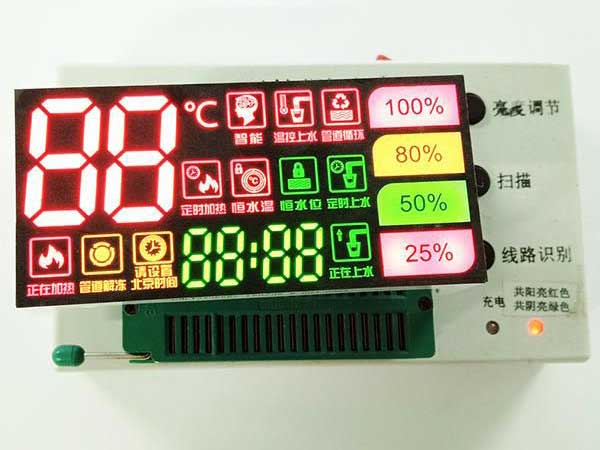

Application	Water Heater
Color	White/Red/Green/Yellow
Attribution	Common Cathode
Voltage	5.0	V
Operating Temperature	-20~+70	°C
Storage Temperature	-30~+80	°C

ITEM	DIMENSION	UNIT
Dimension Outline	60.0*60.0	mm
Application	Voltage Meter
Color	Red
Attribution	Common Cathode
Voltage	5.0	V
Operating Temperature	-20~+70	°C
Storage Temperature	-30~+80	°C

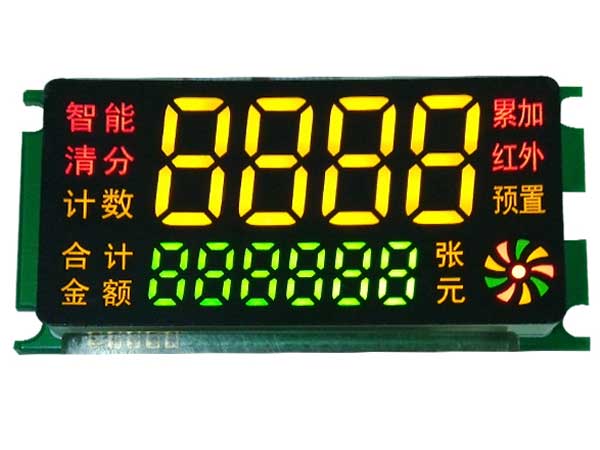

ITEM	DIMENSION	UNIT
Dimension Outline	55.7*25.8	mm

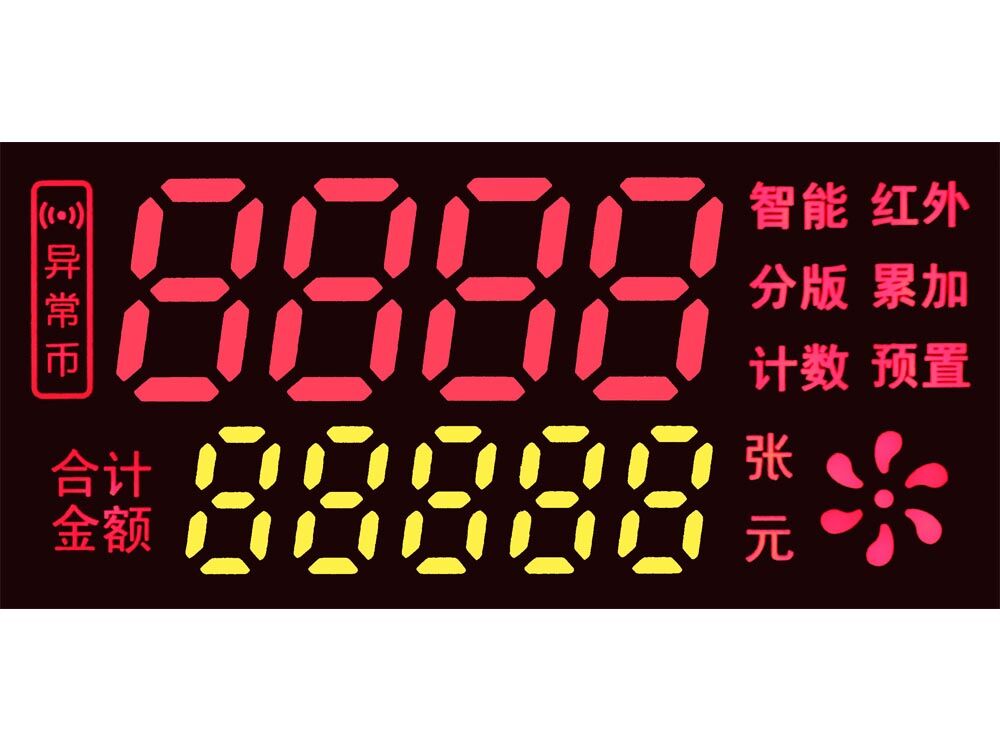

Application	Currency Counter
Color	Red/Yellow/Green/Orange
Attribution	Common Cathode
Voltage	5.0	V
Operating Temperature	-20~+70	°C
Storage Temperature	-30~+80	°C

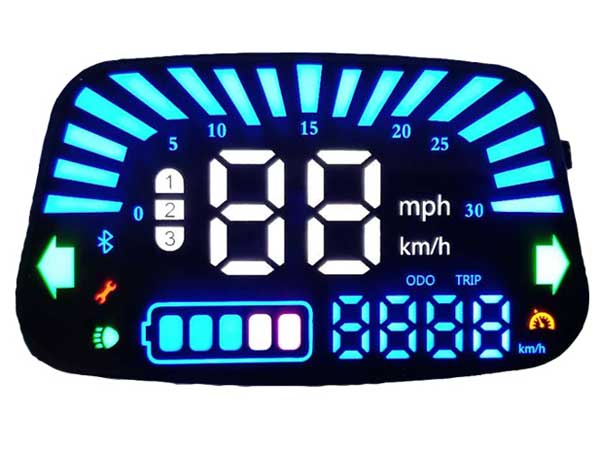

ITEM	DIMENSION	UNIT
Dimension outline	150.0*120.0	mm
Application	Speed Meter
Color	White/Red/Green/Blue
Attribution	Common Cathode
Voltage	5.0	V
Operating Temperature	-20~+70	°C
Storage Temperature	-30~+80	°C

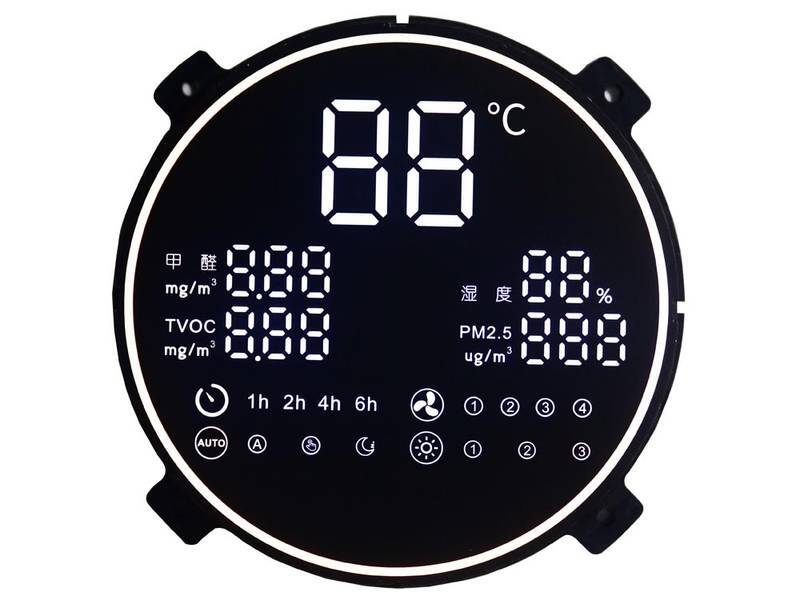

ITEM	DIMENSION	UNIT
Dimension outline	∅124.00	mm

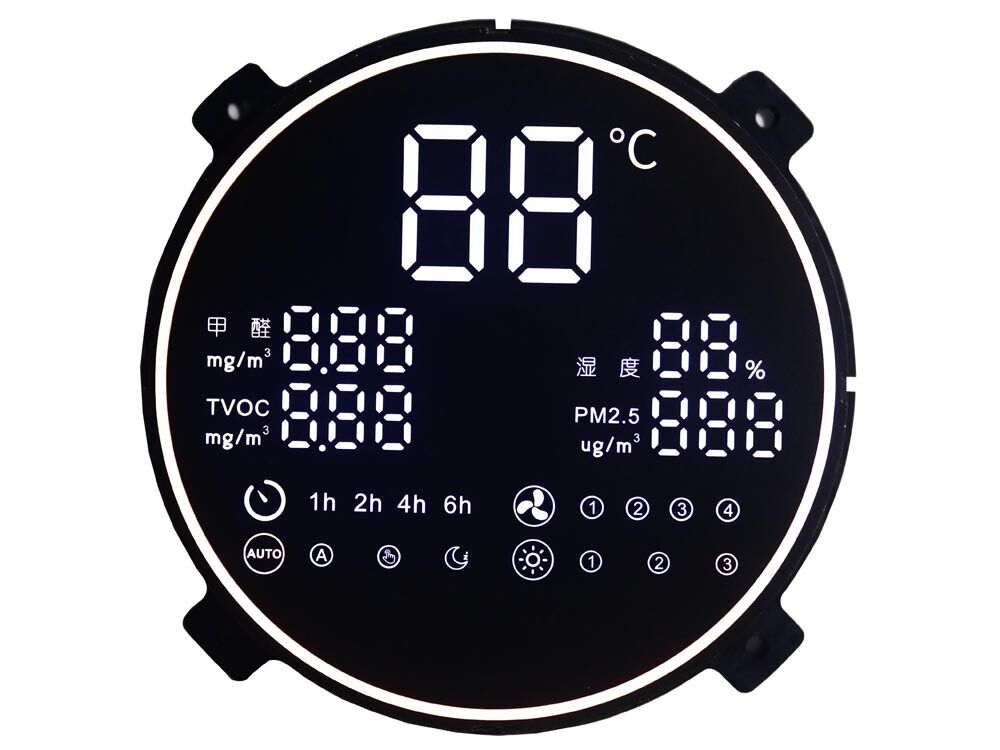

Application	Air Purifier
Color	White/Red/Green/Blue
Attribution	Common Cathode
Voltage	5.0	V
Operating Temperature	-20~+70	°C
Storage Temperature	-30~+80	°C

ITEM	DIMENSION	UNIT
Dimension Outline	75*45	mm

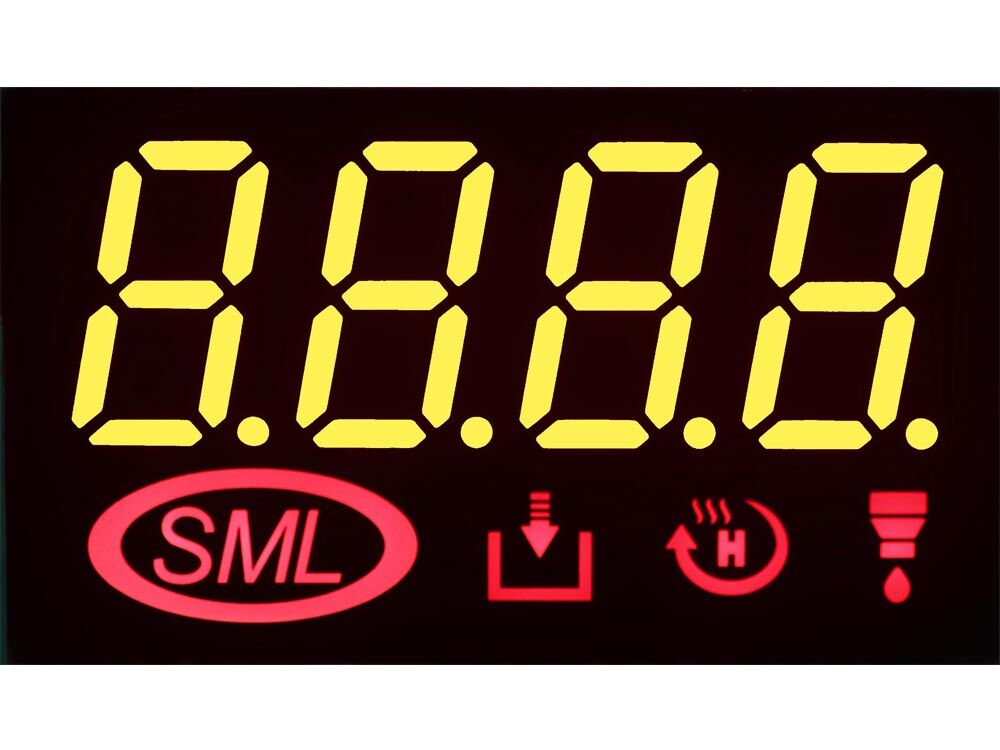

Application	Balance Bike
Color	Red/Yellow
Attribution	Common Cathode
Voltage	5.0	V
Operating Temperature	-20~+70	°C
Storage Temperature	-30~+80	°C

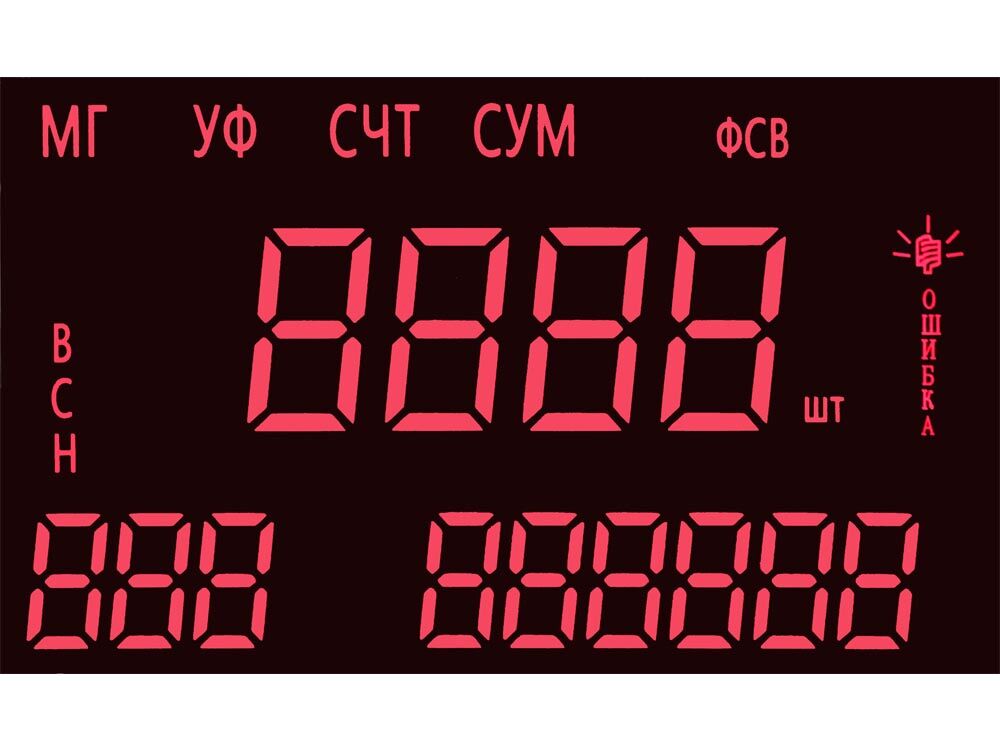

ITEM	DIMENSION	UNIT
Dimension Outline	73.0*43.0	mm
Application	Calculator
Color	Red
Attribution	Common Cathode
Voltage	5.0	V
Operating Temperature	-20~+70	°C
Storage Temperature	-30~+80	°C

ITEM	DIMENSION	UNIT
Dimension Outline	55.7*25.8	mm
Application	Currency Counter
Color	Red/Yellow
Attribution	Common Cathode
Voltage	5.0	V
Operating Temperature	-20~+70	°C
Storage Temperature	-30~+80	°C

ITEM	DIMENSION	UNIT
Dimension Outline	60.0*25.0	mm
Application	Voltage Meter
Color	White
Attribution	Common Cathode
Voltage	5.0	V
Operating Temperature	-20~+70	°C
Storage Temperature	-30~+80	°C

Standard LED Segment Display Products

What are LED Segment Displays?

LED segment displays, often referred to simply as segment displays, are ingenious devices composed of many Surface-Mount Device (SMD) LEDs arranged on a circuit board within a plastic shell. These displays are designed to showcase fixed and straightforward information patterns, such as numbers, letters, symbols, and other characters. The most common configurations include numbers 0 to 9, one or two decimal points, the alphabet, various marks, and symbols.

These LED segment displays are not just components; they are the embodiment of precise and efficient communication of information. Whether conveying numbers, letters, symbols, or other characters, they do so with an unmistakable elegance that serves diverse applications across a multitude of industries.

DisplayMan's LED Segment Displays: Advantages at a Glance

When compared to traditional displays, LED segment displays shine in several aspects. DisplayMan emphasizes that LED segment displays are not only energy-efficient but also eco-friendly lighting solutions. The shell is meticulously crafted from flame retardant PC plastic, endowing it with impressive attributes like high strength, impact resistance, aging resistance, UV protection, dust prevention, and moisture resistance.

DisplayMan’s LED segment displays are packed with advantages that set them apart in terms of efficiency and functionality. Here’s a comprehensive list of the benefits you can expect from our displays:

Low Power Consumption

Our LED segment displays are designed with energy efficiency in mind, ensuring minimal power consumption. This not only helps reduce energy costs but also contributes to a more sustainable environment.

Low Heat Emission

DisplayMan's displays are engineered to remain cool to the touch even during extended operation. This feature not only enhances safety but also reduces the risk of overheating in your applications.

Durability

We take pride in the robust build of our LED segment displays, ensuring they can withstand impacts and provide an extended service life. This durability translates to long-term reliability in your projects.

Customizable Effects

With DisplayMan's LED segment displays, you have the power to create dynamic visual effects. By utilizing a controller, you can achieve effects like the gentle flow of running water, gradual transitions, eye-catching jumps, and captivating chases. This flexibility adds a layer of creativity to your applications.

Color Variety

DisplayMan offers a wide array of color options for our LED segment displays, including classic white, vibrant red, soothing green, captivating blue, and attention-grabbing orange. This variety allows you to choose the perfect color to suit your application's aesthetics and visibility requirements.

Common Cathode and Common Anode Options

Our LED segment displays are available in both common cathode and common anode configurations. This flexibility in design allows you to select the type that aligns seamlessly with your specific project requirements, enhancing ease of integration and adaptability.

An In-Depth Look into the LED Segment Display Production Journey

Creating an LED Segment Display is a meticulous process that involves over 30 detailed steps, each crucial to ensuring the final product’s quality and functionality. From the initial design and selection of materials to the final assembly and quality checks, every stage plays a pivotal role in delivering a superior display. In this overview, we’ll shed light on some of the most integral parts of this complex journey, offering a glimpse into the precision and dedication behind each DisplayMan product

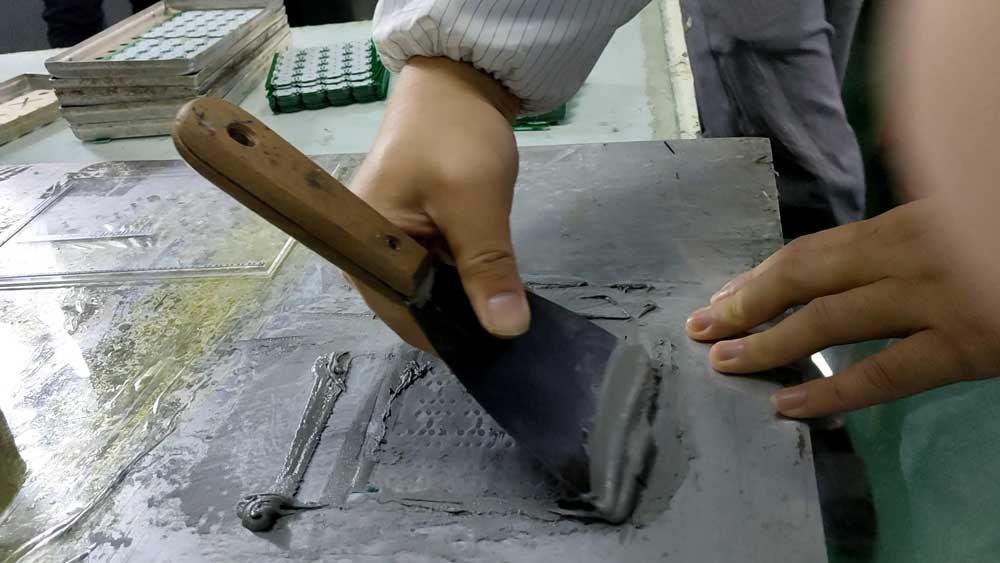

Apply Solder Paste to PCB

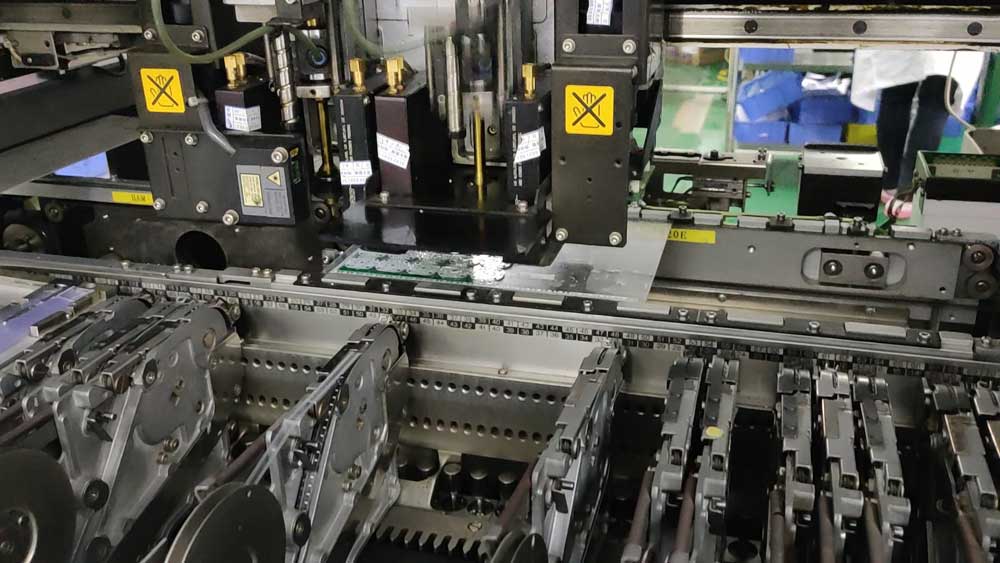

SMD LED Soldering Machine

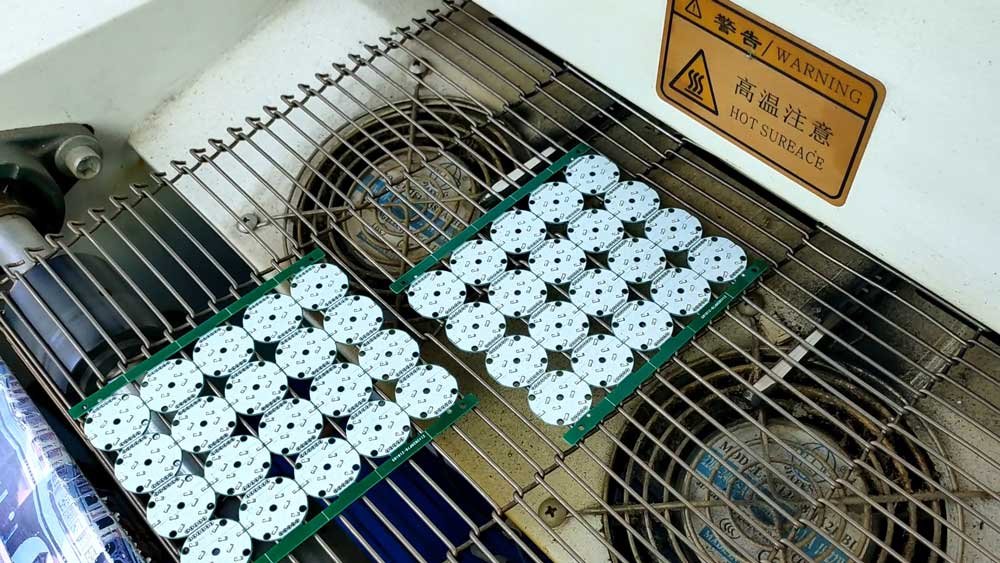

PCB Passing Through Hot Oven

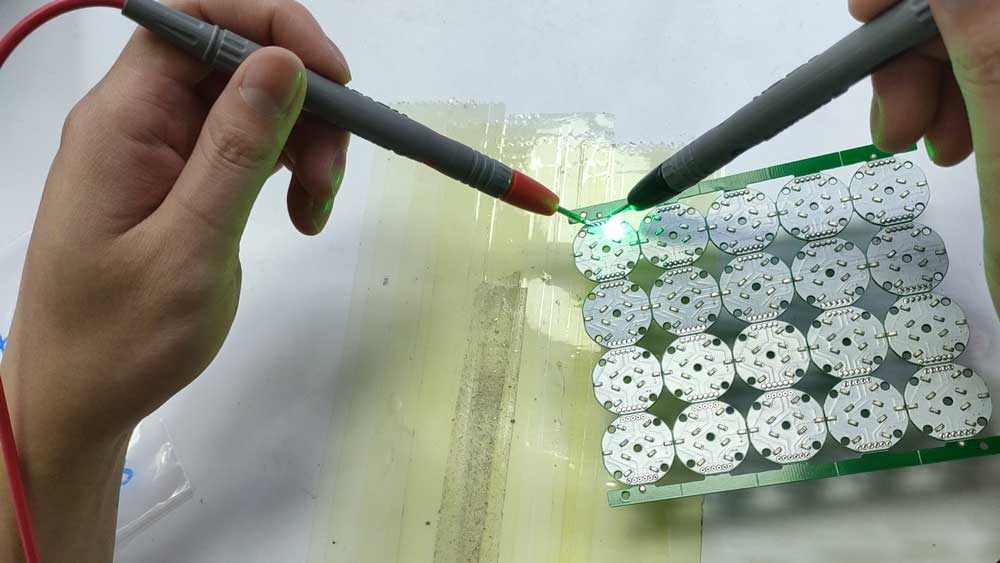

Quality Test for PCB

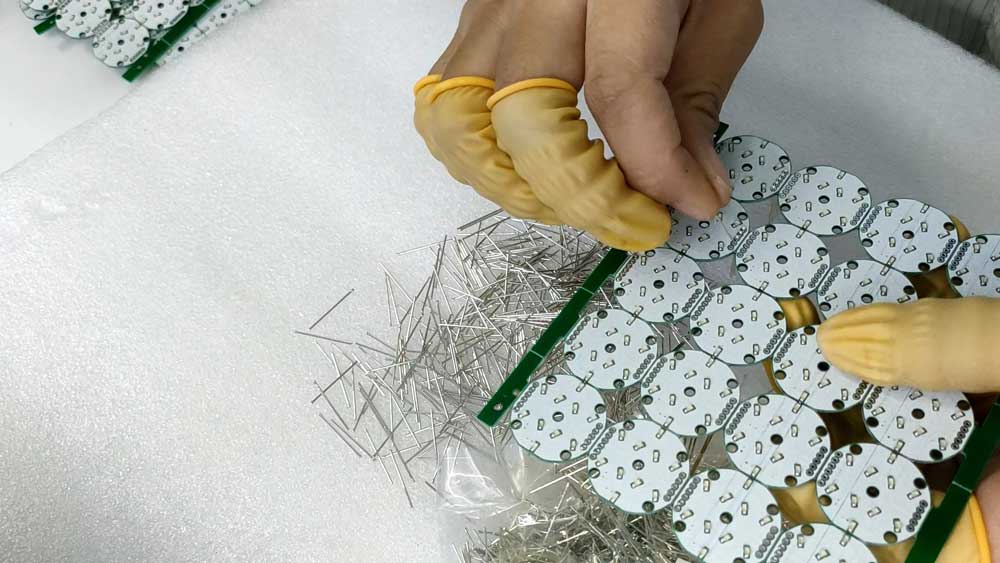

Insert Metal PINs into PCB by Hand

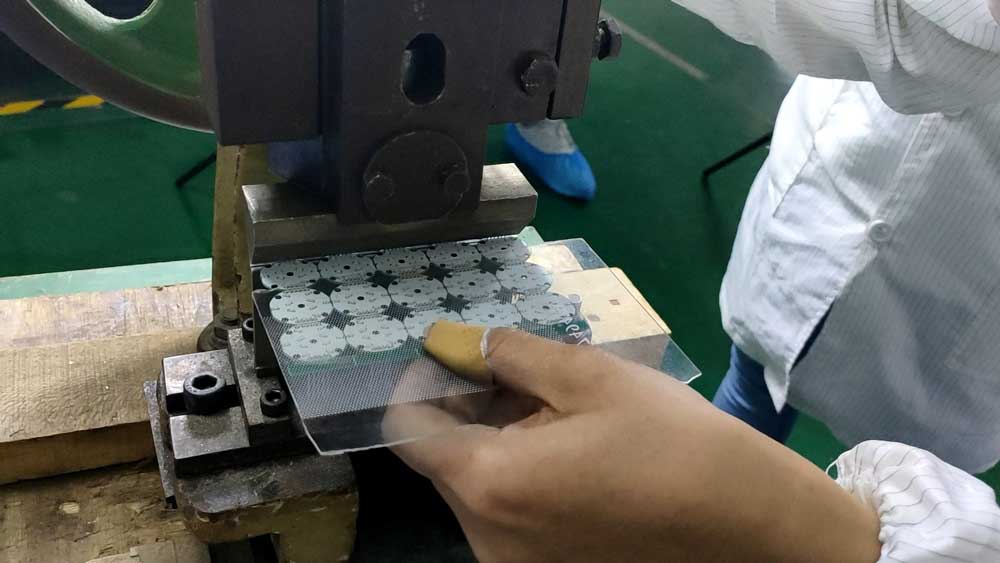

Press Metal PIN by a machine

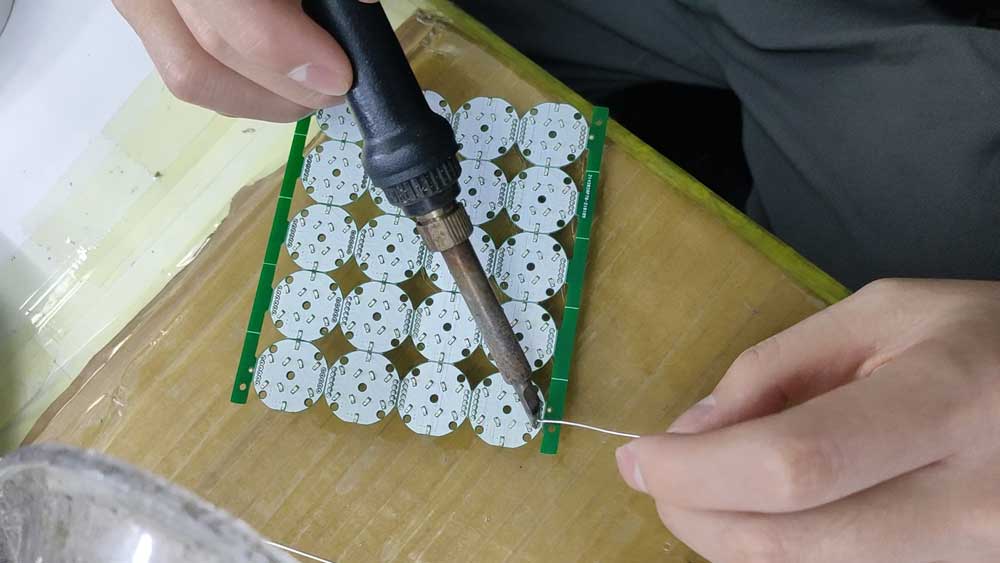

Solder Metal PIN into PCB

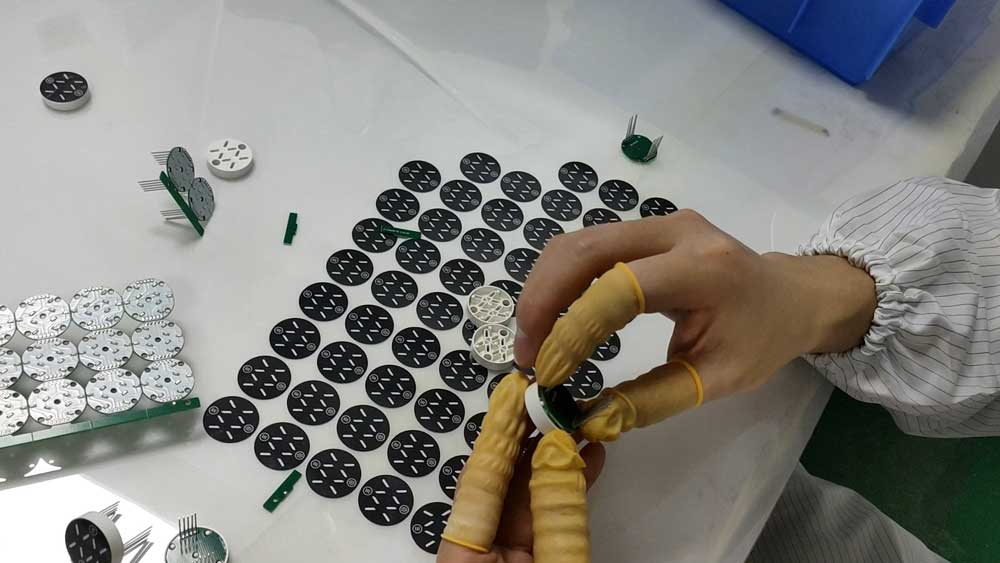

Assemble the Cover and PCB

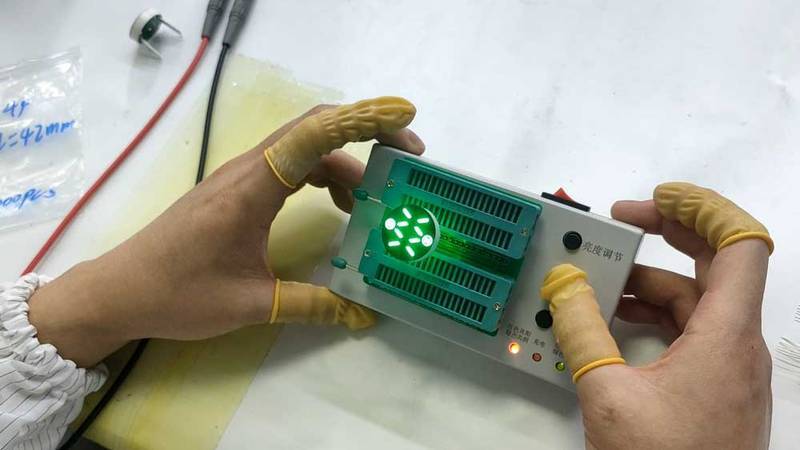

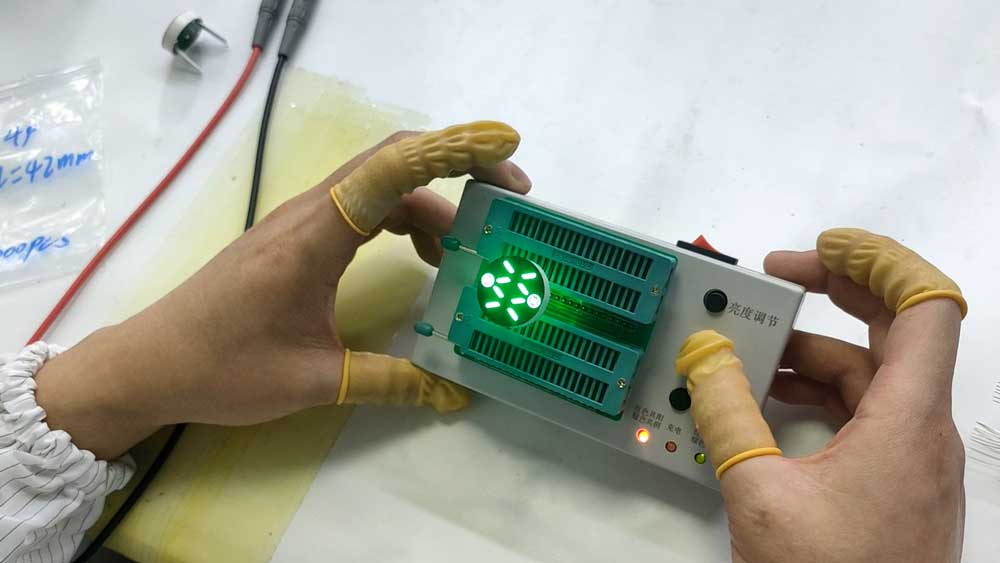

Quality Test on LED Segment Display

DisplayMan: Versatile Display Solutions

DisplayMan, a prominent supplier, offers an extensive range of custom LED segment displays designed to cater to a broad spectrum of needs in various applications and industries. Here’s a closer look at our versatile display solutions:.

7-Segment LED Displays

DisplayMan’s 7-segment LED displays excel in conveying numbers and characters with exceptional precision. They are the go-to choice for applications where numerical data is paramount.

Alphanumeric LED Displays

These displays are tailored for applications that require the simultaneous display of both letters and numbers, making them invaluable across diverse industries where comprehensive information presentation is essential.

Dot Matrix LED Displays

Our dot matrix displays offer unparalleled versatility, capable of showcasing a wide range of information effectively. They are ideal for applications demanding dynamic content presentation and flexibility.

Arrow LED Displays

With arrow LED displays, DisplayMan ensures the efficient communication of directional information, enhancing navigation and guidance systems across various contexts.

LED Light Bars

DisplayMan’s LED light bars are meticulously designed to provide illumination solutions. They are available in both standard brightness and high ambient light variants, significantly improving visibility and aesthetics in countless applications.

Applications Showcased

To illustrate the practical applications of DisplayMan’s LED segment displays, we provide product images and graphics that depict these displays in action across a wide range of industries:

Industrial and Consumer Markets

Our displays find widespread use in both industrial and consumer markets, where they serve as essential components in diverse devices and systems, ensuring clear and precise information dissemination.

Refrigerator Control

DisplayMan's displays play a pivotal role in refrigeration systems, aiding in temperature control and monitoring for food safety and preservation, providing peace of mind for consumers.

Blood Banking Centrifuge

In critical applications like blood banking centrifuges, our displays ensure the safety and efficiency of vital medical processes, supporting healthcare professionals in their mission.

Oven Timer Control Applications

In the realm of oven timer control, DisplayMan's displays ensure precise and efficient cooking processes, enhancing culinary convenience and accuracy.

Digital Panel Indicator

DisplayMan's LED segment displays serve as trusted digital panel indicators, delivering crucial information in a clear and concise manner across various industrial and consumer applications.

what makes us different

DisplayMan's Extensive Customization Offerings

When it comes to customizing your LED segment displays, DisplayMan offers a wealth of options to ensure your displays align perfectly with your project’s unique needs. Here’s a comprehensive list of our customization options:

Wide Range of Sizes

DisplayMan provides a wide range of sizes for our segment LED displays, ranging from 10mm to 500mm. Whether you require larger or smaller custom sizes, we can accommodate your specifications. Please note that custom sizes outside our standard range may incur higher unit costs.

Color Variety

Our LED segment displays are available in a spectrum of colors, including classic options like white, red, green, blue, and orange. We also offer custom color options, provided the minimum order quantity (MOQ) reaches 50K, allowing you to achieve the perfect color match for your application.

Shape Options

Choose from a variety of shapes for your LED segment displays, including round, square, rectangle, and octagon. If your project demands a unique shape, we also offer custom shape design services to meet your specific style preferences.

Brightness Adjustment

DisplayMan caters to your brightness needs by employing LED lamps with varying power consumption levels. Options include: - Small power consumption (0.06W) SMD LEDs like 0402, 0603, 0805, 1206, and 3528. - Medium power consumption (0.1W to 0.2W) SMD LEDs, including 3014, 4014, 5050, and 2835.

Voltage Customization

While common anode 5.0v and cathode 5.0v are standard driving voltages, we offer custom voltage options such as 8.0v, 10.0v, 12.0v, and 24.0v. This allows us to precisely match the voltage requirements of your order, ensuring seamless integration.

Pin Configuration

DisplayMan not only customizes the location and length of PINs (typically in the upper and lower two rows) but also provides flexibility in defining the Pinouts. You can choose from diverse IC options to suit specific mechanical development requirements, enhancing integration possibilities.

Customer-Centric Approach at DisplayMan

At DisplayMan, we place a paramount emphasis on delivering exceptional customer service. Our commitment to ensuring your satisfaction is woven into every aspect of our operations:

Tailored Customization

We understand that each project is unique, and our mission is to provide solutions that align perfectly with your requirements. DisplayMan offers extensive customization options, allowing you to tailor our LED segment displays to your precise needs. Whether it's specific size and shape requirements or fine-tuning display brightness and color, we're here to make it happen.

Highlighting Key Features

Transparency is at the core of our service. We take pride in showcasing the key features of our LED segment displays. From dimensions to color options, shape variations, display brightness, pinouts, and package options (including through-hole and surface mount), we provide you with all the essential information to make informed decisions.

Accessible Technical Support

At DisplayMan, we believe that offering exceptional products should go hand in hand with exceptional support. That's why we provide accessible technical support and readily available contact information. Whether you have inquiries, need assistance, or simply want to discuss your project, our team is here to provide the guidance and answers you need.

Customer Reviews and Testimonials

These testimonials reflect the positive experiences and satisfaction that customers have had with DisplayMan, highlighting the company’s commitment to delivering top-notch LED segment displays and exceptional customer service.

DisplayMan's LED segment displays have been a game-changer for our industrial control panels. The customization options allowed us to seamlessly integrate these displays into our designs. The quality and reliability of their products are unmatched. We've been consistently impressed with DisplayMan's commitment to excellence.

Dr. sarah patel

Engineering Manager

I've worked with various suppliers in the past, but DisplayMan truly stands out. Their LED displays are not only visually impressive but also incredibly durable. The technical support team was responsive and provided valuable insights during our project. DisplayMan exceeded our expectations.

Emily Jones

Product Designer

We needed custom LED segment displays for a critical project with tight deadlines. DisplayMan not only delivered on time but also ensured that the displays were precisely what we needed. The clarity and brightness of their displays are remarkable. I highly recommend DisplayMan for any display solutions.

John Smith

Project Engineer

Our lab relies on high-quality LED displays for our experiments. DisplayMan's displays have been a perfect fit for our needs. The range of colors and sizes they offer allowed us to choose the ideal display for each experiment. Their displays have significantly improved the accuracy of our data collection.

Kevin Nguyen

Electronics Technician

DisplayMan's Commitment to Seamless Shipping and Logistics

At DisplayMan, we understand that the journey of your LED segment displays from our facilities to your project site is a critical part of your overall experience. We are dedicated to ensuring that this process is as smooth and worry-free as possible:

Shipping Options and Timelines

At DisplayMan, we understand that different situations require different shipping methods. For sample orders, we provide the convenience of express shipping through trusted carriers like DHL, UPS, and FedEx, ensuring your samples reach you within one week. For bulk orders, we offer flexibility with airway and seaway shipping, catering to your volume requirements. Our dedicated line logistics service is also available for bulk orders, ensuring efficient delivery in approximately one month.

Packaging and Handling

Ensuring the safe transit of your LED segment displays is a top priority for DisplayMan. Our packaging and handling procedures are designed with precision and care. Your displays are meticulously packed in sturdy carton boxes, supported by protective plastic trays. We employ Pearl cotton and foam cushioning to provide an additional layer of protection. This comprehensive packaging approach is a testament to our commitment to delivering your displays in impeccable condition.

Returns and Warranty

While we strive for perfection in every product we deliver, we recognize that occasional issues may arise. At DisplayMan, we want to ensure that you are well-informed about our policies regarding returns and warranty coverage. In the unlikely event that you encounter any challenges with your LED segment displays, our transparent and equitable policies will provide you with the support you need. Our comprehensive warranty coverage spans a period of 12 months from the date of purchase, offering you peace of mind and confidence in the quality of our products.

DisplayMan's Comprehensive After-Sales Support

At DisplayMan, we understand the importance of robust after-sales support to enhance your overall experience. Here’s a comprehensive list of the after-sales support services we provide:

Technical Assistance

DisplayMan offers dedicated technical assistance to address any challenges or issues you may encounter with your LED segment displays. Our knowledgeable team is ready to provide troubleshooting support and guidance, ensuring that your displays operate seamlessly.

Maintenance and Repairs

We take pride in our commitment to the longevity of your LED segment displays. In the event of maintenance or repairs, DisplayMan offers comprehensive services to address any issues that may arise. Additionally, we provide access to spare parts to ensure your displays continue to function optimally.

Upgrades and Replacements

To keep you at the forefront of display technology, DisplayMan offers options for upgrades and replacements. This ensures that you have access to the latest advancements in display technology, allowing you to maintain a competitive edge in your applications.

F.A.Q.

When considering custom LED segment displays, you may have some common questions in mind. Here, we provide comprehensive answers to these inquiries:

Is a 7-Segment Display LED or LCD?

A 7-segment display is LED-based. It relies on Light Emitting Diodes (LEDs) to illuminate its segments, creating numbers and characters.

What Is a Segment in LED?

In LED nomenclature, a segment refers to a distinct illuminated portion of the display. These segments are typically lines or shapes used to construct and display characters or symbols.

What Is a 7-Segment Display Using LEDs?

A 7-segment display is a specific type of LED display that employs seven distinct segments to form numbers and characters. Each segment can be independently controlled to create a wide range of visual information.

What Is a 16-Segment LED Display?

A 16-segment LED display is an advanced version that offers greater flexibility in character formation and display. It consists of sixteen distinct segments, providing the capacity to render more intricate characters and symbols.

What Is the Typical Lead Time for Custom LED Segment Displays?

The typical lead time for custom LED segment displays is approximately 15 to 25 working days. This duration may vary based on specific customization requirements and order volume.

How Do I Request a Quote from a Potential Supplier?

To request a quote from DisplayMan, simply visit our company website at https://displayman.com/. We offer a user-friendly platform to facilitate your inquiry.

Are There Any Warranties Available for Custom LED Segment Displays?

Yes, DisplayMan provides a 12-month warranty on their custom LED segment displays. This warranty offers peace of mind, ensuring the reliability and quality of their products.

What Are the Common Challenges in Custom LED Display Projects?

Common challenges in custom LED display projects encompass ensuring compatibility with existing systems, meeting specific size and shape requirements, and optimizing brightness and visibility to suit the intended application. These challenges emphasize the importance of choosing a reliable and versatile supplier like DisplayMan for your custom display needs.

Choosing the Right Supplier for Your Needs

In conclusion, DisplayMan stands out as a reliable supplier of custom LED segment displays. Their comprehensive information, dedication to quality and customization, positive customer reviews, and commitment to after-sales support make them a top choice for engineers and designers seeking high-quality display solutions. When you choose DisplayMan, you’re not just getting LED segment displays; you’re getting a partner committed to your success.
