VA Negative Segment LCD for Medical Equipment
| Display Type | VA / Segment |
| Display Size | Customized |
| Display Mode | Negative / Transmissive |
| Display Effect | Black Background and White Letters |
| Application | Medical Equipment |
| Backlight | White |
Explore custom VA LCD glass panels for white digits and icons on a black background. Configure segment layouts, backlighting, touch buttons and silk printing for appliances, medical equipment and OEM control panels.
DisplayMan supplies custom VA LCD Glass Panels for OEM products that need high-contrast black-background Segment LCD effects.
VA LCD glass is used in medical devices, air conditioners, home appliances, massage chairs, control panels, meters, automotive-style interfaces and premium electronic products.
Compared with TN, HTN, STN and FSTN, VA is selected when the product requires a stronger black background, clearer white content and a more premium front-panel appearance.
Choose VA LCD Glass Panels when the product needs fixed Segment LCD content with a high-contrast black-background effect and premium front-panel appearance.
Explore three custom VA segment LCD designs for medical equipment, air conditioners and massage chairs, including touch-button and silk-printing options.

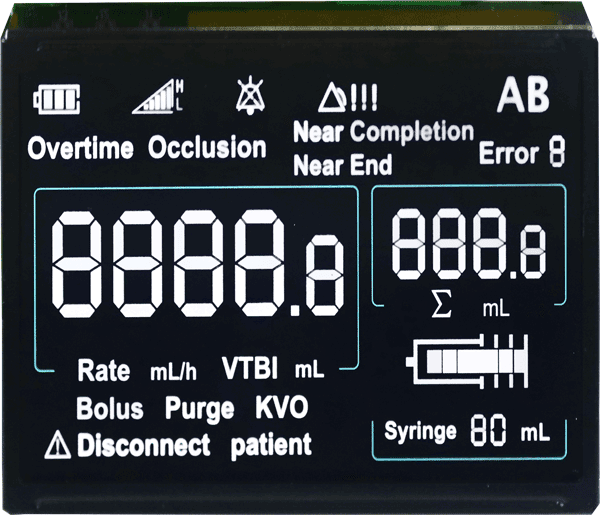

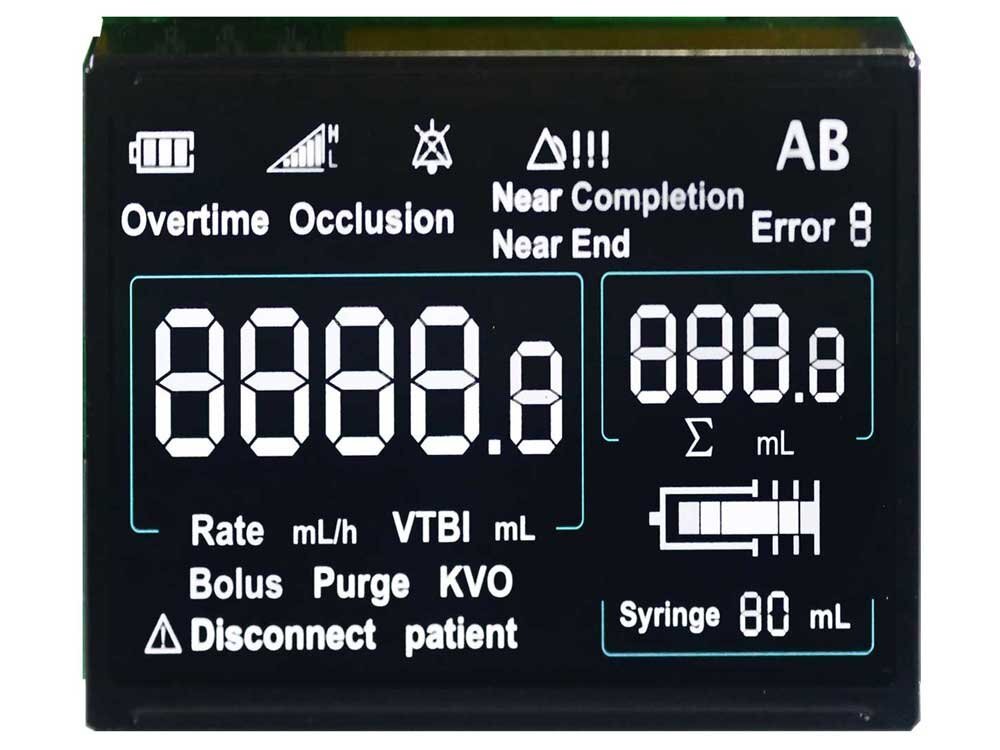

| Display Type | VA / Segment |
| Display Size | Customized |
| Display Mode | Negative / Transmissive |
| Display Effect | Black Background and White Letters |
| Application | Medical Equipment |
| Backlight | White |

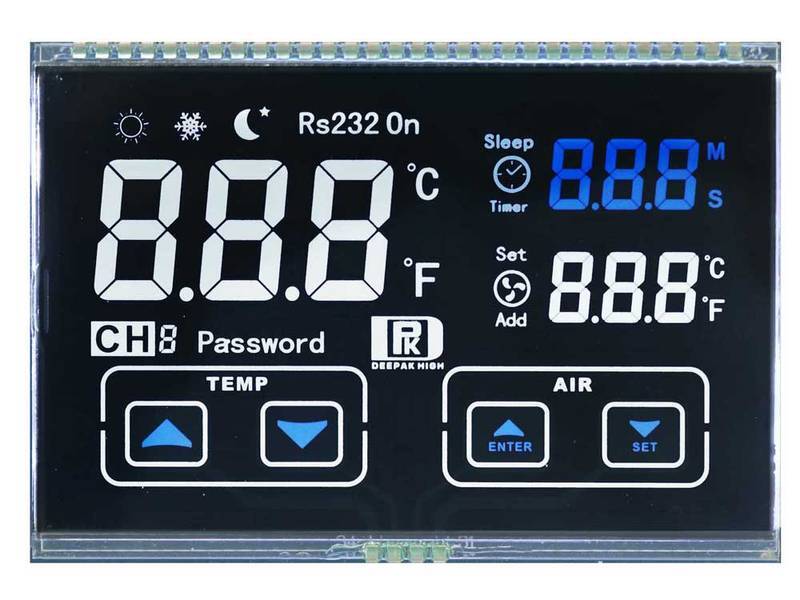

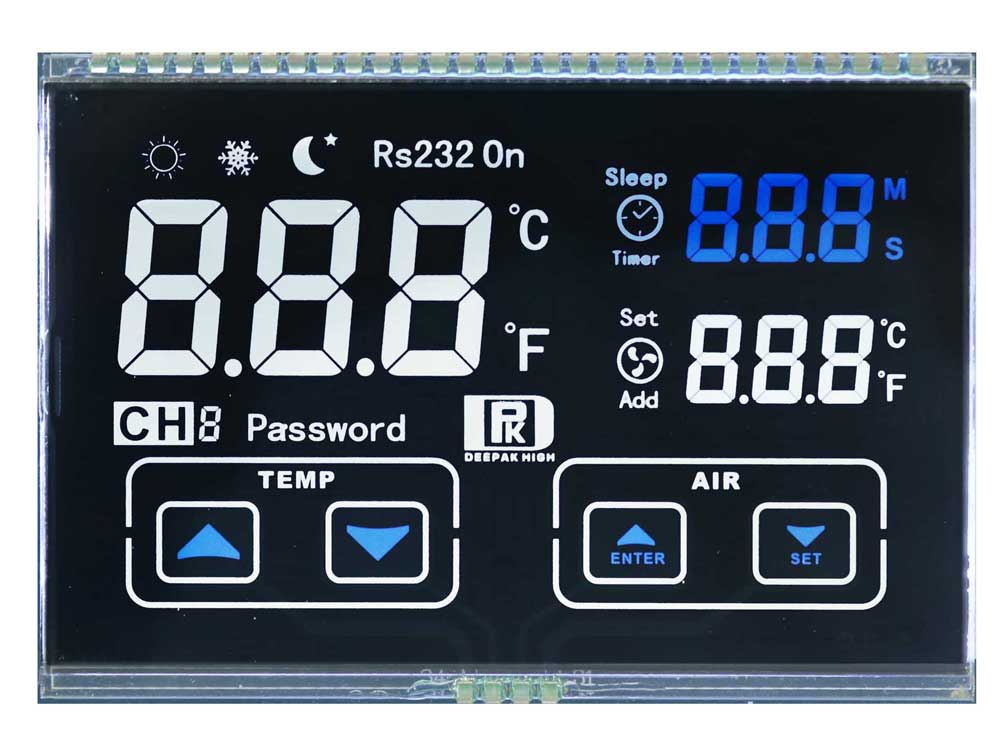

| Display Type | VA / Segment with Touch Button |
| Display Size | Customized |
| Display Mode | Negative / Transmissive |
| Display Effect | Black Background and White Letters with Blue Silk Printing |
| Application | Air Conditioner |
| Backlight | White |

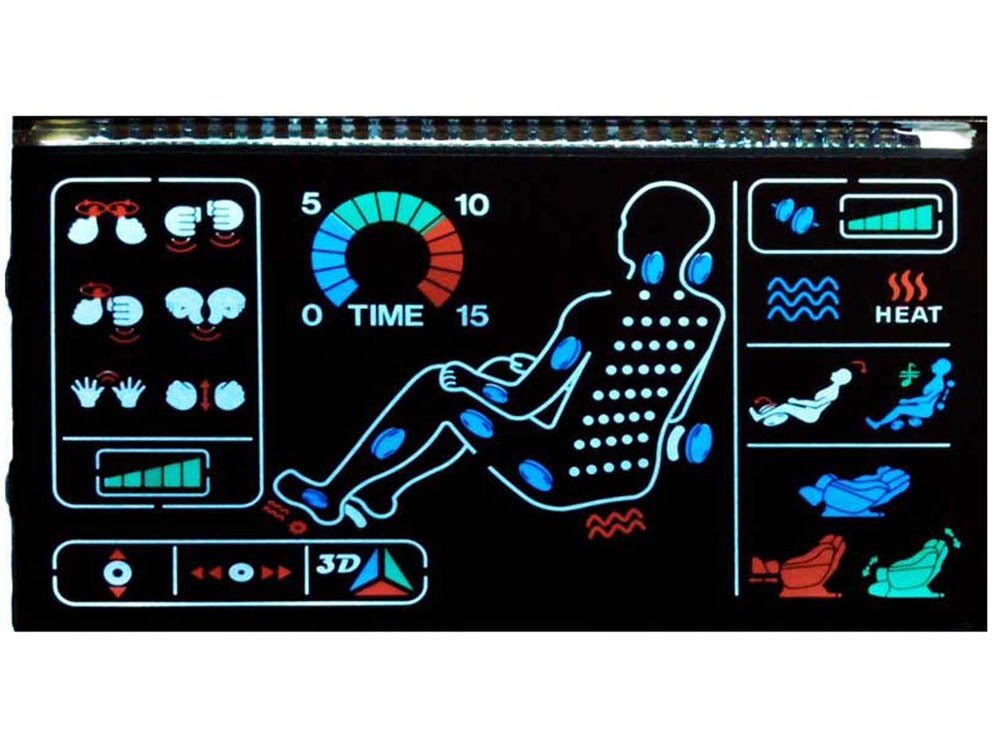

| Display Type | VA / Segment |
| Display Size | Customized |
| Display Mode | Negative / Transmissive |
| Display Effect | Black Background and White Letters with Multicolor Silk Printing |
| Application | Massage Chair |
| Backlight | White |
VA LCD glass is mainly used for custom Segment LCD projects requiring a black-panel appearance. The correct direction depends on backlight, segment layout, printing, touch area, connection and module integration.
| VA LCD Direction | Display Effect | Backlight Option | Typical Use |
|---|---|---|---|
| Negative Transmissive VA LCD | Black background with white digits or icons | Usually required | Medical devices, air conditioners, appliances and control panels |
| Negative Transflective VA LCD | Black background with white display content | Usually required; project-based review | Selected mixed-light display projects |
| VA Segment LCD Glass | Fixed digits, icons and symbols | Required or project-based | Premium meters, controllers and product interfaces |
| VA LCD with Touch Buttons | Black-panel effect with touch-button area | Usually required | Air conditioners, appliances and smart control panels |
| VA LCD with Silk Printing | Printed icons, color mask or front-panel decoration | Usually required | Massage chairs, appliances and customized control panels |
| VA LCD Module Direction | VA glass combined with backlight, PCB or connector structure | Required or project-based | OEM products requiring complete LCD module integration |
VA is not the best choice for Dot Matrix LCD, Graphic LCD or flexible software-controlled UI. For pixel-based graphics, menus or changing icons, review STN, FSTN, Graphic LCD or TFT LCD.
VA is known for white digits, icons or symbols on a black background.
The required digits, icons and symbols are fixed after the LCD glass pattern is tooled.
Backlight, driver, PCB, connector, touch buttons and housing may still be required.
VA provides a stronger black-panel effect than standard TN, HTN, STN or FSTN Segment LCD.
Suitable for appliances, medical devices, smart controllers and premium electronic products.
Digits, icons, symbols, temperature marks, modes and warning signs can be customized.
Selected projects can combine VA glass, touch areas, PCB, backlight and front-panel design.
Black mask, red, green, blue and multi-color printing can support product styling.
VA glass can be integrated with backlight, PCB, connector and mechanical support.
| Display Type | Display Mode | Polarizer | Background | Letters | Backlight |
|---|---|---|---|---|---|
| VA | Negative | Transmissive | Black | White | Yes |
| VA | Negative | Transflective (rarely used) | Black | White | Yes |
| Selection Factor | Available Direction | Practical Use |
|---|---|---|
| Negative Transmissive | Black background with white display content | Main VA LCD direction for premium backlit interfaces |
| Negative Transflective | Black-background direction with selected ambient-light support | Project-based mixed-light review |
| LED Backlight | White or project-based color and brightness | Creates the visible white-on-black VA display effect |
| Static Driving | Direct segment control | Simple Segment LCD structures with more pins |
| Multiplex Driving | Shared COM and SEG electrodes | Reduces connection count for more fixed segments |
| PIN / Zebra / FPC | Project-based connection selection | Matches customer PCB, glass size and module assembly |
| Touch Buttons | Selected custom module integration | Appliances, air conditioners and control panels |
| Silk Printing | Black mask, icons, decorative areas and multi-color printing | Supports premium front-panel styling |
Most VA designs depend on a suitable LED backlight. Backlight color, brightness, current, light guide, mask printing and polarizer must be reviewed together.
VA LCD glass is mainly suitable for fixed Segment LCD content. It is not recommended for complex Graphic LCD, Dot Matrix LCD, high-resolution pixels or full-color UI.
| Factor | TN LCD Glass | VA LCD Glass |
|---|---|---|
| Display Effect | Grey background with dark content or basic negative effect | Black background with white content |
| Contrast | Basic | Higher |
| Appearance | Simple and cost-effective | More premium |
| Main Use | Simple Segment LCD | High-contrast Segment LCD |
| Backlight | Optional depending on mode | Usually required |
| Cost | Lower | Higher |
| Selection Logic | Choose TN when cost is the priority | Choose VA when black-background appearance is required |
| Factor | HTN LCD Glass | VA LCD Glass |
|---|---|---|
| Display Effect | Improved grey or blue-background Segment LCD | High-contrast black-background Segment LCD |
| Contrast | Better than TN | Higher than HTN |
| Appearance | Practical improved Segment LCD | More premium |
| Main Use | Segment display requiring better contrast than TN | Segment display requiring black-panel effect |
| Cost | Lower than VA | Higher |
| Selection Logic | Choose HTN for practical contrast improvement | Choose VA for stronger black-background visual effect |
| Factor | STN / FSTN LCD Glass | VA LCD Glass |
|---|---|---|
| Main Use | Segment, Character, Dot Matrix and Graphic LCD | Mainly Segment LCD |
| Display Content | More flexible monochrome content | Fixed digits, icons and symbols |
| Display Effect | Grey, blue, positive or negative monochrome effect | High-contrast black background |
| Graphic / Dot Matrix Use | Suitable, especially FSTN | Not recommended |
| Appearance | Practical monochrome LCD effect | Premium black-panel effect |
| Selection Logic | Choose STN / FSTN for display flexibility | Choose VA for fixed high-contrast Segment LCD |
| Factor | VA LCD Glass | OLED Display |
|---|---|---|
| Display Principle | LCD glass with backlight | Self-emissive OLED |
| Display Content | Fixed Segment LCD content | Pixel-based content depending on OLED type |
| Black Background Effect | Yes, with VA negative mode and backlight | Yes, from self-emissive pixels |
| Custom Fixed Icons | Built into LCD glass | Displayed by software |
| Power and Lifetime | Depends on backlight and LCD driving | OLED lifetime and burn-in require review |
| Cost Direction | Practical for fixed Segment LCD interfaces | Higher for many custom projects |
| Selection Logic | Choose VA for fixed black-panel Segment LCD | Choose OLED for pixel-based self-emissive display |
Measurements, icons, warnings and premium black-panel interfaces.
Temperature, modes, fan level, timer and touch-button areas.
Programs, temperature, status icons and decorative front-panel design.
Modes, intensity, timer, body-zone icons and touch controls.
Fixed icons, symbols, status information and black-panel appearance.
Premium white-on-black fixed Segment LCD content.
Values, units, temperature marks and status indicators.
Operating status, warnings, values and product-specific icons.
Exact glass, segment, pin, backlight, printing and structure matching.
Digits, icons, symbols, temperature marks, modes and warnings.
VA should be selected for the white-on-black premium effect, not only because it sounds higher-end.
Glass size, viewing area, icons, printing area and touch-button area.
Negative transmissive or selected transflective mode, brightness, color and light guide.
PIN, zebra or FPC, touch areas, black mask and multi-color printing.
Driving, temperature, tooling, samples, quantity, acceptance criteria and schedule.
VA is the correct direction for premium black-background Segment LCD content. Use another technology when the priority is lower cost, improved general monochrome readability or flexible pixel-based content.
| Product Page | Choose This When |
|---|---|
| LCD Glass Panels | You need the main LCD glass technology-selection page |
| TN LCD Glass Panels | You need simple and cost-effective Segment LCD glass |
| HTN LCD Glass Panels | You need higher contrast than TN at practical cost |
| STN LCD Glass Panels | You need flexible monochrome Segment, Character or Dot Matrix content |
| FSTN LCD Glass Panels | You need improved readability for Graphic or Dot Matrix LCD |
| Segment LCD Displays | You need the complete custom Segment LCD product direction |
Please show the fixed digits, icons, symbols, viewing area, printing area and touch-button area so the VA glass, backlight, connection and tooling structure can be reviewed correctly.
Visit a category page for product images, specifications and integration options.
A VA LCD Glass Panel is a custom monochrome LCD glass using Vertical Alignment technology. It is mainly used for high-contrast segment display applications with a black background and white display content.
No. VA LCD glass is the glass display element. A complete module may also include polarizers, LED backlight, driver circuit, PCB, connector, touch buttons, frame and front-panel structure.
VA LCD glass is best used for fixed segment display content requiring a black-background, high-contrast and premium front-panel appearance.
Usually no. VA LCD is mainly suitable for fixed segment content. For Graphic or Dot Matrix LCD, STN or FSTN should be reviewed.
Most VA LCD designs use backlight, especially negative transmissive VA LCD with a black background and white display content.
Selected transflective VA LCD projects can be reviewed, but most VA applications use negative transmissive mode with backlight.
Yes. Touch-button structure can be reviewed for selected VA LCD glass and module projects.
Yes. Black mask, red, green, blue or multi-color silk printing can be reviewed according to the product design.
TN is selected for simple and low-cost segment displays. VA is selected when the product requires a stronger black-background effect and more premium appearance.
HTN provides a practical contrast improvement over TN. VA provides a stronger black-panel style display effect and normally costs more.
STN and FSTN are better for flexible monochrome content such as Character, Dot Matrix and Graphic LCD. VA is mainly used for fixed high-contrast segment content.
VA LCD is a liquid-crystal display that normally requires backlight. OLED is self-emissive. VA LCD is practical for fixed segment content, while OLED is used for pixel-based display content.
Yes. PIN connection can be reviewed when the product PCB and assembly structure support direct or through-hole connection.
Yes. Zebra and FPC structures can be reviewed according to the glass size, customer PCB, module thickness and assembly requirements.
Static driving controls each segment directly. Multiplex driving shares COM and SEG electrodes. Duty, bias, voltage, maximum COM and contrast must be reviewed together.
Yes. Please provide the old LCD sample, photos, drawing, glass outline, viewing area, segment layout, pin details, backlight and product information.
VA LCD is mainly suitable for fixed Segment LCD content. It is not recommended for complex Graphic LCD, Dot Matrix LCD, high-resolution pixels or full-color interfaces.
Please provide glass size, viewing area, segment layout, backlight, connection type, printing requirement, touch requirement, driving method, voltage, viewing direction, operating temperature, quantity, schedule and available drawings or samples.
Send us the glass size, viewing area, segment layout, backlight, connection, printing, touch requirement, driving method, viewing direction, temperature, quantity and schedule.
DisplayMan will review whether VA LCD glass is suitable or whether TN, HTN, STN or FSTN better matches the display content, readability, appearance and cost target.
VA is selected for fixed black-background Segment LCD content. A clear segment, printing and touch-button layout plus realistic production quantity are required before tooling and quotation.
