Bar / Stretched TFT LCD Displays for Space-Efficient Designs

Modern devices demand displays that fit perfectly — not the other way around.

DisplayMan’s Bar / Stretched TFT LCD Displays combine ultra-wide aspect ratios, high brightness, and industrial reliability to deliver maximum information in minimal space.

Engineered for OEMs who need slim, panoramic, or custom aspect displays, these modules provide superior readability and flexibility — from retail shelves and dashboards to vending machines and transportation signage.

Contact Us
8.9 inch ips 480x1920 bar type tft mipi interface high brightness medical lcd with capacitive touch

🖼️ Showcase of DisplayMan Bar / Stretched TFT LCD Displays

Discover DisplayMan’s advanced lineup of bar-type and stretched TFT LCD modules, engineered for applications where traditional display formats simply don’t fit.

From automotive dashboards and industrial control panels to smart vending machines, ticketing systems, and digital signage, these ultra-wide displays offer exceptional versatility, high brightness, and crisp visibility from every angle.

Our showcase highlights the full spectrum of available sizes, aspect ratios, resolutions, and customization options — including touch integration, high-brightness enhancements, ruggedized structures, and custom FPC/interface designs.

Whether you need a standard plug-and-play model or a fully custom stretched display built around your product’s mechanical constraints, this collection presents the core capabilities that DisplayMan brings to modern narrow-format display design.

Explore the wide possibilities of ultra-wide displays — built for space-constrained layouts, premium UI design, and next-generation industrial applications.

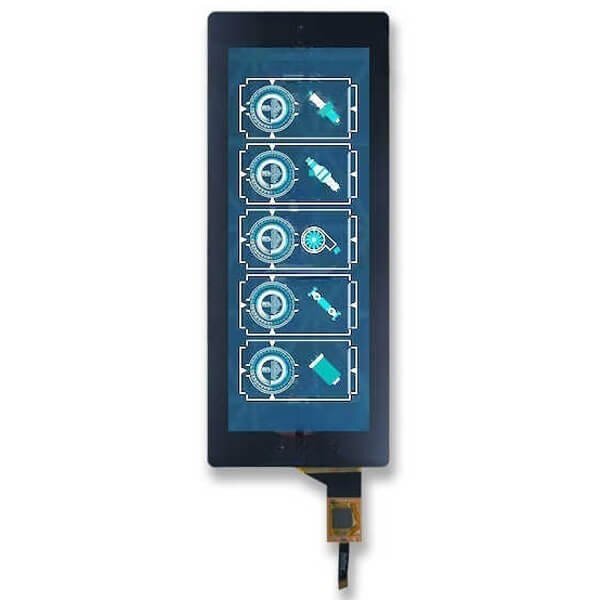

6.8 inch 480x1280 gc9703c mipi interface bar type tft high brightness lcd with capacitive touch
SpecificationDetails
Product Name6.8″ 480×1280 IPS High Brightness Bar-Type TFT LCD with Capacitive Touch
Part NumberKD068HDFID009-C009A
Display Type / ModeIPS TFT LCD, Transmissive, Normally Black
Resolution480 × 1280
Brightness2000 cd/m²
Touch PanelCapacitive Touch (G+F+F), GT9271 Driver
Interface2-Lane MIPI (Display), IIC (Touch)
Active Area60.19 × 160.51 mm
Input Voltage3.3V
Operating Temperature–20°C to +70°C
7.0 inch 280x1424 high brightness industrial bartype ips tft lcd with mini hdmi interface
SpecificationDetails
Product Name7.0″ 280×1424 High Brightness Industrial Bar-Type IPS TFT LCD (Mini-HDMI)
Part NumberKD070WXFID094-CP001A-HDMI
Display Type / ModeIPS TFT LCD, Transmissive, Normally Black
Resolution280 × 1424
Brightness900 cd/m²
Touch PanelNo Touch
InterfaceMini-HDMI
Active Area33.60 × 170.88 mm
Input Voltage5V
Operating Temperature–20°C to +70°C

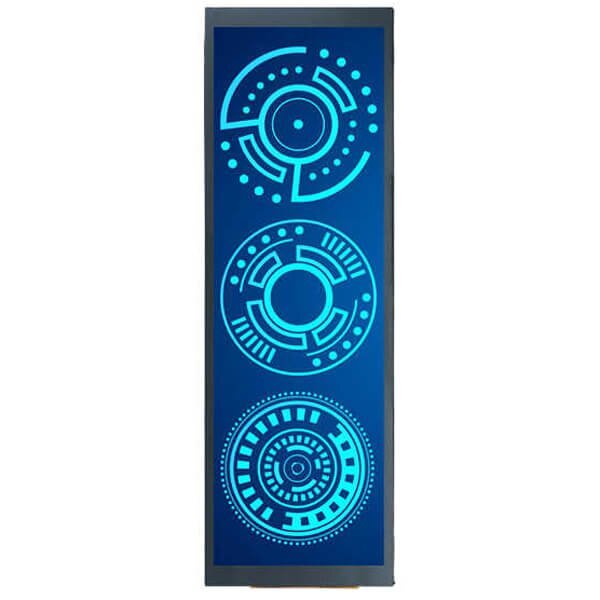

7.84 inch 400x1280 high brightness bar type tft lcd capacitive touch with hdmi board
SpecificationDetails
Product Name7.84″ 400×1280 High Brightness Bar-Type TFT LCD with Capacitive Touch & HDMI Board
Part NumberKD078HDFID004-C004A-SP001A-HDMI
Display Type / ModeIPS TFT LCD, Transmissive, Normally Black
Resolution400 × 1280
Brightness800 cd/m²
Touch PanelCapacitive Touch (G+F+F), GT9271 Driver
InterfaceHDMI (Display), Micro USB (Touch)
Active Area59.40 × 190.08 mm
Input VoltageDC 12V
Operating Temperature–20°C to +70°C

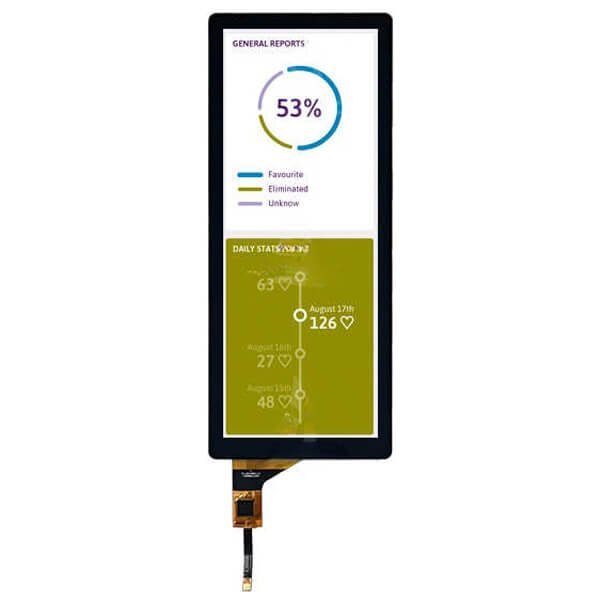

8.6 inch 600x1600 mipi interface ips industrial bar type tft lcd with capacitive touch
SpecificationDetails
Product Name8.6″ 600×1600 IPS Industrial Bar-Type TFT LCD with Capacitive Touch
Part NumberKD086UXFID002-C001A
Display Type / ModeIPS TFT LCD, Transmissive, Normally Black
Resolution600 × 1600
Brightness300 cd/m²
Touch PanelCapacitive Touch (G+G), GT9271 Driver
Interface4-Lane MIPI (Display), I2C (Touch)
Active Area76.36 × 203.62 mm
Input Voltage2.8V
Operating Temperature–20°C to +70°C

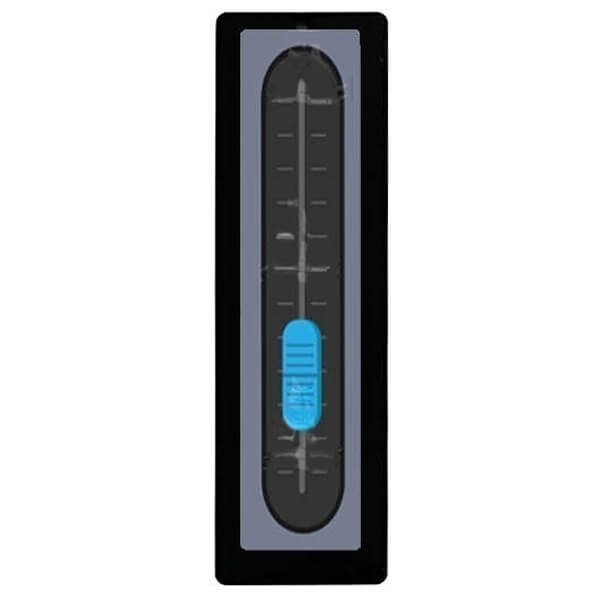

10.1 inch 480x1920 ips high brightness capacitive touch panel tft lcd module with hdmi board
SpecificationDetails
Product Name10.1″ 480×1920 IPS High Brightness TFT LCD Module with Capacitive Touch & HDMI Board
Part NumberKD101FHFID031-C037A-CP001A-HDMI
Display Type / ModeIPS TFT LCD, Transmissive, Normally Black
Resolution480 × 1920
Brightness900 cd/m²
Touch PanelCapacitive Touch (G+G), GF1155 Driver
InterfaceMini-HDMI (Display), Micro USB (Touch)
Active Area57.95 × 252.86 mm
Input Voltage5V
Operating Temperature–20°C to +70°C

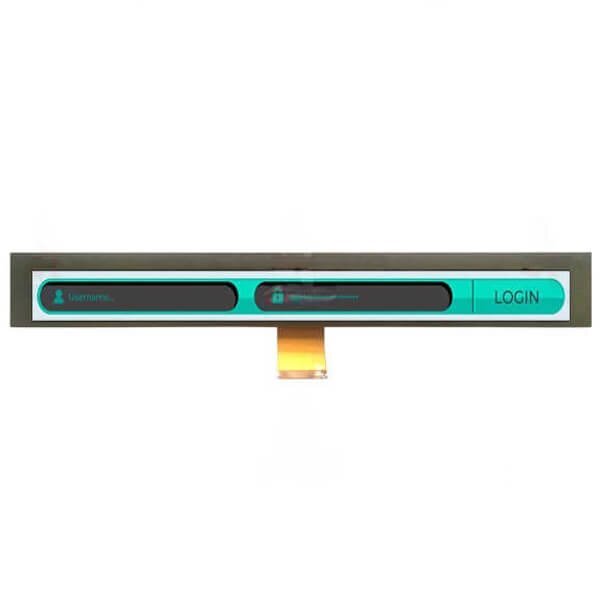

10.4 inch 1024x100 rgb interface industrial tn bartype tft
SpecificationDetails
Product Name10.4″ 1024×100 Industrial TN Bar-Type TFT LCD (RGB Interface)
Part NumberKD104WSTPA-001
Display Type / ModeTN TFT LCD, Transmissive, Normally White
Resolution1024 × 100
Brightness450 cd/m²
Touch PanelNo Touch
Interface24-bit RGB
Active Area264.19 × 25.80 mm
Input Voltage3.3V
Operating Temperature0°C to +50°C

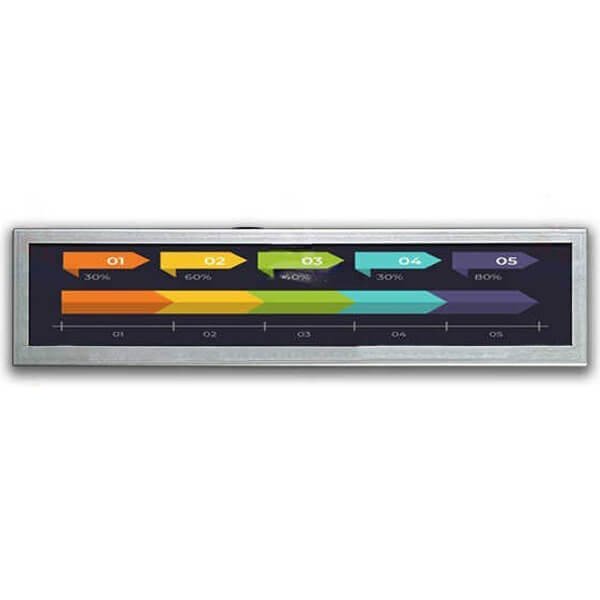

13.5 inch ips 1280x235 lvds interface high brightness bartype tft lcd
SpecificationDetails
Product Name13.5″ 1280×235 IPS High Brightness Bar-Type TFT LCD
Part NumberKD135HDFLA001
Display Type / ModeIPS TFT LCD, Normally Black
Resolution1280 × 235
Brightness1000 cd/m²
Touch PanelNo Touch
InterfaceLVDS
Active Area337.92 × 62.04 mm
Input Voltage3.3V
Operating Temperature0°C to +50°C

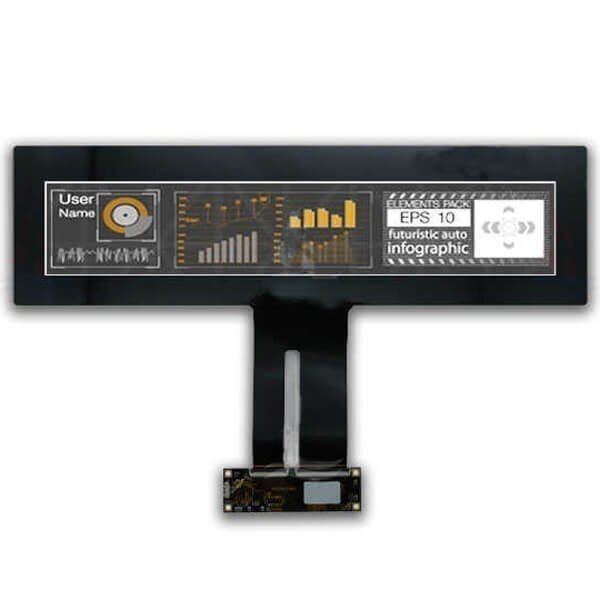

13.5 inch ips bartype tft lcd 1280x235 lvds interface high brightness with capacitive touch
SpecificationDetails
Product Name13.5″ 1280×235 IPS High Brightness Bar-Type TFT LCD with Capacitive Touch
Part NumberKD135HDFLA001-C001A
Display Type / ModeIPS TFT LCD, Normally Black
Resolution1280 × 235
Brightness800 cd/m²
Touch PanelCapacitive Touch (G+G), ILI2511 Driver
InterfaceLVDS (Display), USB/IIC/RS232 (Touch)
Active Area337.92 × 62.04 mm
Input Voltage3.3V
Operating Temperature0°C to +50°C

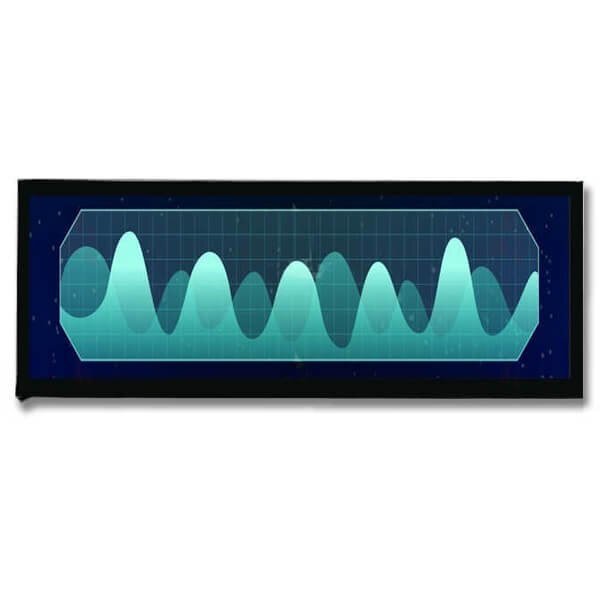

15.0 inch ips 1280x242 lvds interface high brightness bartype tft lcd
Key SpecificationDetails
Product Name15.0″ 1280×242 IPS High Brightness Bar-Type TFT LCD
Part NumberKD150HDFLA007
Display TechnologyIPS TFT LCD, Transmissive, Normally Black
Resolution1280 × 242
Brightness1200 cd/m²
Touch PanelNone
Interface TypeLVDS
Active Area (W×H)374.78 × 70.86 mm
Input Voltage3.3V
Operating Temperature0°C to +50°C

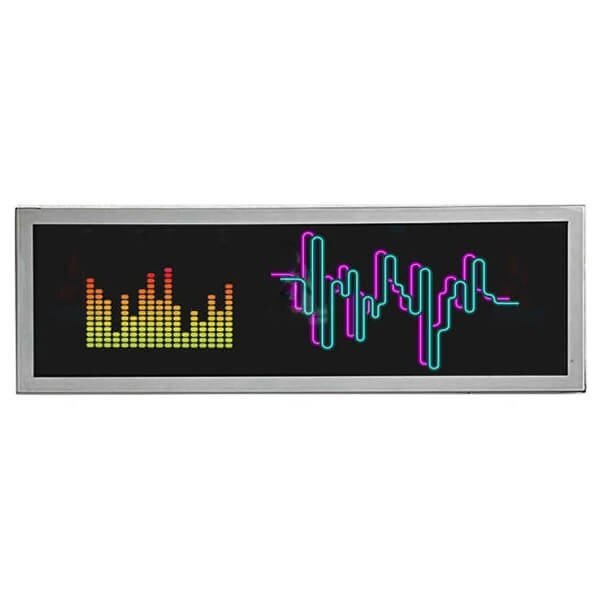

16.7 inch 1920x540 ips high brightness tft lcd module with lvds interface
Key SpecificationDetails
Product Name16.7″ 1920×540 IPS High Brightness Bar-Type TFT LCD
Part NumberKD167FHFLA001
Display TechnologyIPS TFT LCD, Normally Black
Resolution1920 × 540
Brightness1200 cd/m²
Touch PanelNone
Interface TypeLVDS
Active Area (W×H)408.96 × 115.02 mm
Input Voltage5V
Operating Temperature–20°C to +70°C

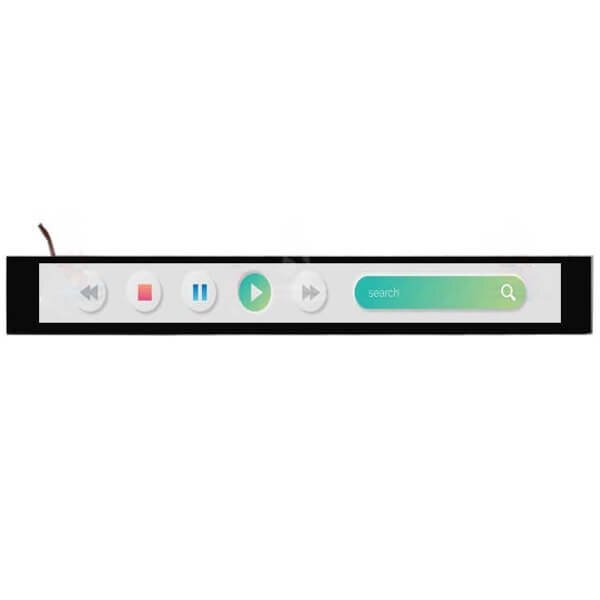

20.8 inch 1920x184 lvds interface ips full viewing angle bartype lcd module
SpecificationDetails
Product Name20.8″ 1920×184 IPS Full Viewing Angle Bar-Type TFT LCD Module
Part NumberKD208FHFLA001
Display Type / ModeIPS TFT LCD, Transmissive, Normally Black
Resolution1920 × 184
Brightness500 cd/m²
Touch PanelNo Touch
InterfaceDual-Channel LVDS
Active Area527.04 × 50.60 mm
Input Voltage5V
Operating Temperature0°C to +50°C

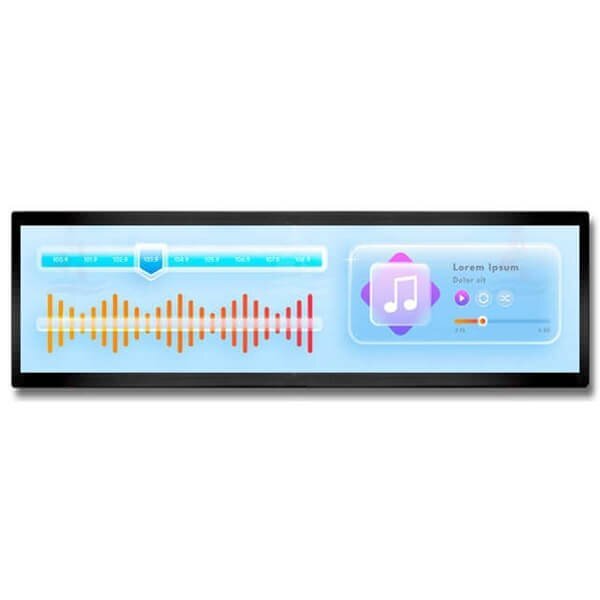

28 inch 1920x360 lvds interface ips tft lcd module with full viewing angle
SpecificationDetails
Product Name28″ 1920×360 IPS Bar-Type TFT LCD Module (Full Viewing Angle)
Part NumberKD280FM-1
Display Type / ModeIPS TFT LCD, Transmissive, Normally Black
Resolution1920 × 360
Brightness700 cd/m²
Touch PanelNo Touch
Interface4-Lane LVDS
Active Area698.40 × 130.95 mm
Input Voltage12V
Operating Temperature0°C to +50°C
Quick Quote

⚠️ The Challenge: Standard Displays Don’t Fit Every Desig

Not every product is built around a conventional display shape. Many modern devices must fit screens into tight, elongated, or uniquely proportioned spaces — where traditional 4:3 or 16:9 panels simply can’t match the design intent.

This mismatch creates several common limitations:

Standard 4:3 / 16:9 screens waste valuable space

Traditional display formats were never designed for modern ultra-wide or non-rectangular interfaces. When forced into elongated enclosures, they leave large unused margins or require excessive cropping. This not only wastes enclosure space but also restricts how much information can be shown at once — limiting UI efficiency and visual impact.

Space-constrained environments demand a purpose-built format

Many real-world applications simply don’t have room for a standard rectangular display. Narrow dashboards, elevator panels, rack-mounted systems, EV chargers, and shelf-edge displays all require a long, slim, ultra-wide screen that fits naturally within the product architecture. Without this format, designers are forced into compromises that hinder ergonomics and reduce overall usability.

Designers need clarity and aesthetics — without distortion or forced layouts

When a standard display is squeezed into a narrow space, the UI often becomes stretched, cramped, or visually awkward. Icons get resized incorrectly, text readability drops, and the overall design feels mismatched to the device. A display should enhance the product experience — not fight against the enclosure’s geometry.

💡 DisplayMan’s Solution: Ultra-Wide, High-Performance TFT LCDs

Our Bar / Stretched TFT LCDs are developed specifically for applications that demand slim, panoramic visuals.

They deliver the same full-color vibrancy and durability as our standard TFTs — but with custom aspect ratios (4:1, 8:1, 16:3, etc.) that maximize space utilization.

🧩 Custom Aspect Ratios & Sizes

DisplayMan’s bar-type TFT LCDs are engineered for design flexibility.

We support a full range of aspect ratios — from 3:1 and 4:1 up to 16:3 or beyond — and sizes from 3.9″ to 49″.

Whether you need a compact module for an elevator display or an ultra-wide panel for a vehicle dashboard, we customize mechanical dimensions, active area, and frame design to fit your enclosure perfectly.

Both portrait and landscape orientations are supported to match your layout requirements.

Every product deserves a screen that fits its shape — not the other way around.

🌞 High Brightness (Up to 2,000 nits)

Outdoor readability starts with brightness — and DisplayMan delivers.

Our high-efficiency LED backlight systems produce up to 2,000 nits of luminance, ensuring crisp, vivid visibility in sunlight or high-glare environments.

Optional optical bonding, anti-glare (AG), and anti-reflective (AR) coatings further enhance contrast and reduce reflection, making these displays ideal for outdoor kiosks, transportation panels, and vehicle dashboards.

Clear, bright, and visible — even under direct sunlight.

🧊 Wide Temperature Operation (–30 °C ~ +85 °C)

Every module is built with industrial-grade components, including temperature-resistant liquid crystals, polarizers, and driver ICs.

This ensures consistent performance from freezing winter mornings to scorching summer heat.

Our displays resist blackening, ghosting, and contrast loss, maintaining full functionality in outdoor, automotive, or factory environments.

Reliable performance in every climate — from the desert to the Arctic.

⚙️ Versatile Interface Options

Integration should be simple, not restrictive.

That’s why DisplayMan bar-type displays support a wide range of signal interfaces — including RGB, LVDS, MIPI DSI, HDMI, and MCU.

We can also supply driver boards or adapter kits to match your controller and ensure stable communication.

This compatibility gives engineers flexibility during design and reduces development time.

Plug-and-play compatibility for seamless integration into your system.

🖱️ Touch Integration & Optical Enhancements

DisplayMan provides full touch and optical customization to elevate user interaction.

Choose from capacitive touch (PCAP) for multi-touch performance or resistive touch for gloves and industrial use.

Optional cover glass customization, optical bonding, and AR/AF coatings improve both aesthetics and durability, enabling displays that respond beautifully while staying protected against scratches, fingerprints, and moisture.

Where touch precision meets optical perfection.

💪 Durability & Longevity

Built for endurance, DisplayMan bar-type TFT LCDs feature LED backlights with lifespans exceeding 50,000 to 100,000 hours.

Robust frame structures, UV-stable materials, and vibration-resistant assembly ensure stable, long-term operation even in harsh environments.

Combined with our strict ISO 9001 quality control and continuous burn-in testing, every module is designed for years of reliable service.

Engineered for performance. Tested for life.

🧩 How Bar / Stretched TFT LCDs Enhance Design

DisplayMan’s Bar-Type TFT LCDs give product designers the freedom to create modern, space-efficient, and visually striking interfaces.

Every feature serves a practical design purpose — merging functionality with elegance.

group 1 copy.png
shape 1.png
noun money beg 2256476.png

1️⃣ Ultra-Wide Viewing Area

The elongated display ratio provides a panoramic visual field, perfect for showing timelines, sensor data, or split-section dashboards.

View more information at once, with no scrolling or secondary screens.

noun code 721883 1.png

2️⃣ Slim, Space-Efficient Form Factor

With its narrow height and extended width, a bar-type TFT fits seamlessly into tight mechanical spaces — from vehicle consoles to vending fascias.

Design slimmer, lighter, and more integrated hardware without sacrificing visual area.

noun seo 1248986.png

3️⃣ Flexible Mounting Orientation

DisplayMan modules can be installed in portrait or landscape orientation, giving you complete creative control.

They adapt easily to both vertical signage and horizontal dashboards — or even curved, embedded surfaces.

noun user management 1845018.png

4️⃣ Eye-Catching, Modern Proportions

Their wide, cinematic shape commands attention and adds a premium, futuristic aesthetic to any product.

Perfect for digital signage, transportation displays, and retail systems where design impact matters.

noun marketing 2481623.png

5️⃣ Custom Interface & Integration Support

From LVDS, MIPI DSI, HDMI, to RGB, DisplayMan offers total interface flexibility.

Our engineers customize pinouts, driver boards, and timing parameters to ensure plug-and-play integration with your existing electronics.

group 1 copy 4.png
Contact US

🧭 Applications That Benefit from Bar-Type Displays

DisplayMan’s Bar / Stretched TFT LCDs power systems across industries where space optimization, visual clarity, and durability are mission-critical.

Engineered for long-term stability and sleek integration, these displays deliver performance and aesthetics that standard panels simply can’t match.


🚗 Automotive Dashboards & EV Displays

Bar-type displays are ideal for modern vehicle dashboards, instrument clusters, and EV charging interfaces.

Their slim, panoramic form fits perfectly into narrow spaces while providing continuous visual data — from battery status to navigation and infotainment.

With wide temperature tolerance and anti-glare coatings, DisplayMan panels perform flawlessly in both interior and outdoor automotive environments.

🏢 Elevator & Digital Signage Panels

In elevators, corporate lobbies, and architectural spaces, stretched displays offer a refined, space-saving way to present information.

Their long vertical or horizontal layout matches modern building aesthetics, allowing smooth integration into walls or control panels.

DisplayMan’s bright, high-contrast screens ensure clear readability even under ambient lighting, while customizable glass fronts enable elegant branding.

🏪 Shelf-Edge & Retail Displays

Retail environments rely on attention and clarity — two areas where bar-type displays excel.

Our stretched TFTs transform shelf edges into dynamic digital advertising platforms, showing product details, pricing, and real-time promotions.

Engineered for long operation hours and wide viewing angles, DisplayMan modules maintain vibrant performance even in high-traffic, brightly lit stores.

🎮 Gaming & Entertainment Systems

The unique aspect ratios of bar-type TFTs add a futuristic, immersive feel to arcade consoles, casino machines, and theme park attractions.

Their extended width allows for expanded UI layouts, scoreboards, or animated banners that amplify engagement.

DisplayMan’s fast response times and full-color IPS options ensure smooth motion and sharp visuals, even in intense gaming environments.

🚉 Transportation & Wayfinding Displays

From buses and trains to airports and subways, bar-type screens provide clear, linear information displays suited to passenger flow.

The ultra-wide format fits perfectly in narrow overhead or side panels, allowing route maps, schedules, and alerts to be read at a glance.

DisplayMan modules combine anti-reflective coatings, optical bonding, and rugged mechanical design for consistent readability in sunlight, vibration, or humidity.

🏭 Industrial Control & HMI Panels

In factories, laboratories, and production lines, space is valuable — and reliability is non-negotiable.

DisplayMan bar TFTs deliver high-resolution, compact dashboards for machine interfaces, PLCs, and automation systems.

With wide temperature ranges (–30 °C to +85 °C) and EMI-resistant designs, they maintain stable visuals in demanding industrial environments.

Built for Modern Designs. Proven in Real-World Environments.

Wherever clarity, form factor, and durability matter — DisplayMan’s Bar / Stretched TFT LCDs keep your information visible and your product design uncompromised.

🔧 Customization Options

Every OEM project has its own requirements — from mechanical space limits to environmental endurance.

That’s why DisplayMan offers full customization across mechanical, optical, electrical, and aesthetic dimensions, ensuring your bar / stretched TFT LCD integrates seamlessly with your product design.

⚙️ 1️⃣ Mechanical Customization

Our engineers adapt every module’s structure to your enclosure:

  • Custom display size, ratio, and cut length (e.g., 4:1, 8:1, 16:3 formats)
  • Custom mounting holes, FPC orientation, and connector placement
  • Cover glass and frame design adjusted for durability or branding
  • Flexible module thickness for embedded or flush installations

Your display will fit perfectly into your device — not the other way around.

🌞 2️⃣ Optical Customization

DisplayMan optimizes optical performance for brightness, clarity, and visibility:

  • Custom brightness levels from 300 nits to 3,000 nits
  • Optical bonding to improve contrast and outdoor readability
  • Anti-glare (AG), Anti-reflective (AR), and Anti-fingerprint (AF) coatings
  • Polarizer and diffuser film tuning for color uniformity

We design every visual layer to perform perfectly in your application environment.

⚡ 3️⃣ Electrical Customization

We support full electrical integration with your control system:

  • Multiple interface options: RGB, LVDS, MIPI DSI, HDMI, or MCU
  • Custom pinout layout and connector type for easy wiring
  • Optional touch integration (capacitive or resistive)
  • Driver board design and firmware tuning for your platform

Electrical optimization ensures stable signal quality and plug-and-play performance.

🌡️ 4️⃣ Environmental Customization

Our displays are engineered for performance across extreme conditions:

  • Wide operating temperature range: –40 °C ~ +85 °C
  • Shock, vibration, and humidity resistance for industrial use
  • Protective sealing or gasketing for dust and moisture protection
  • Optional UV-resistant optical stack for outdoor installations

When reliability matters, DisplayMan designs for endurance.

.

🎨 5️⃣ Aesthetic Customization

Beyond performance, we make your display visually align with your brand:

  • Custom bezel color, material finish, or border thickness
  • Logo printing on glass or frame
  • Front glass design with printed mask or iconography
  • Optional branding integration into startup screens or UI templates

Combine functional engineering with a look that’s unmistakably yours.

🧠 At DisplayMan, every customization starts with engineering collaboration —

we translate your mechanical drawings and interface specs into a production-ready display module optimized for your exact design.



💡 Everything You Need to Know About Bar-Type TFT LCDs

DisplayMan offers a wide selection of custom and standard aspect ratios, including 4:1, 5:1, 8:1, 16:3, and 32:9.

Each module’s ratio and resolution can be tailored to your mechanical design, active area, and viewing requirements.

If you’re working with specific housing constraints, our engineering team can adjust both panel dimensions and backlight configuration to achieve a perfect fit.

📐 Custom-built to your dimensions — not limited by standard screen shapes.

Yes — absolutely.

We design high-brightness bar-type TFT LCDs up to 1,500–3,000 nits, featuring optical bonding, anti-reflective (AR), and anti-glare (AG) treatments for superior outdoor visibility.

These options dramatically improve contrast under direct sunlight and minimize internal reflections caused by multi-layer glass structures.

🌞 Ideal for outdoor kiosks, transportation systems, and automotive dashboards.

Yes, we support both capacitive (PCAP) and resistive touch solutions.

Capacitive touch provides multi-touch, gesture-capable performance for retail or kiosk systems, while resistive touch ensures glove compatibility for industrial or outdoor equipment.

We also offer cover glass customization with optical bonding for enhanced durability and aesthetics.

🖐️ Every stretched display can become an interactive interface.

DisplayMan bar-type modules are built using industrial-grade ICs, reinforced mechanical structures, and wide-temperature components to withstand vibration, humidity, and thermal stress.

They have been proven in EV dashboards, factory control panels, marine systems, and public transportation signage where reliability is critical.

🚗 Rugged, dependable, and ready for real-world conditions.

A typical project requires 6–8 weeks for prototype development and testing, followed by 8–10 weeks for volume production depending on complexity.

During the process, DisplayMan’s engineers collaborate directly with your R&D team to ensure mechanical fit, electrical compatibility, and visual performance before final approval.

⏱️ Fast, collaborative, and transparent — from concept to production.
