Transparent Micro LED Manufacturer

Transparent Micro LED Systems

Engineered by the Manufacturer for High-Impact Environments

Purpose-built transparent Micro LED displays designed for >60% transmittance, industrial-grade brightness, and zero-burn-in longevity.

As a manufacturer, DisplayMan delivers transparent systems engineered to perform reliably under high ambient light and continuous 24/7 operation, where visual clarity and long-term stability are critical.

Showcasing Transparent LED Displays

At DisplayMan, we specialize in creating innovative Transparent LED Displays that seamlessly integrate with your environment. Ideal for architectural facades, retail spaces, and dynamic advertising, our displays offer high-definition visuals while maintaining transparency. Discover how DisplayMan’s cutting-edge technology can elevate your space with captivating, interactive experiences.

9.4-inch (Model T001): Our most compact powerhouse featuring an incredible 3,000 nits of brightness for high-detail luxury displays.

Parameter	Specification
Model	T001
Resolution	768 × 840
Dynamic Contrast Ratio	1,000,000:1
Viewing Angle	120° / 178°
Transmittance	>60%
Brightness	3000 cd/m²
Color Gamut	115%
Lifetime	100,000 hours

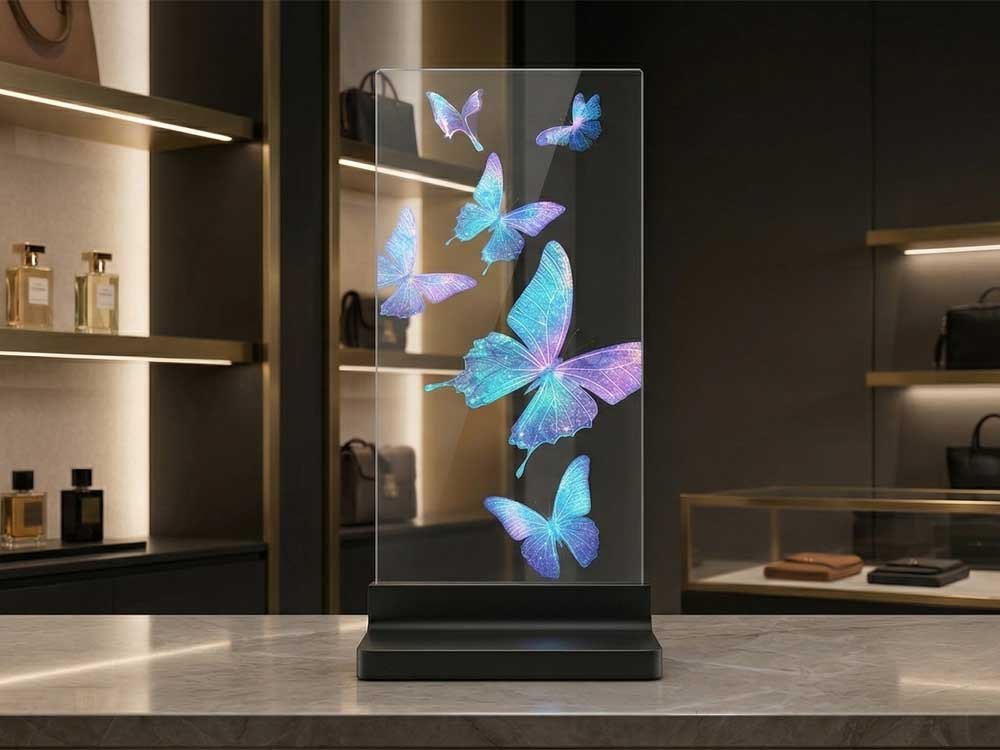

16.1-inch (Model T002): Ultra-wide 171.9 mm x 437.95 mm format for shelf-edge and HUD applications.

Parameter	Specification
Model	T002
Resolution	240 ×540
Dynamic Contrast Ratio	1,000,000:1
Viewing Angle	120° / 178°
Transmittance	>60%
Brightness	>600 cd/m²
Color Gamut	115%
Lifetime	100,000 hours

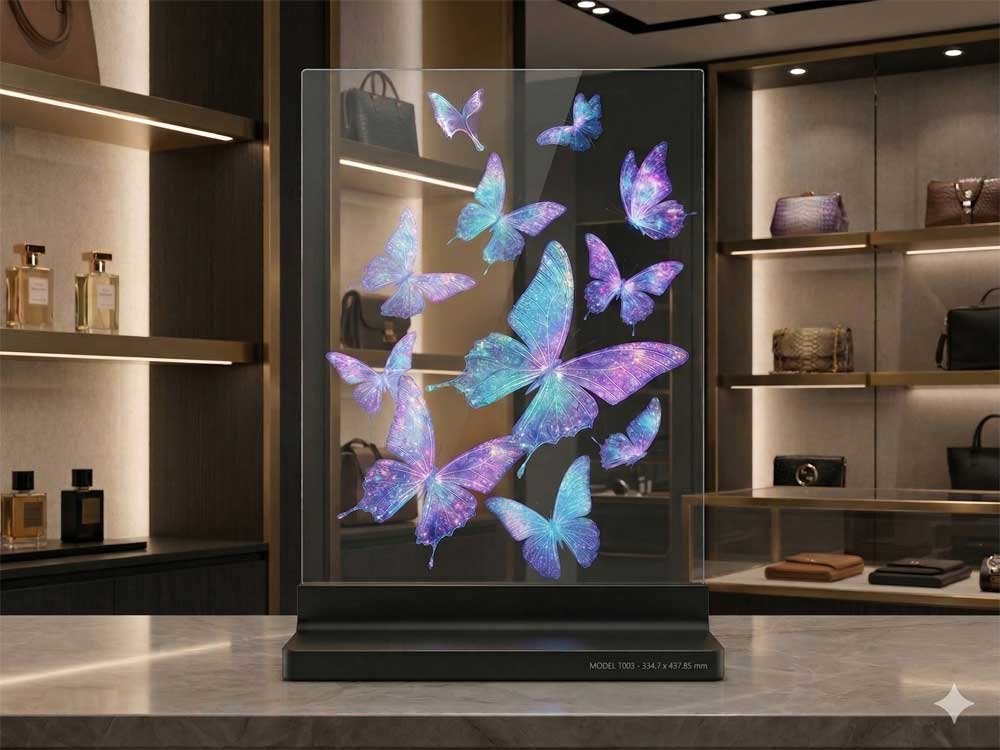

20-inch (Model T003): Modular square-ratio tile measuring 334.7 mm (Width) x 437.95 mm (Height).

Parameter	Specification
Model	T003
Resolution	480 × 540
Dynamic Contrast Ratio	1,000,000:1
Viewing Angle	120° / 178°
Transmittance	>60%
Brightness	>600 cd/m²
Color Gamut	115%
Lifetime	100,000 hours

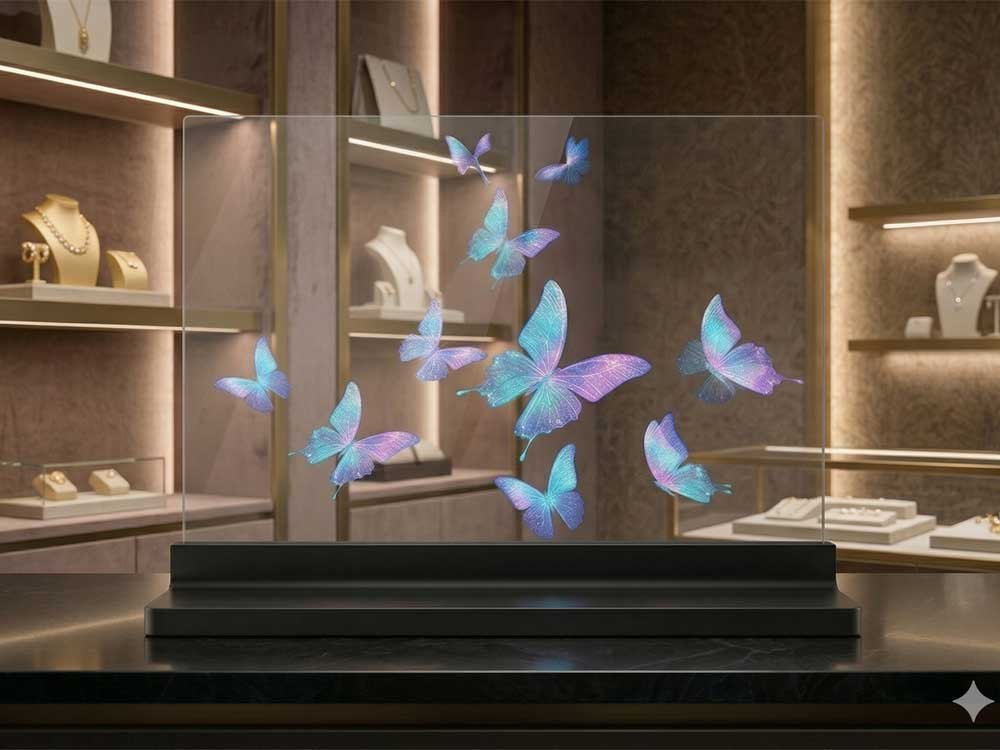

30-inch (Model T004): Versatile mid-format transparent screen measuring 670.14 mm (Width) x 437.95 mm (Height).

Parameter	Specification
Model	T004
Resolution	960 × 540
Dynamic Contrast Ratio	1,000,000:1
Viewing Angle	120° / 178°
Transmittance	>60%
Brightness	>600 cd/m²
Color Gamut	115%
Lifetime	100,000 hours

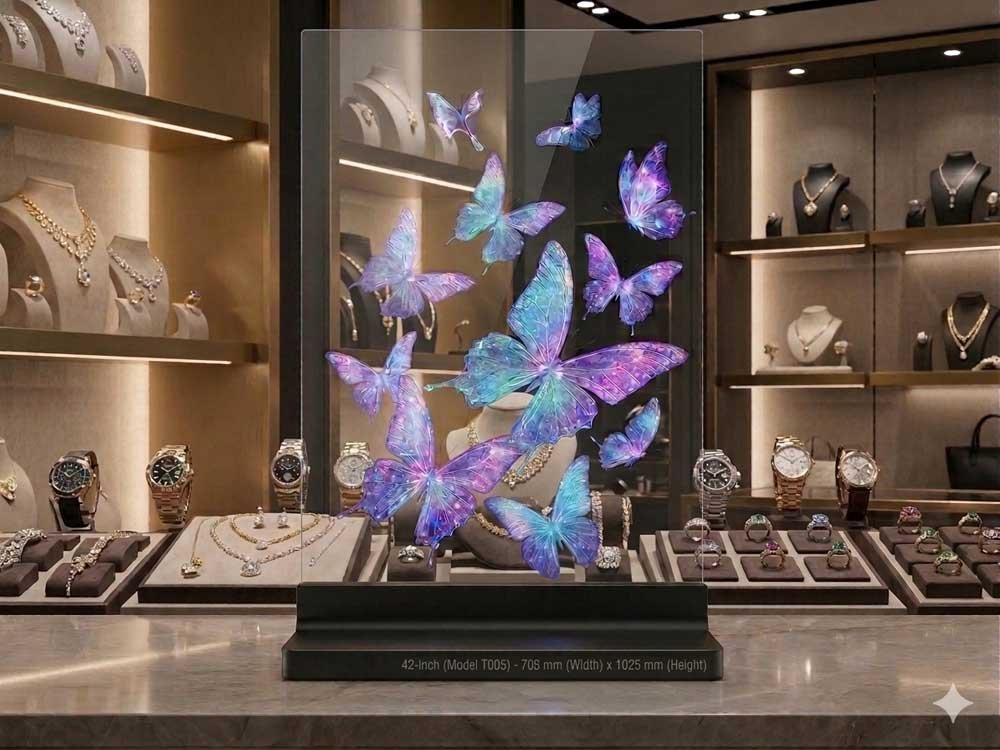

42-inch (Model T005): High-impact commercial display designed for luxury boutique showcases, measuring 706 mm (Width) x 1025 mm (Height).

Parameter	Specification
Model	T005
Resolution	960 × 1080
Dynamic Contrast Ratio	1,000,000:1
Viewing Angle	120° / 178°
Transmittance	>60%
Brightness	>800 cd/m²
Color Gamut	115%
Lifetime	100,000 hours

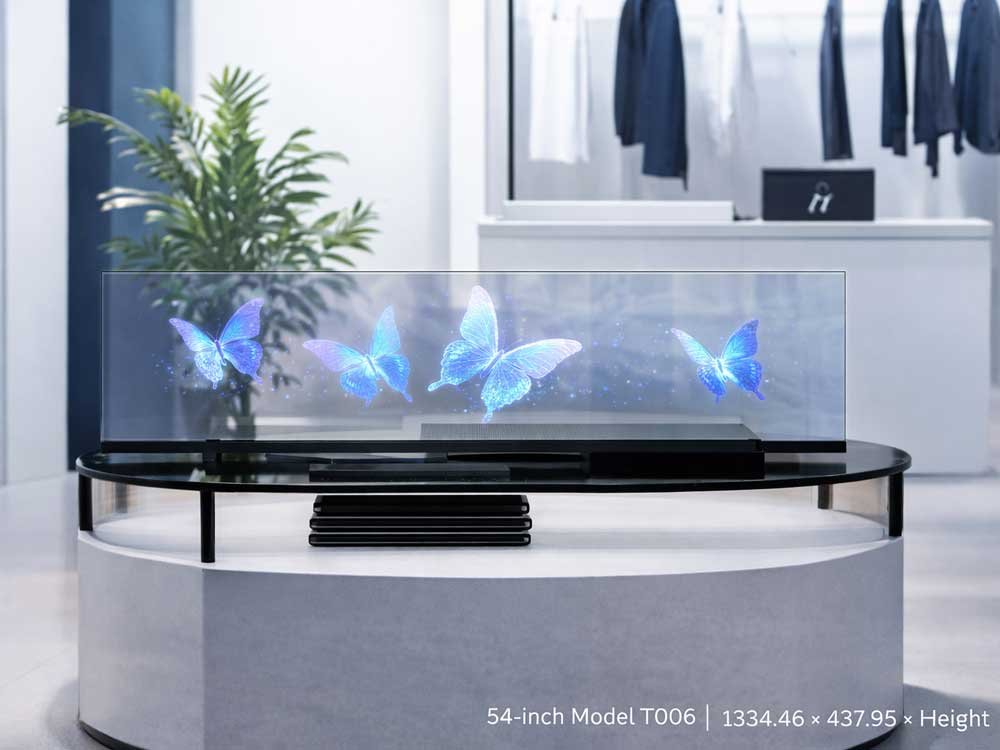

54-inch (Model T006): Industrial-grade master module measuring 1334.46 mm (Width) x 437.95 mm (Height).

Parameter	Specification
Model	T006
Resolution	1920 × 540
Dynamic Contrast Ratio	1,000,000:1
Viewing Angle	120° / 178°
Transmittance	>60%
Brightness	>600 cd/m²
Color Gamut	115%
Lifetime	100,000 hours

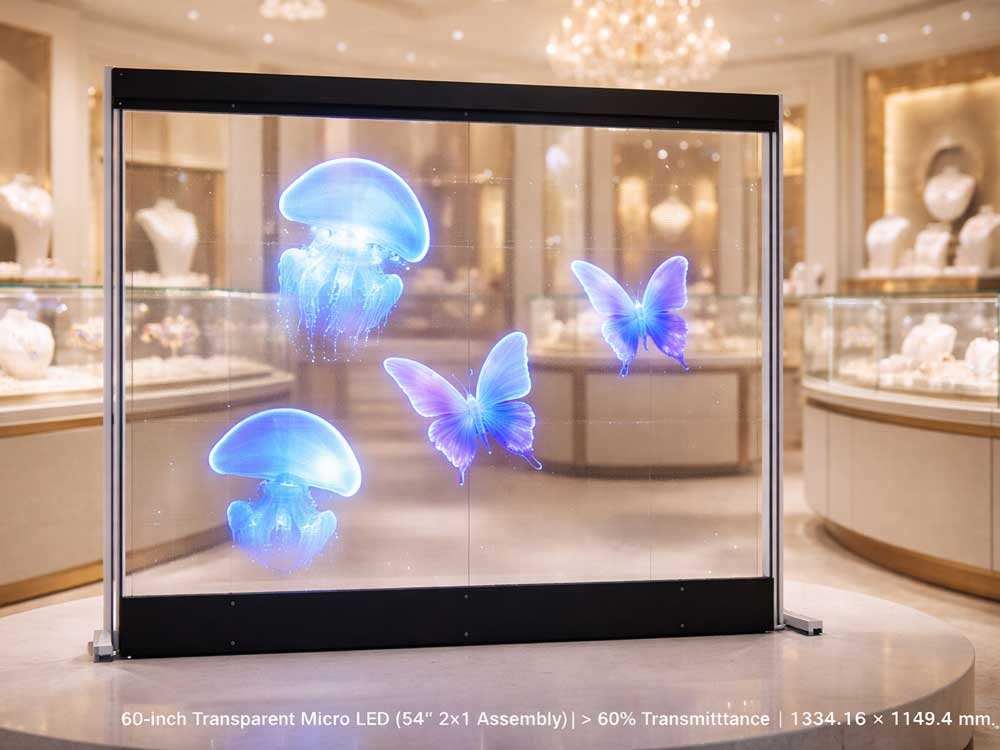

60-inch (54″ 2×1 Assembly | Model T007): High-definition 1920 x 1080 resolution achieved through precision module tiling, with dimensions of 1334.16 mm (Width) x 1149.4 mm (Height).

Parameter	Specification
Model	T007
Resolution	1920 × 1080
Dynamic Contrast Ratio	1,000,000:1
Viewing Angle	120° / 178°
Transmittance	>60%
Brightness	1200 cd/m²
Color Gamut	115%
Lifetime	100,000 hours

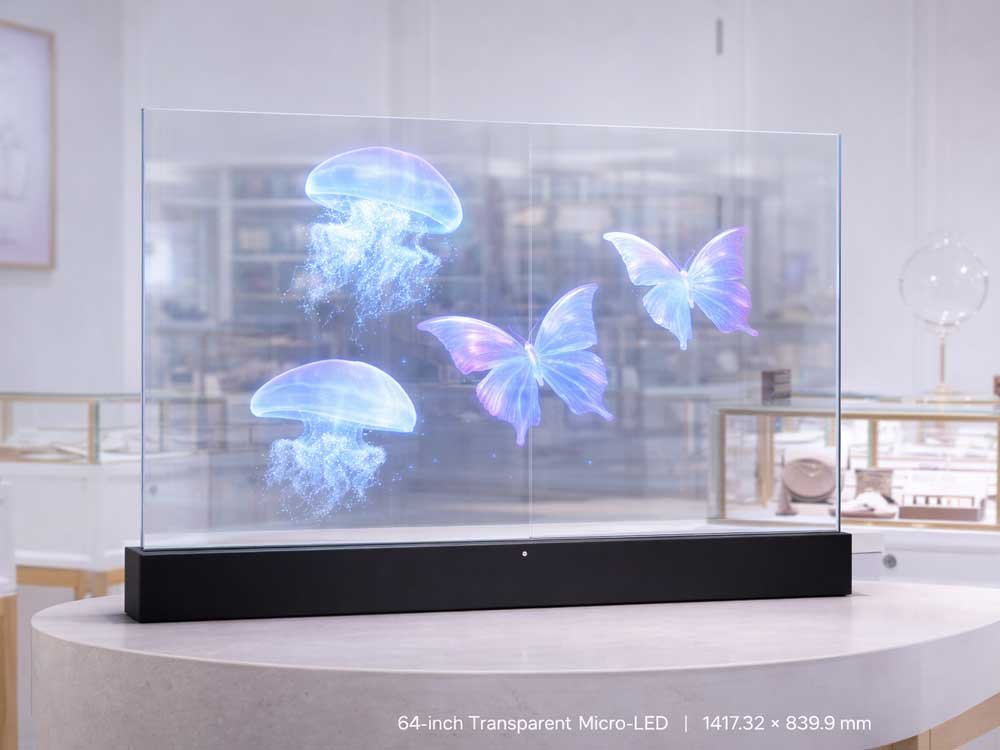

64-inch (Model T008): Ultra-wide format designed for expansive digital storefronts and galleries. This model features a physical footprint of 1417.32 mm (Width) x 839.9 mm (Height).

Parameter	Specification
Model	T008
Resolution	1920 × 540
Dynamic Contrast Ratio	1,000,000:1
Viewing Angle	120° / 178°
Transmittance	>60%
Brightness	>800 cd/m²
Color Gamut	115%
Lifetime	100,000 hours

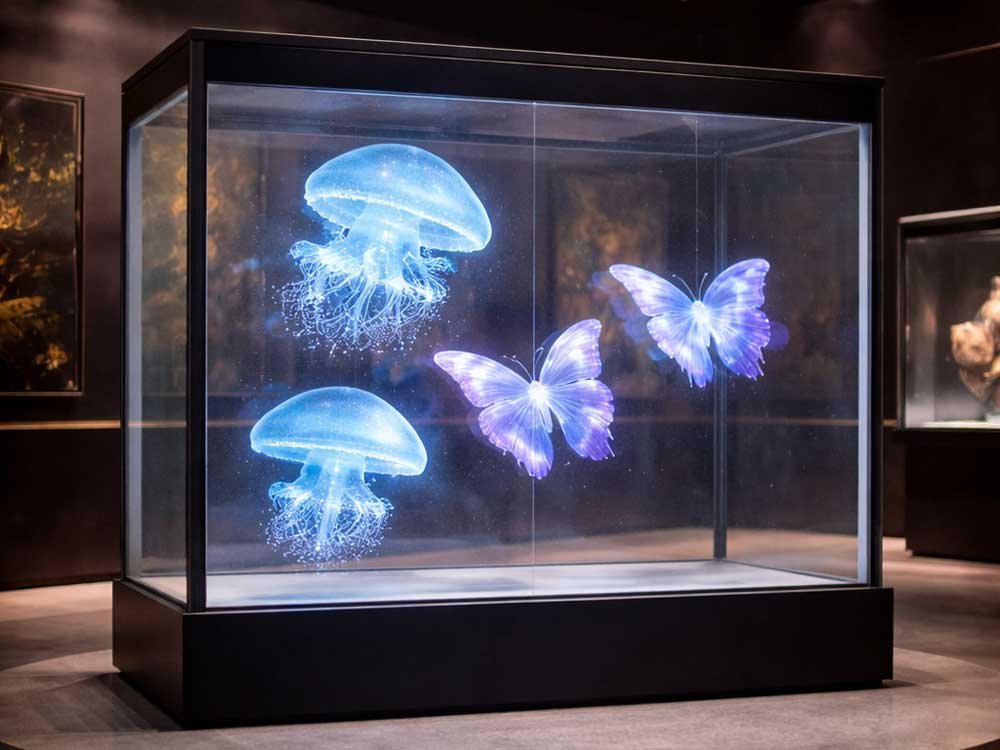

83-inch (Model T009): Flagship seamless glass wall for monumental architectural and corporate installations. This display is achieved through a precision 2 x 1 assembly of 64-inch modules, creating a grand visual canvas with physical dimensions of 1412 mm (Width) x 1650 mm (Height).

Parameter	Specification
Model	T009
Resolution	1920 × 1080
Dynamic Contrast Ratio	1,000,000:1
Viewing Angle	120° / 178°
Transmittance	>60%
Brightness	>800 cd/m²
Color Gamut	115%
Lifetime	100,000 hours

DisplayMan Authority FAQ

Is Micro LED better than OLED?

The Expert Answer: Yes, especially for commercial and luxury environments. While OLED is known for “inky blacks,” it uses organic materials that decay, leading to burn-in and a limited lifespan (often only 3 years in high-use settings).

The DisplayMan Advantage: Our Micro LED uses inorganic GaN (Gallium Nitride). It matches OLED’s “perfect blacks” but adds 3,000+ nits of brightness and a 10-year+ lifespan with zero risk of image retention.

What is a Micro LED?

The Expert Answer: Unlike traditional LEDs or LCDs that use a backlight, a Micro LED display is self-emissive. Every single pixel is made of three microscopic LEDs (Red, Green, Blue) that produce their own light.

The Precision Factor: These chips are smaller than 50 micrometers (thinner than a human hair). This allows for the incredible >60% transparency found in our T-Series, as most of the “screen” is actually empty space for light to pass through.

What are the drawbacks of Micro LED?

The Expert Answer: Currently, there are two main hurdles: Cost and Manufacturing Complexity.

The Challenge: Placing millions of microscopic LEDs onto a glass backplane with micrometer precision is an elite engineering task, which makes the initial purchase price higher than mass-produced OLEDs.
The Solution: DisplayMan offsets this with a high ROI. Because our displays last 3–4 times longer than OLED, the “cost per year” is actually lower for long-term installations.

Is Micro LED better than Mini LED?

The Expert Answer: Absolutely. Mini LED is still just an LCD with a better backlight; it still requires a liquid crystal layer to block light, which limits transparency and contrast (causing “blooming” or halos).

The Difference: Micro LED eliminates the LCD layer entirely. This results in true 1:1 pixel control, faster response times (nanoseconds), and the ultra-clear transparency that Mini LED simply cannot achieve.

The Showdown: Micro LED vs. Transparent OLED

Stop relying on laboratory specs and see the real-world difference. In this side-by-side test, the limitations of traditional Transparent OLED (T-OLED) become undeniable:

• The Clarity Gap: Notice the “gray haze” on the OLED screen. Our Micro LED eliminates this “milky” film, delivering a transparency that feels like pure glass.

• The Brightness Battle: See how the OLED image washes out under studio lights. DisplayMan maintains vivid, punchy colors that demand attention even in high-ambient light.

• The “Floating” Effect: Watch how our $1,000,000:1$ contrast allows black pixels to disappear completely, making the content look like a holographic projection rather than a screen.

The Gap: Why High-End Projects are Abandoning OLED

While Transparent OLED (T-OLED) was a groundbreaking first step, it carries inherent “organic” limitations that compromise long-term commercial ROI. DisplayMan Micro LED represents the shift from experimental tech to industrial-grade infrastructure, specifically engineered to overcome the three primary failures of OLED in B2B environments.

A. The "Fog" Factor: >60% Transmittance vs. 45%

The “Transparency Gap” is the most immediate visual difference a client will notice.

The OLED Limitation: T-OLED relies on organic layers that, even when “transparent,” retain a noticeable gray or milky tint. This ~45% transparency creates a visual barrier, making luxury products behind the glass appear muted or “behind a veil”.
The Micro LED Solution: By utilizing microscopic LEDs on an ultra-pure LTPS glass substrate, we achieve an engineered transmittance of >60%.
The Result: The display provides a “True Air” effect, significantly reducing the “haze” found in traditional displays and allowing background products to remain sharp and unobstructed.

B. The Burn-In Risk: Inorganic Stability vs. Organic Decay

For B2B buyers, “Burn-in” is not just a technical flaw; it is a brand-damaging liability.

The OLED Limitation: OLED is Organic. These materials oxidize and degrade over time, especially when displaying static content like brand logos or UI elements 24/7. This leads to permanent “ghosting” that ruins the display’s premium aesthetic.
The Micro LED Solution: DisplayMan uses Inorganic Gallium Nitride (GaN) chips. These are crystalline structures that are physically impervious to image retention.
The Result: A reliable 100,000-hour lifespan—supporting 24/7 operation for over a decade with zero risk of burn-in.

C. The Daylight Struggle: 1,200 Nits vs. 600 Nits

A display is useless if it cannot be seen. Most flagship stores and corporate lobbies are high-ambient light environments.

The OLED Limitation: T-OLED is brightness-limited (typically 400–600 nits) to prevent rapid overheating and accelerated burn-in. In a sun-drenched atrium or under bright retail spotlights, the image washes out and loses all impact.
The Micro LED Solution: Our Transparent Micro LED is engineered for “Sunlight Sovereignty,” delivering a peak brightness of 1,200 nits (and up to 3,000 nits on specialized modules).
The Result: Vibrant, high-contrast HDR content that remains visible and commercially impactful even in the brightest architectural settings.

Technical Deep Dive: LTPS TFT Engineering

Industrial-Grade Precision for Mission-Critical Displays Behind the stunning transparency lies a foundation of advanced semiconductor glass. Unlike standard LED screens or consumer-grade OLED, DisplayMan utilizes Active-Matrix LTPS (Low-Temperature Polycrystalline Silicon) technology—the same high-tier substrate used in flagship smartphones and aerospace cockpits.

A. Active-Matrix LTPS: The Precision Engine

• The High-Speed Advantage: LTPS provides significantly higher electron mobility compared to traditional amorphous silicon. This allows for ultra-fast pixel switching and high refresh rates, ensuring that motion—whether it’s a luxury brand animation or a high-speed data overlay—remains liquid-smooth with zero ghosting.

• Extreme Pixel Density: The precision of the LTPS process allows us to mount microscopic LEDs with incredible density on a glass substrate. This creates a high-resolution “invisible” canvas where individual pixels are nearly undetectable to the human eye, even at close viewing distances.

B. Advanced Heat Management: Engineered for Stability

A common failure point for high-brightness displays is thermal buildup, which leads to color shifting and hardware fatigue.

• Optimized Thermal Conductive Substrate: Our LTPS glass is engineered to dissipate heat efficiently across its surface. This ensures the display maintains peak performance (1,200+ nits) without the need for noisy external cooling fans.

• Wide Operating Range: From the humidity of a tropical flagship store to the temperature-controlled environment of a corporate lobby, the system maintains industrial-grade reliability from 0°C to 40°C. It is built to run 24/7 without the risk of thermal throttling.

C. Connectivity: The Seamless Signal Bridge

We’ve eliminated the complexity of traditional LED wiring. DisplayMan™ modules are designed for modern digital ecosystems.

• Professional Input Suite: Each module features integrated HDMI x1 and DP (DisplayPort) x2 ports, supporting high-bandwidth 4K and HDR content.

• DaisyChain Intelligence: Our DP ports support full DaisyChain signal routing. This means for a massive 8×2 (16-module) wall, you only need to connect your media player to the first screen—the signal then flows perfectly through the entire array.

• Sync-Locked Performance: The Active-Matrix drive ensures every module in a large-scale wall stays perfectly synchronized, eliminating the “tearing” or lag often seen in tiled display solutions.

The Brightness Revolution: Conquering the Sun

Engineered for Sunlight Visibility and Industrial Durability

Most transparent screens—specifically Organic LED (OLED) variants—fail the moment they encounter high-ambient light or direct sunlight. They become dim, hazy, and lose all commercial impact. DisplayMan thrives in these conditions, delivering a high-intensity visual experience that remains vivid even in sun-drenched storefronts.

A. Full-White Brightness: 600 Nits Sustained

Unlike consumer displays that “throttle” or dim their brightness when displaying a full-white screen to save power or protect organic materials, DisplayMan maintains a constant, sustained 600 nits of full-white brightness.

Clean Aesthetics: This ensures that white backgrounds and minimalist UI elements remain crisp and solid, providing a professional “digital signage” look rather than a flickering, unstable image.
Thermal Management: Our LTPS TFT substrate is engineered to handle this sustained output without overheating, ensuring color consistency across the entire panel.

B. Peak Brightness: 1,200 Nits for HDR-Level Impact

For high-impact content—such as luxury product reveals, 3D animations, or dynamic branding—the system surges to 1,200 nits of peak brightness.

Sunlight Sovereignty: This level of intensity allows the display to overcome the reflection and glare of glass windows, making your content visible to passersby even at high noon.
Deep Dynamic Range: Combined with our 1,000,000:1 contrast ratio, these 1,200-nit highlights pop against the transparent background, creating a surreal “floating” effect that demands attention from a distance.

C. Dual-Layer Protection: Industrial-Grade Durability

High brightness is meaningless if the technology is fragile. DisplayMan units are built to withstand the physical demands of high-traffic commercial environments.

Front Protection (2.0mm): We use a 2.0mm thick tempered cover glass on the front face. This heavy-duty layer protects the microscopic LED array from accidental impact, moisture, and dust, making it safe for public-facing installations.
Back Reinforcement (1.1mm): The rear of the display is sealed with an 1.1mm tempered glass layer, ensuring structural rigidity and protecting the internal LTPS circuitry.
Optical Purity: Despite this robust “glass sandwich” construction, our advanced bonding process ensures that light transmission remains at a record-breaking >60% transmittance.

Environmental Performance Comparison

Light Environment	Transparent OLED	DisplayMan Micro LED
Indoor / Dim Light	Good	Excellent
Retail Spotlights	Weak (Washes Out)	Vibrant & Punchy
Direct Sunlight	Unreadable	High-Visibility (1,200 nits)
Screen Protection	Fragile / Exposed	2.0mm Tempered Glass

Unbound Vision: Where Transparency Meets Reality

Where Transparency Meets Reality

DisplayMan is not just a screen; it is a new medium for storytelling. By merging the digital and physical worlds, we allow brands to provide information without obstruction. Here is how our >60% transmittance and 1,200-nit brilliance are transforming key industries.

A. Luxury Retail: The “Floating” Salesperson

In high-end boutiques, the product is the hero. Traditional signage blocks the view; DisplayMan enhances it.

Invisible Integration: Place a 20″ or 30″ unit in front of a physical watch or jewelry piece. Display floating price tags, 3D exploded views of the movement, or cinematic storytelling—all while the customer maintains a crystal-clear view of the item.
Consumer Engagement: Use the high-impact 1,200-nit brightness to draw foot traffic from the street. Even in a sun-drenched window, your digital promotions remain punchy and vibrant, turning a standard glass pane into an interactive marketing powerhouse.

B. Smart Cockpits: The Future of HUD (Heads-Up Display)

For automotive, marine, and aerospace sectors, safety and data clarity are non-negotiable.

Unobstructed Situational Awareness: Our Active-Matrix LTPS TFT technology allows for high-density data overlays (navigation, speed, thermal imaging) that appear directly in the pilot or driver’s line of sight.
Mission-Critical Reliability: Because DisplayMan uses Inorganic GaN chips, there is zero risk of “static image burn-in” for critical UI elements. Unlike OLED, our displays maintain a 100,000-hour life in the vibration-heavy and temperature-shifting environments of a cockpit.

C. Digital Museums & Galleries: Augmented History

Museums are moving away from static plaques and toward immersive education.

Non-Invasive Augmentation: Place a 54″ panoramic or an 83″ assembled wall in front of a sensitive historical artifact. Overlay ancient scripts, digital reconstructions of missing pieces, or interactive timelines.
Perfect Purity: With a 1,000,000:1 contrast ratio, the “blacks” in your digital content are 100% transparent. This ensures that the artifact remains the focal point, while the digital data appears to “ghost” into existence only when needed.

Industry Application Matrix

Sector	Key Benefit	Recommended Model
Luxury Retail	High-Brightness Window Impact	30″ Cinematic or 54″ Flagship
Automotive / Aero	Zero Burn-In / High Reliability	9.4″ or 16.1″ Precision Modules
Museum / Gallery	60%+ True Transparency	83″ (64″ 2*1) Assembled Wall

The "Zero-Tech" Setup: Plug-and-Play Simplicity

The most common barrier for international B2B buyers is the fear of complex installation. DisplayMan has engineered this challenge out of the equation. We don’t just ship a component; we deliver a factory-encapsulated, pre-calibrated system designed for immediate deployment.

A. No Engineering Team? No Problem.

Traditional high-end displays require specialized contractors and days of onsite calibration. DisplayMan Transparent Micro LED is different:

Ready-to-Run: Each module—from our 9.4″ T001 powerhouse to the 83″ T009 flagship—arrives as a finished, protected glass assembly.
Lightweight Maneuverability: Even with our mid-range T004 (30″) and T006 (54″) units, a single person can safely handle, position, and mount the display without heavy lifting equipment.
Industrial Ruggedness: Featuring 2.0mm front and 1.1mm back tempered glass, our units are built to be handled. You get the elegance of transparency with the durability of industrial hardware across all 9 models.

B. The “DaisyChain” Connection Logic

Managing signals for a massive 8×2 (16-module) wall shouldn’t be a nightmare of tangled cables.

Single Signal Loop: Using integrated HDMI x1 and DP x2 (DaisyChain) ports, you can link multiple modules in a simple series. This is how our T007 (60″) and T009 (83″) achieve their massive, seamless resolutions.
One Input, Infinite Pixels: Simply connect your media player to the primary module. The signal flows seamlessly through the rest of the array, automatically mapping the resolution—whether it’s a single T002 ultra-wide or a T003 modular tile—across the entire glass surface.
Sync-Locked Precision: Our Active-Matrix LTPS TFT drive ensures that every module stays perfectly synchronized with zero lag, providing a single, fluid visual across the entire installation.

C. Global 1-on-1 Video Guidance

We bridge the geographical gap with real-time, factory-direct technical support.

Live Video Consultation: Once your shipment of T-Series displays arrives, you can schedule a dedicated session with a DisplayMan engineer.
Remote Walkthrough: We visually inspect your connections and guide your team through the initial power-on and content calibration for any model, from the high-brightness T001 to the flagship T009.
24/7 Factory Support: Whether you are in London, New York, or Dubai, our experts are available to ensure your project lights up perfectly on the very first try.

Installation Comparison: The DisplayMan Advantage

Feature	Traditional Large-Scale LED	DisplayMan Micro LED
Setup Complexity	High (Requires specialized frames)	Plug-and-Play (Self-Contained)
Typical Setup Time	2–5 Days	15–30 Minutes
Technical Labor	Professional AV Crew Required	Internal Staff + Our Video Guide
Signal Management	Complex external processors	Simple DaisyChain (HDMI/DP)
Post-Setup Support	Local third-party only	Direct 1-on-1 Factory Video Support

Investment & ROI: The 10-Year Commercial Asset

Buying a transparent display for a flagship project is not an expense; it is a capital investment. By choosing DisplayMan, a registered brand approved by Chinese authorities and engineered for industrial use, you are securing a decade of performance.

A. 100,000-Hour Rated Lifespan

While consumer-grade transparent OLEDs often see significant dimming or failure after 30,000 hours, DisplayMan systems are rated for 100,000 hours of operation.

Long-Term Value: At 12 hours of daily operation, your display will maintain its professional impact for over 22 years.
Asset Stability: Unlike organic tech, our inorganic GaN chips ensure that the brightness you see on Day 1 is the same brightness you see in Year 10.

B. Zero Maintenance, Zero Burn-In

The true cost of a display includes the “hidden” costs of failure.

No “Ghosting” Liability: With a 1,000,000:1 contrast and inorganic stability, you save thousands in potential replacement costs caused by the permanent image burn-in common in OLED.
Energy Efficiency: Our LTPS TFT active-matrix drive is optimized for low power consumption, typically requiring only 18W per module, keeping your operational overhead at a minimum.

C. The Authority of a Registered Manufacturer

DisplayMan is more than a name; it is a registered brand approved by China’s regulatory authorities, ensuring you are dealing with a legitimate, audited manufacturing entity.

Factory-Direct Accountability: We handle everything from LTPS glass substrate integration to final assembly.
Global Compliance: Every system is built to meet international standards (FCC, CE, cTUVus), protecting your project from customs and safety compliance issues.

ROI Comparison: DisplayMan vs. The Competition

Investment Metric	Transparent OLED	DisplayMan Micro LED
Purchase Price	Moderate	Premium (Industrial Grade)
Operational Life	~3 Years (Before Burn-in)	10+ Years (Zero Burn-in)
Transparency	45% (Hazy)	>60% (Ultra-Clear)
Daylight Visibility	Poor (400-600 nits)	Excellent (1,200-3,000 nits)
Long-Term ROI	High Depreciation	High Asset Retention

Why DisplayMan Is the Right Manufacturer for Transparent Micro LED Projects

When you choose DisplayMan, you are not just purchasing a display; you are partnering with a registered manufacturer that controls the entire value chain. From the cleanrooms of our Active-Matrix LTPS TFT production to final glass encapsulation, we own the technology that powers your vision.

A. Manufacturing: Direct Access to LTPS TFT Innovation

We are the direct source. Because we manage our own LTPS (Low-Temperature Polycrystalline Silicon) production, we offer capabilities that middleman traders cannot match:

Custom Project Engineering: Need a specific dimension or a unique geometric tiling for a flagship lobby? We provide direct engineering consultations to tailor our Micro LED technology to your architectural blueprints.
Cost Efficiency: By eliminating the “distributor markup,” we deliver the world’s most advanced display technology at factory-direct pricing.
Supply Chain Stability: We maintain a consistent stock of core modules (from 9.4″ to 83″), ensuring your project remains on schedule regardless of global market shifts.

B. Certified Excellence: Industrial-Grade Compliance

International B2B projects require more than just a screen; they require legal and safety assurance. DisplayMan systems are engineered to meet and exceed the world’s most stringent regulatory standards:

Safety & Quality: Fully compliant with CE (Europe) and cTUVus (North America), ensuring your installation meets building safety and electrical codes.
EMC Standards: Every unit is FCC certified, guaranteeing that our high-brightness 1,200-nit systems operate without electromagnetic interference in sensitive corporate or aerospace environments.

C. 7×24 Service: Your Factory Expert, Always on Call

We understand that high-stakes commercial projects operate across every time zone. Our support doesn’t end when the crate leaves our dock.

Worldwide White-Glove Shipping: We utilize precision-engineered, vibration-dampened packaging to ensure your glass arrives in perfect condition, whether you are in London, New York, or Dubai.
Round-the-Clock Technical Assistance: Our 7×24 service model means you have direct access to a factory engineer for troubleshooting, signal calibration, or content optimization at any hour.
The Manufacturer’s Promise: As a registered brand with official Chinese authority approval, we stand behind every pixel with a comprehensive factory warranty and a lifetime of technical support.

The DisplayMan Factory Advantage

Metric	Trading Companies / Resellers	DisplayMan (Manufacturer)
Technical Knowledge	Surface Level	Deep Semiconductor Level
Customization	Standard Sizes Only	Bespoke Project Engineering
Response Time	Dependent on 3rd Party	Instant Factory-Direct Support
Price Point	Includes Multiple Markups	Original Manufacturer Pricing
Compliance	Often Inconsistent	CE, FCC, cTUVus Certified

Authority FAQ

Why is the price significantly higher than Transparent OLED?

You are investing in Inorganic Gallium Nitride (GaN) technology. Unlike OLED, which uses organic compounds that decay and “burn-in” over time, our Micro LED chips are virtually indestructible under standard operation. You are paying for 3,000 nits of brightness (6x brighter than OLED) and an engineered transmittance of >60% that eliminates the “milky haze” typical of traditional transparent screens. It’s a 10-year asset vs. a 3-year consumable.

Can we build a wall with 16 modules (8x2)?

Absolutely. Our T-Series is designed with a 3-side bezel-less architecture specifically for modular tiling. For an 8×2 array, we utilize a synchronized Active-Matrix (AM) LTPS TFT backplane. This ensures that all 16 modules refresh in perfect sync with zero lag, controlled by a single master video processor via DP 1.2 DaisyChain. We provide the full structural and signal schematics for these large-scale “Glass Wall” configurations.

Do you offer local installation?

We have engineered these units to be Plug-and-Play, specifically to save our global clients the cost of specialized contractors. Each module is lightweight (2.5kg) and features integrated locking connectors. We provide a 1-on-1 Factory Video Calibration session where a DisplayMan engineer walks your team through the 15-minute setup and software mapping. If you can hang a picture frame and plug in an HDMI cable, you can install a DisplayMan wall.
