LED Flexible Film Screen – Transparent & Bendable Display

DisplayMan’s LED Flexible Film Screen transforms any glass into a stunning digital display. With 95% transparency, frameless ultra-thin design, and bendable installation, it’s the ultimate solution for retail, architecture, and creative showcases.

🔹 Transparency up to 95% 🔹 Thickness 1–3 mm 🔹 Weight ~2 kg/m²

🌟 Showcase of Transparent LED Flexible Film Screen

See how DisplayMan’s Transparent LED Flexible Film Screen brings creativity to life. From storefronts and showrooms to curved facades and artistic installations, these real-world examples highlight the screen’s ultra-thin, bendable design, vivid brightness, and seamless integration with glass.

✨ Each project demonstrates how transparency and digital content merge to create eye-catching, modern experiences without blocking views or natural light.

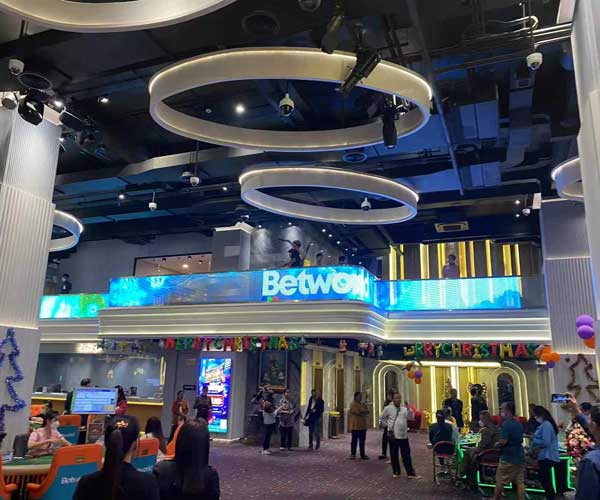

P6 Transparent LED Flexible Film Screen seamlessly integrates into the balcony facade, offering vivid, high-brightness visuals with 6 mm pixel pitch.

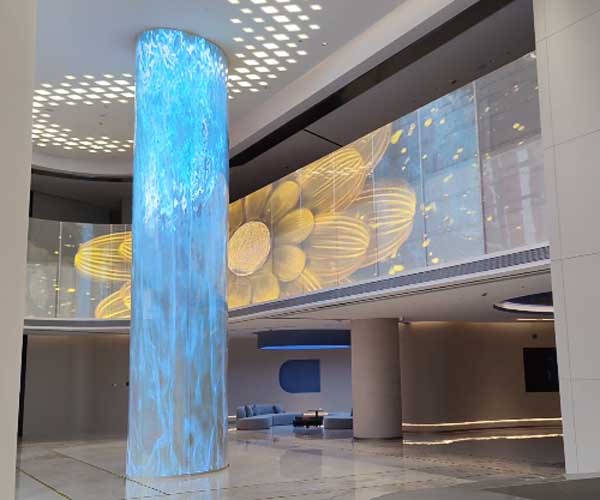

P8 Transparent LED Flexible Film Screen curves around column and walls, displaying dynamic water and floral visuals with seamless architectural integration.

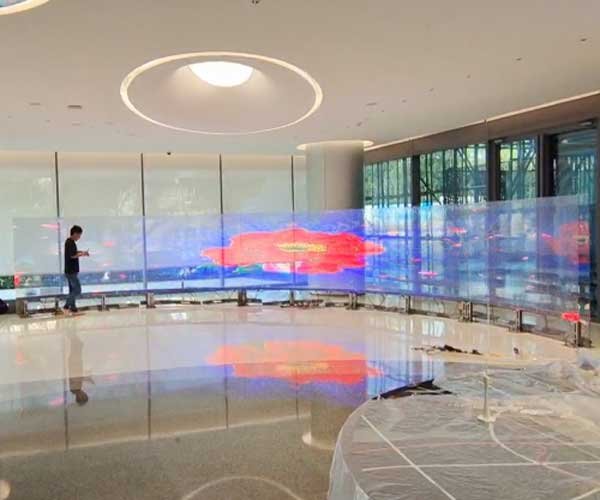

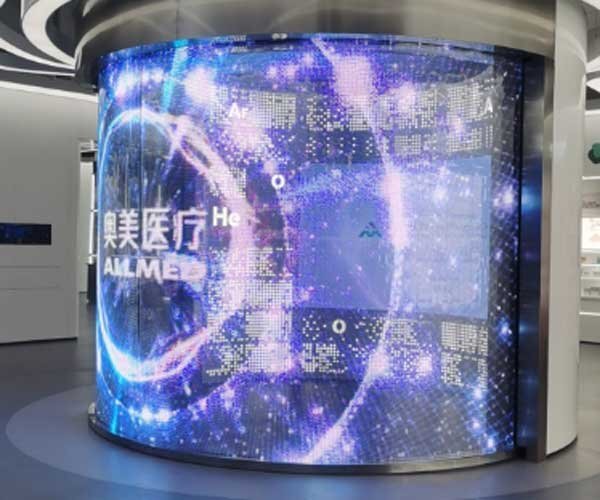

P10 Transparent LED Flexible Film Screen creates a curved digital wall, delivering bright, futuristic visuals while preserving transparency in modern interiors.

P10 Transparent LED Flexible Film Screen forms a wide curved installation, showcasing vivid digital content while maintaining natural glass transparency.

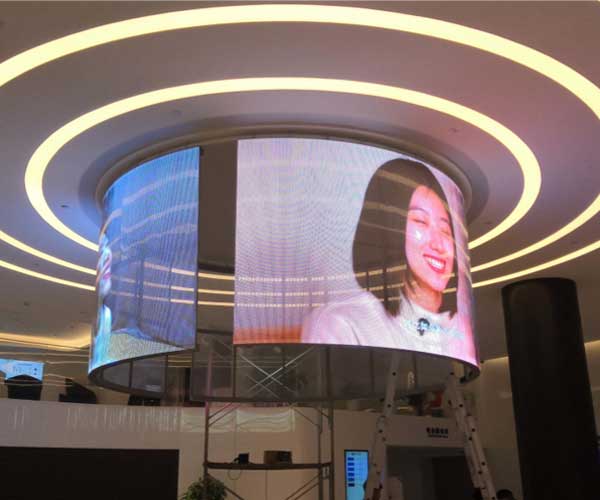

P10 Transparent LED Flexible Film Screen forms a circular hanging display, delivering immersive full-color visuals while preserving open architectural design.

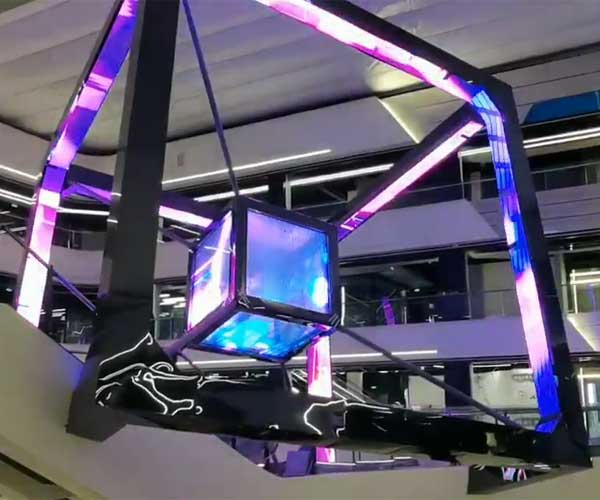

P10 Transparent LED Flexible Film Screen creates a cube-shaped suspended display, showcasing vibrant 3D-like visuals in futuristic architectural environments

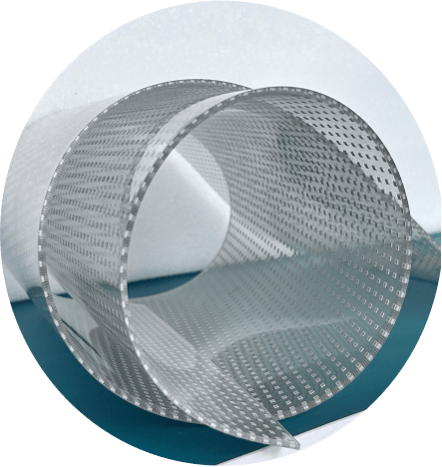

What Is a Transparent LED Flexible Film Screen?

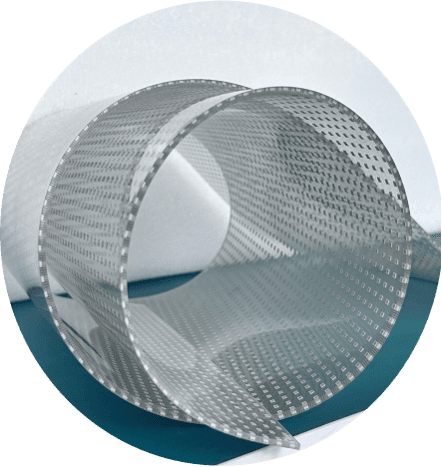

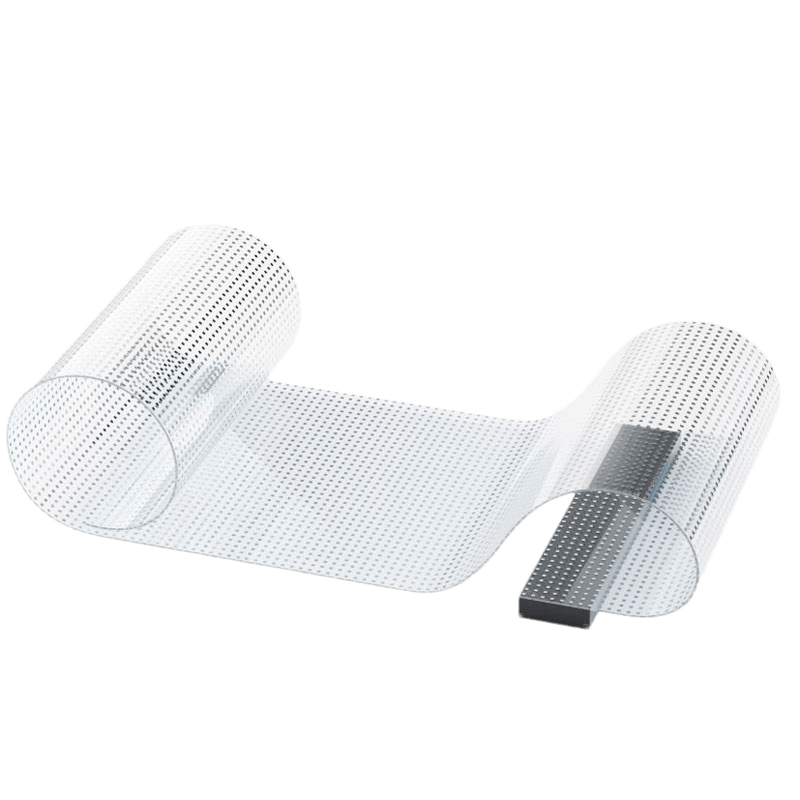

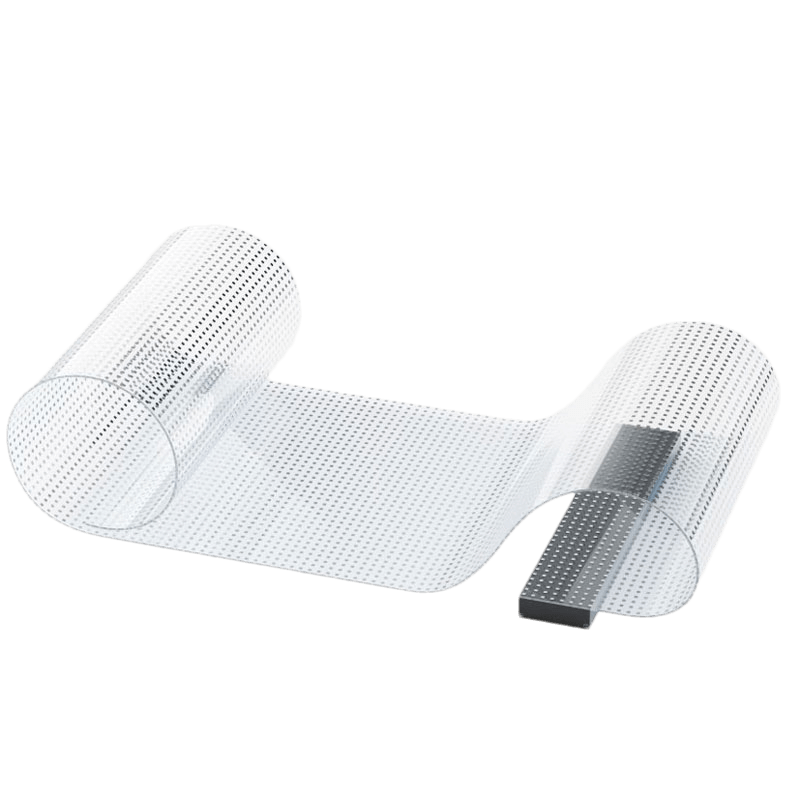

A Transparent LED Flexible Film Screen is a bendable transparent LED display designed for selected curved glass, arc-shaped walls, columns, circular structures and creative indoor commercial installations.

It displays videos, animation, advertising, brand content and digital art while preserving partial visibility through the surface. Its main value is not only transparency—it is the ability to follow shapes that a standard flat Transparent LED Film Screen cannot handle effectively.

The screen should be treated as a project-engineered display system. Surface curvature, bending direction, screen segmentation, cable exits, power supplies, controller, content mapping and maintenance must be reviewed together.

Typical Project Directions

Curved and arc-shaped glass walls
Round columns and cylindrical structures
Curved storefronts and showroom glass
Circular or ring-shaped hanging displays
Creative exhibition installations
Shopping mall atriums and interior features
Digital art and architectural interior media

Product Positioning

Transparent LED Flexible Film Screen is the creative and shape-adaptable branch of the Transparent LED family. Use it when curved installation and design freedom create real project value.

Flexible Film Screen or Standard Film Screen?

Both products use transparent LED film-type structures, but they should not be sold as interchangeable products.

Factor	Transparent LED Flexible Film Screen	Transparent LED Film Screen
Main Purpose	Curved, arc-shaped, cylindrical and creative surfaces	Flat or regular glass advertising
Design Priority	Flexibility and shape adaptation	Commercial practicality and regular screen layout
Typical Surface	Curved glass, columns, rings and creative structures	Storefront windows and flat mall glass
Engineering Complexity	Higher; radius, segmentation and cables require project review	Lower for standard flat installations
Content	Designed around the curve or surface shape	Conventional rectangular advertising content
Cost Logic	More project-specific	Usually more economical for flat glass

Selection Rule

Choose Transparent LED Film Screen for flat glass advertising. Choose Flexible Film Screen only when the display must follow a curved or creative surface.

Flexible Does Not Mean Unlimited Bending

The flexible structure provides more design freedom than rigid or flat LED products, but every surface and bending request must remain within the engineering limits of the selected configuration.

Curved Glass

Suitable curvature can be reviewed according to bend direction, radius, glass condition and installation method.

Round Columns

Column diameter, full or partial wrapping, screen joints, content seam and service access must be defined.

Arc-Shaped Walls

The screen layout should follow the real arc rather than being forced into a flat rectangular design.

Circular Hanging Displays

Support structure, power, signal, weight distribution and safety require complete project engineering.

Cutting and Size Adaptation

Adaptation is possible only along permitted module and circuit directions. It is not freely cut decorative film.

One-Time Installed Shape

The product is intended for project installation, not continuous repeated folding, rolling or reshaping during daily operation.

Engineering Information Required

Provide the surface drawing, curvature or column diameter, screen dimensions, bending direction, cable-exit requirement and installation structure before confirming feasibility.

Available Indoor Pixel-Pitch Configurations

The current specification table contains six indoor configurations. The naming shows horizontal × vertical pixel spacing in millimeters.

Higher Detail

P6 × 6

For projects that require the strongest image-detail direction among the equal-pitch configurations.

Asymmetric Pitch

P5 × 10

Uses different horizontal and vertical spacing and should be selected from the real content and viewing geometry.

Balanced Fine Pitch

P8 × 8

For curved indoor commercial displays requiring a balance between detail and transparent effect.

Mainstream Balance

P10 × 10

A practical starting direction for shopping malls, showrooms, columns and medium-distance installations.

Higher Transparency

P16 × 16

For larger curved surfaces and longer indoor viewing where transparency matters more than fine detail.

Largest Current Pitch

P20 × 20

The largest pitch in the retained indoor range, for large simple visuals and longer viewing distances.

Pitch Selection Principle

Do not choose the smallest pitch automatically. Match the pitch to viewing distance, surface shape, content detail, transparency, power and project budget.

Why Choose Transparent LED Flexible Film Screen?

Shape Adaptation

Supports selected curved, arc-shaped, cylindrical and creative indoor display concepts.

Lightweight Transparent Structure

Reduces the visual and structural burden compared with heavy rigid LED cabinets.

Indoor Commercial Brightness

The retained specification table lists 3,000–5,000 cd/m² depending on configuration.

75% Reference Transparency

The six retained configurations list 75% transparency, subject to the real installation and viewing conditions.

Curved Content Experience

Motion can follow the architecture and create visual effects that a flat rectangle cannot produce.

Creative Indoor Integration

Suitable for showrooms, malls, exhibitions, lobbies, museums and premium interiors.

Standard LED Control

The retained General Specs include synchronous PC control and multiple common video inputs.

Modular Project Layout

The current 1000 × 240 mm module format can be arranged according to the selected structure.

Custom Engineering Review

Screen layout, supports, power, cabling and content mapping can be developed as one project system.

Installation Directions

The final installation method must match the selected product model and surface. The retained General Specs list hanging and stacking; glass-mounted or special curved installation requires project-specific confirmation.

Curved Glass Installation

For suitable glass surfaces after confirming radius, cleaning, mounting method, cable exit and long-term stability.

Column or Cylindrical Structure

For partial or full wrapping around engineered columns, frames or circular support systems.

Hanging Installation

For circular displays, exhibitions, atriums and selected creative structures using engineered suspension.

Stacking or Fixed Support

For permanent commercial installations that require a stable project-specific support system.

Power and Controller Location

Equipment must be placed where it remains hidden, ventilated, safe and accessible for service.

Cable Routing on a Curve

Cable length, bending, connector position and visual exposure are especially important on columns and curved glass.

The Display Is Flexible; the Power System Is Not Invisible

Power supplies, controller boxes, cables and connectors must be planned before the creative shape is finalized. Their location can determine whether the finished installation looks clean.

Technical Specifications – Transparent LED Flexible Film Screen

Module & Cabinet Specs

The following existing specification table is retained as the current product range.

Part Number	6-6	5-10	8-8	10-10	16-16	20-20
LED Configuration	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Brightness	5000 cd/m²	5000 cd/m²	5000 cd/m²	5000 cd/m²	4000 cd/m²	3000 cd/m²
Pixel Density	9216 dot/m²	9216 dot/m²	9600 dot/m²	8192 dot/m²	4096 dot/m²	1024 dot/m²
Transparency	75%	75%	75%	75%	75%	75%
Cabinet Size	1000 × 240 × 70 mm	1000 × 240 × 70 mm	1000 × 240 × 70 mm	1000 × 240 × 70 mm	1000 × 240 × 70 mm	1000 × 240 × 70 mm
Cabinet Resolution	167 × 40 dot	200 × 24 dot	125 × 30 dot	100 × 24 dot	63 × 15 dot	50 × 12 dot
Module Size	1000 × 240 mm	1000 × 240 mm	1000 × 240 mm	1000 × 240 mm	1000 × 240 mm	1000 × 240 mm
Module Resolution	167 × 40 dot	200 × 24 dot	125 × 30 dot	100 × 24 dot	63 × 15 dot	50 × 12 dot
Cabinet Weight	≤3 kg/m²	≤3 kg/m²	≤3 kg/m²	≤3 kg/m²	≤3 kg/m²	≤3 kg/m²
IP Rating (Front / Back)	IP43	IP43	IP43	IP43	IP43	IP43
Environment	Indoor	Indoor	Indoor	Indoor	Indoor	Indoor
Viewing Angle (H / V)	120° / 120°	120° / 120°	120° / 120°	120° / 120°	120° / 120°	120° / 120°
Viewing Distance	>3 m	>3 m	>3 m	>3 m	>3 m	>3 m
Gray Scale	16 bit	16 bit	16 bit	16 bit	16 bit	16 bit
Max. Power Consumption	800 W/m²	800 W/m²	800 W/m²	800 W/m²	800 W/m²	800 W/m²
Average Power Consumption	400 W/m²	400 W/m²	400 W/m²	400 W/m²	400 W/m²	400 W/m²
Scanning Mode	1 scan	1 scan	1 scan	1 scan	1 scan	1 scan

General Specs

Specification	Details
Refresh Rate	3840 Hz, synchronous display with control PC by DVI
Operation Power	AC 100–240V, 50/60 Hz
Control Mode	Synchronous display with control PC by DVI
Support Input	Composite, S-Video, Component, VGA, DVI, HDMI, HD-SDI
Operating Temperature	-40°C to +50°C (working), -40°C to +60°C (storage)
Operating Humidity	35%–85% (working), 10%–90% (storage)
Operating Life	≥100,000 hours
Cabinet Material	Aluminum profiles + PC mask
Installation	Hanging / Stacking
Packaging	Wooden box

Specification Confirmation

These two specification subsections are retained from the current page. Final model, dimensions, curvature, control configuration and installation must still be confirmed before quotation and production.

Typical System Structure

A successful curved display is a complete system rather than a film layer alone.

Flexible LED Display Modules

Form the visible screen area and follow the permitted surface geometry.

Curved or Circular Support

Maintains the intended radius, alignment and installation safety.

Power Supplies

Must be positioned for ventilation, safe cable length and later replacement.

LED Controller

Processes content and distributes signal across the selected module arrangement.

Video Source

May include the retained synchronous PC route or a project-confirmed media system.

Signal and Power Cabling

Must follow the curve without excessive stress, exposed loops or inaccessible connectors.

Content Mapping

Maps a rectangular source canvas onto the actual curved or circular display geometry.

Service Access

Allows power supplies, controller, cables and display sections to be inspected and repaired.

Protective Packaging

Supports safe transportation of modules and project-specific structure components.

Typical Applications

The product is best used in indoor commercial projects where the screen shape contributes directly to the visual experience.

Curved Glass Walls

For mall interiors, retail windows, showrooms and lobbies with engineered curved glass.

Round Columns

For shopping centers, hotels, exhibitions and brand spaces using cylindrical digital media.

Arc-Shaped Storefronts

For curved retail glass that cannot be served cleanly by standard flat LED film.

Circular Hanging Displays

For atriums, events, exhibitions and product launches where the display becomes a visual centerpiece.

Museums and Exhibitions

For creative digital storytelling, art installations and technology demonstrations.

Automotive Showrooms

For curved brand walls, vehicle launches and immersive interior presentation.

Corporate Experience Centers

For innovation displays, lobbies and visitor areas with custom architectural surfaces.

Hotel and Entertainment Interiors

For curved walls, columns, VIP rooms, clubs and interior digital-art features.

Creative Architectural Interiors

For controlled indoor spaces where digital media follows the building shape.

How to Choose the Right Flexible Film Screen

Confirm That Flexibility Is Necessary

Use this product only when the surface is curved, cylindrical, arc-shaped or creatively structured.

Define the Exact Surface Geometry

Provide the curve radius, column diameter, arc length, height, support and viewing sides.

Select the Pixel Pitch

Choose from the retained 6-6, 5-10, 8-8, 10-10, 16-16 and 20-20 range according to distance and content.

Design the Module Layout

Align the 1000 × 240 mm module format with the real curve, joints and content seams.

Plan Power, Control and Cables

Confirm equipment location, cable stress, hidden routes, ventilation and service access.

Create Content for the Shape

Design motion, text and visual focus for the actual curved or circular surface.

Selection Logic

Surface geometry comes first. Pixel pitch, module quantity, content canvas and control system should be selected only after the real shape has been defined.

Viewing Distance and Surface Shape

Project Condition	Recommended Direction	Main Engineering Focus
Closer Curved Display	P6 × 6, P5 × 10 or P8 × 8 review	Image detail, visible structure, content distortion and cable hiding
Medium-Distance Column or Wall	P8 × 8 or P10 × 10 review	Balance detail, transparency, module segmentation and content seam
Larger Indoor Curved Surface	P16 × 16 or P20 × 20 review	Transparency, simple large content, viewing distance and budget
Full Column Wrap	Pitch selected after diameter and circumference	Module fit, image seam, cable exit and maintenance opening
Circular Hanging Display	Project-specific pitch and structural review	Suspension, weight, power path, signal distribution and safety

Reference Viewing Distance

The retained technical table lists a viewing distance greater than 3 meters for all six configurations. Projects requiring closer critical viewing should be reviewed carefully rather than relying only on the pitch name.

Content Strategy: Design Around the Shape

A curved screen should not simply reuse a flat rectangular video without content testing and mapping.

Transparent LED Flexible Film Screen vs Other Display Routes

Alternative	Choose Flexible Film Screen When	Choose the Alternative When
Transparent LED Film Screen	The surface is curved, cylindrical or creatively shaped.	The project is a standard flat-glass advertising installation.
LED Holographic Invisible Screen	Shape adaptation and bending are the main project requirements.	A minimal-structure, premium floating visual effect is the main goal.
Transparent LED Glass Screen	The display must adapt to an existing creative or curved surface.	The LED display should be integrated more deeply into architectural glass construction.
Outdoor Transparent LED Mesh Screen	The project is an indoor curved or creative display.	The project is a fully exposed weather-resistant outdoor facade.
Rental Transparent LED Screen	The installation is project-specific and shape adaptation matters.	The screen must be repeatedly assembled, transported and reused for events.
Transparent OLED Displays	A larger transparent LED surface must follow a curve.	A premium flat transparent panel with close-viewing image quality is preferred.
Traditional LED Displays	Transparency and creative integration are important.	Transparency is unnecessary and a solid opaque LED wall is acceptable.

Engineering and Customization Support

Curved transparent LED projects require more early engineering than normal flat-screen projects.

Surface and curvature review
Column diameter and arc-length review
Bending-direction review
6-6 to 20-20 configuration selection
1000 × 240 mm module-layout planning
Full or partial column wrapping
Circular hanging-display review
Curved glass installation review
Support-structure design
Power-supply layout
Controller and signal planning
DVI and video-input review
Content-canvas mapping
Image seam and starting-point review
Cable and connector routing
Ventilation and thermal planning
Maintenance-opening design
Installation safety review
Protective packaging and shipping
Sample and project support
OEM structure and branding review

Engineering Principle

The flexible display, support shape, controller, power, cables and content should be designed as one system. Solving only the screen surface is not enough.

When This Product Is the Right Choice

Suitable For

Indoor curved-glass transparent displays
Round columns and cylindrical media
Arc-shaped storefronts and showrooms
Circular and ring-shaped hanging screens
Creative exhibitions and product launches
Shopping mall and lobby visual features
Projects using the retained 6-6 to 20-20 range
Content designed specifically for the surface
Projects with engineering and installation support

May Not Be the Best Choice

Ordinary flat-glass advertising
Directly exposed outdoor facades
Repeated rental assembly and dismantling
Unlimited or extremely tight bending
Daily repeated folding or shape changes
Small text and monitor-style content
No space for power, controller or cables
No access for maintenance
Projects seeking only the lowest price per square meter

What Information Should You Provide?

The surface geometry is the most important part of the quotation package.

Surface and Dimensions

Glass, wall, column or custom structure
Width, height, radius or diameter
Full or partial wrapping
Flat, curved, cylindrical or irregular shape
2D drawing, 3D model or site photos
Available support and installation space

Display and Installation

Required display area and viewing distance
Preferred pitch if known
Hanging, stacking, fixed or glass-mounted concept
Power and controller locations
Cable-exit and hiding requirement
Front, rear or local maintenance access

Content and Commercial

Video, logo, animation or digital art
One image, column wrap or separate zones
Existing controller or source system
Total area and project quantity
Budget, schedule and installation deadline
Shipping destination and certification needs

Installation Review Checklist

Geometry

Radius or diameter is measured
Curve direction is confirmed
Module arrangement fits the surface
Screen seams are planned

Structure and Safety

Support and fixing method are defined
Suspension or stacking load is reviewed
Installation height is safe
Accidental contact protection is considered

Power and Signal

Power load and distribution are confirmed
Controller location is accessible
Cables can follow the curve safely
Connector stress is controlled

Content Mapping

Content canvas matches the surface
Image seam and starting point are defined
Important text avoids strong curves
Real-distance content testing is planned

Maintenance

Power supplies remain replaceable
Controller and cables remain accessible
Damaged sections can be reached
Cleaning method is documented

Operation

Brightness and power schedules are defined
Content backup is available
Staff receive operation guidance
Long-term monitoring is considered

Related Product, Solution and Application Pages

Use these pages to compare alternative Transparent LED technologies and project routes.

Related Transparent LED Products

Related Page	When to Visit
Transparent LED Displays	For the full Transparent LED product family and initial technology selection
Transparent LED Film Screen	For regular flat-glass storefront and mall advertising
LED Holographic Invisible Screen	For premium minimal-structure floating visual effects
Transparent LED Glass Screen	For permanent glass-integrated architectural projects
Indoor Transparent LED Screen	For more conventional indoor transparent LED structures
Outdoor Transparent LED Mesh Screen	For exposed outdoor waterproof facade projects
Rental Transparent LED Screen	For repeated event assembly, transportation and reuse
Custom Transparent LED Displays	For unusual structures that require broader custom LED engineering

Related Page	When It Helps
Transparent LED Solutions	For comparing film, flexible film, glass, mesh, indoor and rental routes
Transparent LED Retail Window Solution	For storefront and brand-window projects
Transparent LED Event Backdrop Solution	For exhibitions, product launches and creative temporary displays
Architectural Transparent LED Wall Solution	For interior architecture and large transparent media features
Transparent Exhibition & Showroom Display Solution	For showrooms, museums, exhibitions and experience centers
Exhibition, Events & Showrooms	For commercial application planning and project positioning
Corporate & Office Environments	For lobbies, visitor centers and corporate experience spaces
OEM/ODM Display Engineering & Prototyping	For engineering drawings, samples, structures and system integration

FAQ

What is a Transparent LED Flexible Film Screen?

It is a bendable transparent LED display film designed for selected curved glass, arc-shaped walls, columns, circular structures and other creative indoor commercial installations.

Is it the same as a standard Transparent LED Film Screen?

No. Standard Transparent LED Film Screen is the more practical choice for flat glass advertising. Flexible Film Screen is selected when the screen must follow a curved or creative surface.

Which pixel-pitch options are available?

The current indoor range includes 6-6, 5-10, 8-8, 10-10, 16-16 and 20-20 configurations. Final availability and model selection must be confirmed for the project.

What does 5-10 or 6-6 mean?

The numbers describe the horizontal and vertical pixel spacing in millimeters. For example, P5 × 10 uses 5 mm horizontal spacing and 10 mm vertical spacing.

Is the screen suitable for curved glass?

Selected curved-glass applications can be reviewed according to the curvature, bending radius, screen layout, cable exit, installation direction and maintenance requirement.

Can it wrap around a round column?

A column or cylindrical display can be reviewed, but the required diameter, bend direction, screen segmentation, cable path, controller and service access must be confirmed.

Does flexible mean it can bend without limitation?

No. Flexible does not mean unlimited bending. Every project must stay within the permitted bending direction and radius of the selected product.

Can the film be cut freely on site?

No. Project-based size adaptation may be possible, but cutting must follow the product circuit, LED layout and engineering instructions. It is not freely cut decorative film.

How transparent is the display?

The retained technical table lists 75% transparency for the current six configurations. The real visual result also depends on content, viewing angle, glass, ambient light and installation.

How bright is it?

The retained specification range lists 3,000 to 5,000 cd/m² depending on the selected configuration.

Is it an indoor product?

Yes. The six models listed in the current Module & Cabinet Specs table are indoor products with an IP43 reference rating.

Can it be used outdoors?

The products on this page are intended for indoor or protected commercial environments. Fully exposed outdoor projects should use a dedicated Outdoor Transparent LED Mesh Screen.

Which control method is supported?

The retained General Specs list synchronous display with a control PC through DVI and support for common video inputs. Other media-player or content-management routes require project confirmation.

What content works best on a curved display?

Large logos, flowing animation, high-contrast product visuals, digital art, column-wrapped patterns and motion graphics designed around the real surface shape work best.

What content should be avoided?

Avoid small text, dense documents, complex charts, thin technical lines, low-contrast graphics and flat-screen content that becomes difficult to understand when wrapped around a curve.

What information is needed for a quotation?

Please provide the surface type and dimensions, drawings or site photos, bending radius or column diameter, screen area, viewing distance, pitch preference, installation method, content, cable and power locations, quantity, budget, schedule and shipping destination.

Need a Transparent LED Flexible Film Screen for a Curved or Creative Indoor Project?

Send us the surface dimensions, radius or column diameter, drawings or photos, required display area, viewing distance, installation method, content, power and controller locations, quantity, budget and schedule.

We will review whether the surface is suitable for Flexible Film Screen and recommend a configuration from the current 6-6, 5-10, 8-8, 10-10, 16-16 and 20-20 indoor range.

The correct solution may be Flexible Film Screen, standard Film Screen, Holographic Invisible Screen, LED Glass Screen, Outdoor Mesh Screen or Rental Transparent LED. Surface shape and installation environment determine the product route.

Request a Flexible Film Screen Quote Discuss Your Curved Display Project
