Create large-format outdoor advertising with an open LED mesh structure. DisplayMan supports pixel-pitch selection, brightness, cabinet layout and control-system planning around your facade, viewing distance and maintenance requirements.
An Outdoor Transparent LED Mesh Display is an IP65 transparent LED display with its own open mesh, grille or cabinet structure, designed for fixed installation on building facades, exterior walls, steel frames and large public-facing media surfaces.
It displays high-brightness advertising, branding, event content and architectural animation while maintaining a more open structure than a conventional solid LED wall. Glass is not required as the supporting surface.
The screen should be treated as an outdoor engineering system. Product selection must be coordinated with facade condition, wind load, waterproofing, support structure, power, signal, grounding, installation height and long-term maintenance.
Outdoor Transparent LED Mesh Display is the weather-resistant structural branch of the Transparent LED family, created for large outdoor surfaces and medium-to-long-distance viewing.
Outdoor mesh displays use framed LED strips and an integrated component housing. Compare the cabinet front, rear, slat spacing and connection layout before planning the support structure. The photos illustrate structure options; the specification table below describes the retained reference models.

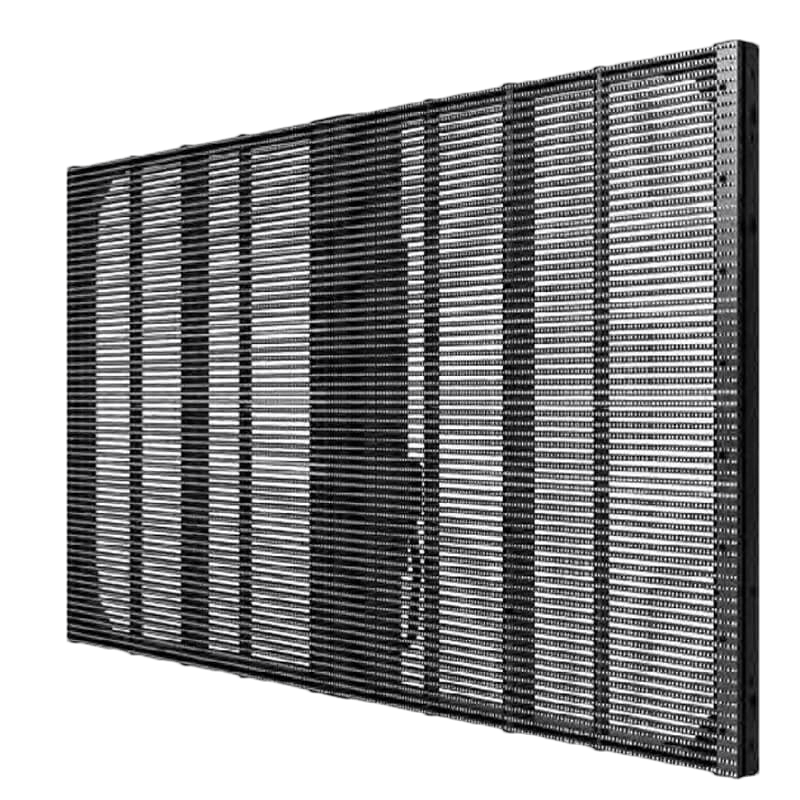

The front view shows a rigid cabinet with open spaces between the LED strips. The frame carries the display structure and defines the cabinet joining and mounting positions.
Cabinets can form larger facade surfaces without using glass as their supporting substrate. Select the cabinet layout around the building geometry and intended content.
Discuss Your Mesh Display Project
The rear view shows the driver enclosure, strip arrangement and connection access. These components need to remain accessible after the display is installed.
Coordinate rear clearances, cable routes and service access with the facade or dedicated steel frame.
Discuss Your Mesh Display Project
A more open slat arrangement provides another cabinet format for architectural media. The actual pitch, brightness and opening ratio depend on the selected model.
Review the visual openness from the audience position rather than selecting only by the appearance of a small product photograph.
Discuss Your Mesh Display Project
The rear arrangement combines the open LED strips with the component housing and structural rails. Check both faces when the back of the display remains visible.
Match the cabinet drawing, mounting points and connection arrangement to the intended fixed or rental installation.
Discuss Your Mesh Display Project
The side view helps explain the relationship between the LED surface and component housing. Use the confirmed drawing to determine installation depth.
Plan connector orientation, protected cable routes and access for replacement as part of the complete installation.
The housing and cable entries should remain reachable for service, with protection maintained across the installed assembly.
| Product Route | Structure | Best Use |
|---|---|---|
| Outdoor Transparent LED Mesh Display | IP65 mesh, grille or cabinet structure | Exposed outdoor facades and large fixed media |
| Indoor Transparent LED Display | Framed cabinet structure for protected spaces | Malls, indoor curtain walls and retail windows |
| Transparent LED Film Display | Lightweight film-style screen supported by flat glass | Indoor storefront and glass advertising |
| Flexible Transparent LED Film Display | Flexible film-style screen supported by curved surfaces | Curved glass, columns and creative interiors |
| Holographic Transparent LED Display | Open transparent LED module requiring suitable glass or an added support | Premium floating-style visual effects |
| Transparent LED Glass Display | Display supplied with integrated glass | Permanent glass and curtain-wall integration |
| Rental Transparent LED Display | Indoor or outdoor framed cabinets with quick-release locks for repeated assembly | Stages and repeated temporary events |
| Custom Transparent LED Displays | Shaped layouts commonly using flexible film or holographic modules with suitable supports | Circles, columns, rings and creative shapes |
A stronger outdoor system is required because the project must manage rain, wind, sunlight, temperature, cable protection, installation safety and difficult maintenance access.
The current range contains four outdoor configurations. Select the pitch according to viewing distance, facade area, content detail, transparency and budget.
10,000 cd/m² with 6,400 pixels/m² for closer outdoor viewing and premium facade projects.
Supplier-published 10,000 cd/m² with 4,096 pixels/m² for high-brightness exterior advertising; site visibility still requires project review.
6,000 cd/m² with different horizontal and vertical spacing for larger and longer-distance displays.
4,000 cd/m² for very large simple visuals and long-distance landmark viewing.
The smallest pitch is not automatically the best. A very large facade viewed from far away may achieve a better technical and commercial balance with P15.6 × 31.25 or P31.25.
The supplier table lists IP65 for the front and back of all four configurations; complete-system sealing depends on connections and installation.
P12.5 and P15.6 have high-brightness published configurations for sunlight-facing project review.
The supplier table lists 75% across the range; actual visual openness depends on structure, viewing angle and installation.
A consistent cabinet format supports modular large-area construction.
The supplier table lists cabinet weight only; structural calculations must use the complete installed system weight.
Allows partial visibility and airflow compared with a solid LED wall.
Supports smooth playback when matched with the confirmed driver and control system.
Modules and cabinets can be arranged for facades and landmark media surfaces.
Structure, waterproofing, power, signal and maintenance can be planned together.
For a normal fixed installation, the mesh cabinets are secured with screws or bolts to a supporting frame connected to the building or a dedicated steel structure. The display has its own cabinet frame and does not require attachment to glass.
For commercial buildings, malls, landmarks and architectural media projects.
For outdoor media frames, plazas, transportation hubs and stadium exteriors.
Cabinets are normally bolted or screwed to a support frame for a long-term exterior media installation.
Hanging can be reviewed where the cabinet system, support points, wind loads and local safety requirements allow it.
Suitable for selected project structures after checking base support, anchoring and wind conditions.
Combines 500 × 1000 mm cabinets around facade dimensions and content resolution.
Fixed outdoor mesh cabinets normally remain secured to their installation frame. For repeated event setup and transport, choose a Rental Transparent LED Display with quick-release cabinet locks and positioning features for rapid alignment, assembly and dismantling.
Rental is an assembly format that can use indoor transparent LED or outdoor transparent LED mesh cabinet platforms. A hanging hook is a mounting accessory; the cabinet joining, handling and connection design must also suit repeated use. Select an outdoor-rated rental configuration when the venue is exposed to weather.
Explore Rental Transparent LED Displays →

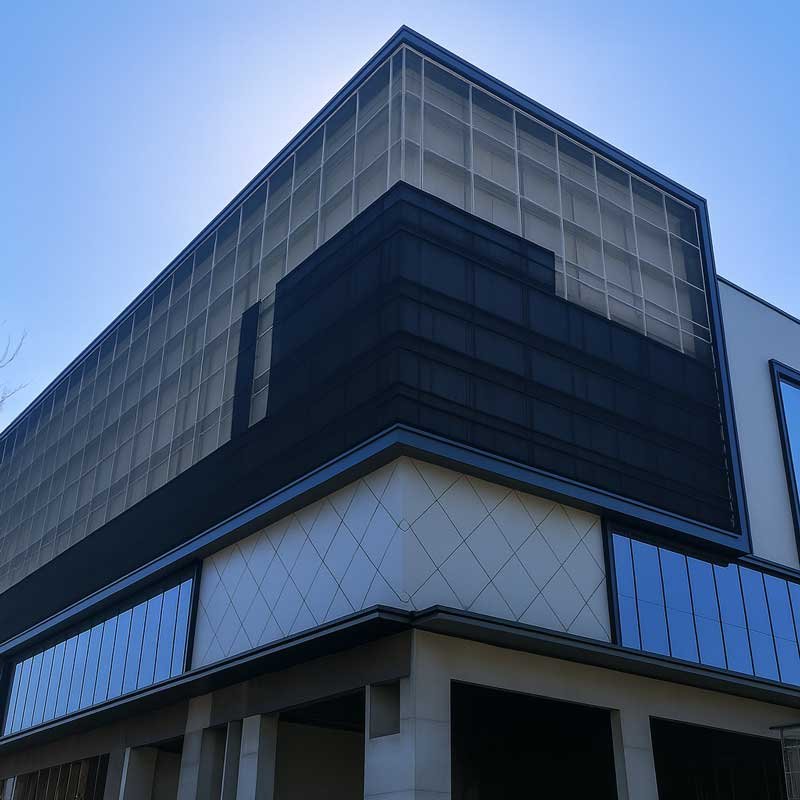

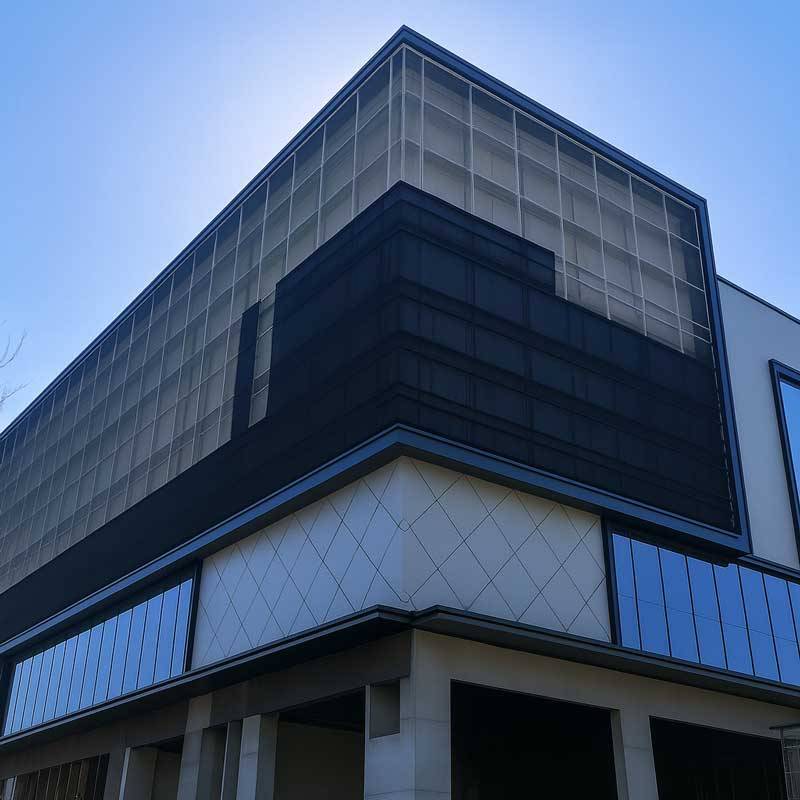

A rooftop or facade layout needs support connections coordinated with the building structure, screen divisions and maintenance route.

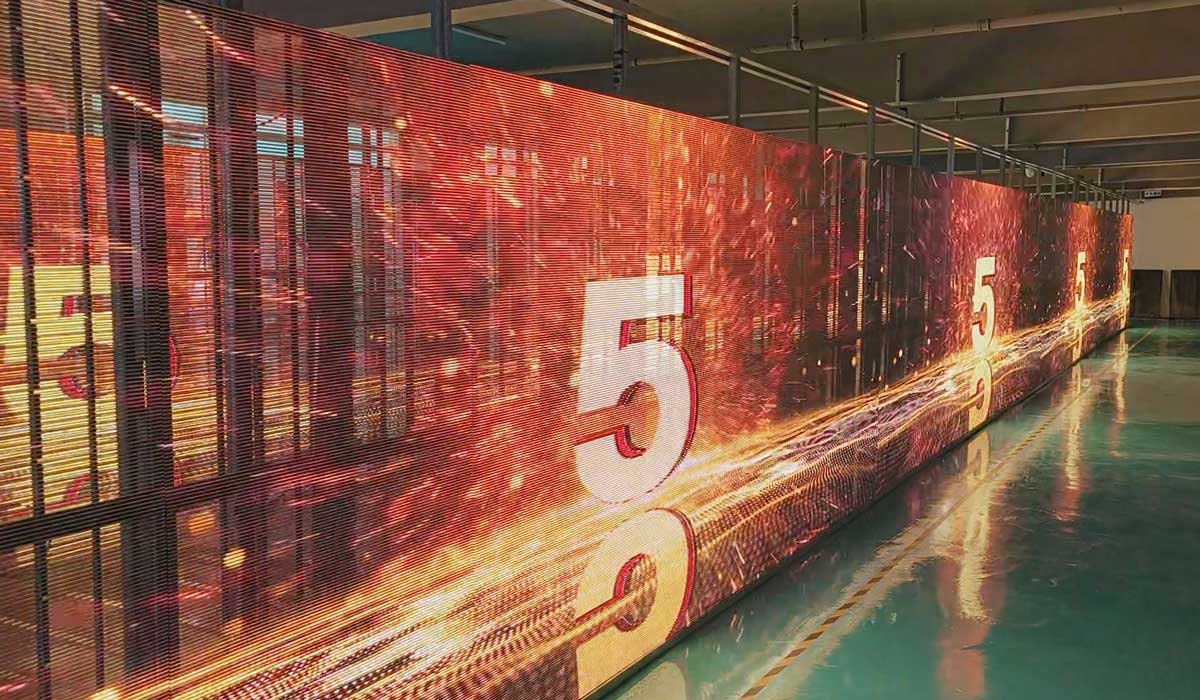

The rear view illustrates visibility through the open structure. Housing positions, wiring and support members also affect the finished appearance.
The screen, cabinets, frames, fixings and building interface must still be calculated and approved for the local wind zone, installation height and building condition.
The following supplier-published values apply to the four-model DIP outdoor mesh series. Final configuration and site suitability require project confirmation.
| Pixel Pitch (H × V) | 12.5 × 12.5 mm | 15.6 × 15.6 mm | 15.6 × 31.25 mm | 31.25 × 31.25 mm |
|---|---|---|---|---|
| LED Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Brightness | 10000 cd/m² | 10000 cd/m² | 6000 cd/m² | 4000 cd/m² |
| Published Pixel Density | 6,400 pixels/m² | 4,096 pixels/m² | 2,048 pixels/m² | 1,024 pixels/m² |
| Transparency | 75% | 75% | 75% | 75% |
| Cabinet Size | 500 × 1000 × 70 mm | 500 × 1000 × 70 mm | 500 × 1000 × 70 mm | 500 × 1000 × 70 mm |
| Cabinet Resolution | 40 × 80 pixels | 32 × 64 pixels | 32 × 64 pixels | 16 × 32 pixels |
| Module Size | 10 × 1000 mm | 10 × 1000 mm | 10 × 1000 mm | 10 × 1000 mm |
| Module Resolution | 1 × 80 pixels | 1 × 64 pixels | 1 × 64 pixels | 1 × 32 pixels |
| Published Cabinet Weight | ≤8 kg/m² | ≤8 kg/m² | ≤8 kg/m² | ≤8 kg/m² |
| IP Rating (Front/Back) | IP65 | IP65 | IP65 | IP65 |
| Environment | Outdoor | Outdoor | Outdoor | Outdoor |
| Viewing Angle (H/V) | 120° / 120° | 120° / 120° | 120° / 120° | 120° / 120° |
| Viewing Distance | Project dependent; evaluate pitch, screen scale, content and the critical viewing point | |||
| Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit |
| Max. Power Consumption | 800 W/m² | 800 W/m² | 800 W/m² | 800 W/m² |
| Average Power Consumption | 400 W/m² | 400 W/m² | 400 W/m² | 400 W/m² |
| Scanning Mode | 1 scan | 1 scan | 1 scan | 1 scan |
| Specification | Details |
|---|---|
| Refresh Rate | 3840 Hz reference configuration; confirm with the selected receiving-card and driver system |
| Input Power | AC 100–240 V, 50/60 Hz |
| Control Mode | Synchronous or asynchronous control, selected for the screen layout and playback workflow |
| Video Input | HDMI or DVI through a compatible processor/controller; other interfaces by project confirmation |
| Outdoor Operating Conditions | Temperature, humidity, solar load, wind, corrosion and altitude limits require project and model confirmation |
| Rated LED Lifetime | Up to 100,000 hours under specified operating conditions; not a warranty period |
| Cabinet Material | Aluminum Profiles |
| Installation | Facade-mounted, fixed steel support or engineered suspension, depending on project conditions |
| Packaging | Wooden box |
Values above are supplier-published references for the DIP outdoor series. Final pitch, calibrated brightness, structure, waterproof interfaces, electrical design, controller, cable protection, local compliance and installation system must be confirmed before quotation and production.
The selected cabinet, rear housing, connectors and cable entries work together as the installed outdoor assembly. Coordinate drainage, protected power distribution and service access with the support frame.
The reference specifications below identify the published enclosure rating. Confirm the selected configuration and installation details for the actual site.
Create the image while maintaining an open structure.
Support modular alignment, protection and facade assembly.
Transfers screen loads to the building or dedicated outdoor structure.
Must be protected, ventilated and calculated from maximum system load.
Processes and distributes media across the screen layout.
Protect power, signal and cabinet interfaces from rain and contamination.
Should be integrated with the local electrical and lightning-protection design.
Prevents trapped water and supports long-term equipment operation.
Allows modules, power, control and connections to be reached after installation.

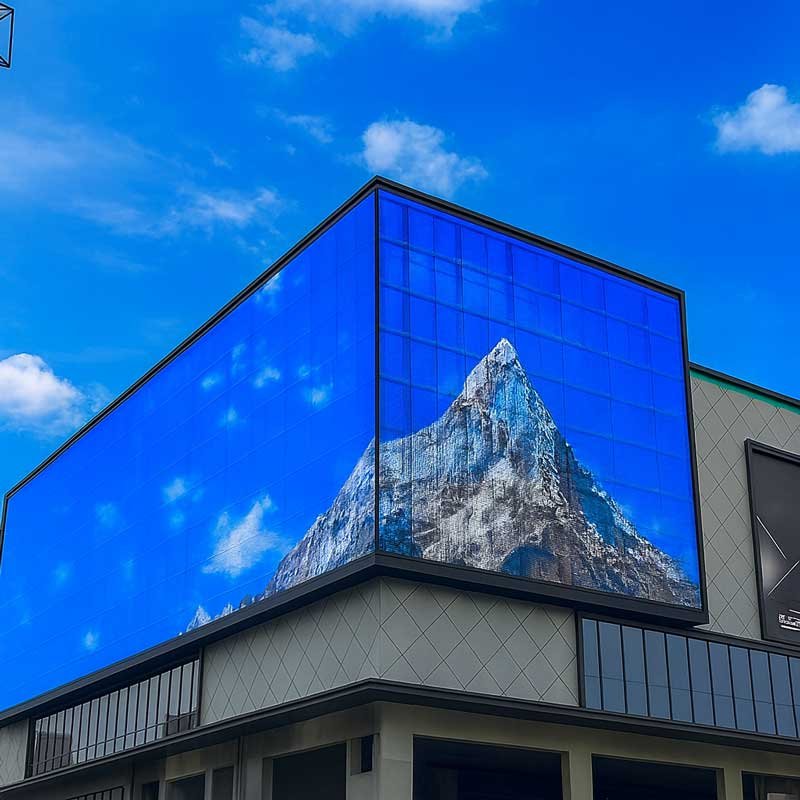

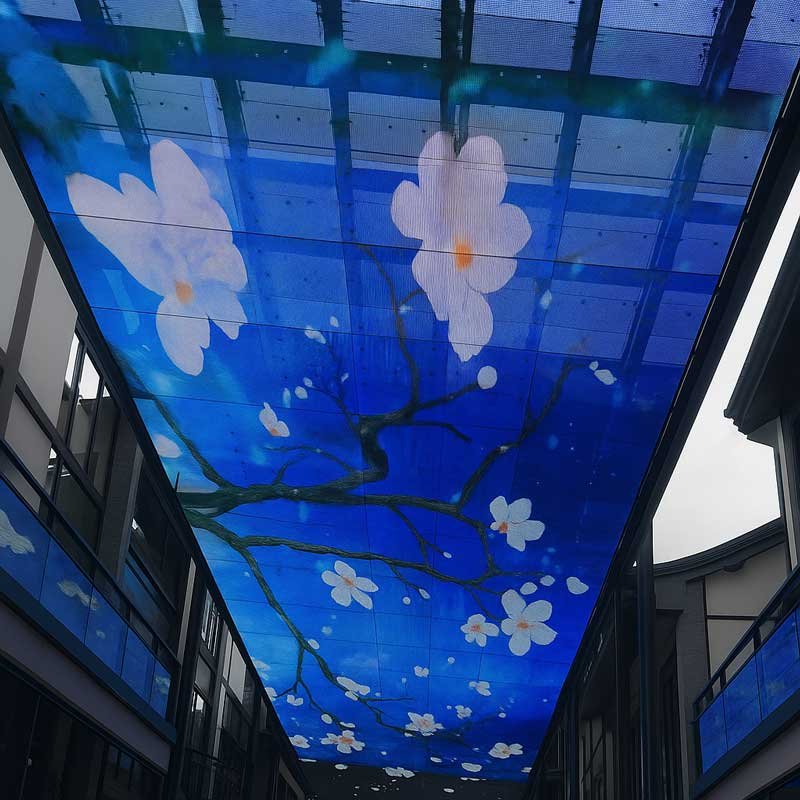

These facade layouts show different relationships between mesh cabinets, architecture and large-format content. Click an image to view it in full.
A large facade media surface presents bold brand imagery to passing traffic. Content detail should follow the actual viewing distance.
A corner layout brings a campaign around two building faces. Cabinet alignment and content mapping follow the facade geometry.
A building-scale mesh layout follows the architectural elevation. Confirm the selected cabinet system and the required curved or faceted support.
A wide campaign area addresses public circulation around a commercial building. Day and night brightness schedules should be planned for the surroundings.
Use the project direction to narrow the cabinet layout and installation requirements. Images open in full; the buttons link to relevant solution pages.
A tall media strip can integrate with the building elevation while leaving other facade areas visible.
Explore the Related Solution →
Bold product and promotional imagery gives a commercial exterior a large media surface for distant viewing.
Explore the Related Solution →
A curved architectural form can carry a coordinated visual theme across the mesh layout. Match the content canvas to the confirmed screen map.
Explore the Related Solution →
An alternative color presentation illustrates how content changes the appearance of the same architectural media direction.
Explore the Related Solution →
A curved commercial facade combines brand imagery with views into the building. Review mounting depth, openings and maintenance as part of the facade layout.
Explore the Related Solution →Other project directions include public plazas, transport-hub exteriors, stadiums and cultural venues, with the cabinet format and installation selected for the site.
Use this product when the display is directly exposed to outdoor weather or mounted on an exterior structure.
Select P12.5–P31.25 using the nearest important viewer position and total facade dimensions.
Choose between 4,000 and 10,000 cd/m² according to orientation, daylight and operating hours.
Provide building drawings, mounting points, local wind data, height and support information.
Protect equipment, connectors, cable entries, drainage, grounding and control locations.
Define front or rear access, platforms, lifting, module replacement and spare parts.
| Project Condition | Possible Starting Direction | Main Review Points |
|---|---|---|
| Direct Sunlight or Strong Daylight | P12.5 or P15.6 at 10,000 cd/m² | Viewing direction, heat, power and automatic brightness control |
| General Daylight Facade | P15.6 × 31.25 at 6,000 cd/m² | Distance, screen area, transparency and image detail |
| Very Large Long-distance or Night-focused Facade | P31.25 at 4,000 cd/m² | Content scale, viewing distance and night brightness limits |
| Mixed Day and Night Operation | Model selected from the real daytime requirement | Use scheduled or automatic dimming to prevent excessive nighttime brightness |
Choose enough brightness for daytime visibility, then reduce it for night operation to lower power use, glare and environmental light impact.
| Viewing Condition | Pitch Direction | Content Approach |
|---|---|---|
| Closer Outdoor Commercial Viewing | P12.5 | Large products, logos and simple promotional messages |
| Medium-distance Facade or Plaza | P12.5 or P15.6 | Brand campaigns, event visuals and high-contrast animation |
| Large Building and Longer Distance | P15.6 × 31.25 | Large movement, short messages and simplified imagery |
| Landmark-scale Long-distance Viewing | P31.25 | Extremely large logos, digital art and minimal text |
Outdoor Mesh Screen is large-format visual media. Small documents, detailed menus, charts and thin technical graphics will not perform well.
| Alternative | Choose Outdoor Mesh When | Choose the Alternative When |
|---|---|---|
| Indoor Transparent LED Display | The display is exposed outdoors and needs IP65 protection. | The installation is indoors or protected behind glass. |
| Transparent LED Film Display | A self-structured outdoor facade system is required. | A lightweight flat-glass indoor screen is sufficient. |
| Flexible Transparent LED Film Display | Weather resistance and facade scale matter. | The surface is curved, cylindrical or creatively shaped indoors. |
| Holographic Transparent LED Display | Large outdoor visibility is the priority. | Fine-pitch minimal obstruction and premium indoor viewing matter. |
| Transparent LED Glass Display | No glass-integrated display structure is required. | The screen must be coordinated with permanent architectural glass. |
| Rental Transparent LED Display | The installation is fixed and long term. | The screen must be repeatedly assembled and transported. |
| Traditional Outdoor LED Display | Openness, airflow and partial visibility are important. | Transparency is unnecessary and maximum solid image density is preferred. |
DisplayMan can support the display-system design, but local qualified professionals must approve the building structure, wind load, steel frame, anchoring, lightning protection, electrical work, fire requirements and construction compliance.
| Related Page | When to Visit |
|---|---|
| Transparent LED Displays | For the complete Transparent LED product family |
| Transparent LED Solutions | For comparing mesh, glass, film, flexible, indoor and rental routes |
| Indoor Transparent LED Display | For protected indoor framed transparent LED displays |
| Transparent LED Film Display | For lightweight flat-glass advertising |
| Transparent LED Glass Display | For display systems supplied with integrated glass |
| Rental Transparent LED Display | For repeated stage and event assembly |
| Transparent LED Facade Solution | For facade media strategy and technology selection |
| Architectural Transparent LED Wall Solution | For building-scale architectural integration |
| Outdoor & Public Display Systems | For environmental, operational and public-display requirements |
| OEM/ODM Display Engineering & Prototyping | For custom structures, drawings and system integration |
A hanging hook provides a mounting point. A rental configuration also needs cabinet locks, alignment features, handling and connections suitable for repeated setup and transport. Confirm the complete rental cabinet design for the venue and weather exposure.
It is an IP65 structural transparent LED display designed for fixed outdoor installation on building facades, exterior walls, steel frames and large public-facing media structures.
Yes. Outdoor LED mesh screen, grille screen and curtain screen may overlap in market naming. The actual pitch, brightness, IP rating, structure, installation and maintenance design are more important than the name.
No. It uses its own mesh, grille or cabinet structure and can be installed on a facade, exterior wall or engineered steel support.
The current published range includes P12.5 × 12.5, P15.6 × 15.6, P15.6 × 31.25 and P31.25 × 31.25.
The supplier table lists 10,000 cd/m² for P12.5 and P15.6, 6,000 cd/m² for P15.6 × 31.25 and 4,000 cd/m² for P31.25. Final calibrated brightness may vary.
The supplier specifications list 75% transparency for all four configurations. Actual visual openness also depends on the facade, content, viewing angle and ambient conditions.
The current specification table lists 500 × 1000 × 70 mm for all four configurations.
The supplier table lists cabinet weight of no more than 8 kg/m². Structural design must use the confirmed complete installed weight, including frames, cables and accessories.
The supplier table lists IP65 for the front and back. Complete-system protection depends on sealed connectors, cable entries, drainage and correct installation.
Viewing distance is project dependent. Select the pitch using the nearest important viewing point, total screen size, content detail and site conditions.
Yes, subject to correct brightness selection, viewing direction, operating schedule and thermal design. Day and night brightness should be managed separately.
No. An open structure may reduce blocking compared with a solid wall, but the complete screen and support structure still require local wind-load and structural calculations.
It can be reviewed, but Indoor Transparent LED Display is normally more practical for protected indoor environments.
The standard format is mainly intended for fixed outdoor projects, with cabinets secured to a support frame. For repeated assembly, transport and dismantling, select an outdoor rental cabinet configuration with quick-release locks and positioning features. See Rental Transparent LED Display.
Facade-mounted, fixed steel-frame and engineered suspension systems can be reviewed. Every route requires project-specific wind-load, structural and maintenance planning.
HDMI or DVI can be connected through a compatible video processor or controller. Synchronous or asynchronous playback and any additional interfaces are selected for the project.
Large logos, high-contrast advertising, product campaigns, architectural animation, event visuals and short messages designed for medium or long viewing work best.
Please provide screen dimensions, facade drawings or photos, viewing distance, installation height, local wind and weather conditions, pitch preference, brightness requirement, support structure, power and cable routes, maintenance access, quantity, budget, schedule and destination.
Send us the screen dimensions, facade drawings, viewing distance, installation height, local wind and weather conditions, pitch and brightness requirements, support structure, waterproof cable routes, maintenance access, quantity, budget and schedule.
We will review the suitable P12.5–P31.25 configuration, cabinet layout, control system and outdoor display integration requirements.
Outdoor Transparent LED Mesh Display is a structural facade system. Wind load, anchoring, electrical work, lightning protection and local construction approval must be completed by qualified local professionals.
Please share your application, display size, quantity and project background. We will review the most practical display direction.
