Sourcing Monochrome COG LCD Display Module Just in One Place

- The Ultimate Solutions

You need more than just a display, you need a veteran supplier who has been in the field for 20 years to build your brand and grow your profits. Let DISPLAYBLY help you achieve business success.

Contact Us

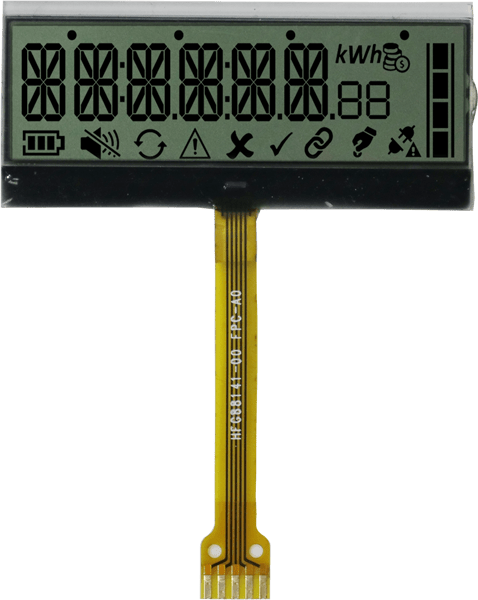

tn segment positive display grey background and black letters cog lcd module.png

Tutorial: Dr Pan Teaches COG LCD Display Module

Dr Pan:Welcome to DISPLAY Museum. I am Dr Pan, the curator of Museum.

Greg: Hello, Dr Pan. I am Greg. I came here to learn about COG LCD Module.

Dr Pan: Hello, Greg. COG is the abbreviation for chip on glass. It is a technology, which IC is bonded directly onto ITO glass. COG technology is usually used in small size dot matrix monochrome LCD module and TFT LCD module.
COG LCD module is so popular because of following reasons.
NO.1, it can greatly reduce the size of the LCD module because it doesn’t have PCB and it can be as thin as 2.0mm (maybe thinner). The thinner the more expensive.
NO.2, it is simple structure and easy for mass production of consumer electronic products, such as: mobile phone, PDA and portable device, etc.
NO.3, it is cost effective over COB LCD and can totally replace COB LCD in function, especially in graphic LCD modules, because it reduces the number of IC.
NO.4, for some dot matrix LCD modules, it is not possible to apply COB LCD technology because it is too crowded to place so many points on the view area. COG LCD is an economical and feasible solution because the pitch is smaller .
NO.5, it is replaceable. It is so easy to replace COG LCD module with FPC connection if it is malfunctioned.

Greg:Thank you, Dr Pan. Now I got it.

Dr Pan: Welcome to contact us if you have any question.

Custom COG LCD Display Module Products

There are more than 100 new prototypes being developed every month and only a few selected typical feature products are displayed.

128 by 64 dot matrix stn positive display blue background and black letters cog lcd module.jpg

Display Type: STN/ Dot Matrix 128*64

Display Size: Customized

Display Mode: Positive/Transmissive

Display effect: Yellow-green Background and Black Letters

Structure: COG+FPC

Backlight: Blue

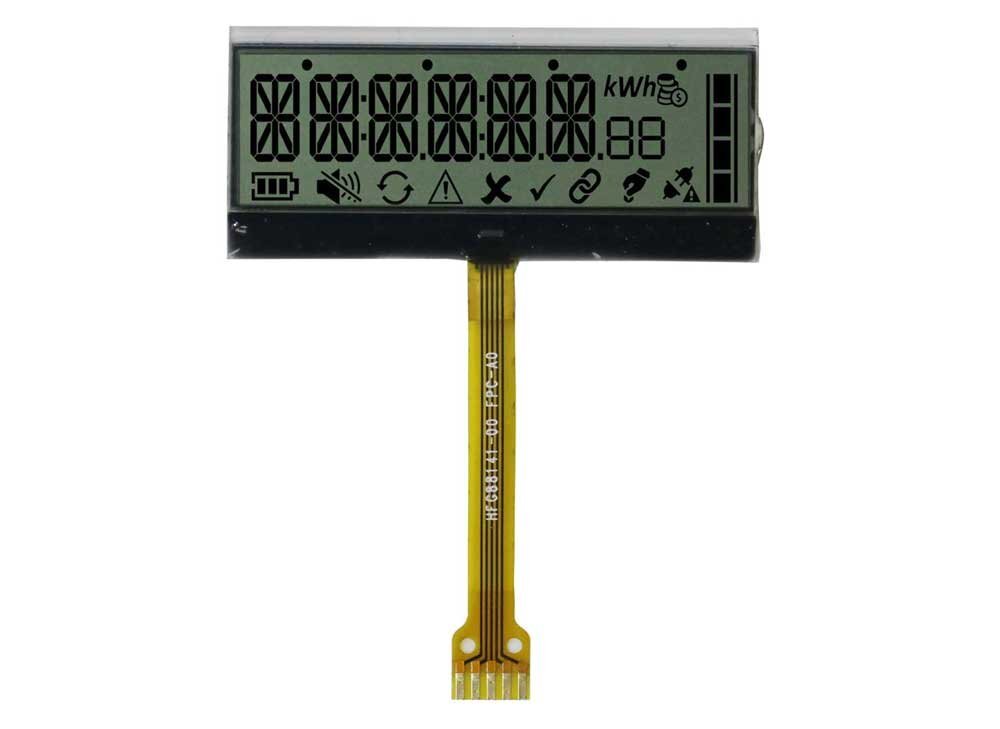

tn segment positive display grey background and black letters cog lcd module.jpg

Display Type: TN / Segment

Display Size: Customized

Display Mode: Positive/Reflective

Display effect: Grey Background and Black Letters

Structure: COG+FPC

Backlight: none

250 by 64 dot matrix fstn positive display grey background and black letters cog lcd module.jpg

Display Type: FSTN / Dot Matrix 250*64

Display Size: Customized

Display Mode: Positive/Transmissive

Display effect: Yellow-green Background and Black Letters

Structure: COB+FPC

Backlight: Red

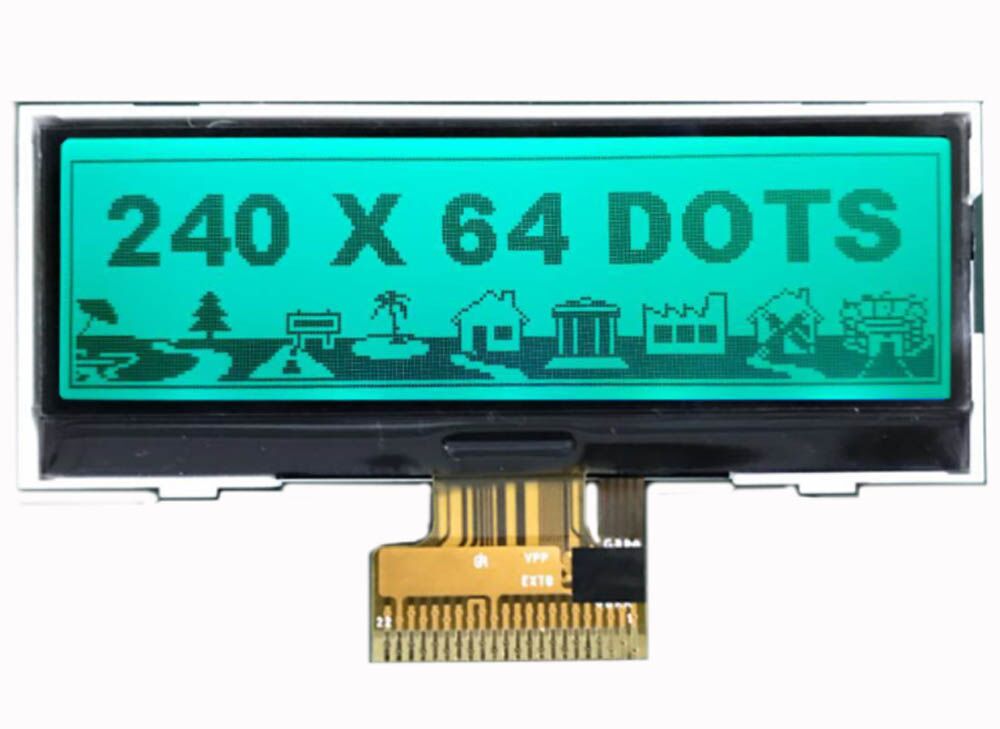

240 by 64 dot matrix fstn positive display grey background and black letters cog lcd module.jpg

Display Type: FSTN / Dot Matrix 240*64

Display Size: Customized

Display Mode: Positive/ Transmissive

Display effect: Grey and Black Letters

Structure: COG+FPC

Backlight: Green

128 by 32 dot matrix fstn negative display blue background and white letters cog lcd module.jpg

Display Type: FSTN / Dot Matrix 128*32

Display Size: Customized

Display Mode: Negative/Transmissive

Display effect: Blue Background and White Letters

Structure: COG+FPC

Backlight: White

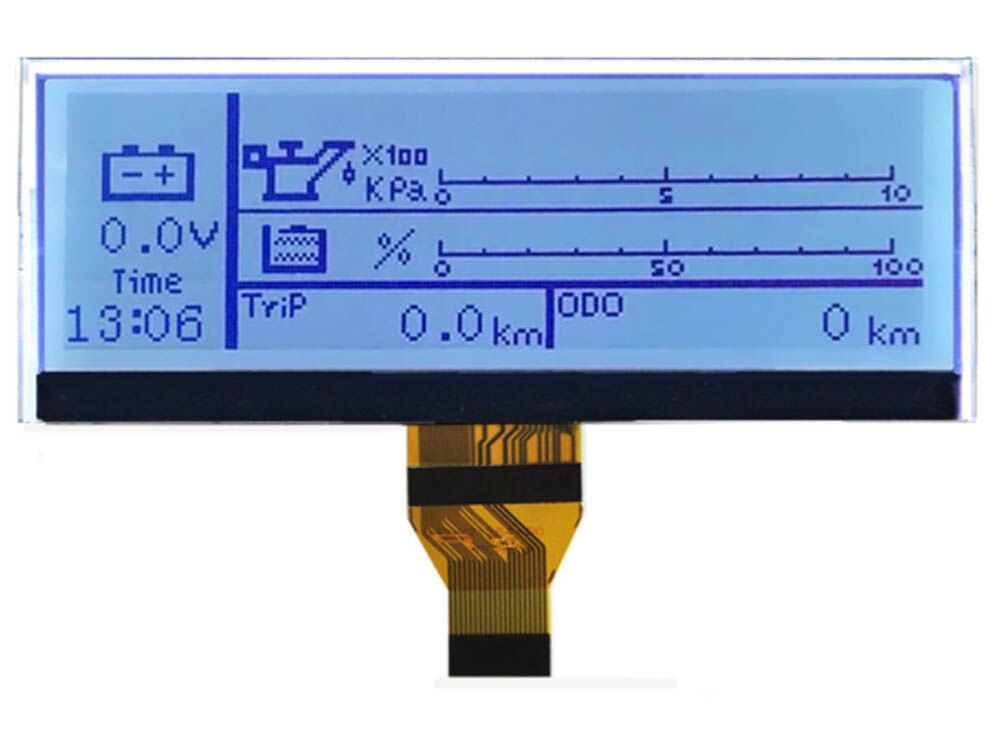

212 by 64 dot matrix fstn positive display grey background and black letters cog lcd module.jpg

Display Type: FSTN / Dot Matrix 212*64

Display Size:Customized

Display Mode: Positive/ Transflective

Display effect: Grey Background and Blue Letters

Structure: COG+FPC

Backlight: White

Quick Quote

Standard COG LCD Display Module Products

Monochrome COG LCD Display Module Solutions For OEMs

COG LCD module= IC+LCD screen+ LED backlight(not necessary)

Monochrome COG LCD Modules are highly popular due to their low-cost and high customization. Our experienced team can develop the right solution with an integrated assembly of different technologies to your hands.

Display Technologies

  • Display type: TN, HTN, STN, FSTN and VA
  • Transmissive, transflective and reflective polarizers
  • Positive and negative modes
  • ITO glass thickness： 0.4mm, 0.55mm, 0.7 mm and 1.1mm
  • Static driving mode and dynamic driving mode
  • Shapes: round, rectangle， octangle and through-holes
  •   View angle: 12 O’clock, 3 O’clock, 6 O’clock, 9 O’clock, and full view angle
  • background-color customization： grey, blue,  yellow-green, black  and so on
128 by 32 dot matrix fstn negative display blue background and white letters cog lcd module.png

Assembly Services

  • Silkscreen: Black mask, red, green, blue, multi-color printing
  • Touch solutions: one-sided ITO film touch technology and double-sided ITO film touch technology
  • In-house backlight assembly
  • customizable PCBA and metal frame
  • Integration with overlay resistive or capacitive touchscreen
  • Surface treatment： strengthened glass，electrostatic prevention, polarizer with UV filter
  • Interface: I2C, SPI
  • Connection: PIN,  FPC

Advantage

  • compact design, suitable for limited space
  • suitable for high-resolution while gaps between each dot are as small as 0.01 mm
  •  simple structure and easy for mass production
  • usually used for small sizes
  • cost-effective over  COB LCD for large quantity
  • easy to replace

3 Ways to Increase the Brightness

  • increase the number of LED lamps
  • use high power consumption LED lamps
  • adopt injection light guide plate

Disadvantage

  • can only achieve simple display function.
  • have to add a PCBA if want to achieve multiple functions. It is called hybrid structure. Highly recommended.
  • tooling fee is a little more expensive.
