Sourcing Monochrome COB LCD Display Module Just in One Place

- The Ultimate Solutions

You need more than just a display, you need a veteran supplier who has been in the field for 20 years to build your brand and grow your profits. Let DISPLAYBLY help you achieve business success.

Custom COB LCD Display Module Products

There are more than 100 new prototypes being developed every month and only a few selected typical feature products are displayed.

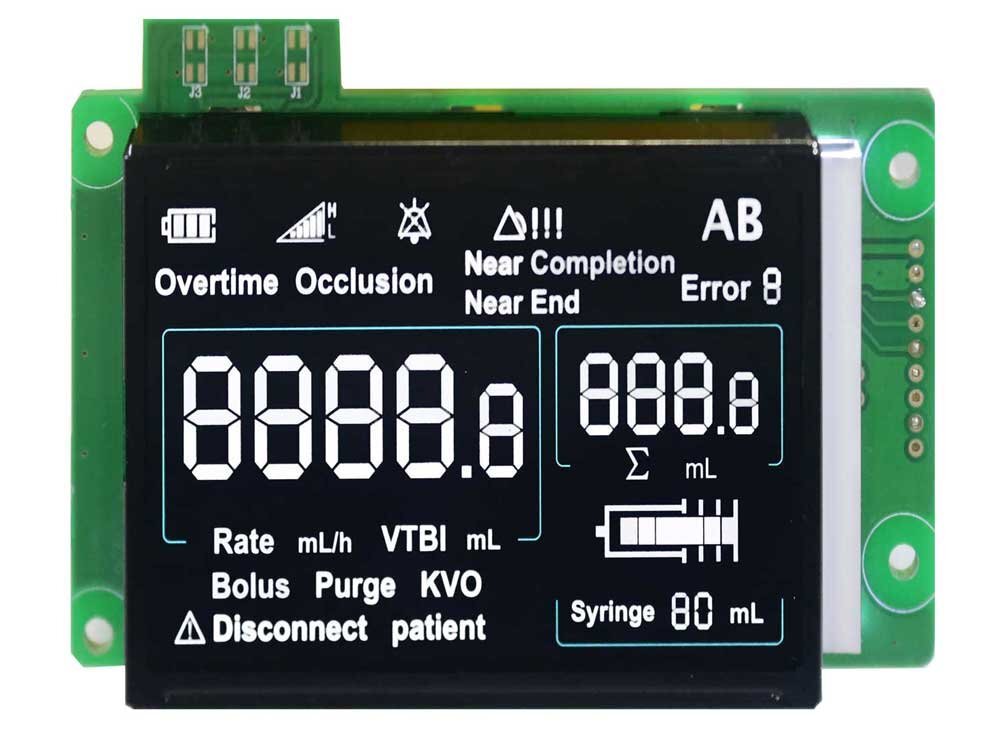

Display Type: VA / Segment

Display Size: Customized

Display Mode: Negative

Display effect: Black Background and White Letters

Structure: COB LCD Module

Application: Medical Equipment

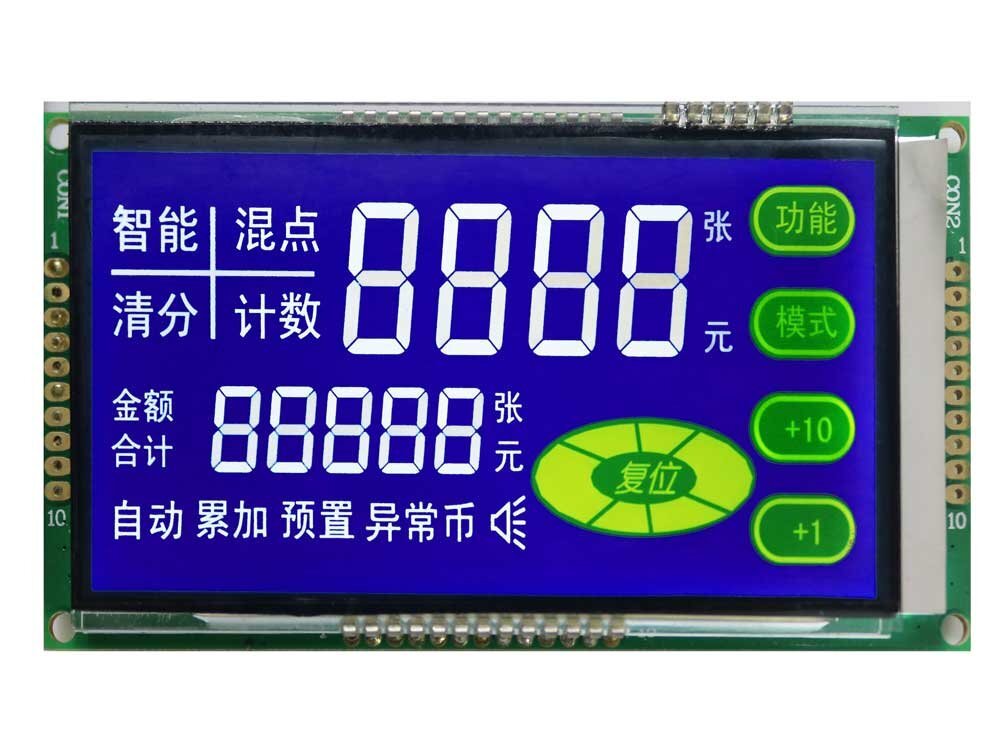

Display Type: STN / Segment

Display Size: Customized

Display Mode: Negative

Display effect: Blue Background and White Letters with Green Silk Printing

Structure: COB LCD Module with Touch Button

Application: Cash Counting machine

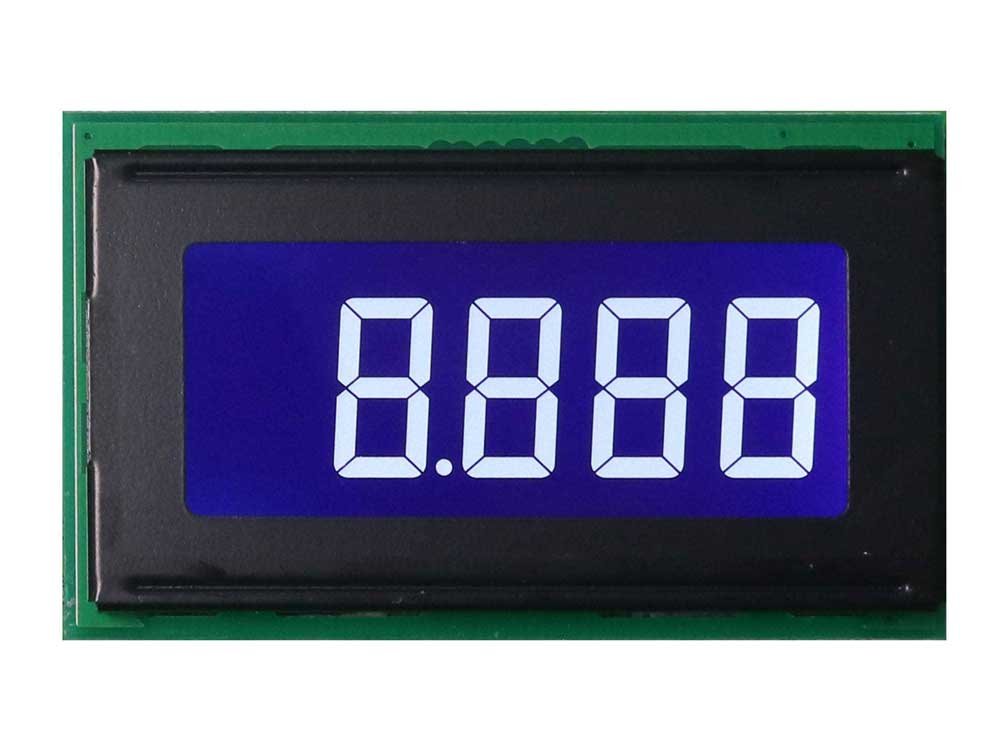

Display Type: STN / Segment

Display Size: Customized

Display Mode: Negative

Display effect: Blue Background and White Letters

Structure: COB LCD Module

Application: Fueling Equipment

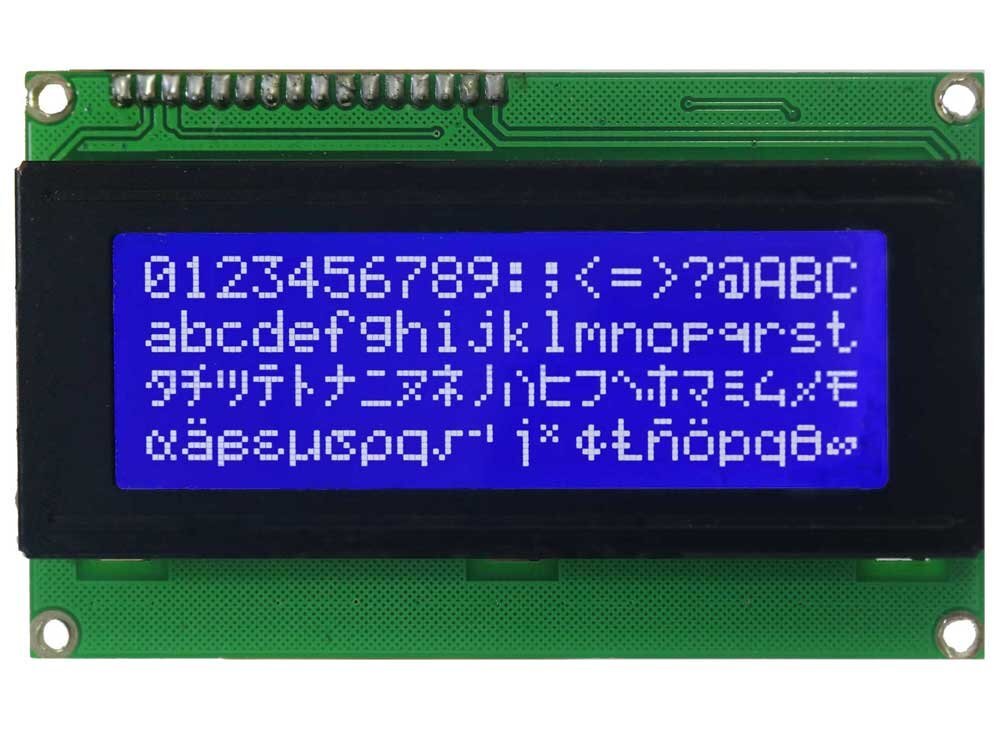

Display Type: FSTN / Dot-matrix

Display Size: Customized

Display Mode: Negative

Display effect: Blue Background and White Letters

Structure: COB LCD Module

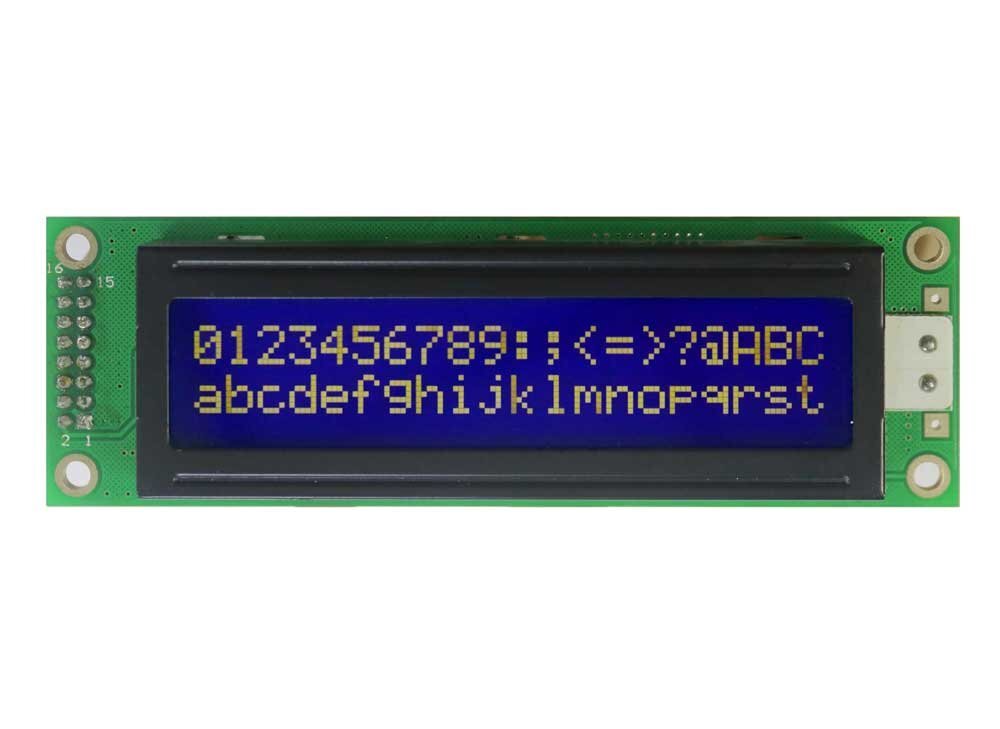

20*2 Character LCD Module

Display Type: FSTN / Dot-matrix

Display Size: Customized

Display Mode: Negative

Display effect: Blue Background and White Letters

Structure: COB LCD Module

128*32 Graphic LCD Module

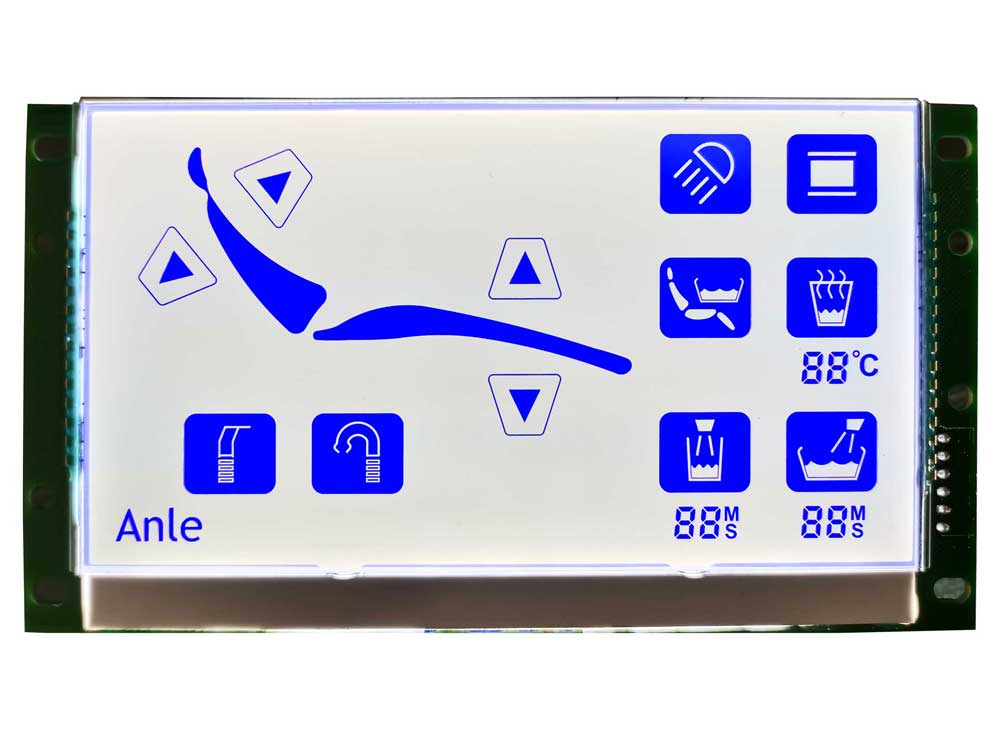

Display Type: STN / Segment

Display Size: Customized

Display Mode: Positive

Display effect: Grey Background and Blue Letters

Structure: COB LCD Module with Touch Button

Application: Water Equipment

Standard COB LCD Display Module Products

Monochrome COB LCD Display Module Solutions For OEMs and ODMs

COB LCD module= PCB + IC+LCD screen+ LED backlight(not necessary)

Monochrome COB LCD Modules are highly popular due to their low-cost and high customization. Our experienced team can develop the right solution with an integrated assembly of different technologies to your hands.

Display Technologies

Display type: TN, HTN, STN, FSTN and VA
Transmissive, transflective and reflective polarizers
Positive and negative modes
ITO glass thickness: 0.4mm, 0.55mm, 0.7 mm and 1.1mm
Static driving mode and dynamic driving mode
Shapes: round, rectangle, octangle and through-holes
View angle: 12 O’clock, 3 O’clock, 6 O’clock, 9 O’clock, and full view angle
background-color customization: grey, blue, yellow-green, black and so on

Assembly Services

Silkscreen: Black mask, red, green, blue, multi-color printing
Touch solutions: one-sided ITO film touch technology and double-sided ITO film touch technology
In-house backlight assembly
customizable PCBA with touch buttons
Integration with overlay resistive or capacitive touchscreen
Surface treatment: strengthened glass, electrostatic prevention, polarizer with UV filter
Interface: I2C, SPI
Connection: PIN, zebra+metal frame (safest solution)

Advantage

High safety and stability (biggest advantage)
usually used for big sizes
suitable for segment LCD display or dot matrix display with big gaps
high customization with complicated functions

3 Ways to increase the brightness

increase the number of LED lamps
use high power consumption LED lamps
adopt injection light guide plate

Disadvantage

big size (biggest disadvantage)
gaps between each segment are big, around 0.1 mm
not suitable for dot matrix display with small gaps
difference to replace
Simple monochrome COB LCD module could be replaced by monochrome COG LCD module.
