Graphic LCD Display - Custom Display Solution Provider

Sourcing Monochrome Graphic LCD Display Module Just in One Place

- The Ultimate Solutions

You need more than just a display, you need a veteran supplier who has been in the field for 20 years to build your brand and grow your profits. Let DISPLAYMAN help you achieve business success.

Tutorial: Dr Pan Teaches Graphic LCD Display Module

Script

Dr Pan: Welcome to DISPLAY Museum. I am Dr Pan, the curator of Museum.

Greg: Hello, Dr Pan. I am Greg. I came here to learn about graphic LCD module.

Dr Pan: Hello, Greg. Graphic LCD module is one special dot matrix LCD Module with stationary size and resolution, operation voltage, interface,etc.

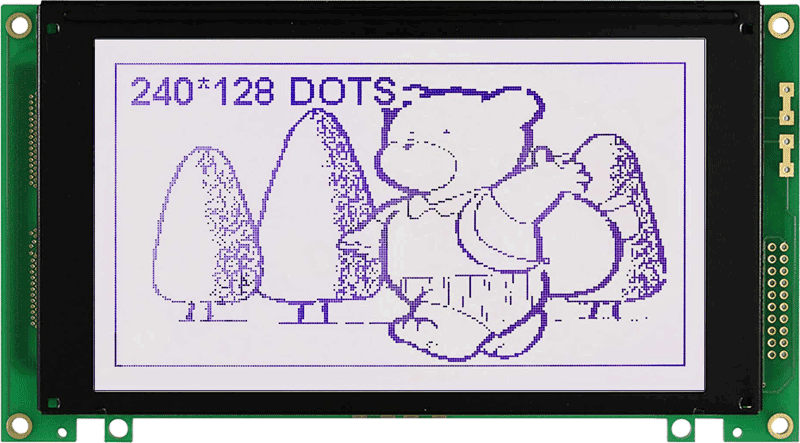

Take 240*128 graphic LCD module for example. There are 240 dots horizontally, 128 dots vertically. Outer dimension 170.0×93.4 mm and active area 120.0×64.0 mm. When you develop a custom dot matrix LCD module, it can be any length and width, resolution, but it takes a lot of time and great efforts to develop it. The most widely used dot matrix LCD modules with specific sizes were made public and it is very convenient for everyone to get them with no tooling fee. You will not have a lot of options when you choose a graphic LCD module, a custom dot matrix LCD module is still your first choice.

Greg: Thank you, Dr Pan. Now I got it.

Dr Pan: Welcome to contact us if you have any questions.

Custom Graphic LCD Display Module Products

There is a wide range of standard Graphic LCD modules and only a few selected typical feature products are displayed.

Display Type: FSTN / Graphic

Display Content: 128*32 dot matrix

Display Mode: Negative/ Transmissive

Display effect: Blue Background and White Letters

Structure: COB+Zebra+Metal Frame

Backlight: White

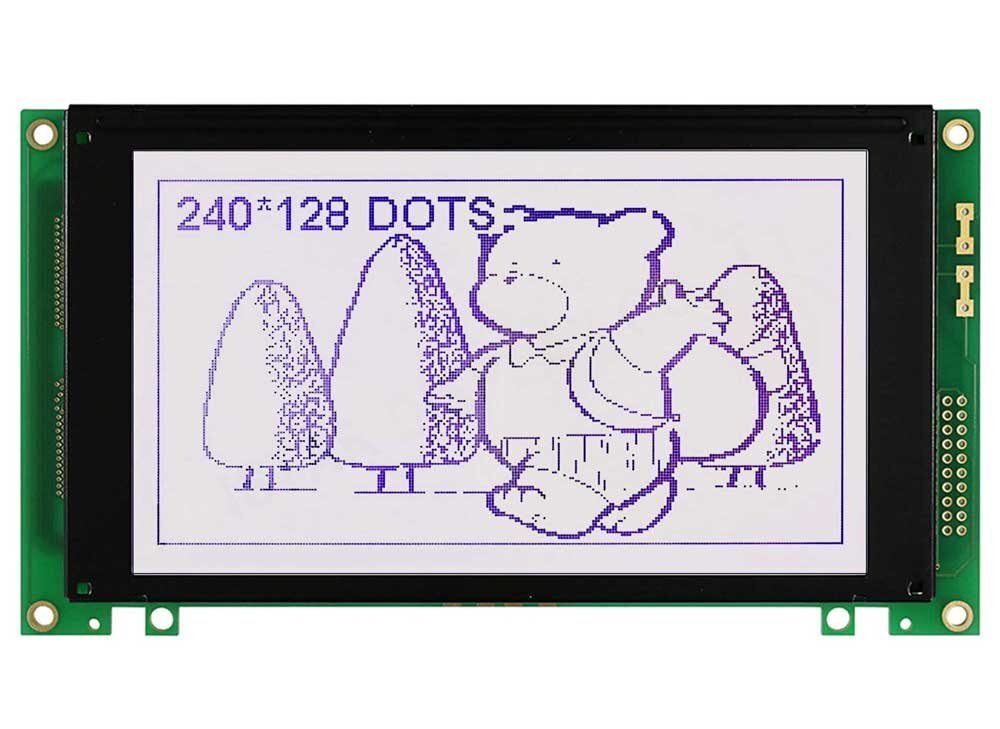

Display Type: FSTN / Graphic

Display Content: 240*128 dot matrix

Display Mode: Negative/ Transmissive

Display effect: Dark Purple Background and White Letters

Structure: COB+Zebra+Metal Frame

Backlight: Green

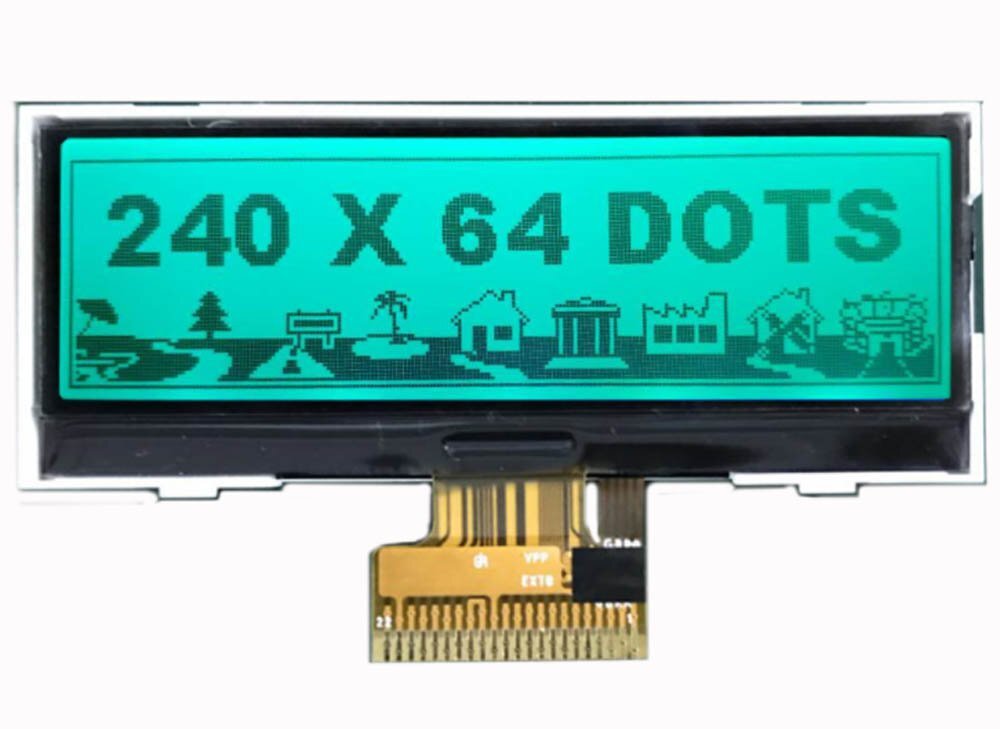

Display Type: FSTN / Graphic

Display Content: 240*64 dot matrix

Display Mode: Positive/ Transmissive

Display effect: Grey Background and Black Letters

Structure: COG+FPC

Backlight: Green

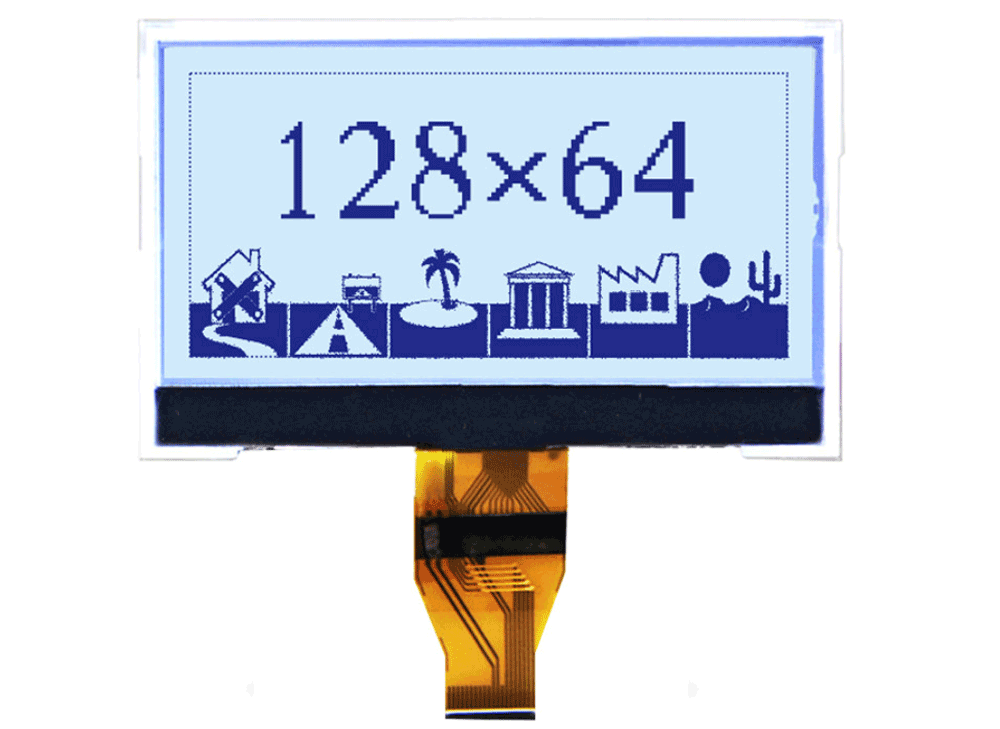

Display Type: FSTN / Graphic

Display Content: 128*64 dot matrix

Display Mode: Positive/ Transmissive

Display effect: Grey Background and Blue Letters

Structure: COG+FPC

Backlight: White

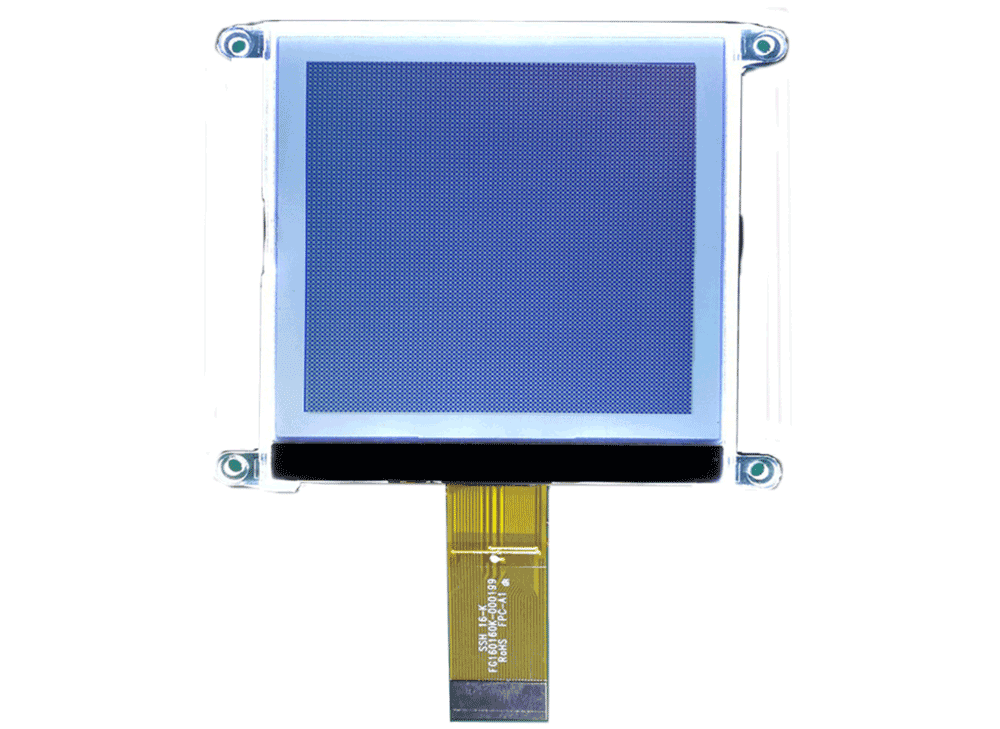

Display Type: FSTN / Graphic

Display Content: 160*160 dot matrix

Display Mode: Positive/ Transmissive

Display effect: Grey Background and Blue Letters

Structure: COG+FPC

Backlight: White

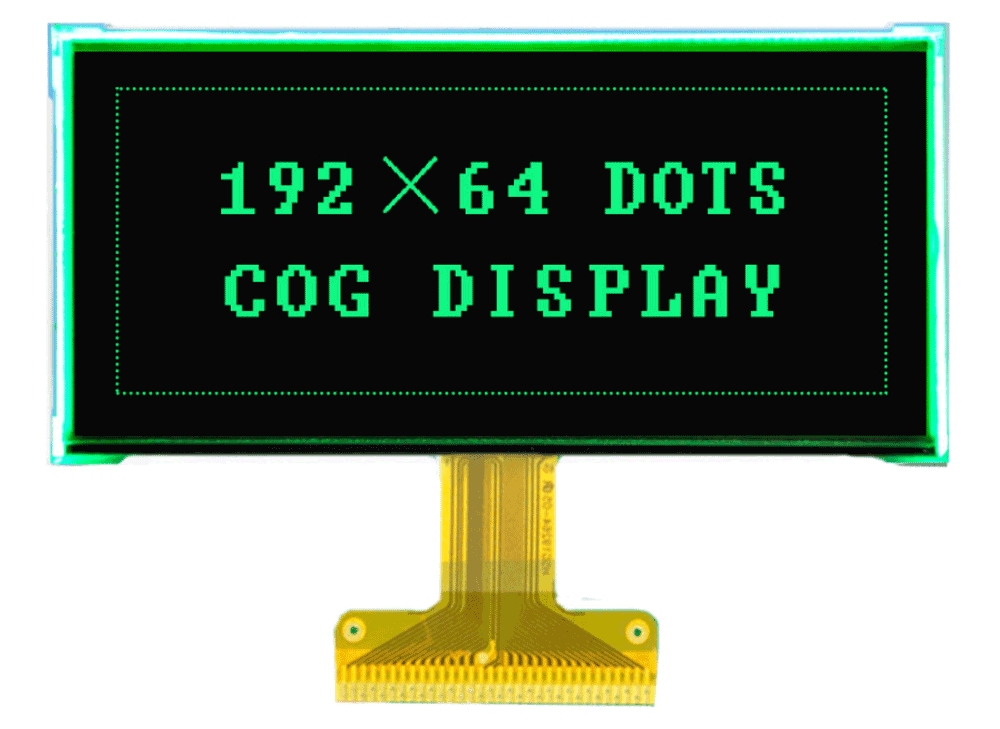

Display Type: FSTN / Graphic

Display Content: 192*64 dot matrix

Display Mode: Negative/ Transmissive

Display effect: Black Background and White Letters

Structure: COG+FPC

Backlight: Green

Standard Graphic LCD Display Module Products

Monochrome Graphic LCD Display Module Solutions For OEMs

DislayMan offers a wide range of standard graphic LCD modules for customers’ applications. Our graphic LCD displays are available from 122×32, 144×32, 128×64,,128×128，160×160, 192×64, 240×64，240×128, 320×240 and etc.

Advantage

No tooling fee
Free samples for long time customers
Save the time of development
Short delivery time
easy for customization

Disadvantage

Limited options
Tooling fee is required and at least 2 weeks for customization

Ask For A Quick Quote

We will contact you within 1 working day, please pay attention to the email with the suffix “@displayman.com”.
