Custom OLED Display Supplier

- The Ultimate Solutions

Explore the forefront of OLED innovation with DisplayMan, specializing in superior visual quality, energy efficiency, and customization options. From automotive to medical and beyond, experience the transformative power of OLED displays.

Custom OLED Display Products

Embark on a journey of innovation and excellence with DisplayMan’s cutting-edge OLED displays. Witness a visual revolution that redefines clarity, customization, and collaboration. Experience the power of OLED technology and the expertise of DisplayMan as they shape the landscapes of industries across the spectrum. Dive into the world of transformative displays and elevate your visual experience today.

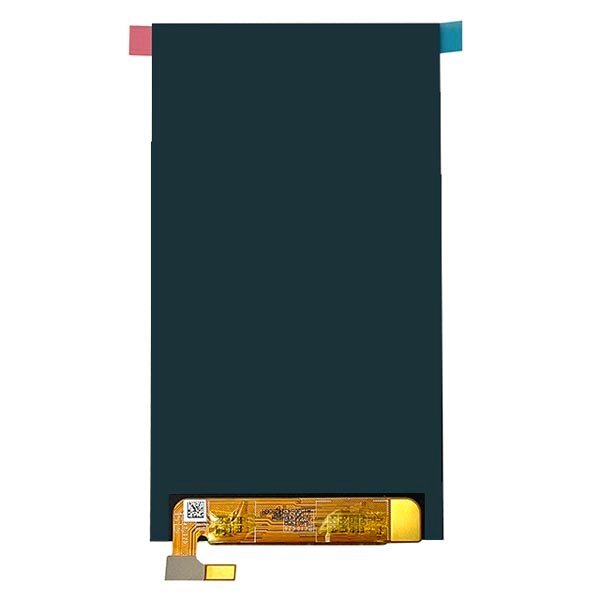

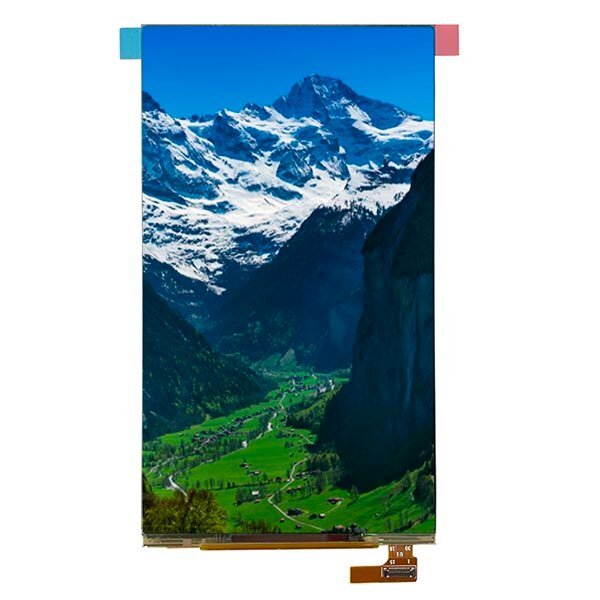

5.5 inch amoled phone display hd rgb 7201280 mipi 4 lanes interface lcd module flexible oled screen with touch panel 1

5.5 inch amoled phone display hd rgb 7201280 mipi 4 lanes interface lcd module flexible oled screen with touch panel 2

ITEM	DIMENSION	UNIT
Size (Diagonal)	5.5 AMOLED	inch
Dot Matrix / Resolution	720(W)x RGB x 1280(H)	dots
Module Dimension	72.80131.201.81	mm
LT PS Glass Dimension	72.80*131.20	mm
Active Area	69.12*122.88	mm
Interface	MIPI 4 lanes
Glass Thickness	0.5/0.5	mm
Operating Temperature	-20~+70	°C
Storage Temperature	-40~+80	°C

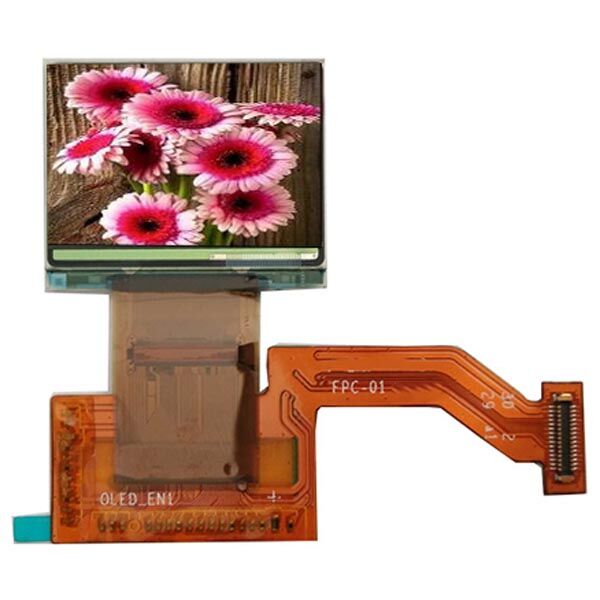

0.95 inch 180 120 amoled 1

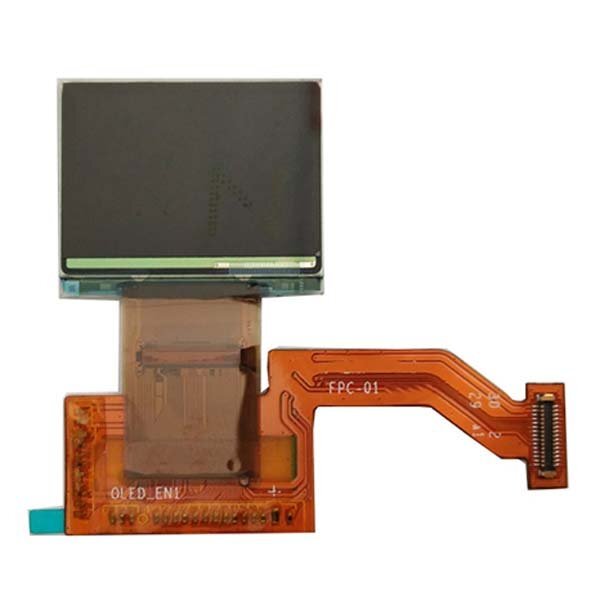

0.95 inch 180 120 amoled 2

ITEM	DIMENSION	UNIT
Size (Diagonal)	0.95 AMOLED	inch
Dot Matrix / Resolution	180(W) x RGB x 120(H)	dots
Module Dimension	22.23×18.32×0.75mm	mm
LT PS Glass Dimension	22.23×18.32	mm
Active Area	20.03×13.36	mm
Dot/ Pixel Pitch	111.3 x111.3	μm
Glass Thickness	0.2/0.3	mm
Operating Temperature	-20~+70	°C
Storage Temperature	-40~+80	°C

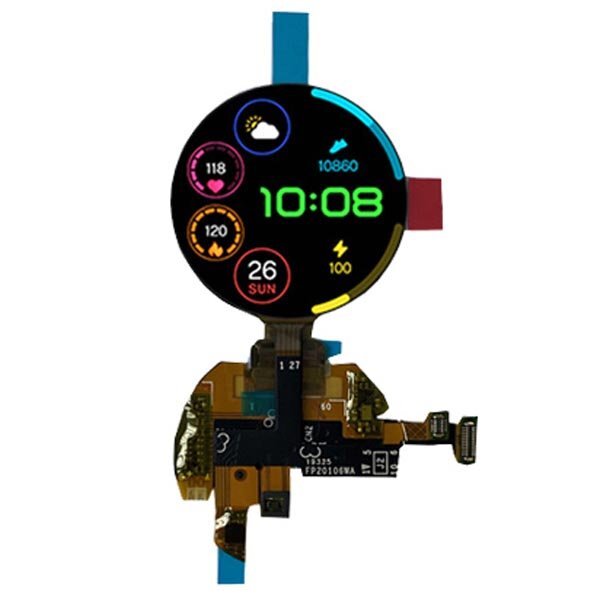

1.2 inch 390 390 amoled 1

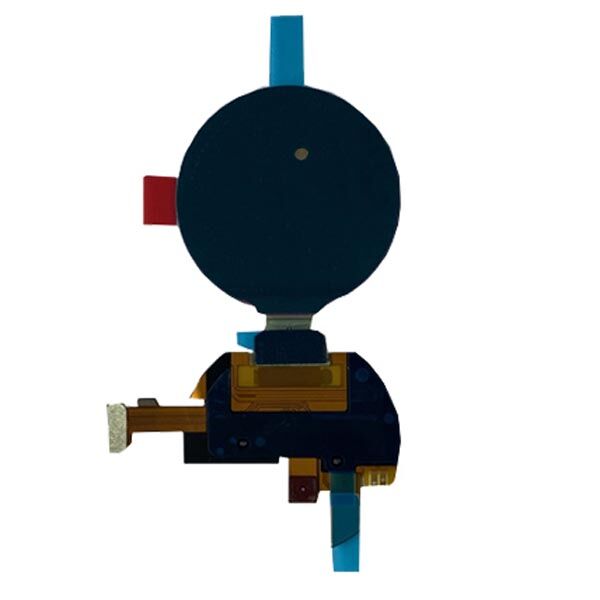

1.2 inch 390 390 amoled 2

ITEM	DIMENSION	UNIT
Size (Diagonal)	1.2 AMOLED	inch
Dot Matrix / Resolution	390(W) x RGB x 390(H)	dots
Module Dimension	33.99×33.62×0.78mm	mm
Connection Method	PCB
Active Area	30.42*30.42	mm
Interface	MIPI/SPI
Glass Thickness	0.2/0.3	mm
Operating Temperature	-20~+70	°C
Storage Temperature	-40~+80	°C

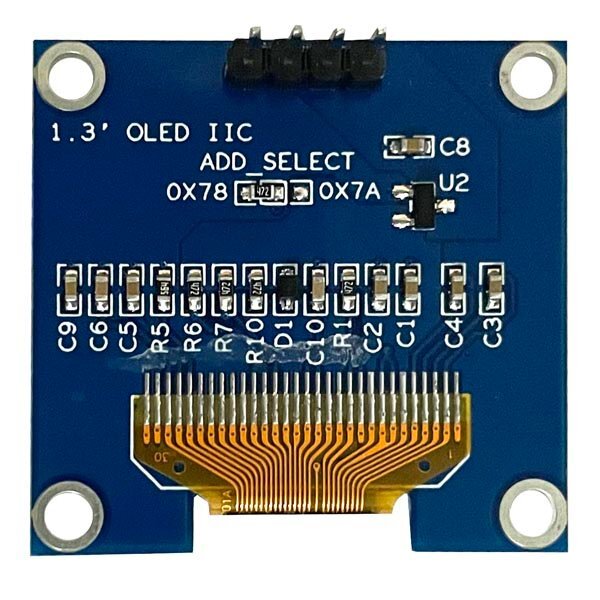

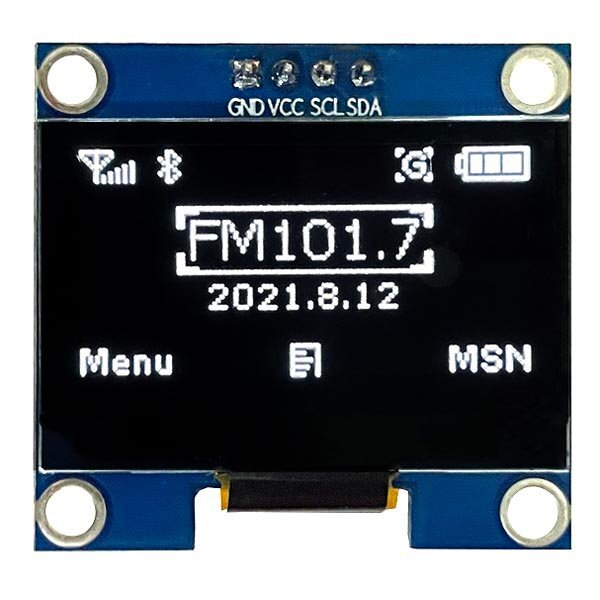

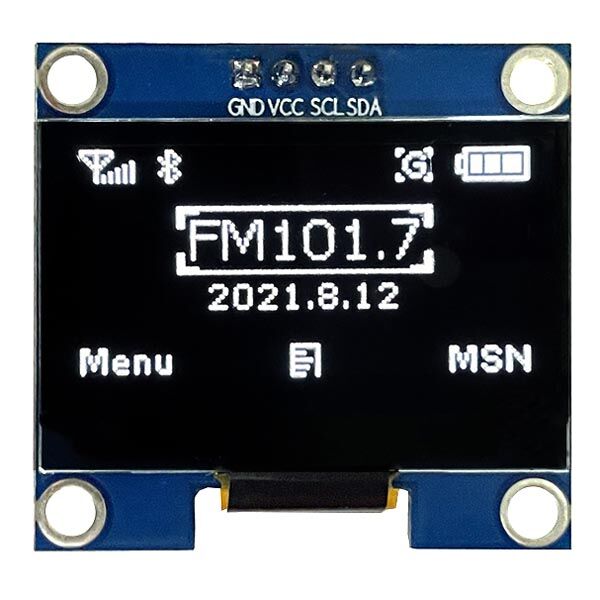

1.3 inch oled 128 64 dots iic interface ic sh1106 monochrome module with driver board 1

1.3 inch oled 128 64 dots iic interface ic sh1106 monochrome module with driver board 2

ITEM	DIMENSION	UNIT
Size (Diagonal)	1.3 PMOLED	inch
Dot Matrix / Resolution	128*64	dots
Module Dimension	35.40L33. 50W2. 70 (MAX) H	mm
Connection Method	4 PINs
Active Area	29.42*14.70	mm
Interface	I2C
IC	SH1106
Operating Temperature	-20~+70	°C
Storage Temperature	-40~+80	°C

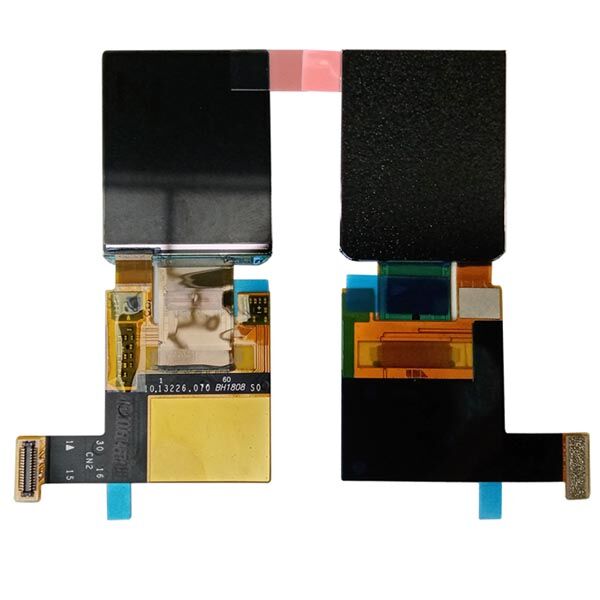

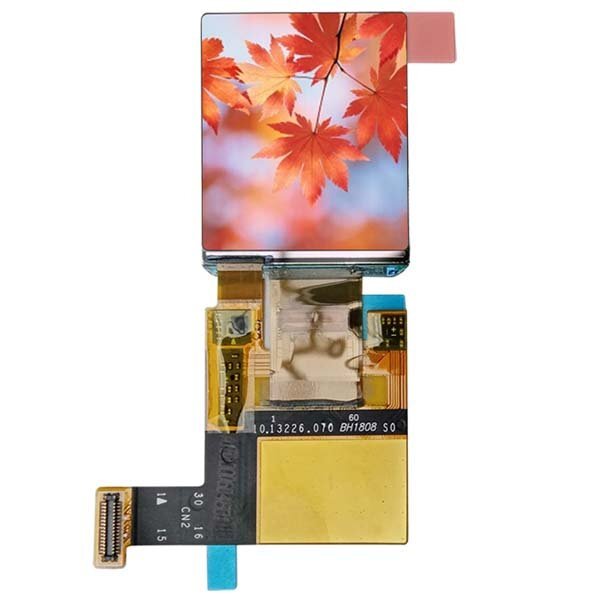

1.41 inch amoled 320360 mipi interface rgb 8 bit lcd tft module for smart watch 1

1.41 inch amoled 320360 mipi interface rgb 8 bit lcd tft module for smart watch 2

ITEM	DIMENSION	UNIT
Size (Diagonal)	1.41 AMOLED	inch
Dot Matrix / Resolution	320(W) x RGB x 360(H)	dots
Module Dimension	26.04×31.78*0.75	mm
LT PS Glass Dimension	26.04×31.78	mm
Active Area	23.84×26.82	mm
Interface	MIPI
Glass Thickness	0.2/0.3	mm
Operating Temperature	-20~+70	°C
Storage Temperature	-40~+80	°C

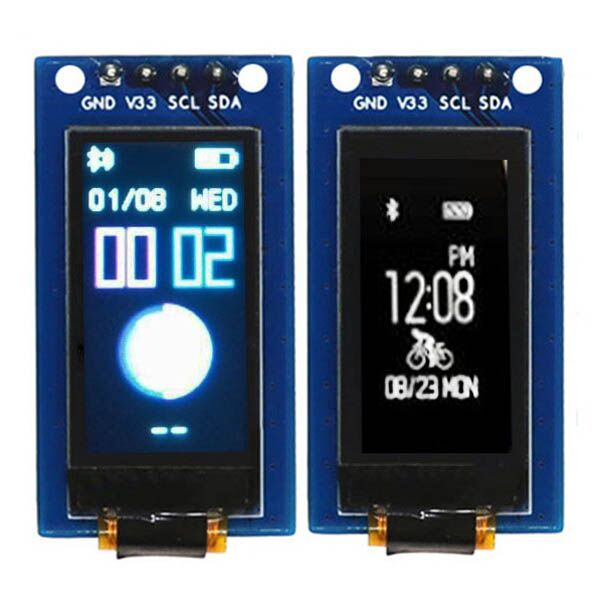

0.96 inch portrait 64 128 pmoled 1

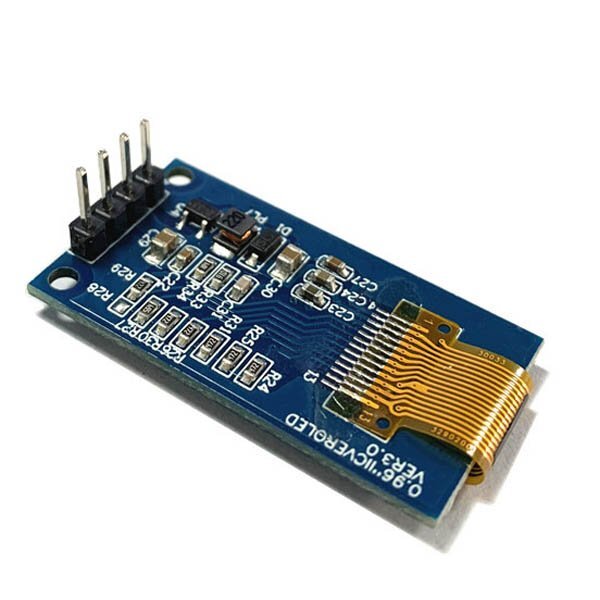

0.96 inch portrait 64 128 pmoled 2

ITEM	DIMENSION	UNIT
Size (Diagonal)	0.96 PMOLED	inch
Dot Matrix / Resolution	128*64	dots
Module Dimension	27.0L27.0W4.15 (MAX) H	mm
Connection Method	4 PINs
Active Area	21.74*10.86	mm
Interface	I2C/SPI
IC	SH1107
Operating Temperature	-20~+70	°C
Storage Temperature	-40~+80	°C

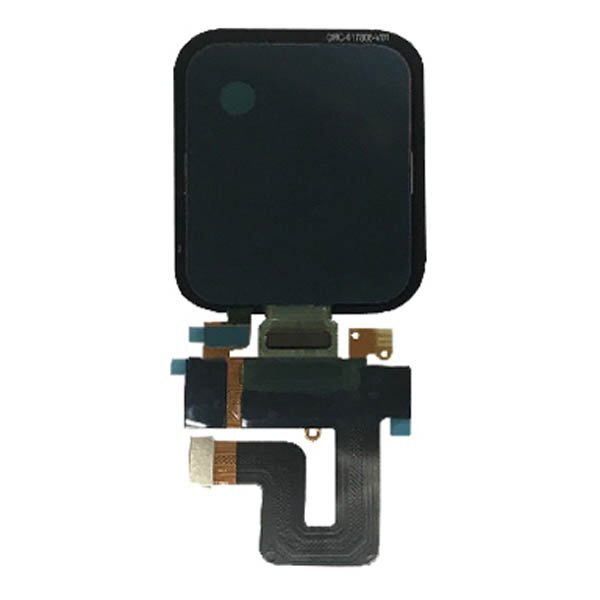

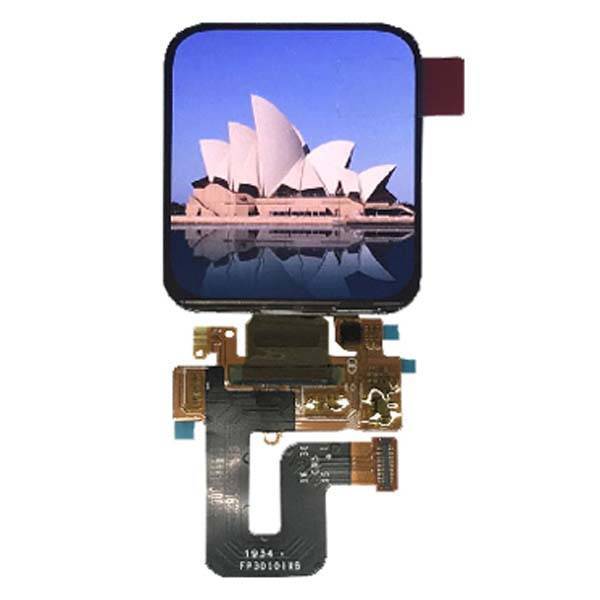

1.78 inch 368 448 amoled 1

1.78 inch 368 448 amoled 2

ITEM	DIMENSION	UNIT
Size (Diagonal)	1.78 AMOLED	inch
Dot Matrix / Resolution	368(W) x RGB x 448(H)	dots
Module Dimension	30.6X37.99X0.8	mm
Connection Method	FPC
Active Area	28.7X34.94	mm
Interface	MIPI/SPI
IC	RM69090
Operating Temperature	-20~+70	°C
Storage Temperature	-40~+80	°C

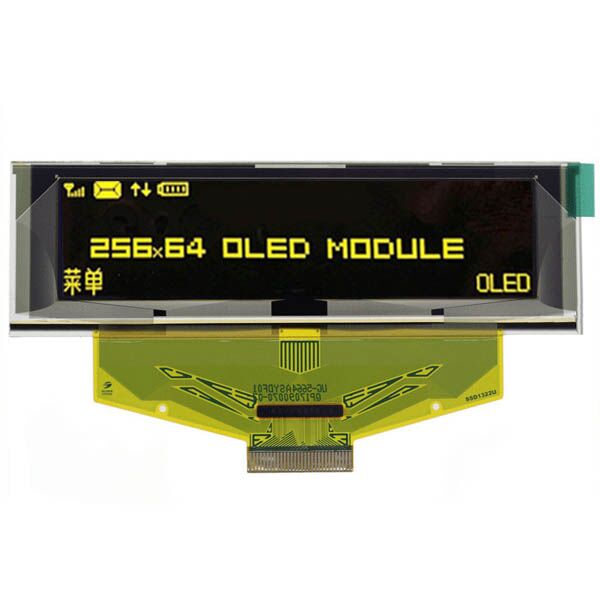

2.8 inch landscape 256 64 pmoled 1

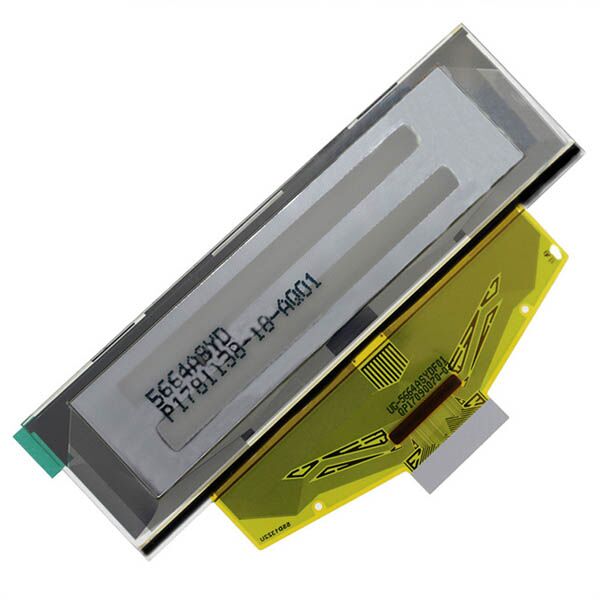

2.8 inch landscape 256 64 pmoled 2

ITEM	DIMENSION	UNIT
Size (Diagonal)	2.8 PMOLED	inch
Dot Matrix / Resolution	256*64	dots
Module Dimension	84.0L25.8W2.0 (MAX) H	mm
Connection Method	30 PINs
Active Area	69.10*17.26	mm
Interface	I2C/SPI
IC	SSD1322U
Operating Temperature	-20~+70	°C
Storage Temperature	-40~+80	°C

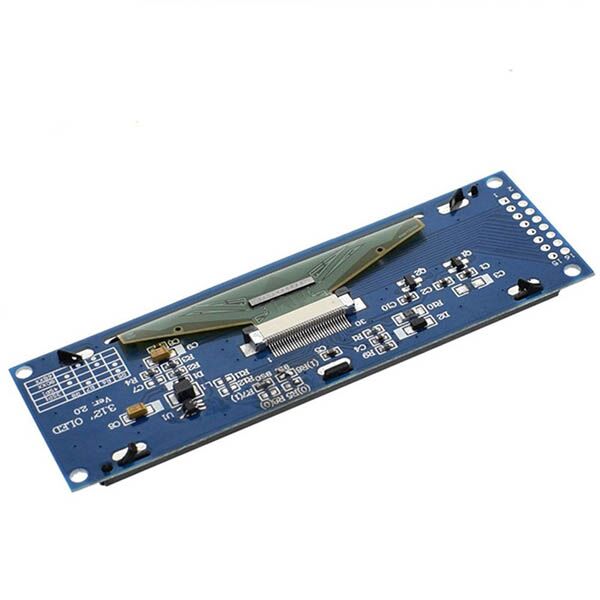

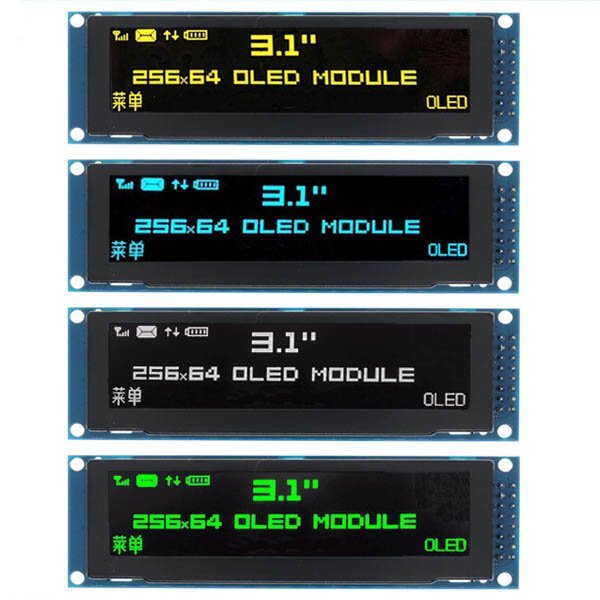

3.12 inch landscape 256 64 pmoled 1

3.12 inch landscape 256 64 pmoled 2

ITEM	DIMENSION	UNIT
Size (Diagonal)	3.12 PMOLED	inch
Dot Matrix / Resolution	256*64	dots
Module Dimension	100.5L33.5W6.3(MAX) H	mm
Connection Method	16 PINs
Active Area	76.78*19.18	mm
Interface	SPI
IC	SSD1322
Operating Temperature	-20~+70	°C
Storage Temperature	-40~+80	°C

AMOLED vs PMOLED – Which OLED Display Is Right for You?

Feature	AMOLED (Active-Matrix OLED)	PMOLED (Passive-Matrix OLED)
Driving Method	Active-matrix (TFT backplane controls each pixel individually)	Passive-matrix (rows and columns are addressed sequentially)
Control Circuit	Integrated into each pixel; allows precise control	External controller handles row/column scanning
Power Efficiency	More efficient for larger or dynamic displays	Less efficient; higher power for larger displays
Display Size	Suitable for small to large sizes (e.g., phones, TVs)	Limited to small sizes (usually <3″)
Resolution	High resolution (HD, 4K and beyond)	Low resolution (typically <256×64)
Refresh Rate	High (smooth video and animation support)	Lower; not suitable for fast motion
Lifespan	Longer, especially with proper driving and materials	Shorter; affected by higher current and heating
Color Range & Brightness	Wide color gamut, high brightness, true blacks	Basic color (often monochrome or RGB), limited brightness
Cost	Higher (due to TFT integration and complexity)	Lower (simpler structure and manufacturing)
Applications	Smartphones, tablets, TVs, smartwatches, transparent/flexible displays	Wearables, small indicators, industrial meters, simple UI screens

Standard OLED Displays

Embarking on a Journey into OLED Display Innovation

In a world where technology reigns supreme, the realm of display screens has seen remarkable progress. Among the innovations that have captivated our senses and redefined visual experiences, OLED (Organic Light Emitting Diode) displays stand out prominently. At the forefront of this transformative wave is DisplayMan, a distinguished supplier specializing in these cutting-edge displays.

what makes us different

Revolutionizing Visuals: DisplayMan's OLED Expertise

DisplayMan's Distinction

In the realm of OLED displays, DisplayMan emerges as a beacon of exceptional expertise. Their dedication to pushing the boundaries of display technology sets them apart as leaders in the field.

Harnessing Organic Materials

The genesis of this innovation lies in the intricate behavior of organic materials. When an electric current passes through these materials, they emit light as a natural response. This phenomenon forms the bedrock of OLED technology, enabling displays to radiate brilliance while consuming minimal energy.

Emission of Light

What sets OLED displays apart from traditional screens is their unique ability to emit light autonomously, without relying on external light sources. This groundbreaking innovation leads to displays that are self-illuminating, resulting in a level of visual richness that was previously unattainable.

The Outcome: Thin, Lightweight, Energy-Efficient Displays

The culmination of DisplayMan's expertise and OLED technology is the creation of displays that exhibit remarkable attributes. These displays boast an extraordinary thinness and feather-light weight, revolutionizing the aesthetics of visual interfaces. Moreover, the energy efficiency inherent in OLED technology aligns with modern demands for sustainability and environmental consciousness.

Advantages of OLED Technology

In the intersection of DisplayMan’s OLED expertise and the potential of OLED technology, a new era of visual displays dawns. The union of innovation, meticulous craftsmanship, and technological prowess paints a picture of possibilities that extends far beyond the confines of traditional screens. As DisplayMan continues to push the boundaries of what’s possible, their contribution to the visual landscape becomes a testament to the power of human ingenuity.

Transformation of Visual Perception

The advent of OLED technology has ushered in a transformative era in how we perceive visuals. The marriage of cutting-edge innovation and human perception has given rise to displays that mirror reality with unparalleled fidelity.

Elevated Contrast Ratios

OLED displays excel in delivering high contrast ratios that infuse images with depth and vibrancy. Every shade is rendered with exceptional clarity, from the darkest blacks to the brightest whites, resulting in a visual spectrum that captures nuances and subtleties with astonishing precision.

Seamless Realism with Rapid Response Times

The swiftness with which OLED pixels transition from one state to another has a profound impact on visual experiences. Rapid response times eliminate motion blur and create a seamless bridge between reality and the digital world, enhancing immersion in content.

True Blacks and Enhanced Contrast

One of the most remarkable achievements of OLED technology is the elimination of the need for a backlight. Unlike LCD displays, which rely on a backlight that can bleed into dark areas, OLEDs can switch off individual pixels completely, creating true black colors. This achievement not only elevates contrast levels but also enhances the authenticity of visuals.

An Achievement LCD Screens Couldn't Reach

The ability to achieve true black colors and enhance contrast without a backlight has long proven elusive for LCD displays. This unmet challenge underscores the exceptional nature of OLED technology and the advancements DisplayMan brings to the forefront.

Diverse Range of OLED Display Panel Sizes

DisplayMan's commitment to innovation is evident in their diverse range of OLED display panel sizes. From small, wearable-device-sized screens to expansive panels that redefine cinematic experiences, DisplayMan ensures that every application and need is met with precision and customization.

AMOLED and PMOLED: Exploring Their Flexibility

OLED displays come in a range of varieties, each designed specifically to meet certain needs.

AMOLED (Active Matrix Organic Light Emitting Diode) screens, for example, are used in some of the most high-end devices. Premium smartphones, top-of-the-line televisions, and other high-end gadgets use the unmatched visual capabilities of AMOLED displays to provide an immersive experience that exceeds expectations.

On the other hand, PMOLED (Passive Matrix Organic Light Emitting Diode) screens, while equally impressive, serve a different purpose. These displays are commonly found in wearable devices, small appliances, and even industrial equipment, making them the unsung heroes of small yet impactful displays.

OLED vs LCD: A Visual Revolution

In the ever-evolving saga of technological advancement, the OLED vs LCD debate has sparked intense discussions. OLEDs hold a significant edge in multiple aspects. The contrast ratios they offer are unmatched, breathing life into images with vivid clarity. Wider viewing angles ensure that the visual spectacle remains consistent from various vantage points. Moreover, OLEDs boast response times so rapid that motion blur becomes a thing of the past.

Challenges and Triumphs: Unveiling OLED's Path

However, like any grand tale, there are challenges that OLED technology faces. The lifespan of blue OLEDs has raised concerns, necessitating ongoing research for sustainable solutions. Additionally, the manufacturing costs of OLED displays have historically been higher compared to LCDs. Yet, these hurdles have not dampened the revolutionary potential of OLEDs, which continue to reshape our visual landscape.

DisplayMan's Artistry: Crafting Custom OLED Displays

DisplayMan’s reputation as a master of customization rests on their ability to seamlessly blend innovation, precision, and adaptability. Each tailored display they craft is a testament to their artistry and commitment to pushing the boundaries of what displays can achieve.

Beyond Stock Displays

DisplayMan’s commitment to excellence extends beyond conventional displays. They specialize in the art of customization, catering to unique needs and preferences.

Tailored Solutions

With a mastery of customization, DisplayMan offers solutions tailored to specific requirements. This ensures that every display is precisely aligned with its intended purpose.

Protective Cover Lens

DisplayMan’s expertise includes the integration of protective cover lenses. These lenses safeguard the delicate OLED screens, enhancing their durability.

Seamless Connections with FPC

The Flexible Printed Circuit (FPC) technology embraced by DisplayMan facilitates seamless connections within the display. This ensures consistent performance and longevity.

Graceful Adaptation to Unconventional Spaces

DisplayMan’s displays possess a remarkable flexibility that allows them to adapt gracefully to unconventional spaces. This flexibility opens doors to innovative design possibilities.

OLED Displays: Where Innovation Finds Its Canvas

OLED displays, with their versatile applications, exemplify how innovation can shape and enhance diverse industries. Their impact is felt across sectors, from the driver’s seat to the operating room, from factories to entertainment realms, reaffirming their role as a catalyst for positive change.

Diverse Industry Applications

OLED displays are a transformative force in various industries, redefining their landscapes with their remarkable capabilities.

Automotive Brilliance

In the automotive sector, OLEDs take center stage by illuminating dashboards and infotainment systems. The clarity and sophistication they provide enhance the driving experience.

Precision in Medicine

The medical field benefits from OLED’s precision and exceptional visualization capabilities. These displays aid in diagnostics and surgeries, empowering medical professionals with accurate insights.

Enhancing Industrial Processes

In industrial settings, OLEDs play a pivotal role in enhancing process controls and monitoring systems. Their brilliance contributes to improved efficiency and productivity.

Heart of Consumer Electronics

From smartwatches to gaming devices, OLEDs form the vibrant heart of the consumer electronics landscape. Their visual prowess creates immersive and captivating experiences.

Continuous Evolution

As OLED technology evolves, its transformative influence continues to expand. Innovations pave the way for new applications, ensuring that OLEDs remain at the forefront of technological progress.

Unveiling the Craft: OLED Manufacturing and Quality Assurance

Embarking on the journey of OLED manufacturing with DisplayMan is a testament to their pursuit of excellence. From inception to production, every step is a testament to their commitment to delivering displays that are not only visually captivating but also of the highest quality.

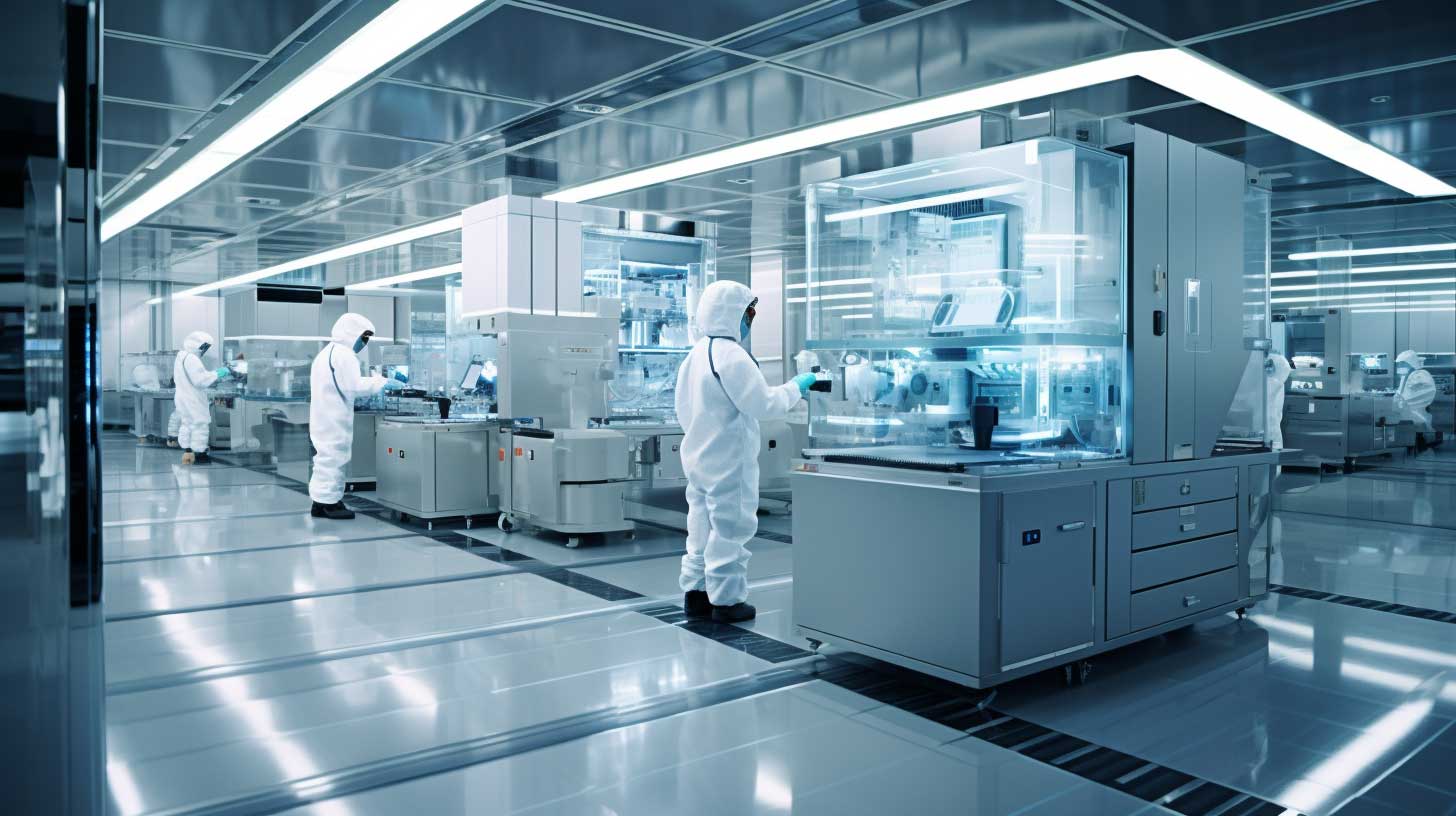

Factory Tour: A Journey into Innovation

Embarking on a factory tour with DisplayMan is a step into a world of innovation and precision. The journey begins with conceptualization, where ideas take tangible form.

Excellence in Every Display

The commitment to quality extends to every OLED display that leaves the factory. Each unit is a testament to DisplayMan's dedication to excellence, ensuring that customers receive top-tier products.

Meticulous Design Process

As ideas transform into reality, meticulously designed displays come to life. Every detail is considered, from aesthetics to functionality, resulting in captivating displays that engage the eye.

Stringent Industry Benchmarks

DisplayMan's commitment to quality is fortified by adherence to stringent industry benchmarks. This commitment guarantees that every display not only meets but surpasses industry standards.

Vigilant Quality Control

Quality is a cornerstone at DisplayMan. Vigilant quality control measures are integrated at every stage of production. Each display undergoes rigorous scrutiny to meet exacting standards.

Harmonizing the Symphony: Client-Supplier Collaboration

In the symphony of client-supplier collaboration, DisplayMan orchestrates harmony by placing communication, collaboration, and support at the heart of their approach. This not only creates exceptional displays but also nurtures enduring partnerships that stand the test of time.

Collaboration's Crucial Role

In the world of technology, collaboration stands as the vital bridge between innovation and real-world application. It's the conduit that transforms ideas into tangible solutions.

Cornerstone of Success: Communication

Communication emerges as the bedrock of success in the client-supplier relationship. Open and effective communication ensures that visions are aligned and objectives are clear.

Nurturing Client Visions

DisplayMan's ethos is built on nurturing communication. They go beyond understanding client visions; they elevate them through seamless interaction, adding their expertise to enhance ideas.

Iterative Evolution through Feedback

The feedback loop is a powerful tool for improvement. DisplayMan embraces this loop, using feedback as a catalyst for iterative evolution. This ensures that displays are continuously refined to surpass expectations.

Unwavering Post-Sale Support

DisplayMan's commitment extends well beyond the point of sale. Their dedication to clients remains steadfast through unwavering post-sale support, ensuring that relationships are nurtured long after installation.

Tutorial Videos

Explore the world of OLED displays with DisplayMan’s captivating tutorial videos. Dive into the future of visual technology as we unravel the wonders of OLED, demystifying its inner workings and revealing the mesmerizing art of OLED color emission.

Tutorial: Dr Pan Teaches Why OLED is The Future Display

Tutorial: Dr Pan Teaches How Monochrome OLED Works

Tutorial: Dr Pan Teaches How OLED Emits Colorful Light

Pioneering OLED Excellence

In a landscape adorned with displays that paint the canvas of our digital existence, DisplayMan emerges as a trailblazer in the OLED arena. Their specialization in OLED displays transcends mere technology, encompassing superior visual quality, energy efficiency, and a spectrum of customization options. OLED technology’s all-encompassing applications, from automotive to medical, industrial to consumer electronics, affirm its position as a relentless force propelling innovation. DisplayMan’s commitment to excellence, collaborative spirit, and unwavering quality assurance solidify their role as not just a supplier, but a beacon of transformation in the world of displays.
