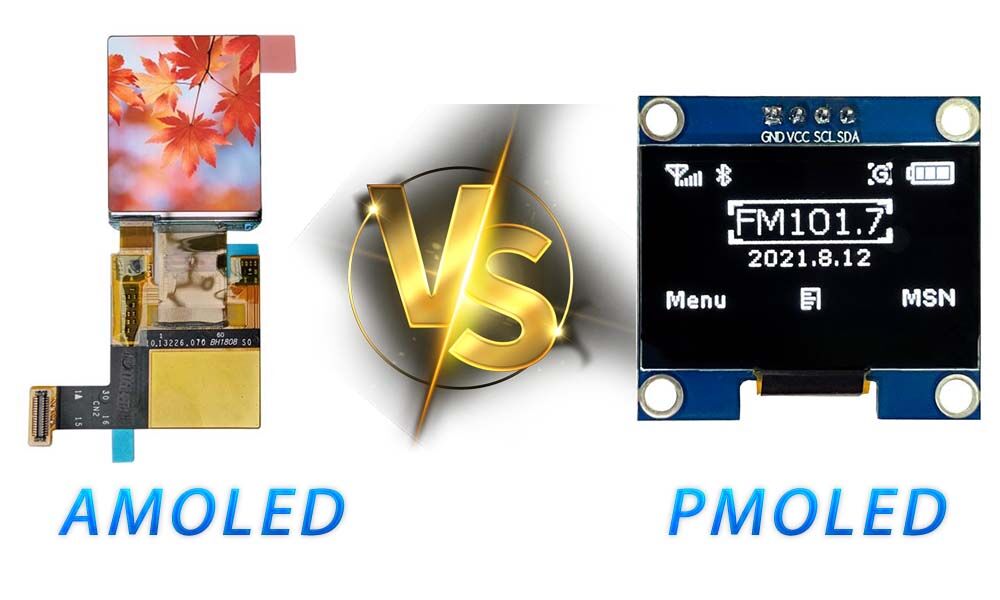

AMOLED vs PMOLED: Differences & OEM Selection Guide

OLED, AMOLED and PMOLED: What Do the Names Mean?

OLED stands for organic light-emitting diode. Its organic emissive layers produce light when electrically driven. It is not a liquid-crystal display, a laser display or a conventional LED backlight.

AMOLED means active-matrix OLED; PMOLED means passive-matrix OLED. Both are OLED architectures. The distinction is how the emitting pixels are addressed and driven, not whether the display is “real OLED.”

Keep four separate questions in an OEM specification: the drive architecture, the color capability, the pixel or segment layout, and the mechanical/optical construction. “OLED,” “monochrome,” “flexible” and “transparent” do not describe the same property.

For background, see OLED History and the OLED Manufacturing Process.

How Does PMOLED Work?

A passive-matrix display addresses an array through row and column electrodes. Rows are selected in sequence, and the column drive determines which intersections emit light during the selected interval. The panel does not have an active TFT drive circuit at every emitting subpixel.

For a simple idealized scan, increasing the number of multiplexed rows reduces the fraction of a frame available to each row. Maintaining average luminance can then require higher instantaneous emission, subject to the panel and driver limits. This is a key reason that resolution, brightness and scan duty must be evaluated together.

The useful result is a relatively simple panel architecture suited to compact text, icons and moderate-complexity graphics. The practical constraints are not captured by saying that PMOLED is inherently “slow.” Content-update speed also depends on the controller, interface bandwidth and firmware.

A PMOLED module may include display memory, a controller, drive circuitry and power conversion. “Passive matrix” does not mean it can be connected directly to arbitrary microcontroller pins without a suitable driver.

How Does AMOLED Work?

AMOLED uses a TFT backplane with pixel circuits that set and maintain the drive state between programming events. A simplified explanation uses switching and drive transistors plus a storage capacitor; practical pixel circuits can include additional transistors and compensation functions.

This architecture supports high pixel counts and complex full-color content without relying on the same row-emission duty arrangement as a basic passive-matrix panel. It is useful for detailed interfaces, images and video.

An AMOLED panel is still an array of OLED emitters. The TFT circuitry controls their current; it does not turn the OLED itself into a transistor. Panel backplanes and compensation methods vary, so do not assume that every AMOLED module uses the same materials or circuit.

Active-matrix operation also does not guarantee completely steady optical output. Brightness control and emission timing depend on the product. Review OLED Flicker: PWM, DC Dimming & OEM Testing if temporal behavior matters to the application.

AMOLED vs PMOLED: Practical Comparison

These are selection tendencies, not universal product limits. Do not impose an arbitrary five-inch ceiling on every PMOLED design or assume that every AMOLED is flexible, transparent or suitable for outdoor use.

When Should an OEM Choose PMOLED?

Start with PMOLED when the interface consists mainly of short labels, measurements, simple icons or status graphics and an available module satisfies the visual and electrical requirements.

Potential applications include compact instruments, audio equipment, handheld controls and small equipment interfaces. A low pixel count can reduce framebuffer and communication demands, but calculate them for the chosen resolution and update rate.

Evaluate character height at the actual viewing distance. A high-contrast image can still be hard to read if the text is too small. Check the window opening, viewing direction, front cover and ambient reflections with the real interface.

Choose a standard PMOLED Display where possible before requesting a new panel. Confirm controller availability, command set, module revision and supply continuity rather than selecting solely by diagonal size.

When Should an OEM Choose AMOLED?

Start with AMOLED when the project needs a detailed color interface, photographs, smoother visual transitions or a higher pixel count than an appropriate standard PMOLED can provide.

The display and the host system must be selected together. Check whether the processor can support the module’s interface, pixel format, timing, initialization and required bandwidth. A visually suitable panel can still require a separate controller or a host redesign.

Confirm touch integration, cover-glass geometry, connector orientation, power rails, startup/shutdown sequencing and mechanical support. A phone-derived module should not be assumed to meet an industrial operating schedule or lifecycle requirement without qualification.

Explore AMOLED Displays for suitable full-color module directions. For curved structures, see Flexible OLED Displays; permitted bend radius and repeated-flex capability must be checked for the exact product.

PMOLED, Monochrome and Segment Displays Are Different Terms

PMOLED does not mean segment display, and AMOLED does not simply mean color OLED. A dot-matrix display forms content on a pixel grid; a segment or custom-icon layout has predefined emitting shapes. Monochrome describes color capability, not the addressing architecture.

A driver datasheet may call column outputs “segment” outputs even when the module is a dot-matrix graphic display. That terminology does not mean the visible panel contains only fixed digits or icons.

When making an enquiry, send the intended layout or interface screenshot. State whether you need arbitrary graphics, fixed symbols, one emission color, multiple fixed colors or independently addressable RGB color.

For a transparent logo, symbol or status window, discuss the visual requirement first rather than assuming that a standard rectangular PMOLED can be converted into the desired custom shape.

Which Uses Less Power and Lasts Longer?

Neither architecture wins every power comparison. OLED power depends on the emitting area and its luminance, the displayed colors, drive settings and electronics. A sparse status interface and a mostly white full-screen interface are very different loads.

Compare complete modules using representative content at the required brightness. Include idle, active and sleep states, power-conversion losses and the actual operating schedule. Two slider settings labelled “50%” are not an equal-luminance comparison.

Both PMOLED and AMOLED use organic emitters that can age. Static content, temperature and drive conditions matter. Do not assign either technology a guaranteed lifetime solely from its name, or treat a quoted lifetime as a promise of no image change.

Ask what the lifetime specification measures, under which temperature, content and drive conditions, and at what remaining-luminance criterion. For long-running fixed labels, assess differential aging and possible interface mitigation during sample approval. Read OLED Burn-In and How to Reduce It for a separate discussion.

Interfaces, Drivers and Mechanical Integration

Some PMOLED modules support interfaces such as SPI, I²C or parallel buses; some AMOLED modules use MIPI DSI or other display interfaces. These are product examples, not rules that define the architectures.

A matching connector or similar outline does not establish compatibility. Replacing PMOLED with AMOLED can require changes to firmware, power, PCB layout and mechanics. Validate the exact module before committing to tooling.

Standard Modules, Custom OLED and Small Transparent Displays

Separate three project scopes:

1. Standard module selection: choose an existing panel and module platform that meets the requirement.
2. Integration around an existing platform: review feasible FPC, connector, cover glass, touch or controller changes. These options depend on the platform and commercial volume.
3. New panel development: a new active area, emitting layout, substrate geometry or panel architecture can require significant engineering, tooling, qualification and minimum order commitments.

A module-level change is not the same as creating a new OLED panel. An unusual shape, transparent area or custom segment layout should be reviewed before assuming that standard products can provide it.

For a small see-through interface, consider Custom Small-Size Transparent OLED Displays. This is a separate optical and mechanical requirement, not an automatic upgrade from ordinary PMOLED or AMOLED. Review background visibility, content legibility, routing, sample availability and development scope together.

DisplayMan can help route the enquiry toward an available module or a feasible development path. MOQ, engineering charges and lead time must be confirmed for the actual scope; do not infer stock availability from a concept image.

OEM Enquiry and Sample Approval Checklist

Send these requirements before requesting a quotation:

• Application, viewing distance and representative content or interface screenshots.
• Required active area, outline limits, orientation and FPC/connector direction.
• Resolution, text size, monochrome/full-color needs and update behavior.
• Indoor or outdoor environment, required luminance and front-glass arrangement.
• Daily operating hours, static-content exposure, temperature range and target service conditions.
• Host processor, interface, supply rails and firmware resources.
• Touch, transparency, flexibility or special mechanical requirements.
• Sample quantity, production quantity, annual demand and schedule.

Approve the sample with actual content on the intended electronics. Check readability, low-gray appearance, brightness range, temporal behavior if relevant, power consumption and mechanical installation. Record the approved module revision and inspection conditions for production.

For a wider technology comparison, see LCD vs OLED Displays. OLED should be chosen because it fits the complete project, not simply because it is described as a more advanced technology.

Frequently Asked Questions

Is AMOLED better than OLED?

AMOLED is a type of OLED. Compare AMOLED with PMOLED or compare a specific OLED module with another display technology; AMOLED and OLED are not mutually exclusive categories.

Can PMOLED display color or animation?

Color implementations exist, and suitable PMOLED modules can update graphics. Confirm resolution, controller functions, interface bandwidth and the desired frame behavior. Passive-matrix addressing should not be confused with inherently slow emitter response.

Is PMOLED obsolete?

No. It remains a useful direction for compact interfaces when an available module meets the content, optical and integration requirements. It is not the default choice for every high-resolution application.

Does AMOLED guarantee better color accuracy?

No. Color accuracy depends on the panel, calibration, processing and operating mode. A vivid image is not necessarily an accurate one; evaluate the actual module with the intended content.

Can the same PCB drive PMOLED and AMOLED?

Only if it was designed for the exact electrical and software requirements of both modules. Assume that substitution requires a compatibility review, not just a connector check.

Can either architecture be transparent or flexible?

Specific products can use those constructions. Confirm the exact panel’s optical and mechanical specifications; the addressing acronym alone does not establish transparency, bending capability or availability.
